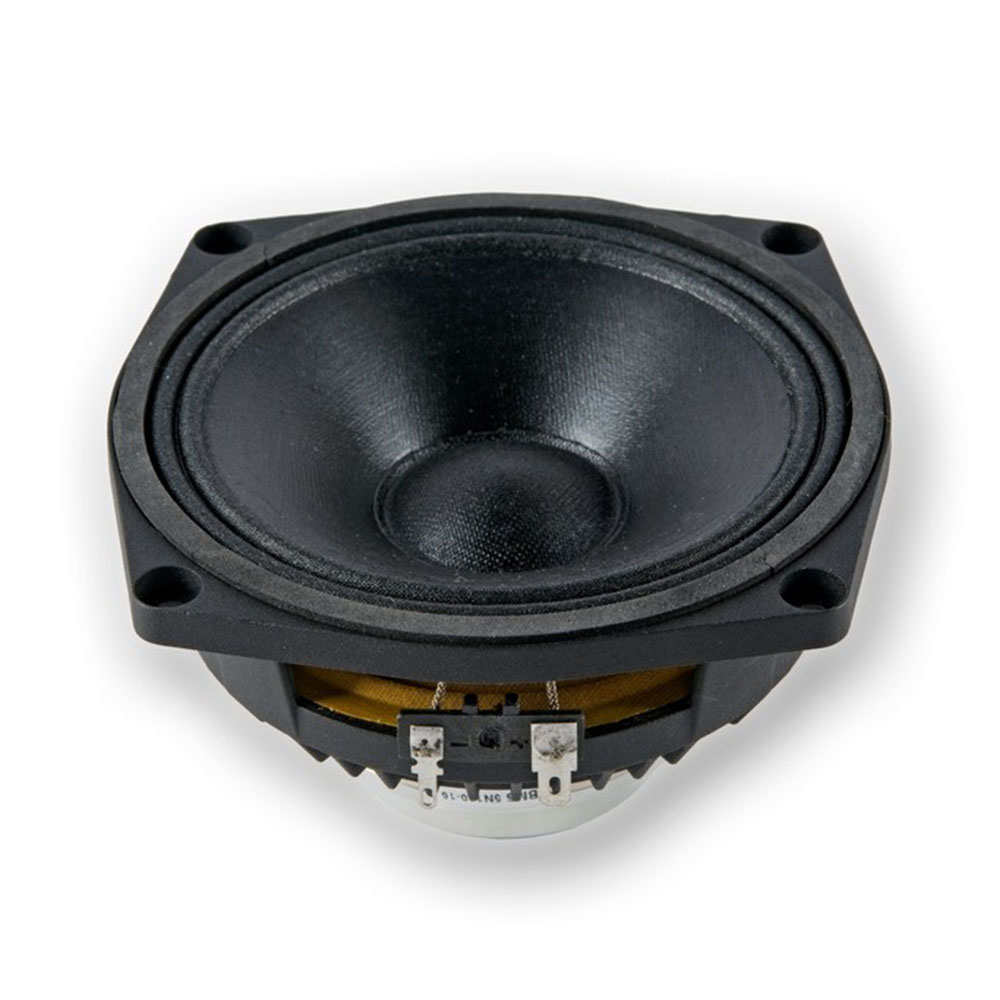

Product typeLoudspeaker ChassisTypePANominal Diameter5 ", 130 mmVoice Coil1.5 ", 38 mmOverall diameter128 mmPitch Circle Diameter139 mmCut- out Measurement117 mmMounting holes4Diameter of fixing holes5.3 mmDepth79.5 mmNominal Impedance8 Ohm(s)Nominal Load Capacity130 Wmaximum rated load260 WSensitivity (1 W / 1 m)91 dBFrequency response80 - 4000 HzVoice Coil MaterialcopperMagnetNeodymiumDepth of the magnetic gap5 mmThiele & Small ParameterFs (Resonance Frequency)113 HzRe (DC resistance)11.4 Ohm(s)Qms (mechanical quality)2.4Le (inductance of the voice coil)0.51 mHQes (electrical quality)0.52Qts (overall quality)0.43Vas (equivalent volume)2.57Mms (moving mass)8.3 gBL (power factor)11.3 T/mXmax (maximum displacement)± 5 mmCms (elasticity of the suspension)0.24 mm/NSd (membrane area)850 cm2Weight0,85 kg
