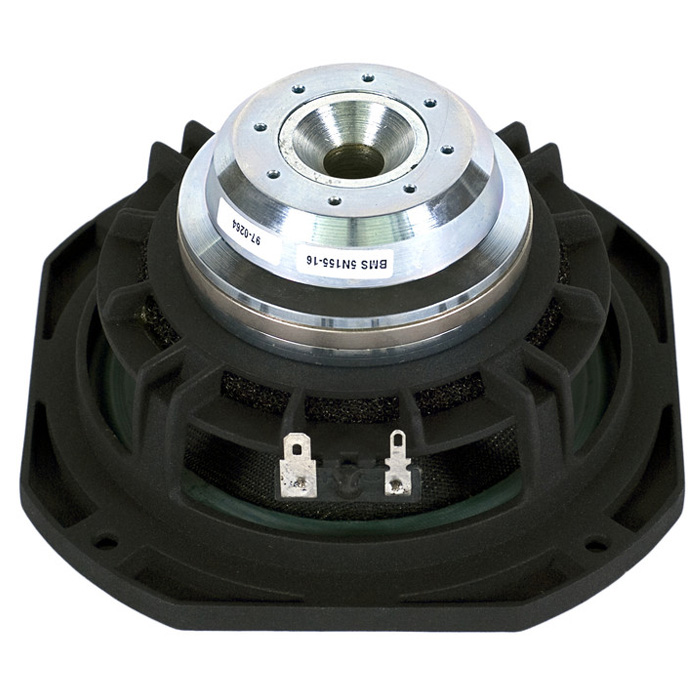

Product typeLoudspeaker ChassisTypePANominal Diameter5 ", 130 mmVoice Coil1.5 ", 38 mmOverall diameter135 x 135 mmPitch Circle Diameter139 mmCut- out Measurement117 mmMounting holes4Diameter of fixing holes5.3 mmDepth71 mmNominal Impedance16 Ohm(s)Nominal Load Capacity130 Wmaximum rated load260 WSensitivity (1 W / 1 m)91 dBFrequency response80 - 4000 HzVoice Coil MaterialcopperMagnetNeodymiumDepth of the magnetic gap5 mmThiele & Small ParameterFs (Resonance Frequency)100.6 HzRe (DC resistance)11.65 Ohm(s)Qms (mechanical quality)4.17Le (inductance of the voice coil)1.07 mHQes (electrical quality)0.49Qts (overall quality)0.44Vas (equivalent volume)2.63Mms (moving mass)9.6 gBL (power factor)12 T/mXmax (maximum displacement)± 5 mmCms (elasticity of the suspension)0.26 mm/NSd (membrane area)850 cm2Weight0,86 kg
