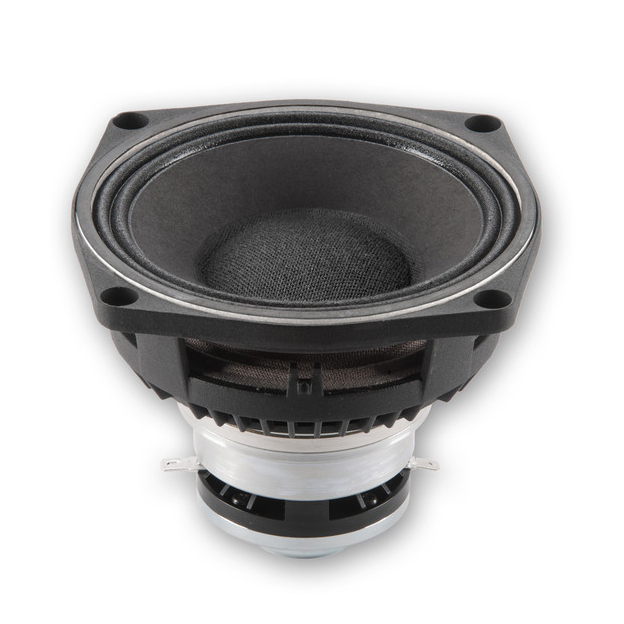

Product typeLoudspeaker ChassisTypePALoudspeaker dimensions5 "Loudspeaker dimensions (mm)130 mmOverall diameter128 mmPitch Circle Diameter139 mmCut- out Measurement117 mmMounting holes4Diameter of fixing holes5.3 mmTotal depth104 mmWeight0,96 kgNominal impedance8 Ohm(s)RMS130 WSensitivity (1 W / 1 m)90 dBFrequency response80 - 20.000 HzWoofer characteristicsWoofer voice coil1.5 "Woofer voice coil (mm)38 mmVoice Coil Material WoofercopperWoofer magnetNeodymiumMagnetic gap depth Woofer5 mmThiele & Small ParameterFs (Resonance Frequency)100 HzRe (DC resistance)6.85 Ohm(s)Qms (mechanical quality)3.1Le (inductance of the voice coil)0.39 mHQes (electrical quality)0.41Qts (overall quality)0.36Vas (equivalent volume)2.1 lMms (moving mass)9 gBL (power factor)10 T/mXmax (maximum displacement)5 mmCms (elasticity of the suspension)0.27 mm/NSd (membrane area)75 cm2HF Driver characteristicsHF driver voice coil1.5 "HF Driver Voice Coil38 mmNominal Impedance HF driver8 Ohm(s)Nominal Load HF driver25 WMaximum Load HF driver200 WSensitivity HF driver (1 W / 1 m)110 dBFrequency range HF driver1.200 - 20.000 Hzrecommended crossover frequency HF driver1.700 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverpolyesterHF driver magnetNeodymiumDispersion (H x V)90
