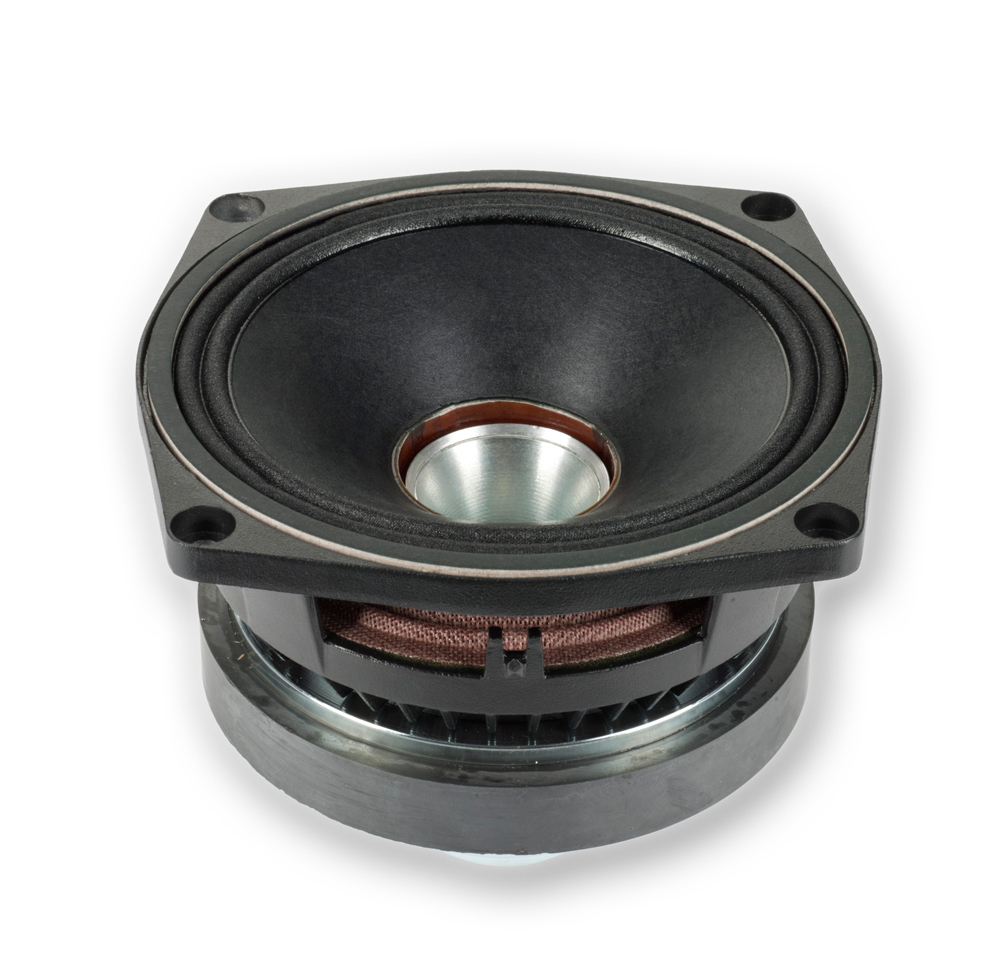

Product typeLoudspeaker ChassisTypePALoudspeaker dimensions5 "Loudspeaker dimensions (mm)127 mmOverall diameter128 x 128 mmPitch Circle Diameter139 mmCut- out Measurement117 mmMounting holes4Diameter of fixing holes5.3 mmTotal depth102 mmWeight1,8 kgNominal impedance8 + 16 Ohm(s)RMS130 WSensitivity (1 W / 1 m)90 dBFrequency response80 - 20000 HzWoofer characteristicsWoofer voice coil1.5 "Woofer voice coil (mm)38 mmVoice Coil Material WoofercopperWoofer magnetNeodymiumMagnetic gap depth Woofer5 mmThiele & Small ParameterFs (Resonance Frequency)99.4 HzRe (DC resistance)11.9 Ohm(s)Qms (mechanical quality)3.8Qes (electrical quality)0.48Qts (overall quality)0.43Vas (equivalent volume)2.4 lMms (moving mass)8 gBL (power factor)11.4 T/mXmax (maximum displacement)+/- 5 mmCms (elasticity of the suspension)0.3 mm/NSd (membrane area)75 cm2HF Driver characteristicsHF driver voice coil1 "HF Driver Voice Coil25.4 mmNominal Impedance HF driver16 Ohm(s)Nominal Load HF driver25 WMaximum Load HF driver100 WSensitivity HF driver (1 W / 1 m)110 dBFrequency range HF driver1200 - 20000 Hzrecommended crossover frequency HF driver> 1500 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverpolyesterHF driver magnetNeodymium
