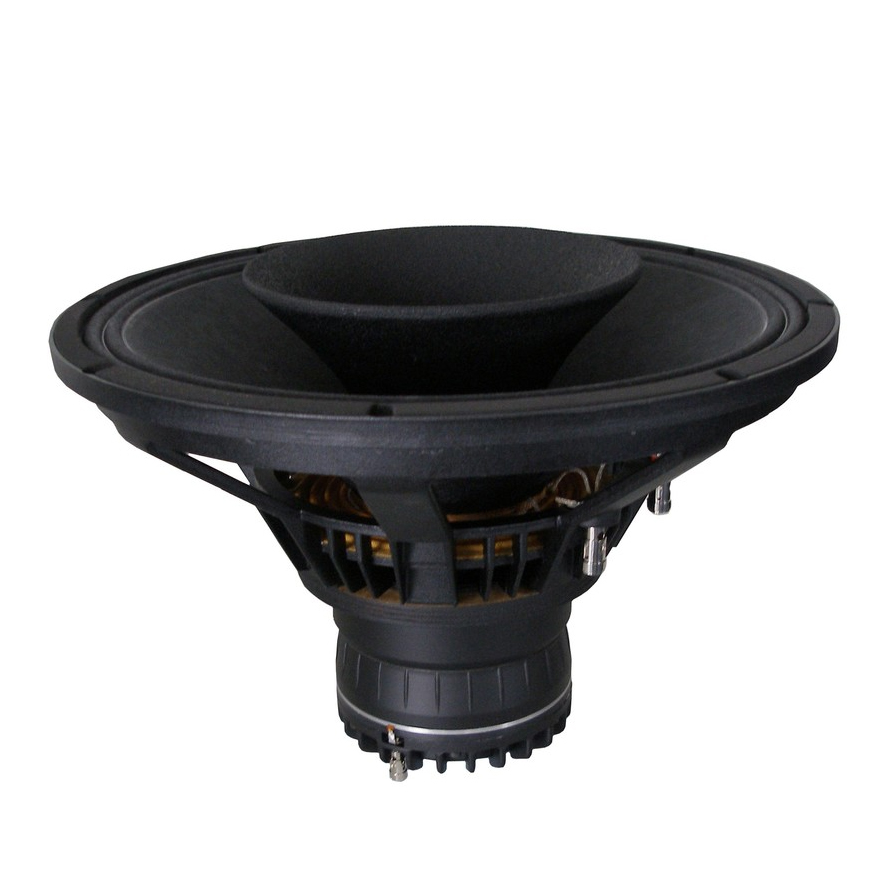

BMS 15 CN 860 H - 15" Triaxial Neodymium Speaker 1000 W + 150 W + 80 W 16 Ohms

Product typeLoudspeaker ChassisTypePALoudspeaker dimensions15 "Loudspeaker dimensions (mm)381 mmOverall diameter388 mmPitch Circle Diameter371 mmCut- out Measurement358 mmMounting holes8Diameter of fixing holes7Total depth292 mmWeight9 kgNominal impedance16 Ohm(s)RMS1000 WSensitivity (1 W / 1 m)98 dBFrequency response40 - 22000 HzWoofer characteristicsWoofer voice coil4 "Woofer voice coil (mm)101.6 mmVoice Coil Material WoofercopperWoofer magnetNeodymiumMagnetic gap depth Woofer10 mmThiele & Small ParameterFs (Resonance Frequency)46 HzRe (DC resistance)5.7 Ohm(s)Qms (mechanical quality)3.5Le (inductance of the voice coil)0.8 mHQes (electrical quality)0.3Qts (overall quality)0.27Vas (equivalent volume)102 lMms (moving mass)106 gBL (power factor)24.28 T/mXmax (maximum displacement)± 6 mmCms (elasticity of the suspension)0.113 mm/NSd (membrane area)804 cm2Features Midrange driverMidrange voice coil3.5 ", 90 mmNominal Impedance Midrange16 Ohm(s)Nominal Load Midrange150 WMaximum Load Midrange1000 WSensitivity Midrange (1 W / 1 m)113 dBFrequency range Midrange700 - 7000 Hzrecommended crossover frequency Midrange800 HzVoice Coil Carrier MidrangeKaptonDiaphragm material MidrangepolyesterMidrange magnetNeodymiumHF Driver characteristicsHF driver voice coil1.75 "HF Driver Voice Coil44.4 mmNominal Impedance HF driver16 Ohm(s)Nominal Load HF driver80 WMaximum Load HF driver320 WSensitivity HF driver (1 W / 1 m)113 dBFrequency range HF driver6000 - 22000 Hzrecommended crossover frequency HF driver6300 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverpolyesterHF driver magnetNeodymiumDispersion (H x V)60 x 60...Product typeLoudspeaker ChassisTypePALoudspeaker dimensions15 "Loudspeaker dimensions (mm)381 mmOverall diameter388 mmPitch Circle Diameter371 mmCut- out Measurement358 mmMounting holes8Diameter of fixing holes7Total depth292 mmWeight9 kgNominal impedance16 Ohm(s)RMS1000 WSensitivity (1 W / 1 m)98 dBFrequency response40 - 22000 HzWoofer characteristicsWoofer voice coil4 "Woofer voice coil (mm)101.6 mmVoice Coil Material WoofercopperWoofer magnetNeodymiumMagnetic gap depth Woofer10 mmThiele & Small ParameterFs (Resonance Frequency)46 HzRe (DC resistance)5.7 Ohm(s)Qms (mechanical quality)3.5Le (inductance of the voice coil)0.8 mHQes (electrical quality)0.3Qts (overall quality)0.27Vas (equivalent volume)102 lMms (moving mass)106 gBL (power factor)24.28 T/mXmax (maximum displacement)± 6 mmCms (elasticity of the suspension)0.113 mm/NSd (membrane area)804 cm2Features Midrange driverMidrange voice coil3.5 ", 90 mmNominal Impedance Midrange16 Ohm(s)Nominal Load Midrange150 WMaximum Load Midrange1000 WSensitivity Midrange (1 W / 1 m)113 dBFrequency range Midrange700 - 7000 Hzrecommended crossover frequency Midrange800 HzVoice Coil Carrier MidrangeKaptonDiaphragm material MidrangepolyesterMidrange magnetNeodymiumHF Driver characteristicsHF driver voice coil1.75 "HF Driver Voice Coil44.4 mmNominal Impedance HF driver16 Ohm(s)Nominal Load HF driver80 WMaximum Load HF driver320 WSensitivity HF driver (1 W / 1 m)113 dBFrequency range HF driver6000 - 22000 Hzrecommended crossover frequency HF driver6300 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverpolyesterHF driver magnetNeodymiumDispersion (H x V)60 x 60
