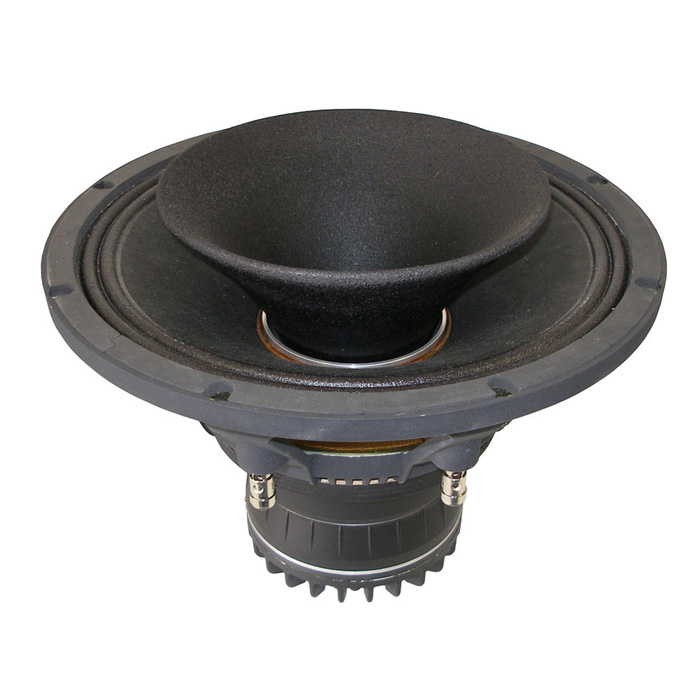

BMS 12 CN 860 L - 12" Trojosový neodymový reproduktor 800 W + 150 W + 80 W 8 ohmov

Product typeLoudspeaker ChassisTypePALoudspeaker dimensions12 "Loudspeaker dimensions (mm)305 mmOverall diameter318 mmPitch Circle Diameter300 mmCut- out Measurement283 mmMounting holes8Diameter of fixing holes7 mmTotal depth263 mmWeight8,55 kgNominal impedance8 Ohm(s)RMS800 WSensitivity (1 W / 1 m)97 dBFrequency response40 - 22.000 HzWoofer characteristicsWoofer voice coil4 "Woofer voice coil (mm)101.6 mmVoice Coil Material WoofercopperWoofer magnetNeodymiumMagnetic gap depth Woofer10 mmThiele & Small ParameterFs (Resonance Frequency)41.6 HzRe (DC resistance)5.7 Ohm(s)Qms (mechanical quality)4.5Le (inductance of the voice coil)0.89 mHQes (electrical quality)0.17Qts (overall quality)0.16Vas (equivalent volume)62.1 lMms (moving mass)66 gBL (power factor)24.46 T/mXmax (maximum displacement)± 4.5 mmCms (elasticity of the suspension)0.221 mm/NSd (membrane area)449 cm2Features Midrange driverMidrange voice coil3.5 ", 90 mmNominal Impedance Midrange8 Ohm(s)Nominal Load Midrange150 WMaximum Load Midrange1.000 WSensitivity Midrange (1 W / 1 m)113 dBFrequency range Midrange700 - 7.000 Hzrecommended crossover frequency Midrange800 HzVoice Coil Carrier MidrangeKaptonDiaphragm material MidrangepolyesterMidrange magnetNeodymiumHF Driver characteristicsHF driver voice coil1.75 "HF Driver Voice Coil44.4 mmNominal Impedance HF driver8 Ohm(s)Nominal Load HF driver80 WMaximum Load HF driver320 WSensitivity HF driver (1 W / 1 m)113 dBFrequency range HF driver6.000 - 22.000 Hzrecommended crossover frequency HF driver6.300 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverpolyesterHF driver magnetNeodymiumDispersion (H x V)60 x 60...Product typeLoudspeaker ChassisTypePALoudspeaker dimensions12 "Loudspeaker dimensions (mm)305 mmOverall diameter318 mmPitch Circle Diameter300 mmCut- out Measurement283 mmMounting holes8Diameter of fixing holes7 mmTotal depth263 mmWeight8,55 kgNominal impedance8 Ohm(s)RMS800 WSensitivity (1 W / 1 m)97 dBFrequency response40 - 22.000 HzWoofer characteristicsWoofer voice coil4 "Woofer voice coil (mm)101.6 mmVoice Coil Material WoofercopperWoofer magnetNeodymiumMagnetic gap depth Woofer10 mmThiele & Small ParameterFs (Resonance Frequency)41.6 HzRe (DC resistance)5.7 Ohm(s)Qms (mechanical quality)4.5Le (inductance of the voice coil)0.89 mHQes (electrical quality)0.17Qts (overall quality)0.16Vas (equivalent volume)62.1 lMms (moving mass)66 gBL (power factor)24.46 T/mXmax (maximum displacement)± 4.5 mmCms (elasticity of the suspension)0.221 mm/NSd (membrane area)449 cm2Features Midrange driverMidrange voice coil3.5 ", 90 mmNominal Impedance Midrange8 Ohm(s)Nominal Load Midrange150 WMaximum Load Midrange1.000 WSensitivity Midrange (1 W / 1 m)113 dBFrequency range Midrange700 - 7.000 Hzrecommended crossover frequency Midrange800 HzVoice Coil Carrier MidrangeKaptonDiaphragm material MidrangepolyesterMidrange magnetNeodymiumHF Driver characteristicsHF driver voice coil1.75 "HF Driver Voice Coil44.4 mmNominal Impedance HF driver8 Ohm(s)Nominal Load HF driver80 WMaximum Load HF driver320 WSensitivity HF driver (1 W / 1 m)113 dBFrequency range HF driver6.000 - 22.000 Hzrecommended crossover frequency HF driver6.300 HzVoice Coil Carrier HF driverKaptonDiaphragm material HF driverpolyesterHF driver magnetNeodymiumDispersion (H x V)60 x 60
