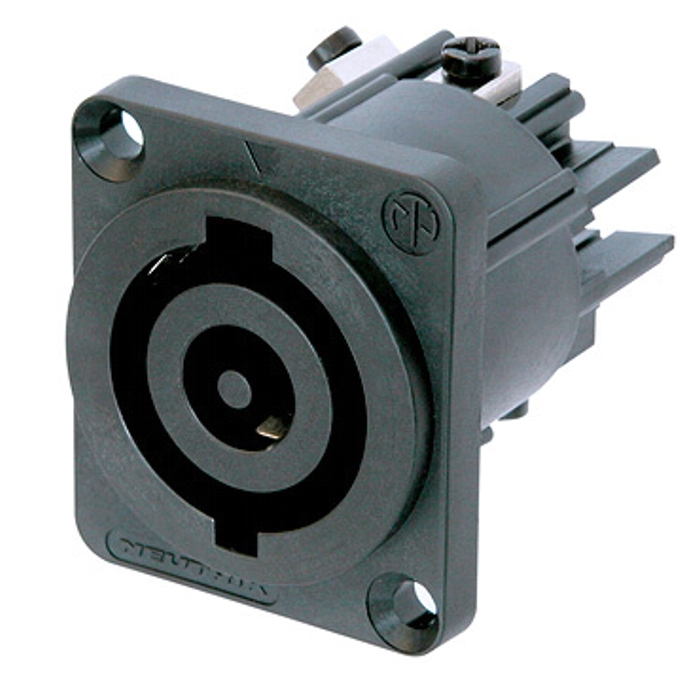

Neutrik C3 MP-HC - PowerCon 32 A konektor chassis
32 A powerCON je extrémne robustný a spoľahlivý uzamykateľný jednofázový káblový konektor AC pre vysokú prúdovú kapacitu (32 A). Je koncipovaný ako neštandardizovaný 3-pólový spojovací systém bez vypínacej kapacity pre potreby vysokovýkonných distribučných systémov a dodávok pre profesionálne audio a osvetľovacie zariadenia a inštalácie. Konektory pozostávajú z kontaktov pre fázové, nulové a ochranné uzemňovacie vodiče dimenzované pre prúdy do 32 A a pre napätie do 250 V.
powerCON 32 A chassis connector, power-inThe 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A ...and for voltages up to 250V.Features & Benefits250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)Premating contact for protective earthFast and easy locking system to prevent unintentional disengagementWiring with screw-type terminals for wires 2.5 to 6.0 mm2 (AWG 14 - 10)Extremely robust and reliableVDE, UL, cUL and JET approved
