Adam Hall Cables K 12 PR - Multicore Cable "Sommer Cable" 12 + 2 Channels black

Balanced, pairs in foil jacket (PIMF) + overall foil shielding Mobile FMC in 12* pairs versionOrder-Code: K12 PR = 12+2 PairAll Multicore Audio pairs are foil wrapped to minimise the cables diameter and price. The compound foil on the pairs will not come apart when heat-shrink is used, but can be easily worked with. The entire cable has a solid but easily removable AL/PT foil and pre-twisted drain wire. All conductors are colour coded.Product advantagesCompact diameterExcellent to work with due to the use of a special AL/PT-foilFlexibleCompetitive pricingAll types marked with a * have two additional channelsImportantA PIMF-cable should always be connected with the central ground to avoid ground contacts.

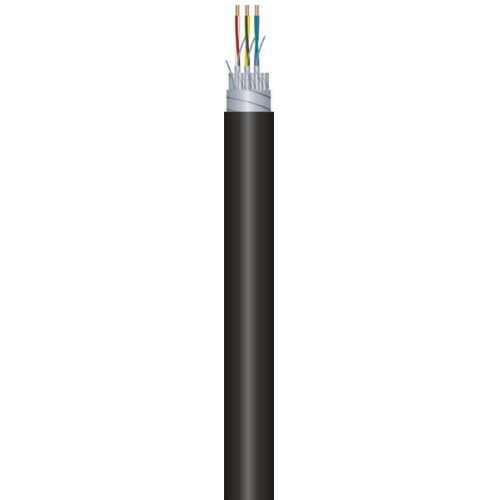

K 12 PR - Multicore Cable
11,28
9,17 € bez DPH
Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typeBulk CableTypeMulticore cableColorBlackOverall diameter12 mmCenter conductor cross section0.22 mm2Center conductor materialcopperCenter conductor construction24 x 0.1 mmNumber of internal conductors28Shield materialFoilShieldtwistedLine resistance< 80 Ohm(s)Capacitance65 pF/mJacket materialPVCWeight0,2 kgAdditional informationInner conductors shielded in pairs
