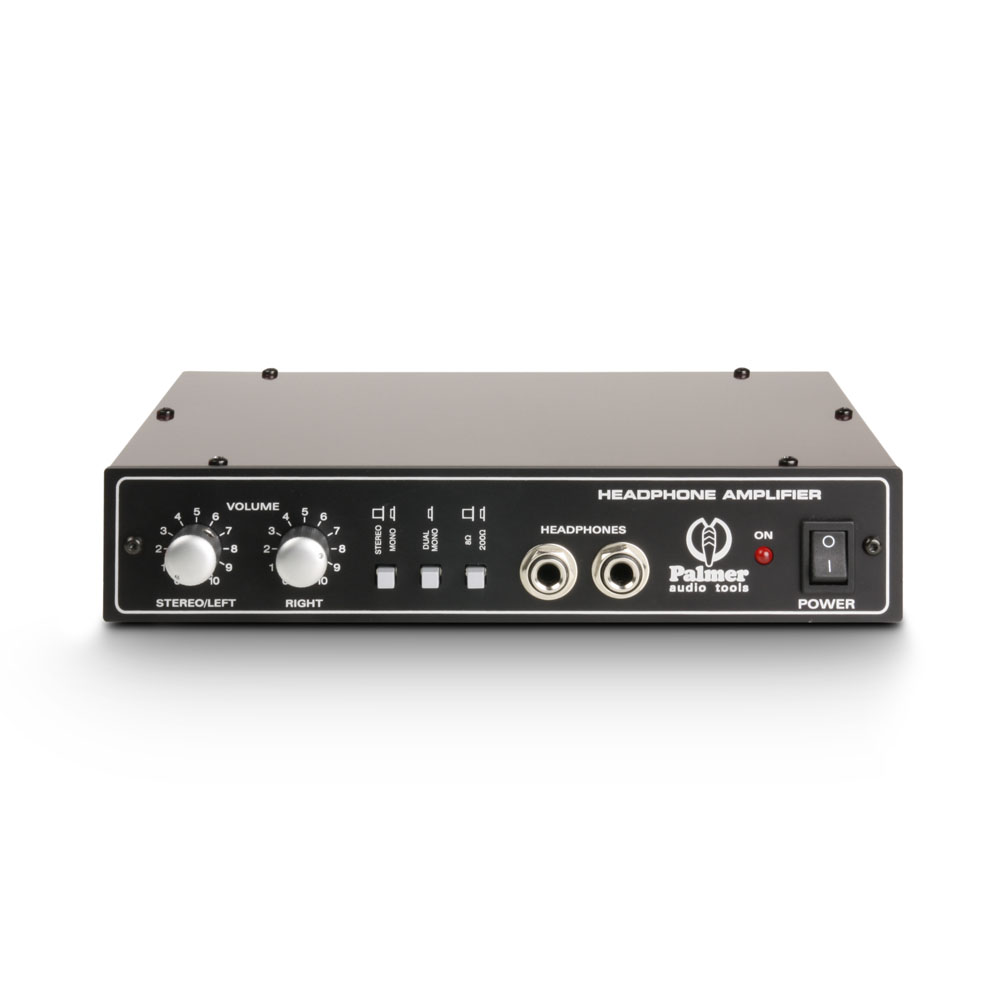

The PHDA02 - a reference class headphone amplifier with Stereo, Mono, and Dual Mono operation modes.

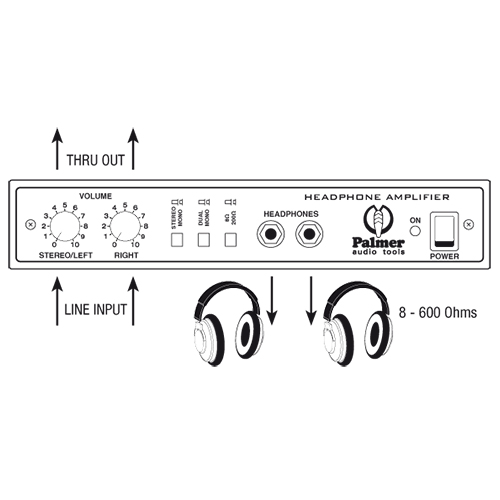

In Stereo mode, the L/R input signal is fed to the left and right earphones while the volume level is set by the Stereo/Left control. The front panel inputs provide simultaneous connection of two headphones in parallel. In Mono mode, the left and right channels are summed, and the resulting mono signal is fed to both the left and right earphones. Again, volume is governed by the Stereo/Left control. In Dual Mono mode, the left and right channels can be used independently with individual level controls for the left and right earphones.
| Product type: Headphone Amp:
| Inputs: 2

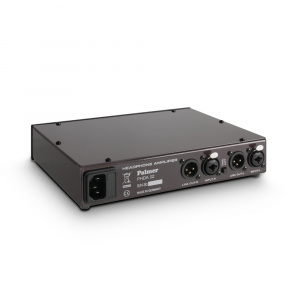

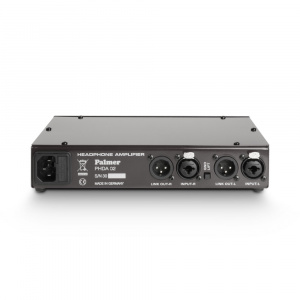

| Input connectors: 6.3 mm jack, XLR
| Input impedance: (balanced) 20 k Ohm(s), (unbalanced) 10 k Ohm(s)
| Outputs: 2
| Output connectors: 6.3 mm jack, XLR
| Power output: 2 x 400 mW
| Minimum connected impedance: 2 x 8 Ohm(s)
| Frequency response: 20 - 20000
| Controls: volume
| Indicators: On
| Power supply: integrated (115 / 230 V)
| Operating voltage: 240 V AC / 50 - 60 Hz
| Cabinet material: sheet steel/aluminium
| Cabinet surface: powder coated/anodized
| Width: 222 mm
| Height: 44 mm
| Depth: 175 mm
| Weight: 1,58 kg |
