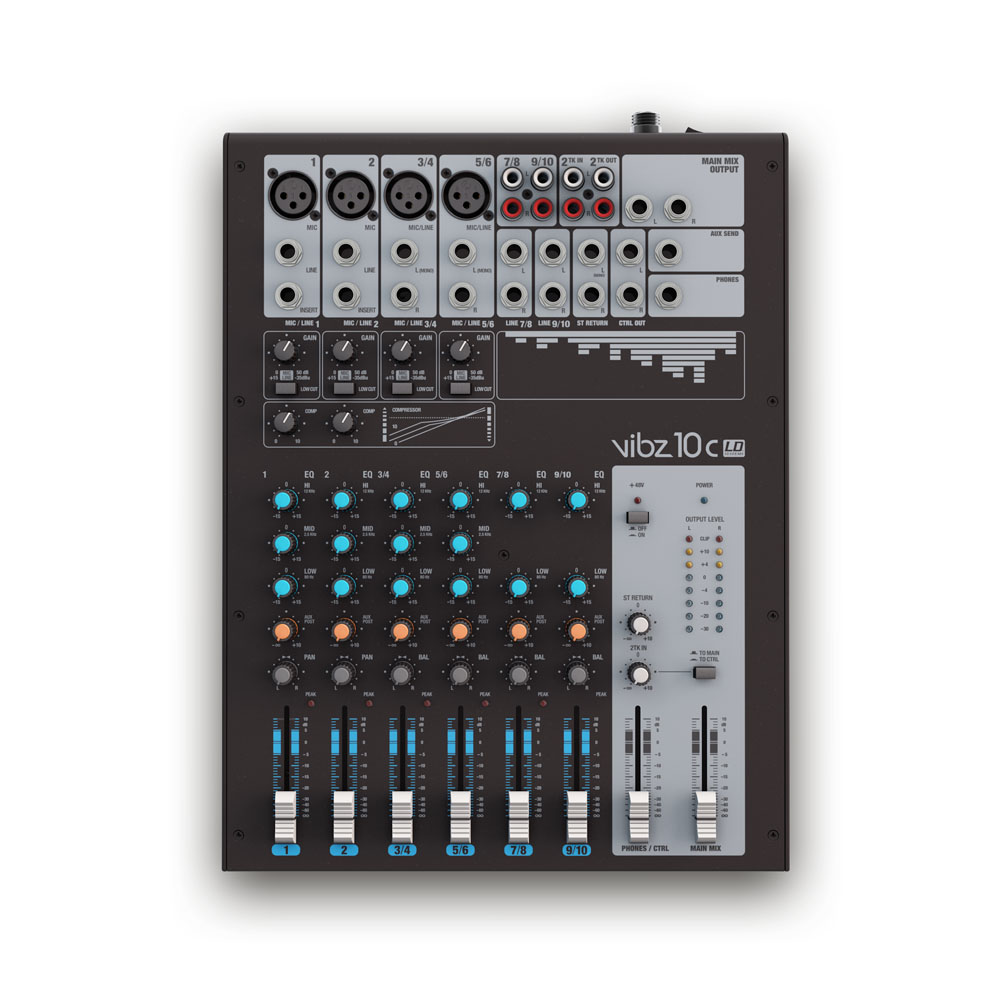

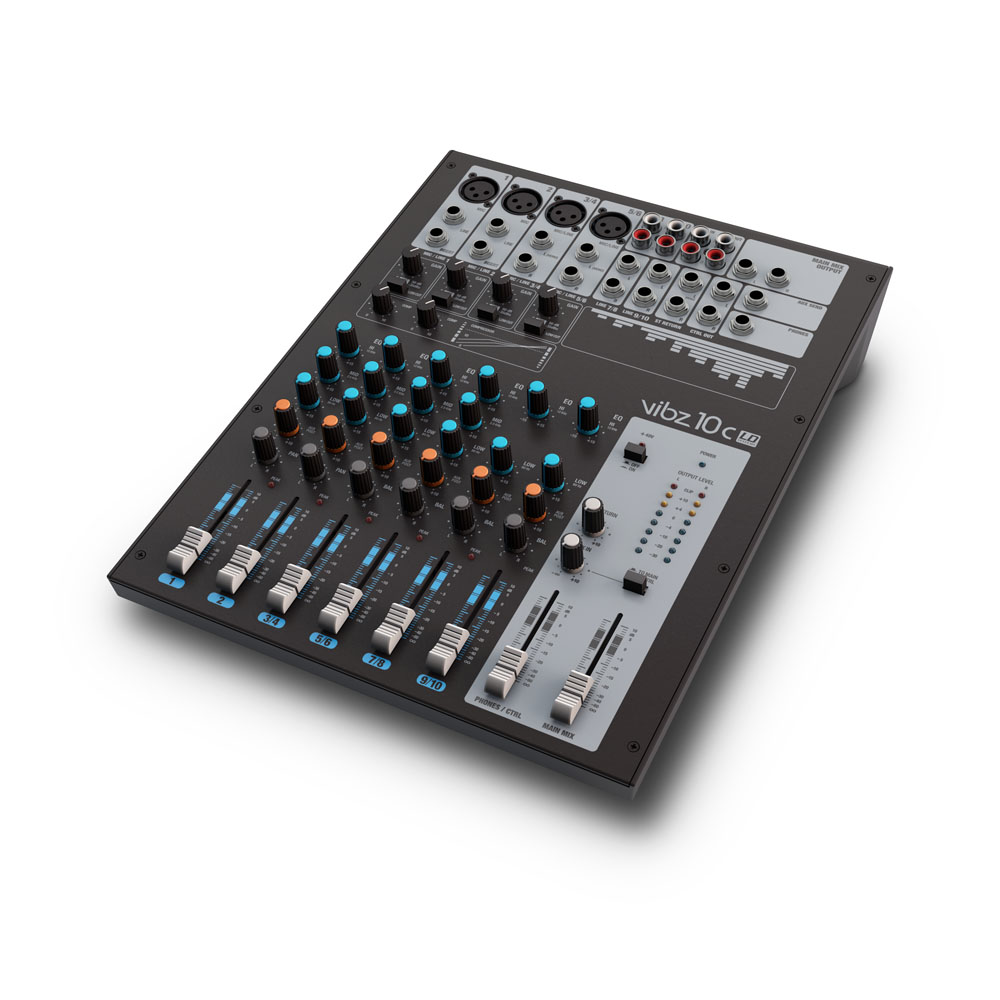

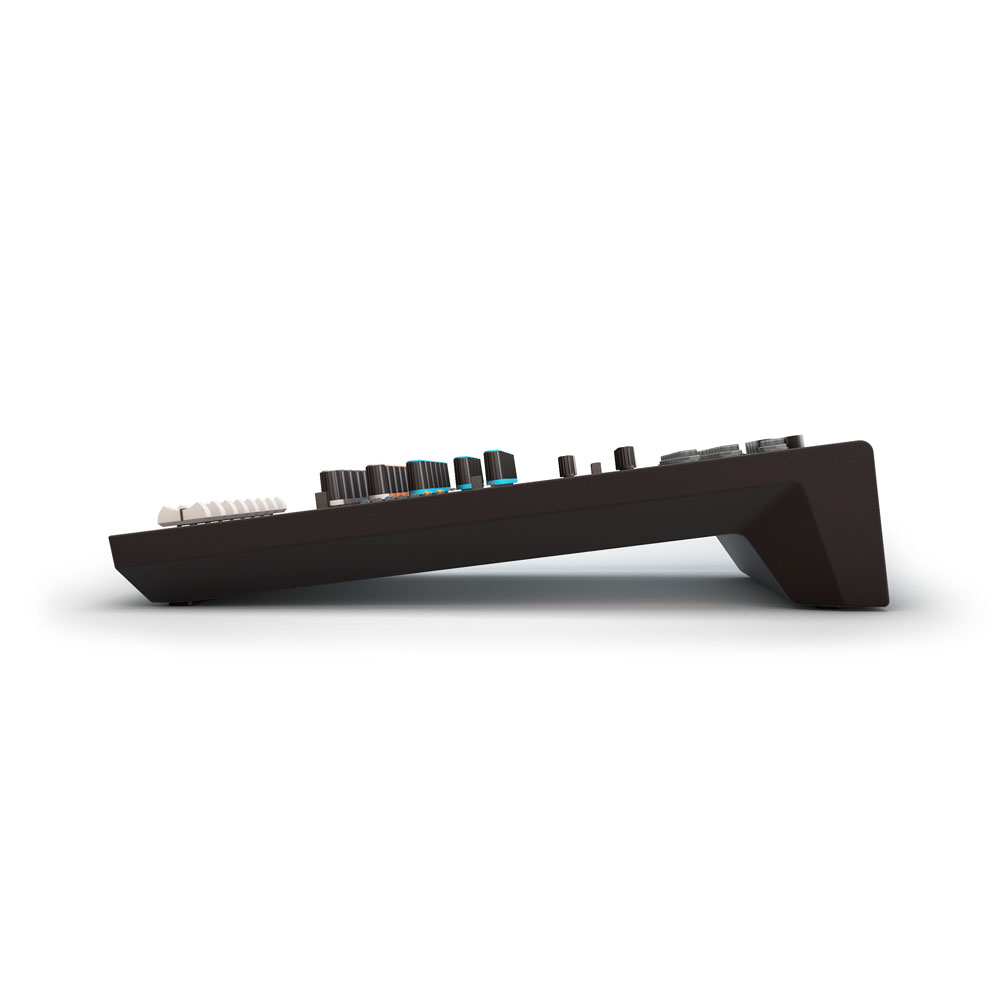

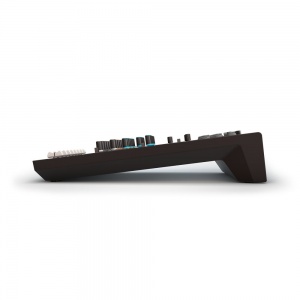

LD Systems VIBZ 10 C - 10 -kanálová mixážna konzola s kompresorom

• 10-kanálový mixér so 4 kanálmi pre mikrofón
• 4 stereo linkové vstupy
• Efektívny 3-pásmový EQ
• 2 stereo kanály s 2-pásmovým EQ
• Posuvne nastaviteľný kompresor
• Výstupy Master, Monitor a slúchadlá
• Bezpečne upevnené externé napájanie
• Šírka 265 mm
• Výška 78 mm
• Hĺbka 352 mm
• Hmotnosť 2,3 kg

Na objednávku

2,30

Hmotnosť

pdf3,68 MB

User´s Manual

CENA:

na dopyt

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

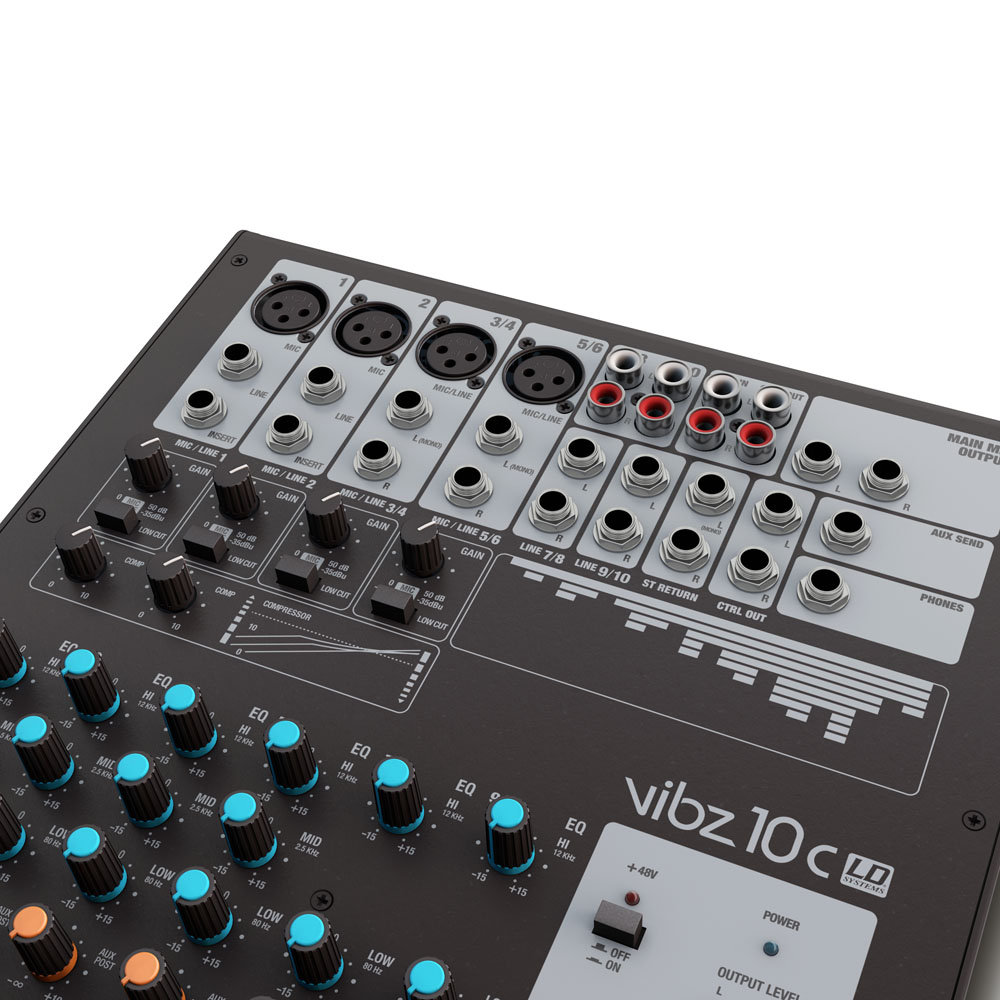

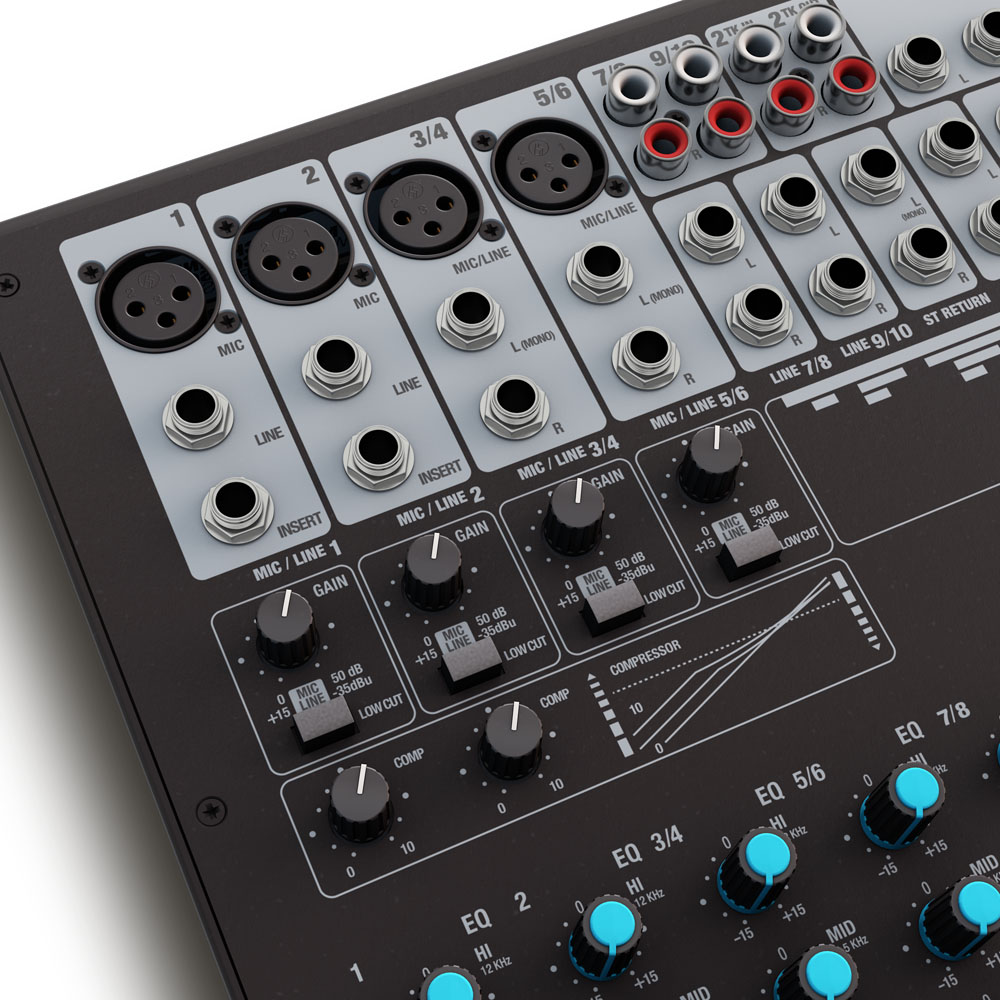

The VIBZ 10 is a versatile mixer with four balanced microphone inputs featuring high quality preamplifiers, a low-cut filter and switchable phantom power. Two microphone inputs are equipped with inserts for individual signal processing, two more can alternatively be used as stereo line channels.
For an effective sound adjustment, the VIBZ 10 has very precise 3-band EQs with conveniently selected mids; two stereo channels can be adjusted with 2-band EQs. The built-in compressor can be continuously adjusted for effective dynamics processing.

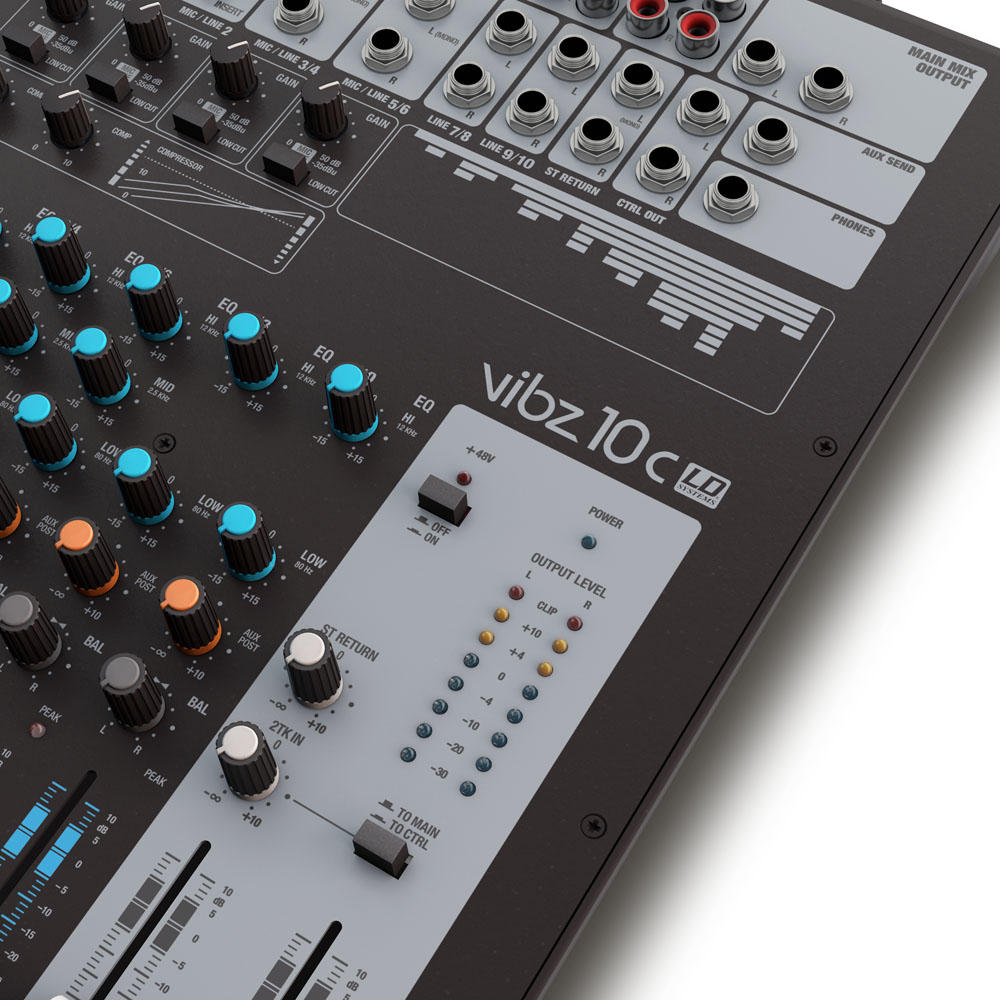

The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 10 also has inputs and outputs for recording and playback devices; the input signal can be set on the master or monitor output and the volume adjusted.

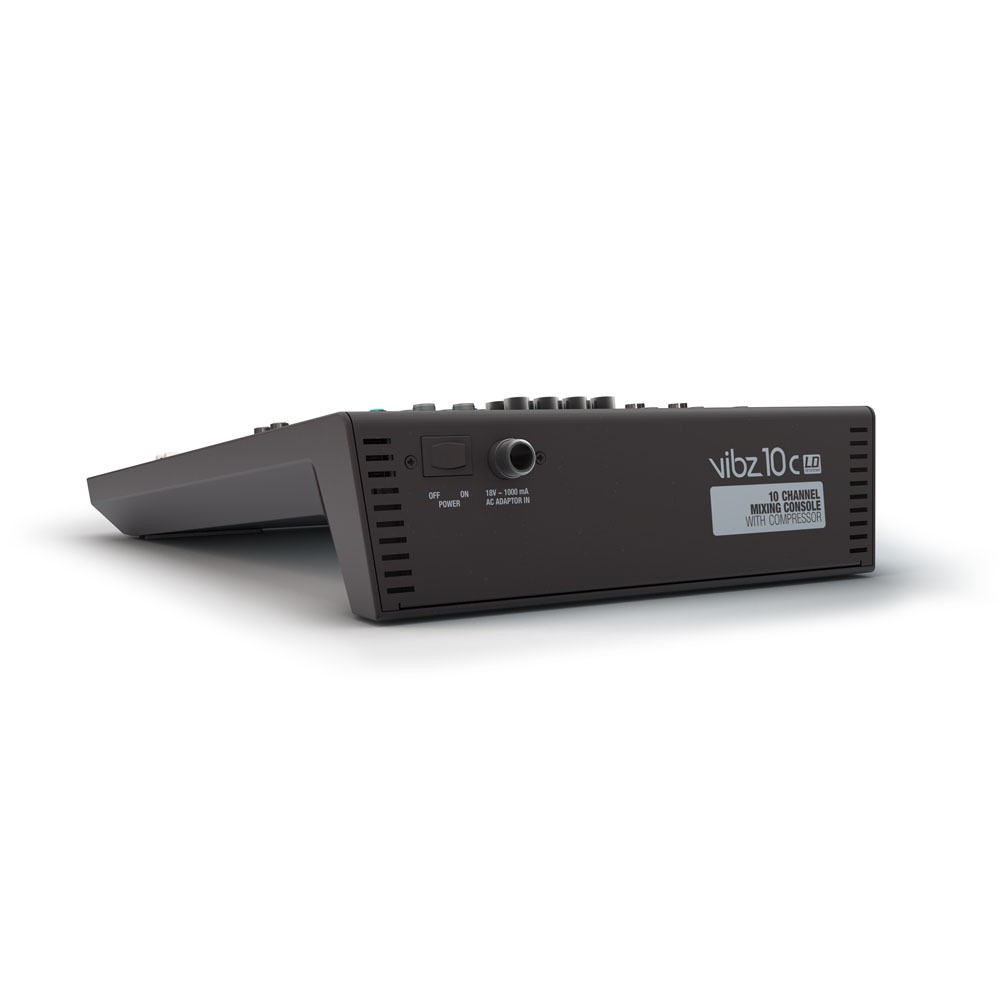

With its transparent, detailed sound and easy operation, VIBZ 10 is the perfect choice for small bands, installations and home recording or sub mixer applications. It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 10 on microphone stands are available as accessories.

• Product type: Mixers • Type: Live • Channels: 10 ○ Main Section: • AUX / Effects Send Channels: 1 • AUX / Effects Send Connectors: 6.3 mm stereo jack unbalanced • Stereo AUX Return Channels: 1 x stereo • Stereo AUX Return Connectors: 6.3 mm TRS • Stereo Tape Out Channel: 1 x stereo • Stereo Tape Out Connectors: 2 x RCA (Cinch) • Stereo Tape In Channel: 1 x stereo • Stereo Tape In Connenctors: 2 x RCA (Cinch) • Unbalanced stereo Main Outputs: 1 • Unbalanced stereo Main Output Connections: 6.3 mm TRS • Unbalanced Stereo Main Out Impedance: 120 Ohm(s) • Max. Unbalanced Stereo Main Out Level: 20 dBu • Stereo Control Room Out: 1 • Stereo Control Room Out Connectors: 6.3 mm TRS • Headphones ouput: 1 • Headphones outputs: 6.3 mm TRS • Digital Effects Processor: No • Main section controls: 2-track Assignment (Main, Contr. Room), 2-track In Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume • Indicators: Phantom Power, Power • Power supply: 18V DC - 1 A, External PSU, 230 V • Width: 265 mm • Height: 78 mm • Depth: 352 mm • Weight: 2,3 kg
