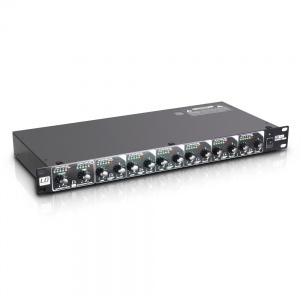

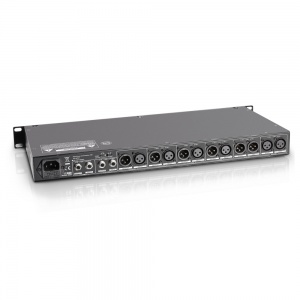

LD Systems MS 828 - 19" 8-kanálový splitter/mix
LD MS 828 má jeden stereo a šesť mono kanálov s individuálnymi LED hladinomermi; všetky vstupy a výstupy sú elektronicky vyvážené. Dva mono kanály sú vybavené stereo konektormi TRS, ostatné konektory sú zásuvky XLR. Stereo kanál má individuálne ovládanie hlasitosti pre vstup a výstup a tlačidlo prepojenia na prepínanie signálu; každý mono kanál má ovládanie hlasitosti a panorámy, ako aj tlačidlo, ktoré prepína medzi funkciami rozdeľovača a mixéra. MS 828 od LD Systems je pôsobivý nielen svojimi praktickými vlastnosťami, ale aj technickými špecifikáciami. Široká frekvenčná odozva 5 - 40 000 Hz, dynamický rozsah 85 dB a extrémne nízke celkové harmonické skreslenie 0,0008% zaručujú maximálnu vernosť signálu. Nominálna pracovná úroveň -10 dBV až +4 dBU robí mixér/splitter vhodným pre pripojenie profesionálneho aj bežného vybavenia.
• Kanály: 8
• Šírka 483 mm
• Výška 44,5 mm
• Hĺbka 216 mm
• Hmotnosť 3 kg
ONLINE KATALÓG PRODUKTOV LD SYSTEMS :
LD SYSTEMS CATALOGUE
LDMS828... - 19" Line Mixer 8 in 2 and Splitter 2 in 8The LD Systems LDMS828 is a mixer, splitter, and booster amplifier in 19” rack format for flexible live and studio applications.The LDMS828 has one stereo and six mono channels with individual LED level metres; all inputs and outputs are electronically balanced. Two mono channels are equipped with stereo TRS sockets, the other connectors are XLR sockets. The stereo channel has individual volume controls for input and output and a link button for looping through the signal; each mono channel has volume and panorama controls as well as a button that toggles between the splitter and mixer functions.TheLDMS828 by LD Systems is impressive not only because of its practical features, but also because of its technical specifications. The broad frequency response of 5 - 40,000 Hz, a dynamic range of 85 dB, and the extremely low total harmonic distortion of 0.0008% guarantee maximum signal fidelity. The nominal working level of -10 dBV to +4 dBU makes the mixer/splitter suitable for connection to both professional and consumer equipment.
VIAC
4049521154973-LDMS828_1|4049521154973-LDMS828_2
![]()
![]()
Product typeMixersTypeInstallationsChannels8Mono input channels, line6Mono line input connectors2 x 6.3 mm TSMono line input typeElectronically balancedStereo Line Input Channels1Stereo Line Input Connectors2 x XLRStereo Line Input TypeElectronically balancedInput impedance(balanced) 50000 Ohm(s), (unbalanced) 25000 Ohm(s)Max. input level+ 21 dBuNominal working level-10 dBV - +4 dBu Mono output channels6Mono output connectors2 x 6.3 mm TSMono output typeElectronically balancedStereo output channels1Stereo output connectors1 x XLRStereo output typeElectronically balancedOutput impedance(balanced) 60 Ohm(s), (unbalanced) 30 Ohm(s)Max. output level+22 dBuFrequency response5 - 40000 HzTHD0.0008 %S/N Ratio85 dBControlsLevel Channel 1-6, Main Input Level, Main Link, Main Output Level, Power, Splitter/Mixer Channel 1-6IndicatorsIn/Out Level Channel 1-6 (6 -segment), Input Level LED Indicator (6-segment), Output Level Indicator (6-segment), PowerOperating voltage220 V AC - 240 V AC, 50-60 HzMains connectorIEC power connectorPower consumption15 WFuseT 315 mAL, AC 250VWidth483 mmHeight44.5 mmDepth216 mmWeight3 kgAccessories (included)Power cord
