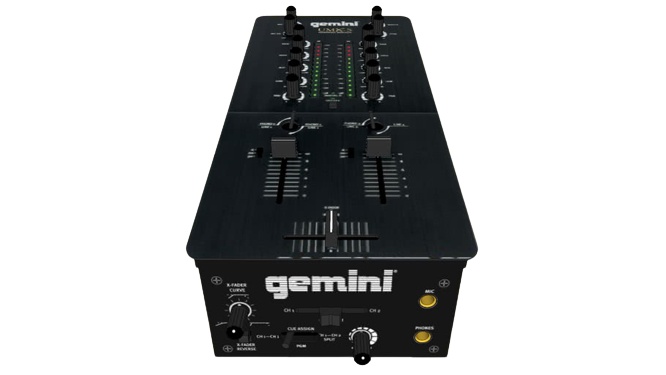

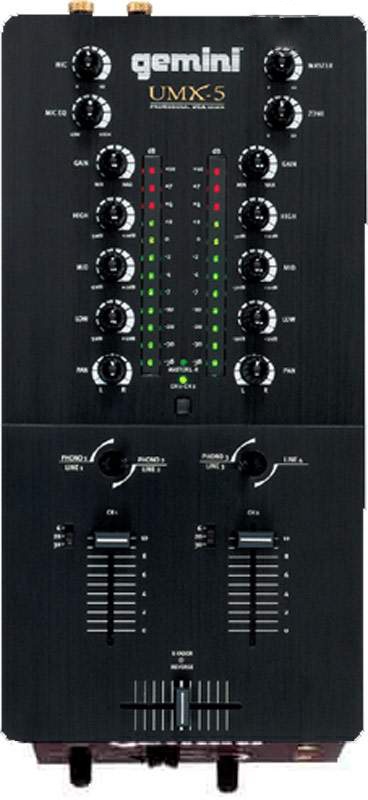

GEMINI UMX-5 mixážny pult

Features

• 2 stereo channels
• 3 phono/line convertible 1 line and 1 mic input
• Adjustable assing switches
• Channel slide curve with control switch
• Crossfader reverse (hamster) switch
• State of the art cue section with split
• Cut feature for low , mid and high for each chanel
• Gain , high , mid and low tone controls for each channel
• Balanced and unbalanced master outputs
• Zone and record outputs
• Dual mode metering

Specifications:

• Low: +12 dB / - 32 dB
• Mid: +12 dB / - 32 dB
• High: +12 dB / - 32 dB
• Gain: 0 to -20 dB
• Frequency Response: 20 Hz - 20 Khz +/- 2 dB
• THD: (0.08 %)
• S/N Ratio: better than 80 dB
• Headphone impedance: 16 Ohm
• Power source: 230/18V AC 0.75A
• Dimensions: 180 x 335 x 110 mm
