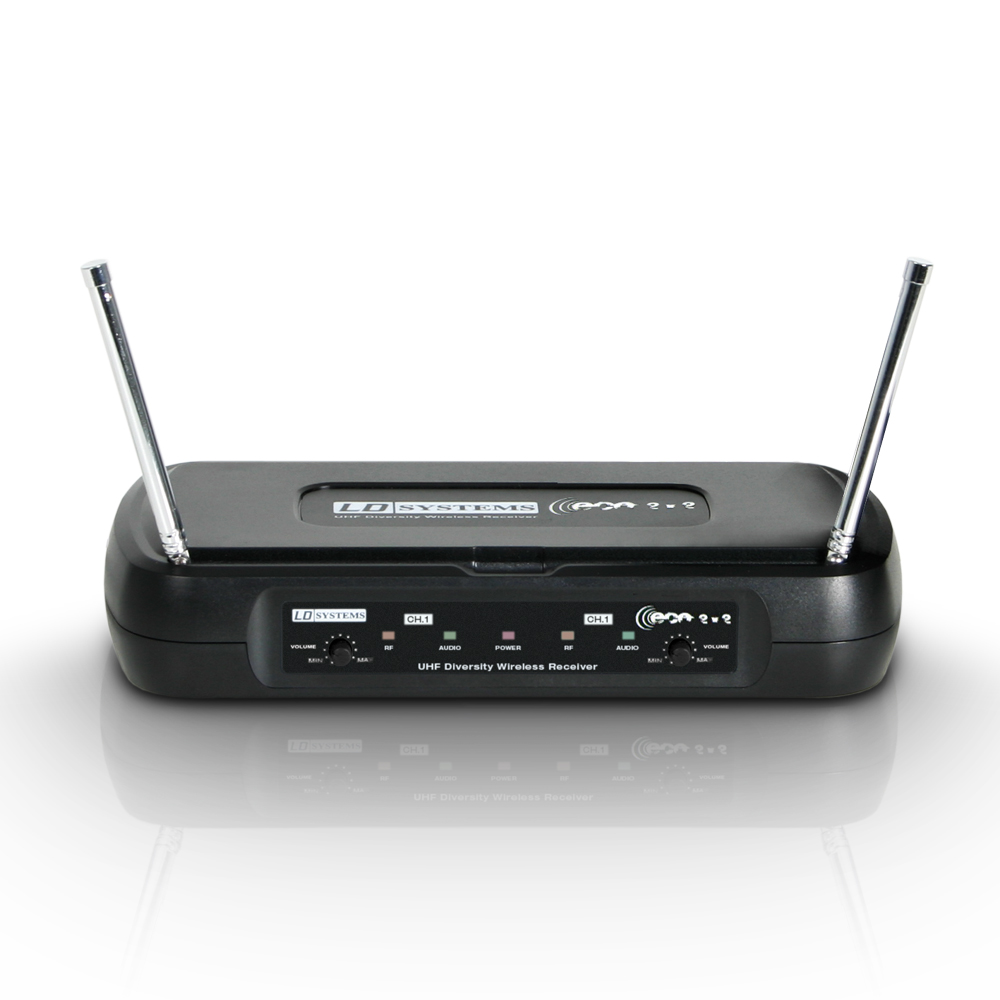

Operating in the 863.9 and 864.9 MHz bands, this ECO 2 Series 2-channel diversity receiver features balanced XLR outputs, an unbalanced 1/4” mix output plus level and squelch controls and LED status indicators for each channel.
• Dual channel UHF PLL receiver
• 863.9 and 864.9 MHz MHz band operation
• Balanced XLR ouputs and unbalanced 1/4” mix output
• Output level and squelch controls for each channel
• Antenna and signal indicators for each channel
• Power adapter included
• Product type: Wireless Microphone Systems
• Modulation Type: FM
• Transmission frequency range: 863.9 MHz, 864.9 MHz
• Channels: 2
• Antenna inputs: 2
• Antenna connector: fixed to housing
• Frequency response: 60 - 16.000
• Noise reduction: Squelch
• Signal-to-noise ratio: > 105 dB
• Audio output, balanced: 2 x XLR
• Audio mix output, unbalanced: 6.3 mm jack
• Controls: 2 x mute level, 2 x volume
• Indicators: 2 x audio signal, 2 x HF signal, Power
• Power supply: 12 - 18 V DC, 400 mA, External Power Supply
• Width: 235 mm
• Height: 44 mm
• Depth: 118 mm
• Weight: 0,4 kg
• Accessories (included): Batteries, Power supply
