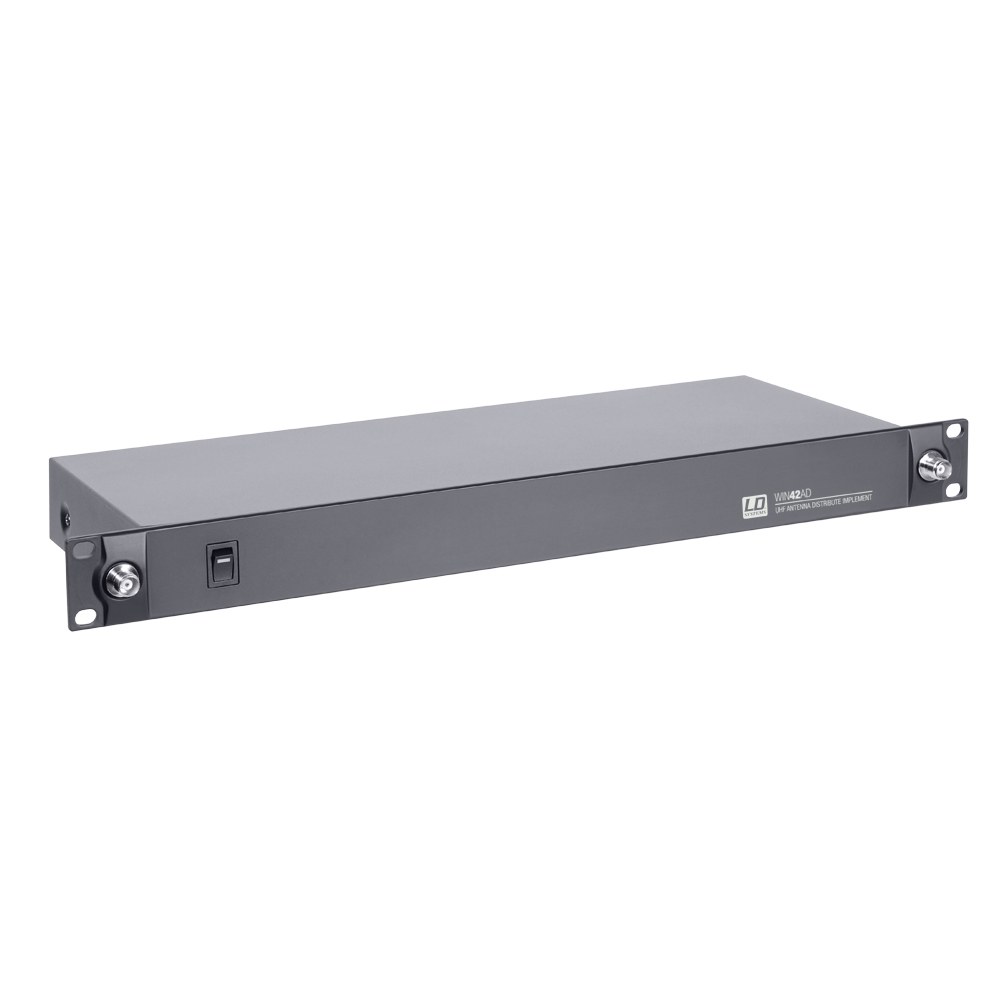

Antenna Split Box 4-way for all types of wireless microphone systems working in a range between 500 and 900 MHz.
• Product type: Wireless Microphone System Accessories
• Type: Antenna Splitter
• Frequency band: 500 - 900 MHz
• Frequency bandwidth: 400 MHz
• Signal gain: 3 dB
• Antenna inputs: 2
• Antenna input connection: BNC
• Input impedance: 50 Ohms
• Power supply for antenna booster: 9 V

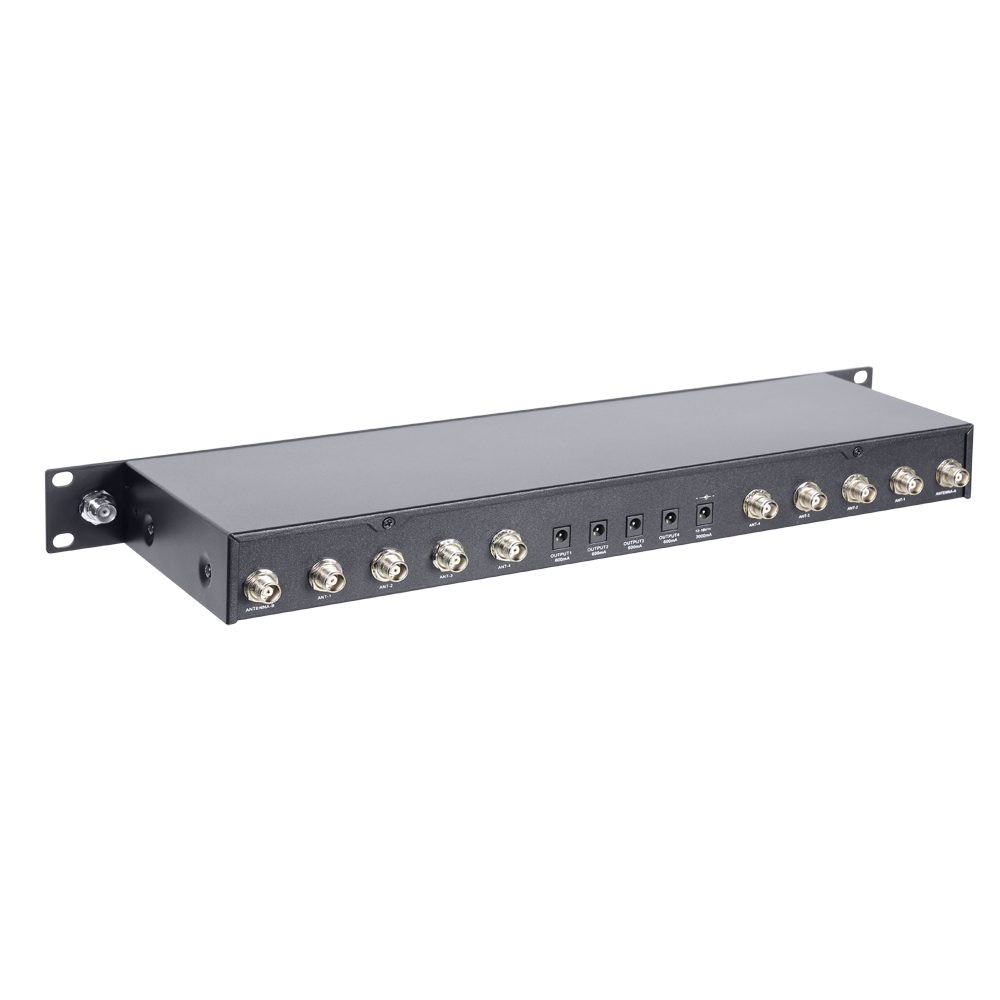

• Antenna outputs: 4 x 2
• Antenna output connection: BNC
• Output impedance: 50 Ohms
• Power supply for radio receiver: 4 x 12 - 18 V DC V
• Power supply: 12 - 18 V DC, 3A
• Operating voltage: 12 V DC - 18 V DC (100 mA)
• Width: 482 mm
• Height: 44.4 mm
• Depth: 160 mm
• Weight: 4,672 kg

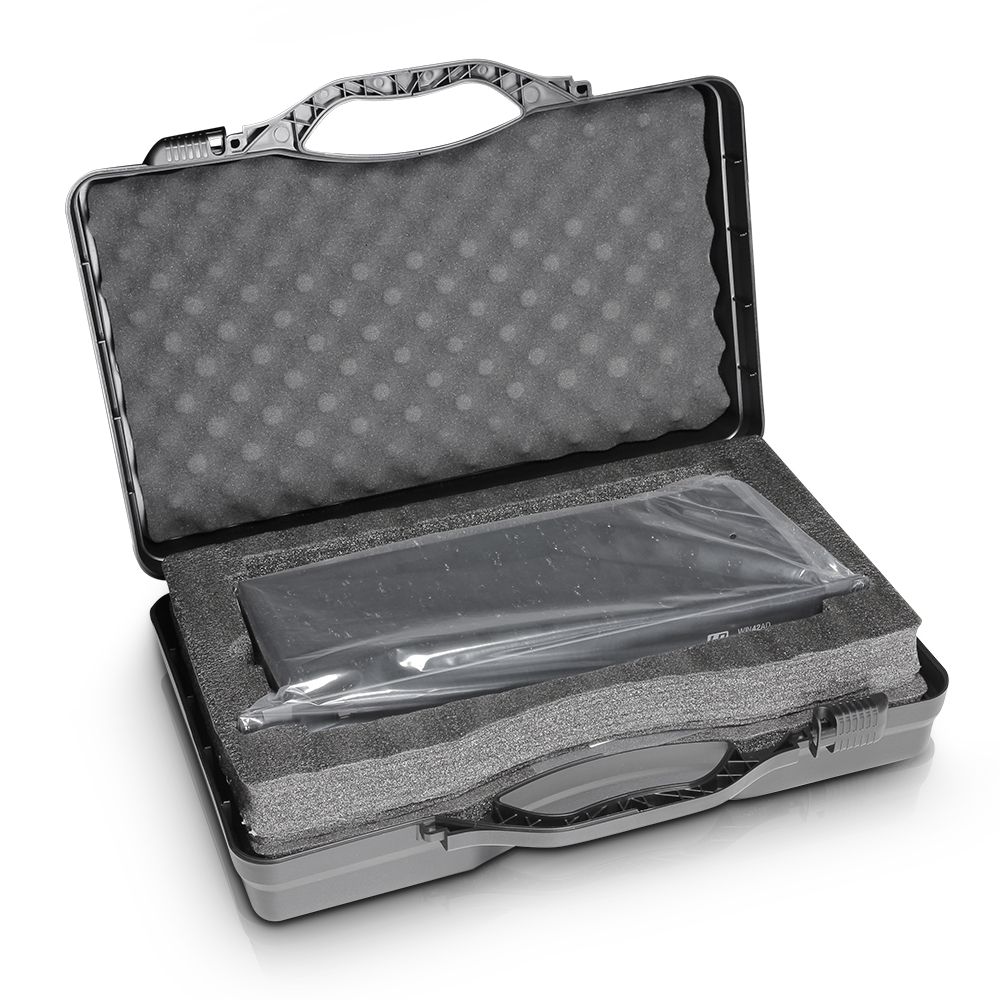

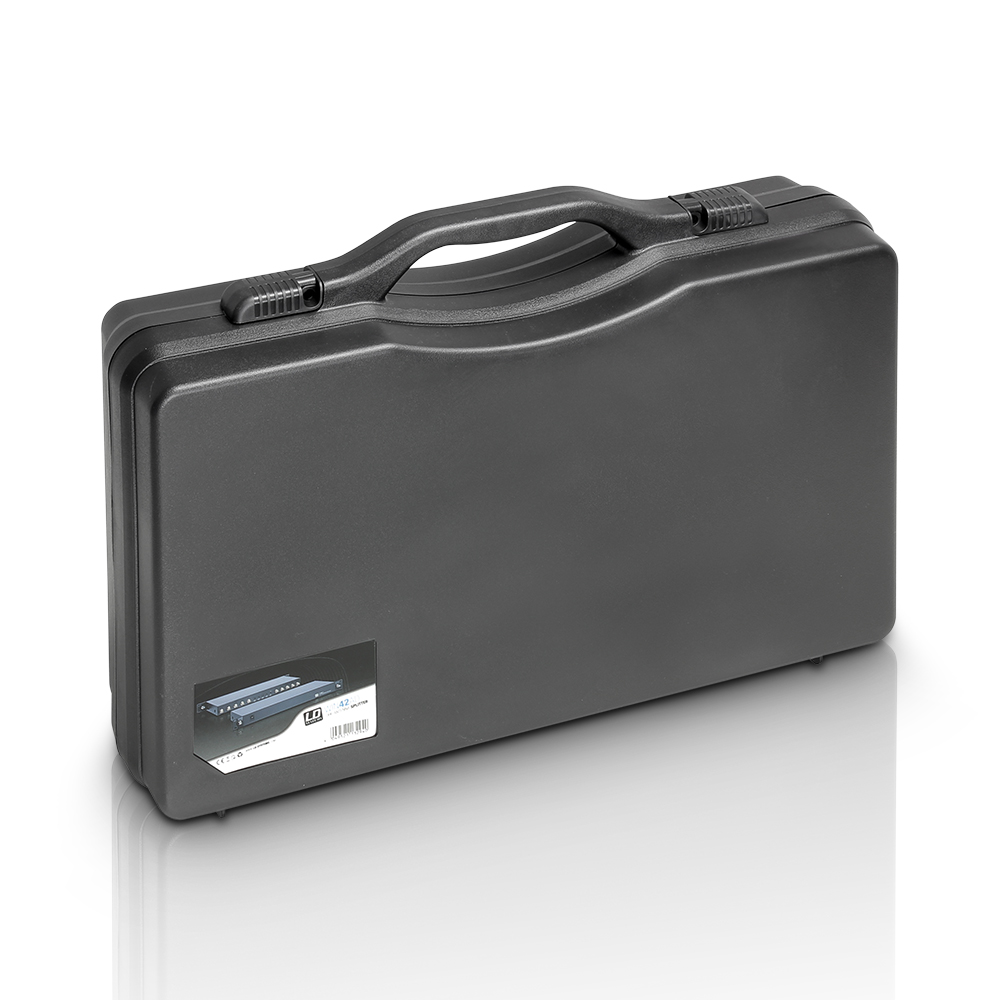

• Accessories (included): 10 x BNC Kabel, 0.5m, 2 x BNC adapter, 4 x DC cable, 0.5m, 4 x Output 600 mA, Plastic case, Power supply
