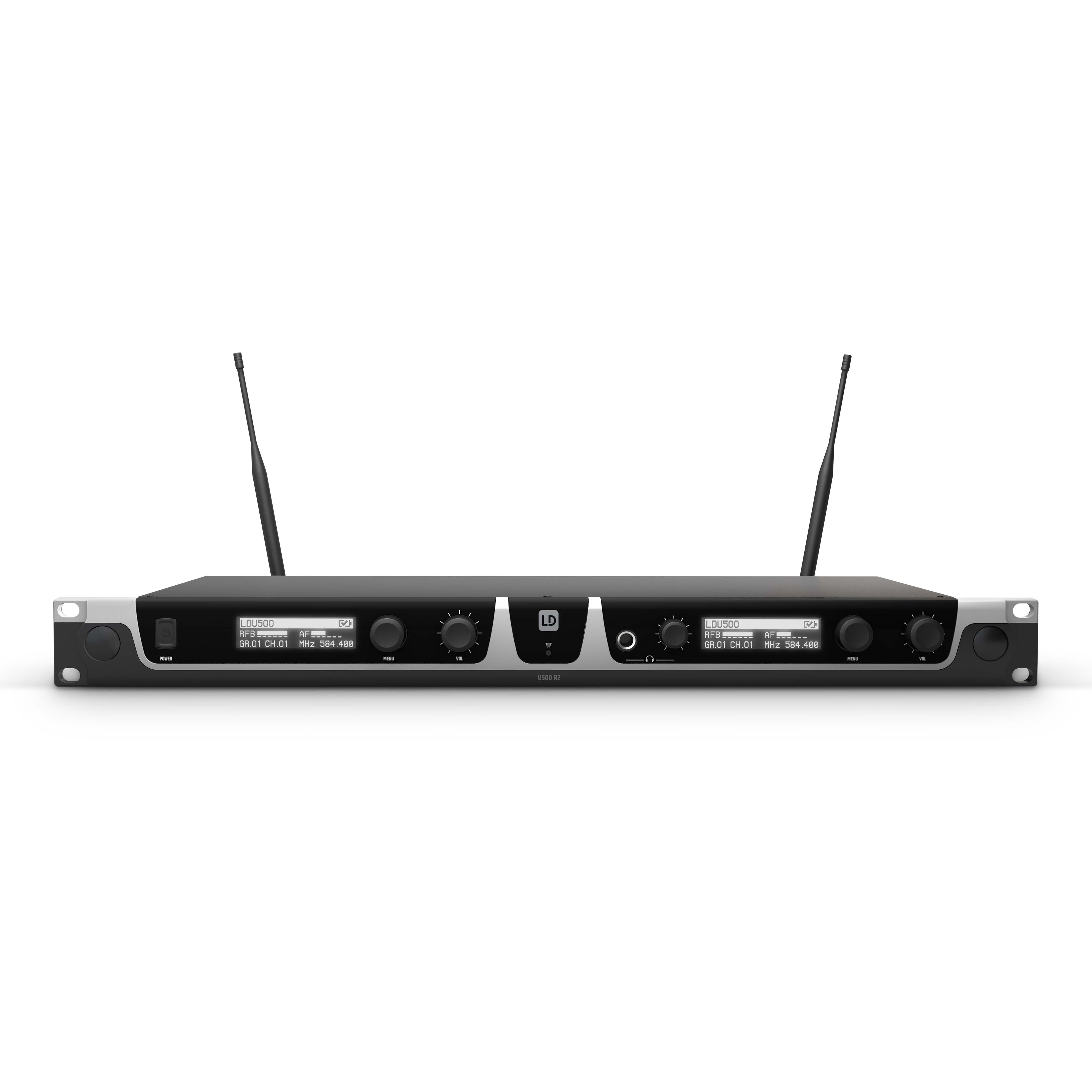

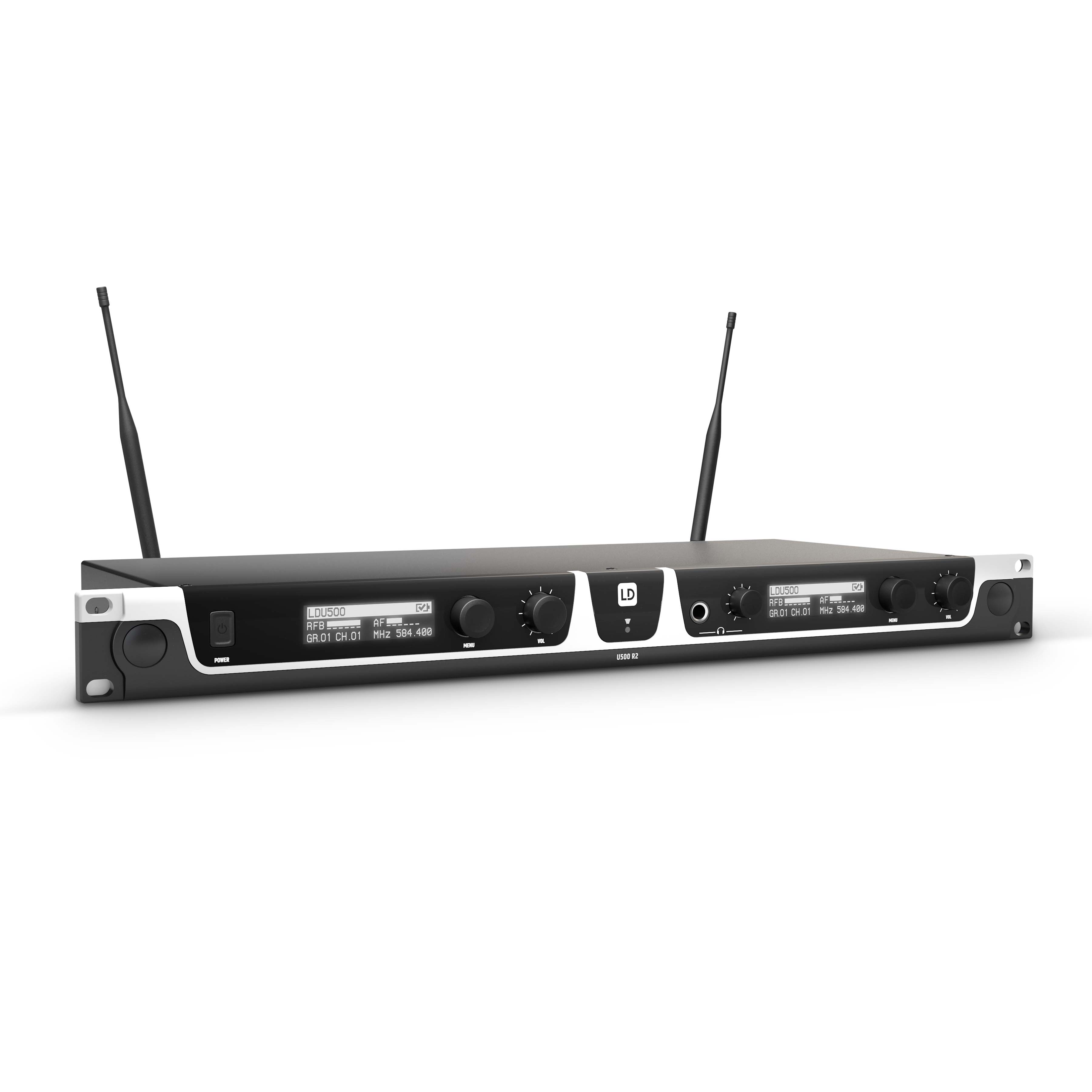

LD Systems U506 R2 - Duálny prijímač
Séria U500® séria spĺňa vaše očakávania pre kvalitný zvuk, spoľahlivosť a jednoduchosť prevádzky.
• automatické skenovanie kanálov
• pohodlná infračervená synchronizácia
• intuitívna navigácia menu a ľahko čitateľný OLED displej s indikátorom stavu batérie a priradením mena používateľa
• prepínateľné výstupy (2, 10 alebo 30 mW)
• pilotný tónový obvod zabraňuje hluku a rušeniu
• optimálna kvalita zvuku a prenosu bez rušenia až do vzdialenosti viac ako 100 m
• vymeniteľné kapsuly mikrofónu
• priame pripojenie k gitarovým a basovým zosilňovačom
• široký frekvenčný rozsah 30 - 16 000 Hz
• tri frekvenčných pásmach: 584 - 608 MHz a 655 - 679 MHz, a 823 - 832 MHz + 863 - 865 MHz
• Kanály 2 x 96 (8 skupín,12 kanálov)
• konferenčný systém U500® môže byť rozšírený až na 20 terminálov, poskytuje efektívnu komunikáciu s vynikajúcou zrozumiteľnosťou reči.
We have developed the U500® Series and incorporated some of your suggestions to provide sophisticated and affordable wireless sys...tems that are tailored to suit the needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500® Series will meet your expectations of quality sound, reliability and ease of operation.With automatic channel scanning, convenient infrared synchronisation, intuitive menu navigation and an easily-readable OLED display featuring battery status indicator and user name assignment, the U500® Series True Diversity UHF radio systems are ready to use in an instant. The selectable transmit power of up to 30 mW and squelch control with pilot tone ensure optimum audio and transmission quality without artefacts and a free-field range of over 100 m.Interchangeable microphone capsules enable the hand-held transmitter to be tailored to suit different speaking or singing voices. For direct connection to guitar and bass amps, the outputs of the single and double receiver are switchable to instrument level. The wide frequency range of 30 - 16,000 Hz also handles the lowest bass notes.U500® vocal and instrument sets are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time.The U500® conference system can be extended to a maximum of 20 terminals and provides effective communication with excellent speech intelligibility.
VIAC
Product typeWireless Microphone System AccessoriesTypetrue diversityModulation TypeFMTransmission frequency range655 - 679 MHzChannels2 x 96 (8 groups of 12 channels)Groups8Antenna inputs2Antenna connectorBNCFrequency response60 - 16.000 HzNoise reductionSquelchSignal-to-noise ratio> 105 dBAudio output, balanced2 x XLRAudio mix output, balancedXLRAudio mix output, unbalanced6.3 mm jackMax. output levelsymmetrical -8 dBuHeadphones ouput1Headphones outputs6.3 mm TRSControlsvolume headphonesIndicators2 x audio level, 2 x HF level A/B, 2 x multifunction LC displayOperating voltage1,000 mA, 13.5 V DCWidth483 mmHeight45 mmDepth190 mmWeight2,05 kgAccessories (included)2 x antenna, Batteries, Power supplyOther featureschannel search function, IR frequency synchronisation
