LD Systems U308 R2 - Duálny prijímač - 863 - 865 MHz + 823 - 832 MHz
12 kanálový duálny prijímač série U300 R2 pracuje s technológiou FM vo frekvenčných pásmach 863 - 865 MHz + 823 - 832 MHz s frekvenčnou odozvou 35 Hz až 16 KHz. Pohodlná jednodotyková synchronizácia cez infračervené riadenie zaisťuje rýchle bezproblémové bezdrôtové pripojenie s ručným mikrofónom v ruke alebo bodypackom rovnakej série. Pilotný tónový obvod zabraňuje hluku a rušeniu. Duálny prijímač U308 R2 ponúka elegantné kovové puzdro s jasným LCD displejom, výbery kanálov a LED diódy, ktoré zobrazujú intenzitu audio signálu a aktívnu anténu. Dva vyvážené XLR a dva nevyvážené výstupy 6,35 mm sa nachádzajú na zadnom paneli, ktorý môžete prepnúť pre priame pripojenie na gitaru a basové zosilňovače. Balenie obsahuje napájací adaptér, vyvážený XLR kábel a súprava na uchytenie do racku.
ONLINE KATALÓG PRODUKTOV LD SYSTEMS :
LD SYSTEMS CATALOGUE

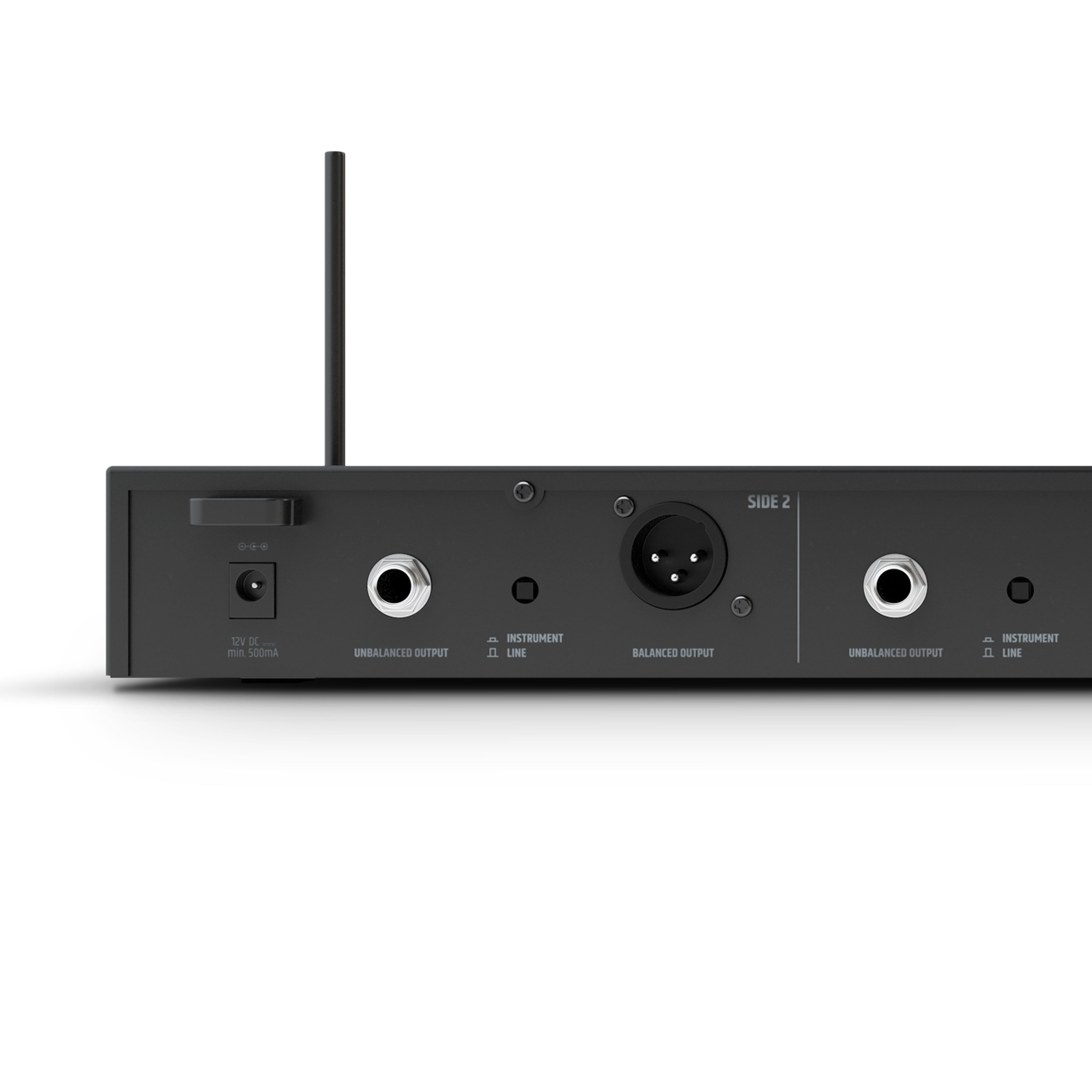

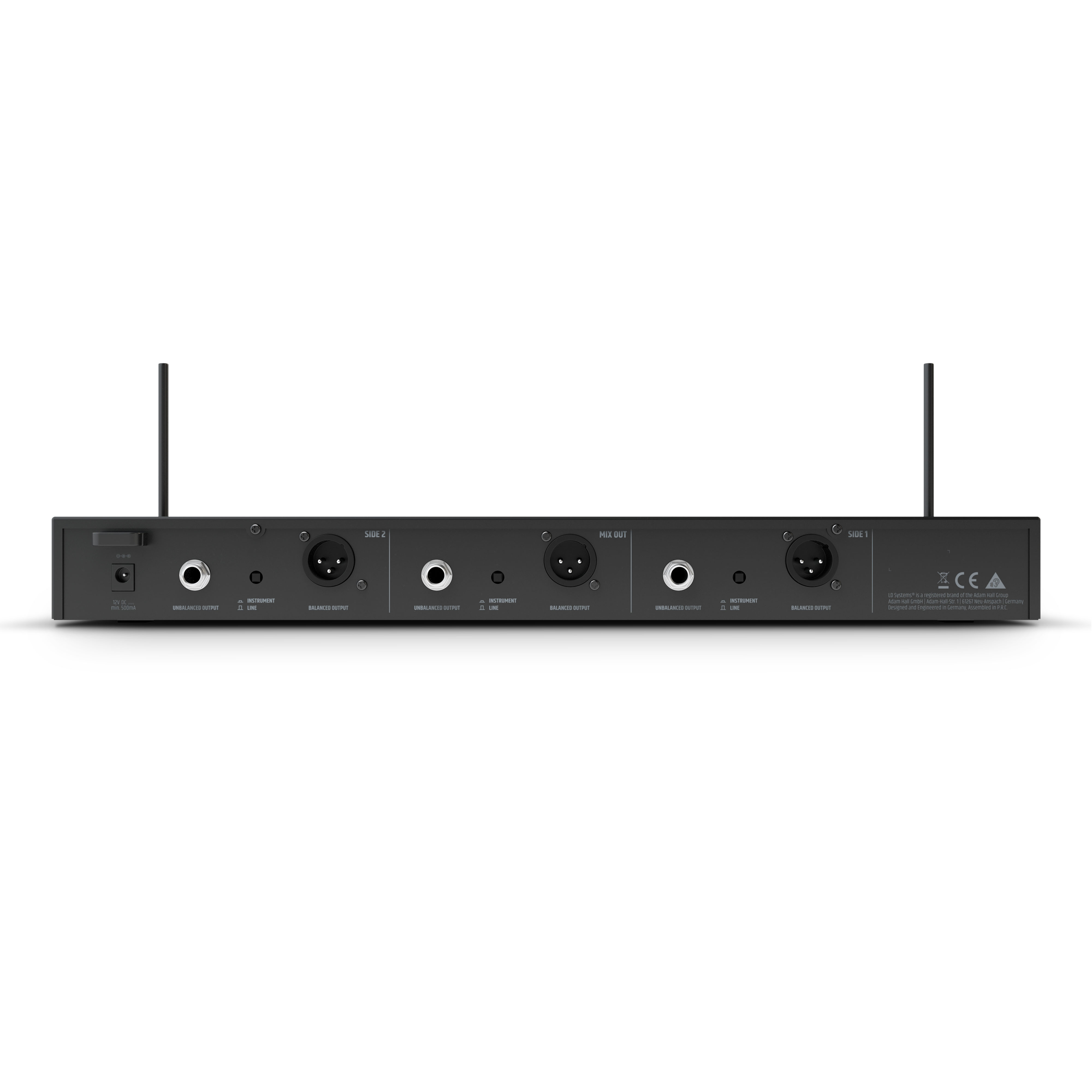

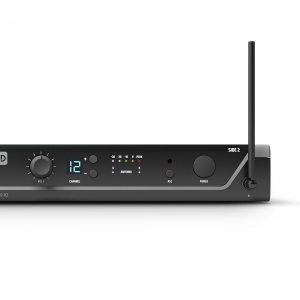

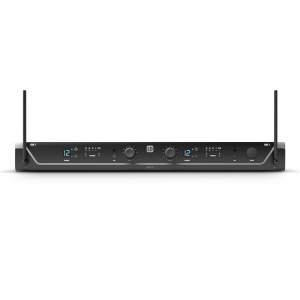

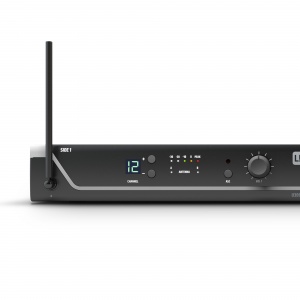

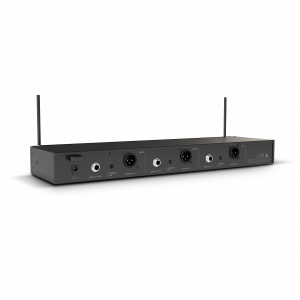

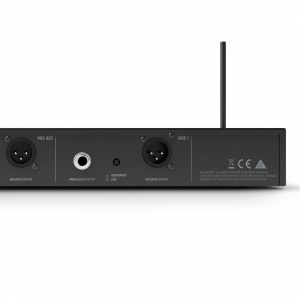

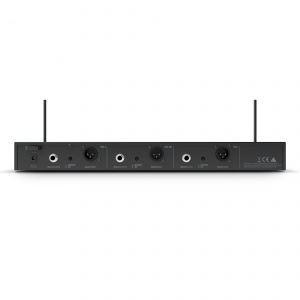

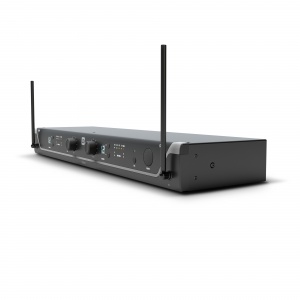

The U300 R2 series 12-channel UHF dual-receiver operates with FM technology in the frequency bands 863 - 865 MHz + 823 - 832 MHz and feature...s a 35 Hz to 16 kHz frequency response. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection with the handheld transmitter microphone or bodypack from the same series. A squelch with pilot tone ensures disruption-free operation. The U308 R2 dual-receiver features elegant metal housing with a bright LCD channel display, channel selectionkeys and LEDs that display audio signal strength and active antenna.Two balanced XLR and two unbalanced 6.35 mm jack outputs are located on the rear panel, which can be switched to instrument level for direct connection to guitar and bass amplifiers. A power adapter, a balanced XLR cable and the rackmount kit are included.
VIAC
Product typeWireless Microphone System AccessoriesTypeReceiversModulation TypeFMTransmission frequency range823 - 832 MHz, 863 - 865 MHzChannels12Groups1Antenna inputs2 x fixedFrequency response35 - 16000 HzNoise reductionSquelchTransmission optimizationPilot toneTotal Harmonic Distortion (THD)< 0.3 %Signal-to-noise ratio104 dBAudio output, balanced3 x XLRAudio output, unbalanced6.3 mm jack, switchable unbalanced output level ( Line/Instrument )Audio mix output, balancedXLRAudio mix output, unbalanced6.3 mm jackMax. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBuControls2 x Volume, Channel down, Channel up, Line/Instrument Level, Power On/OffIndicators5-LED VU-Meter, Antenna A/B, LCD displayOperating voltage12 V DC, 500 mAWidth410 mmHeight43 mmDepth120 mmWeight1,265 kgAccessories (included)2 x AA batteries, Power supply, Rack kitOther featuresIR frequency synchronisation, Pilot tone
