LD Systems U308 R - Prijímač

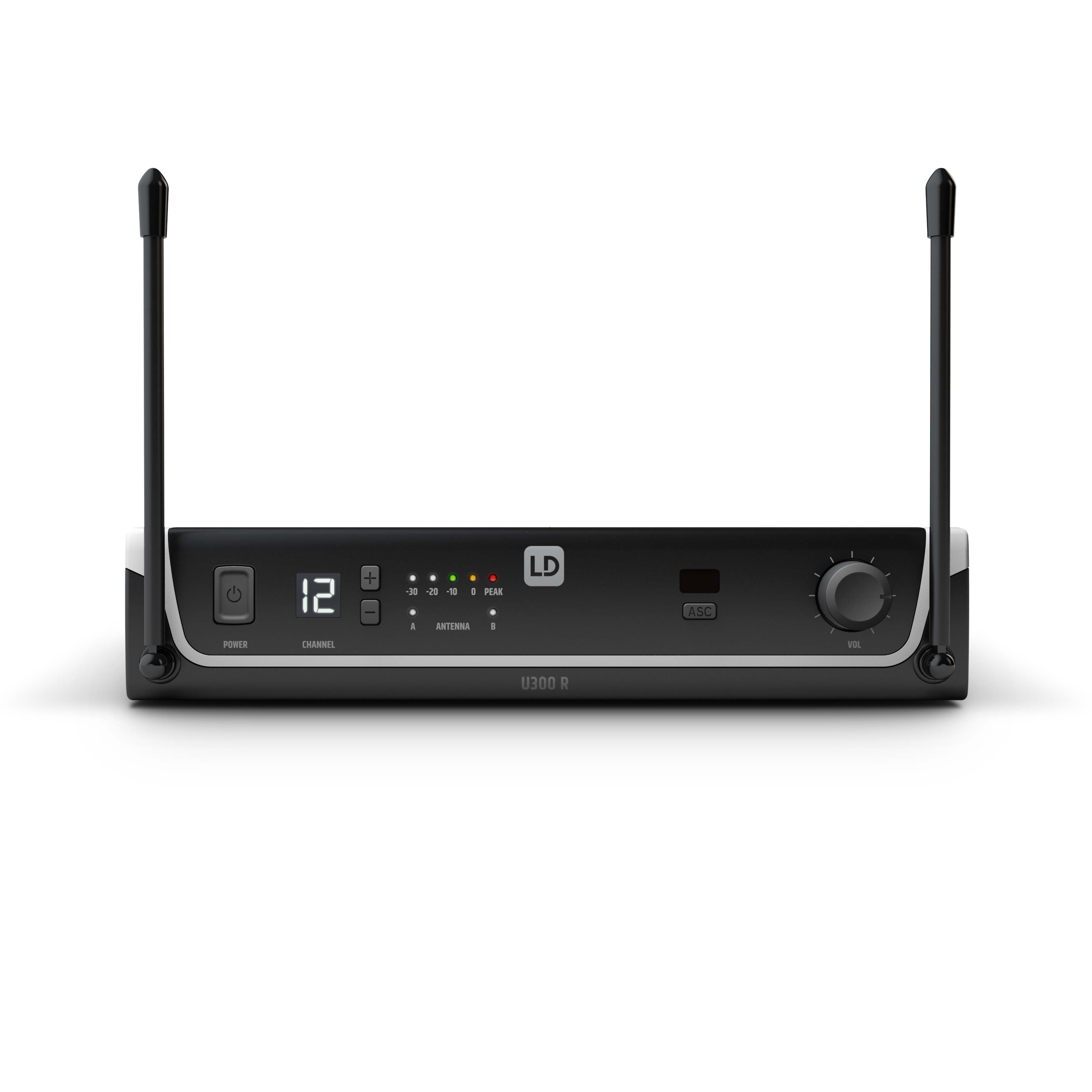

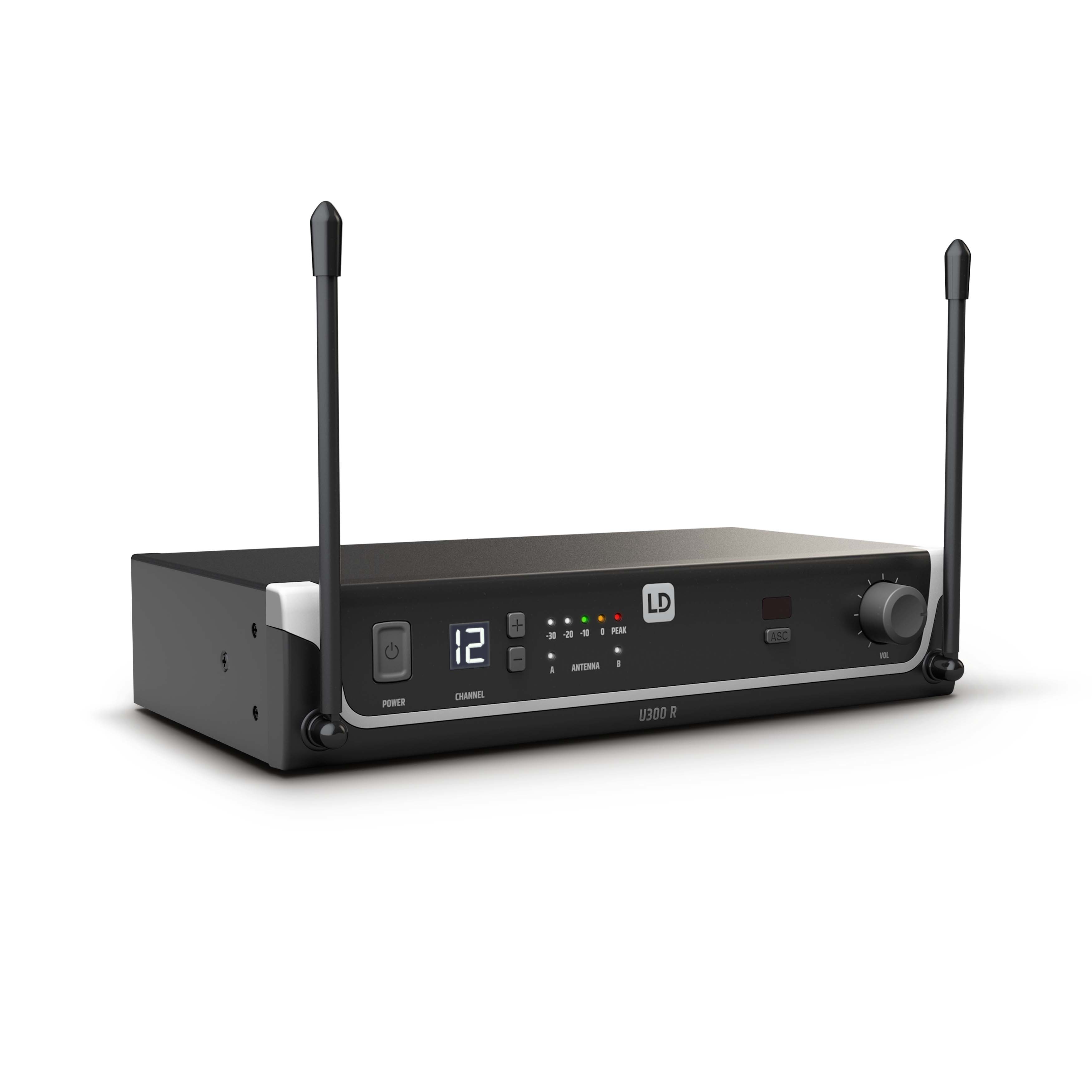

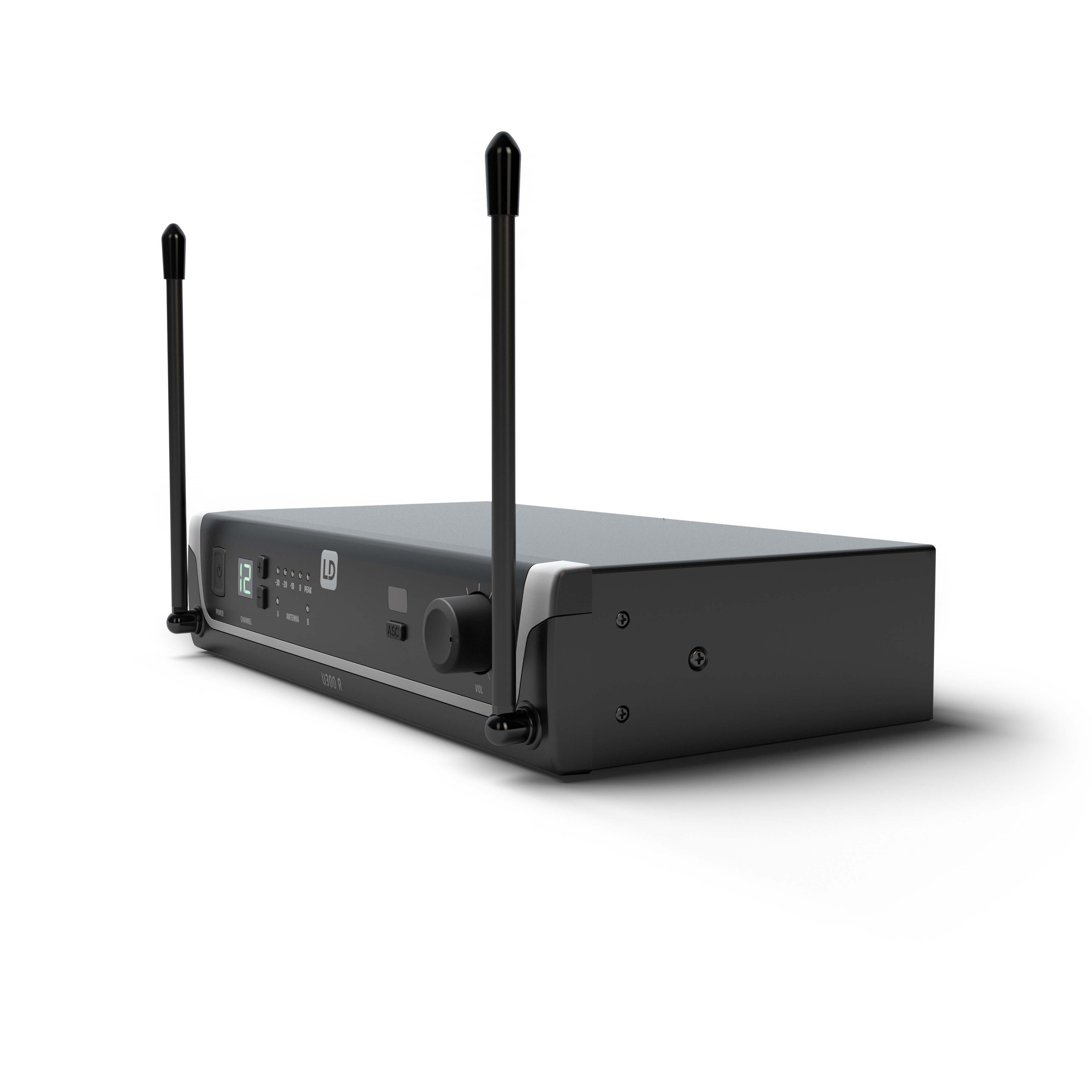

12-kanálový prijímač UHF série U300 pracuje na technológii FM vo frekvenčnom pásme 823-832 a 863-865 MHz a ponúka 25 Hz až 16 KHz frekvenčnú odozvu. Pohodlná jednodotyková synchronizácia cez infračervené riadenie zaisťuje rýchle bezproblémové bezdrôtové pripojenie s mikrofónom v ruke alebo bodypackom z rovnakej série. Pilotný tónový obvod zabraňuje hluku a rušeniu. Prijímač U308 je vybavený elegantným kovovým puzdrom s jasným LCD displejom, možnosťou výberu kanálov a LED diódami, ktoré zobrazujú intenzitu audio signálu a aktívnu anténu. Dva vyvážené XLR a dva nevyvážené výstupy 6,35 mm sa nachádzajú na zadnom paneli, ktorý môžete prepnúť pre priame pripojenie na gitaru a basové zosilňovače. Balenie obsahuje napájací adaptér, vyvážený XLR kábel a súprava na uchytenie do racku.
ONLINE KATALÓG PRODUKTOV LD SYSTEMS :
LD SYSTEMS CATALOGUE

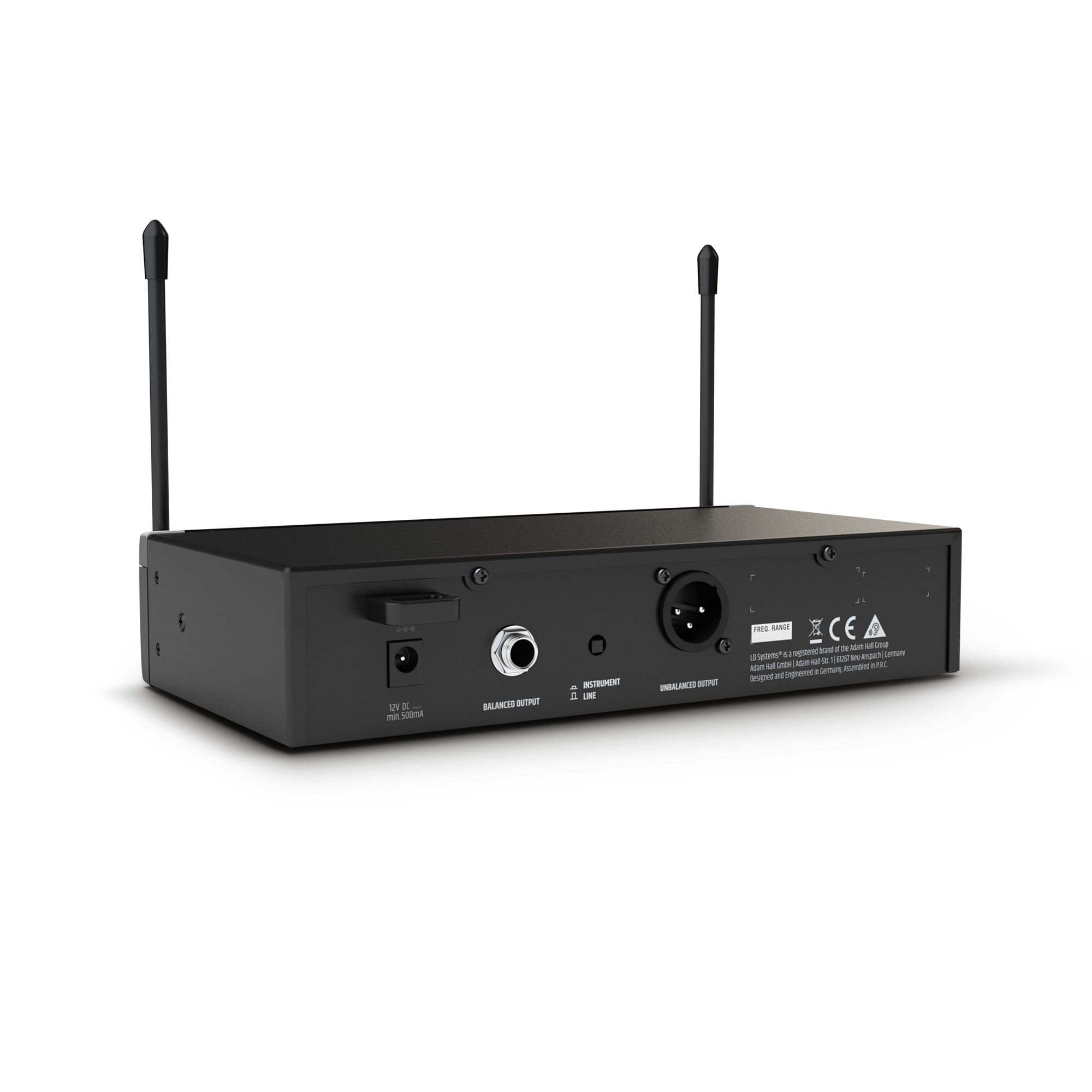

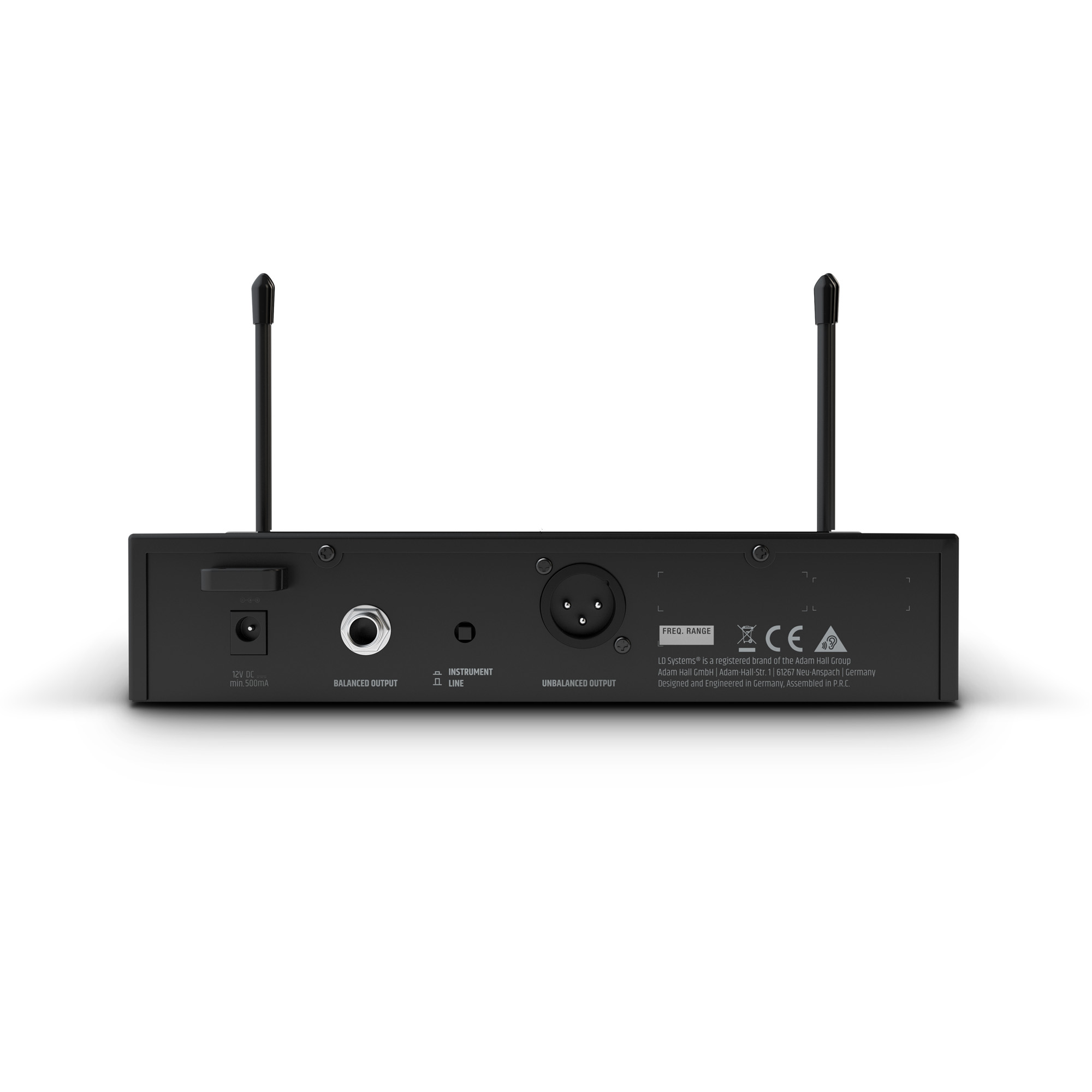

The U300 series 12-channel UHF receiver operates with FM technology in the frequency bands 823–832 & 863–865 MHz and features a 25 Hz to 16 kHz ...frequency response. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection with the handheld transmitter microphone or bodypack from the same series. A squelch with pilot tone ensures disruption-free operation. The U308 receiver features elegant metal housing with a bright LCD channel display, channel selection keys and LEDs that display audio signal strength and active antenna. The rear side features both a balanced XLR and unbalanced 6.35 mm audio output that is switchable to instrument level for directly connecting to guitar and bass guitar amps. Includes a power adapter and balanced XLR cable.
VIAC
Product typeWireless Microphone System AccessoriesTypeReceiversModulation TypeFMTransmission frequency range823 - 832 MHz, 863 - 865 MHzChannels12Groups1Antenna inputs2 x fixedFrequency response25 - 16,000 HzNoise reductionSquelchTransmission optimizationPilot toneTotal Harmonic Distortion (THD)< 0.3 %Signal-to-noise ratio104 dBAudio output, balancedXLRAudio output, unbalanced6.3 mm jack, switchable unbalanced output levelMax. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBuControls5 LED VU meters, ASC Sync, Channel down, Channel up, Line/Instrument Level, Power, volumeIndicators5 LED VU meters, Antenna A/B, LC displayOperating voltage12 V DC - 18 V DC (500 mA), external power supplyWidth211 mmHeight43 mmDepth120 mmWeight0,7 kgAccessories (included)2 x AA battery, Audio cable, Power supplyOther featuresIR frequency synchronisation
