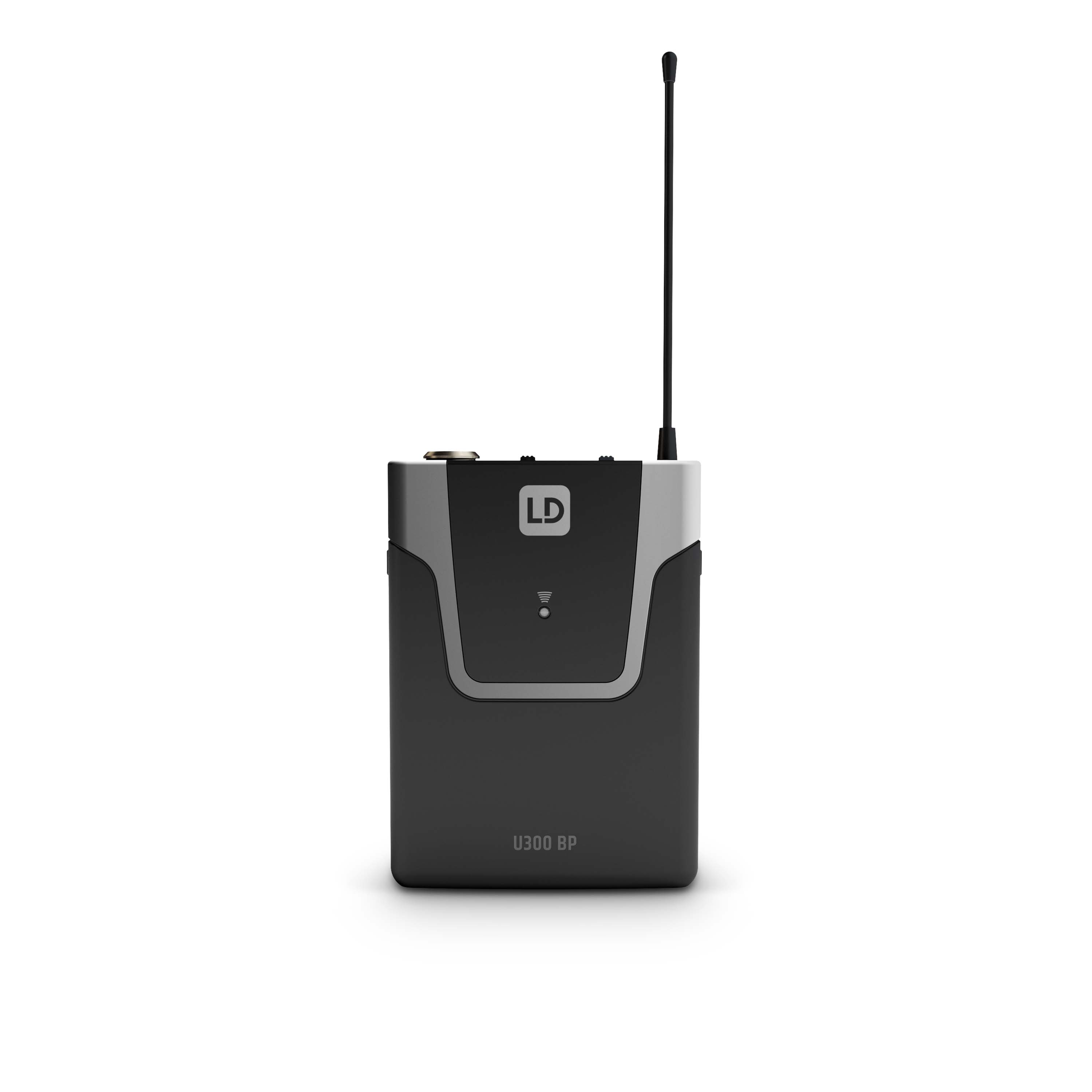

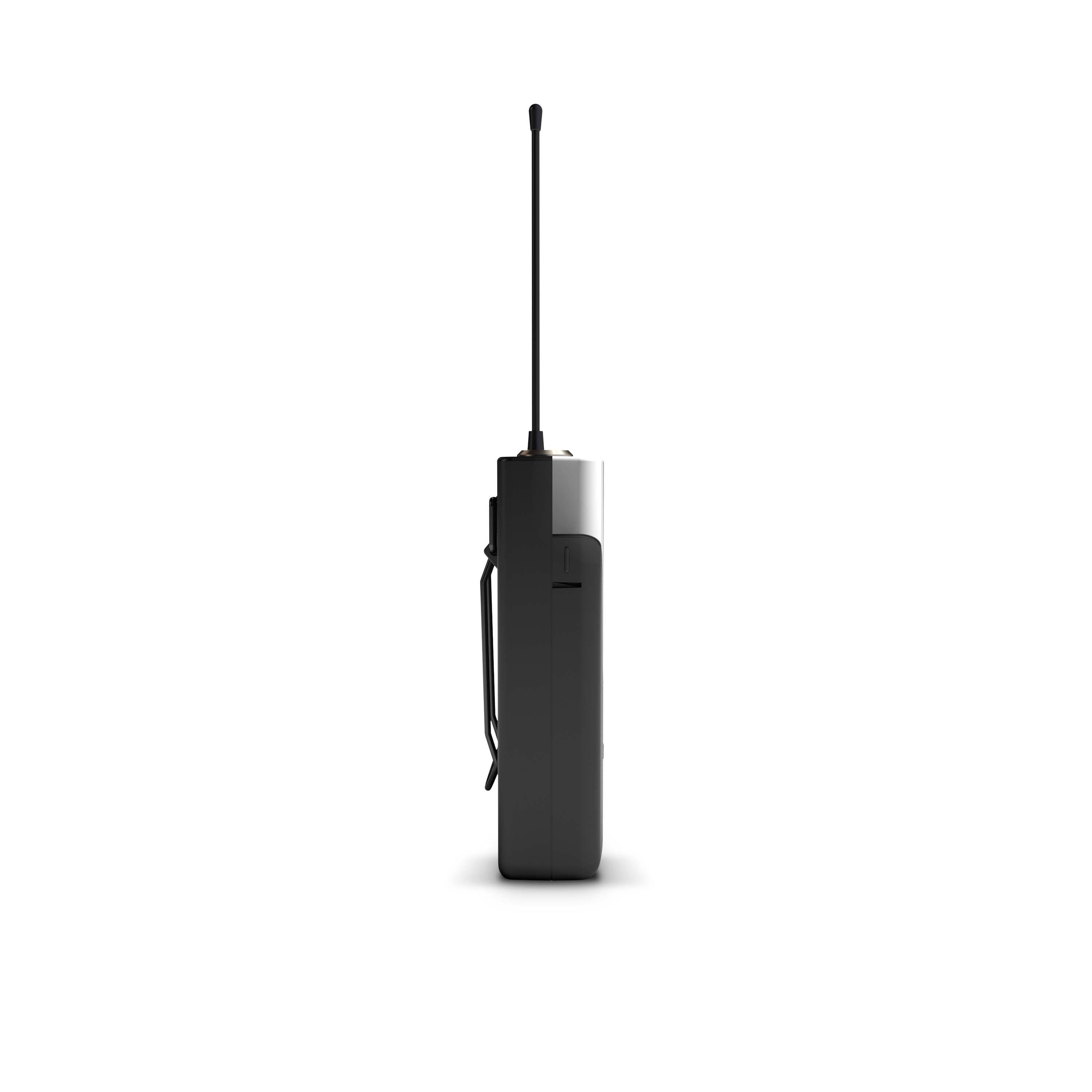

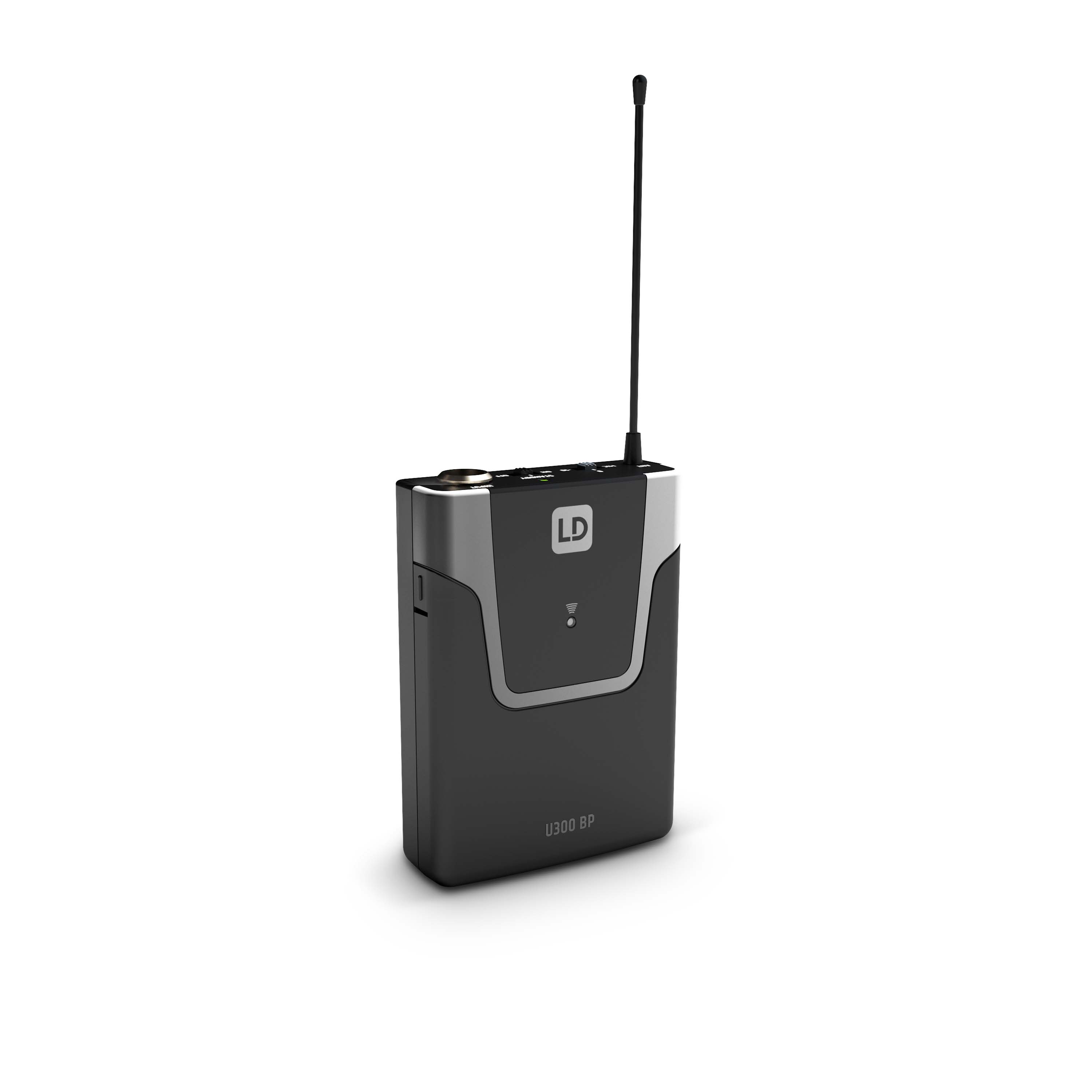

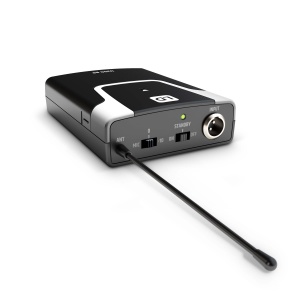

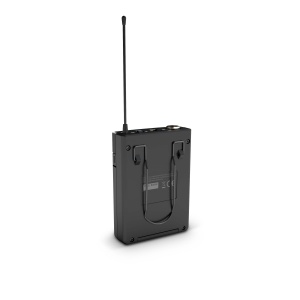

LD Systems U308 BP - Vysielač na opasok
Tento vysielač na opasok série U300® pracuje v pásmach 823 - 832 MHZ, 863 - 865 MHZ. Ponúka miniatúrny XLR vstup s 3-polohovým voličom na uloženie mikrofónov, ako aj aktívnych a pasívnych nástrojov. Má výstupný výkon 10 MW, frekvenčnú odozvu 25 Hz - 16 kHz. U308 BP poskytuje viac ako 10 hodín nepretržitej prevádzky s dvomi batériámi AA, jednoduchú IR synchronizáciu s prijímačom U3051 a prenosom pilotného tónu na odstránenie RF interferencie. Okrem spínača ON / OFF ponúka aj pohotovostnú polohu pre dočasné stlmenie.
ONLINE KATALÓG PRODUKTOV LD SYSTEMS :
LD SYSTEMS CATALOGUE

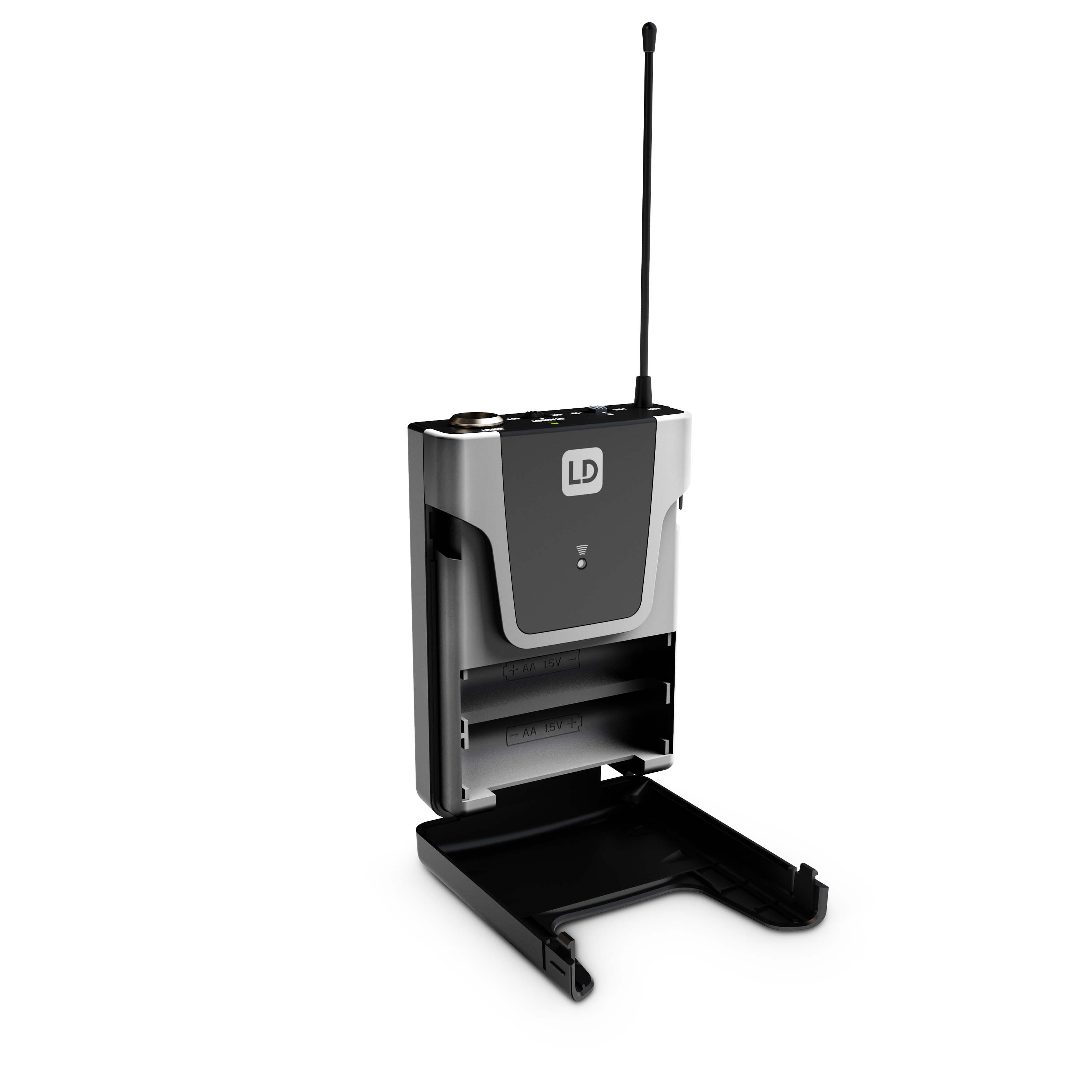

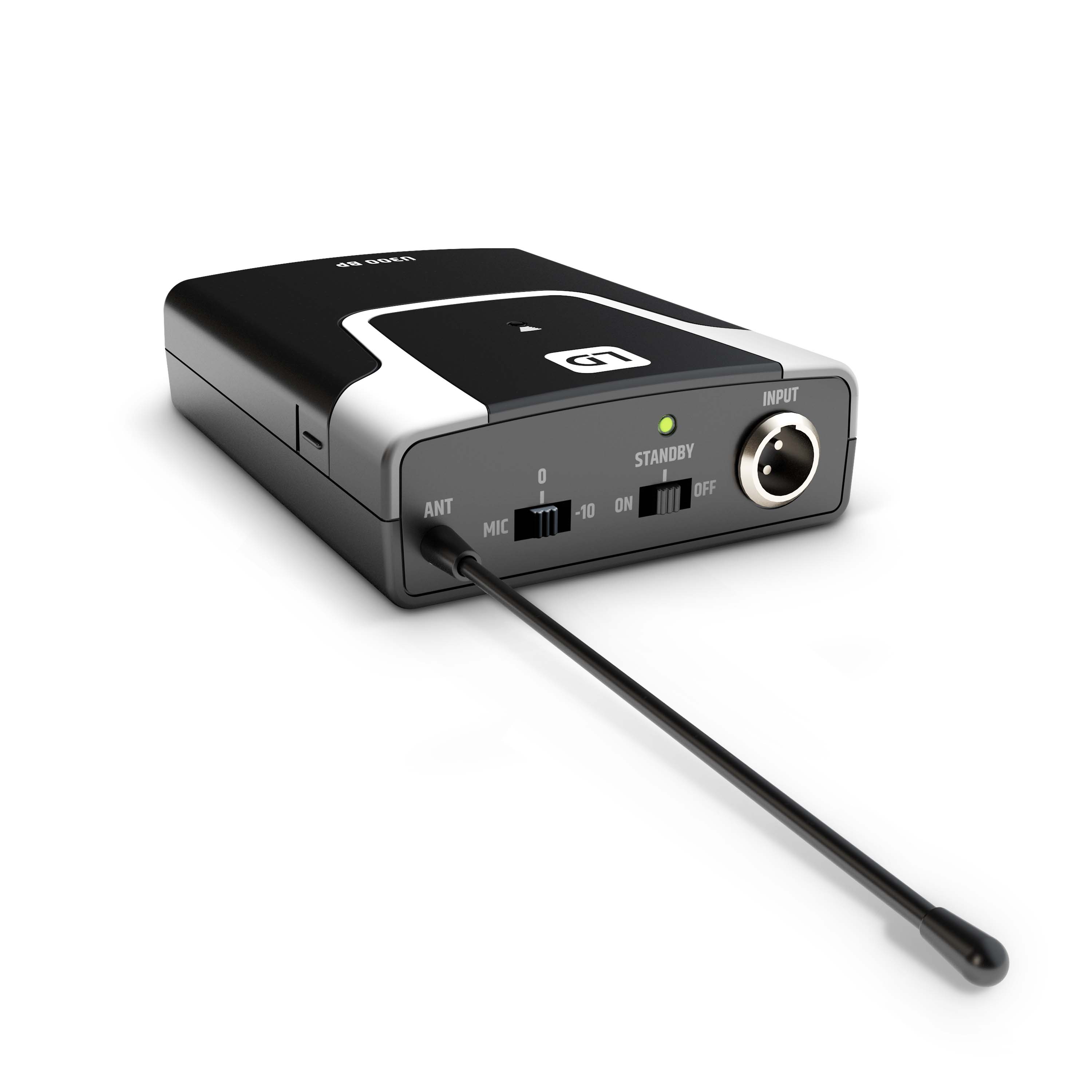

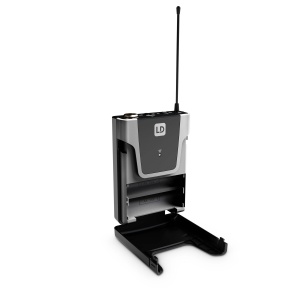

Operating in the 823 - 832 MHz, 863 - 865 MHz band, this U300 Series bodypack transmitter features a miniature XLR input with 3-position level selector to accommodate microphones as well as active and passive instrument pickups. It has an output power of 10 mW and 25 Hz - 16 kHz frequency response to handle 5-string bass guitars with a low B string. The U308 BP provides over 10 hours of continuous operation ...on two AA batteries, easy IR syncing with the U308 receiver and pilot tone transmission to eliminate RF interference. The bodypack's on/off switch includes a convenient standby position for temporary muting.
VIAC

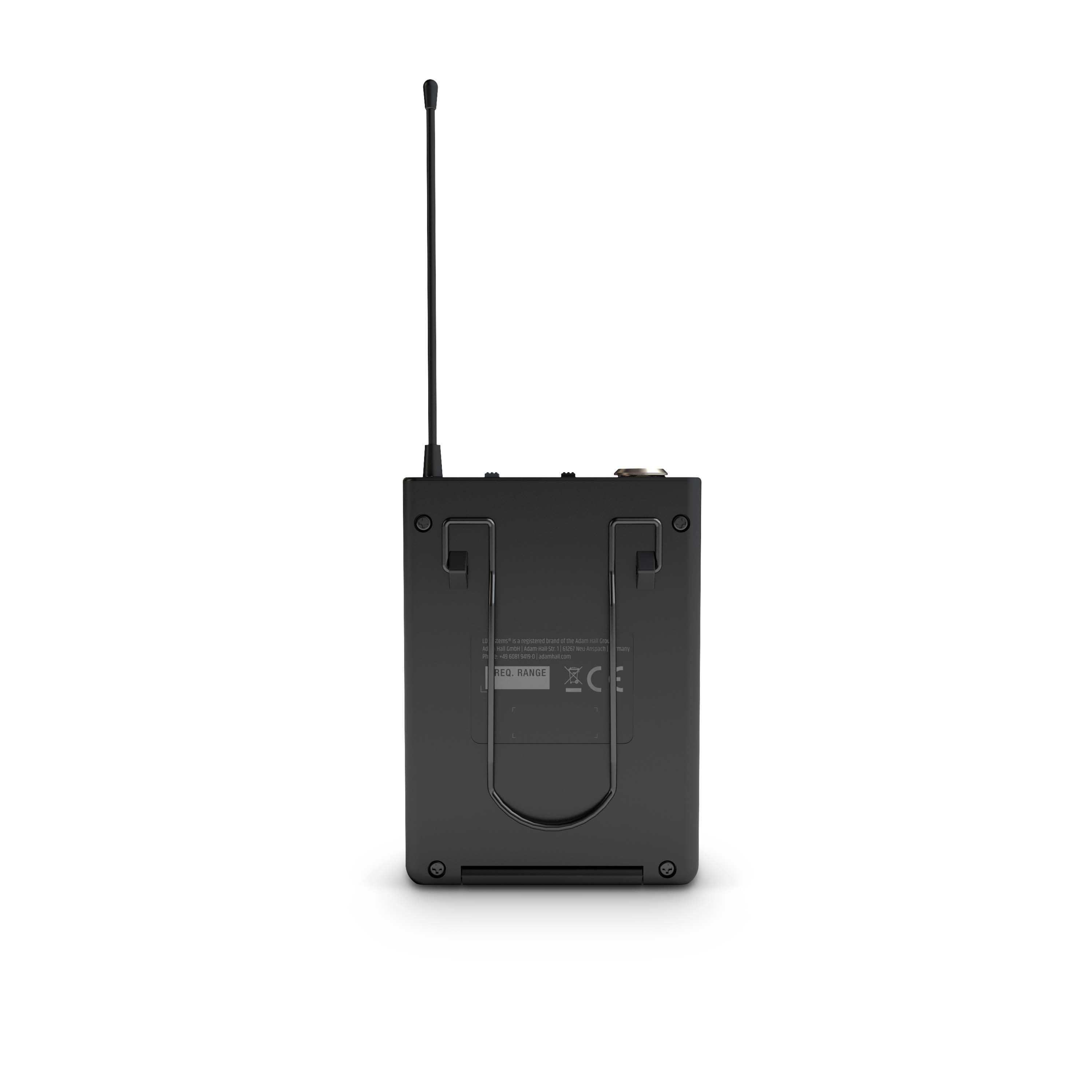

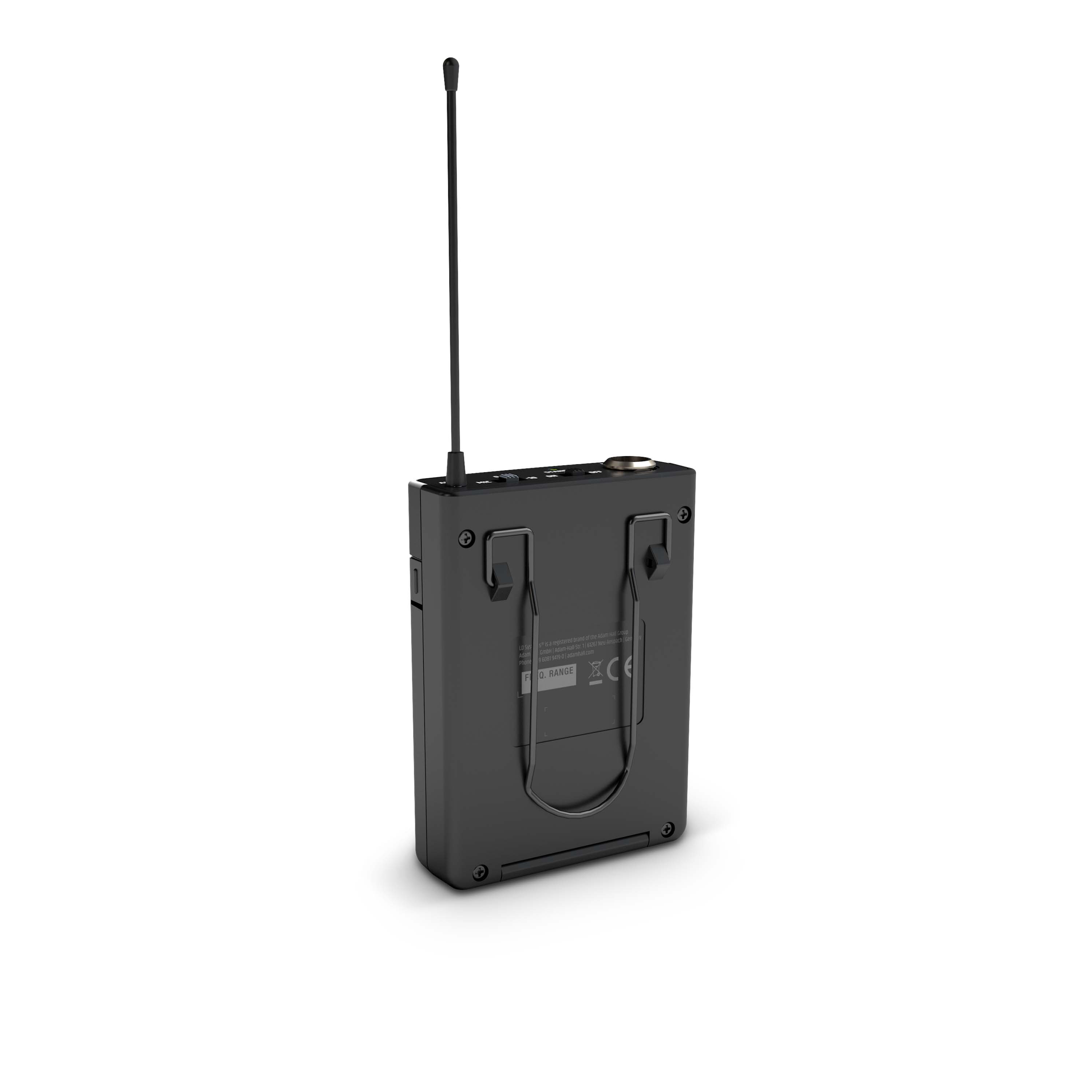

Product typeWireless Microphone System AccessoriesTypeBodypackTransmission frequency range823 - 832 MHz, 863 - 865 MHzChannels12Groups1InputsMini-XLR (Phantom Powered Low-Z / High-Z Instrument)Frequency response25 - 16,000 HzSignal-to-noise ratio104 dBRated HF output power10 mWControlsGain (3-way switch), Power On/OffIndicatorsASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)Operating voltage2 x AA batteriesOperating time>10 hWidth65 mmHeight91 mmDepth25 mmWeight0,085 kgOther featuresBelt clip, IR frequency synchronisation, Pilot tone
