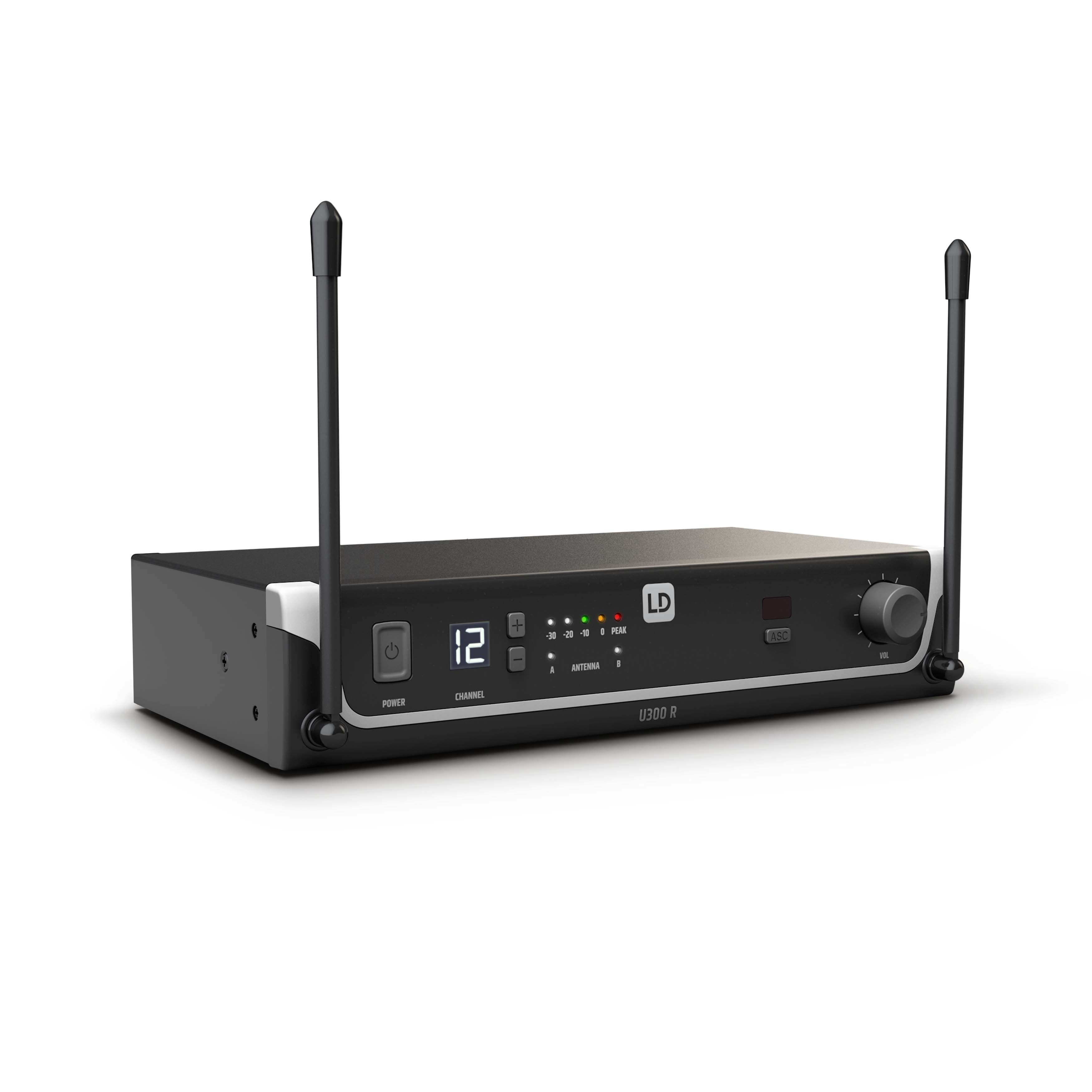

LD Systems U305 R - Prijímač
Prevádzka v pásme 584 - 608 MHZ. Tento diverzitný UHF vysielač série U300® obsahuje technológiu FM, 12 kanálov s frekvenčnou odozvou 25 Hz - 16 KHz. Poskytuje pohodlnú jednorazovú IR synchronizáciu s mikrofónom alebo vysielačom na opasok pre rýchle a bezproblémové nastavenie. Pilotný tónový obvod zabraňuje hluku a rušeniu. Prijímač U305 je dodávaný v štýlovom kovovom púzdre, s osvetleným LCD displejom, kanálovým voličom plus úrovňou LED audio a anténnymi indikátormi.Zadný panel poskytuje vyvážené XLR a nevyvážené výstupy 1/4 ". Pre použitie s gitarovými a basovými zosilňovačmi je prepínateľný nevyvážený výstup. Balenie prijímača obsahuje napájací adaptér a XLR AUDIO kábel.
ONLINE KATALÓG PRODUKTOV LD SYSTEMS :
LD SYSTEMS CATALOGUE

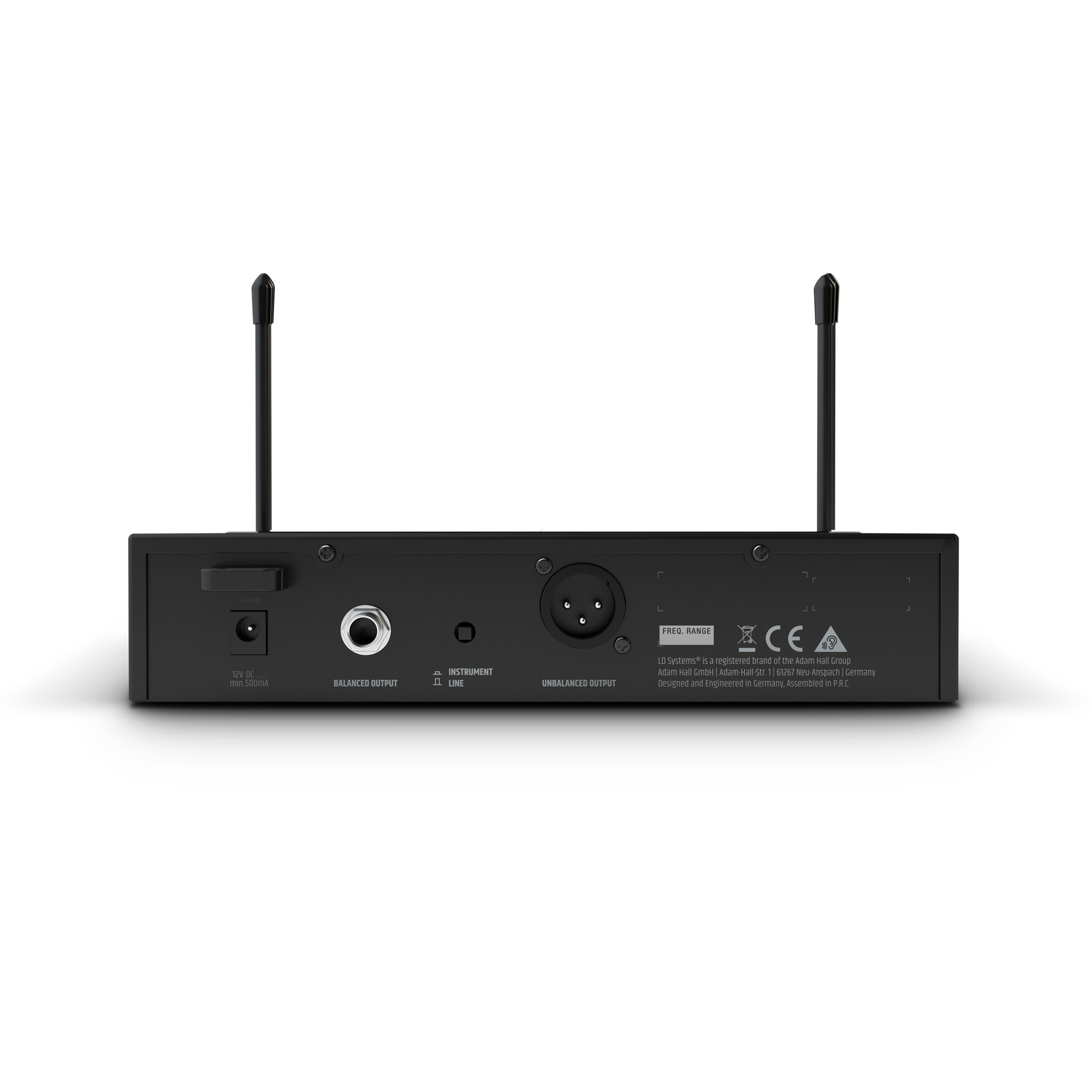

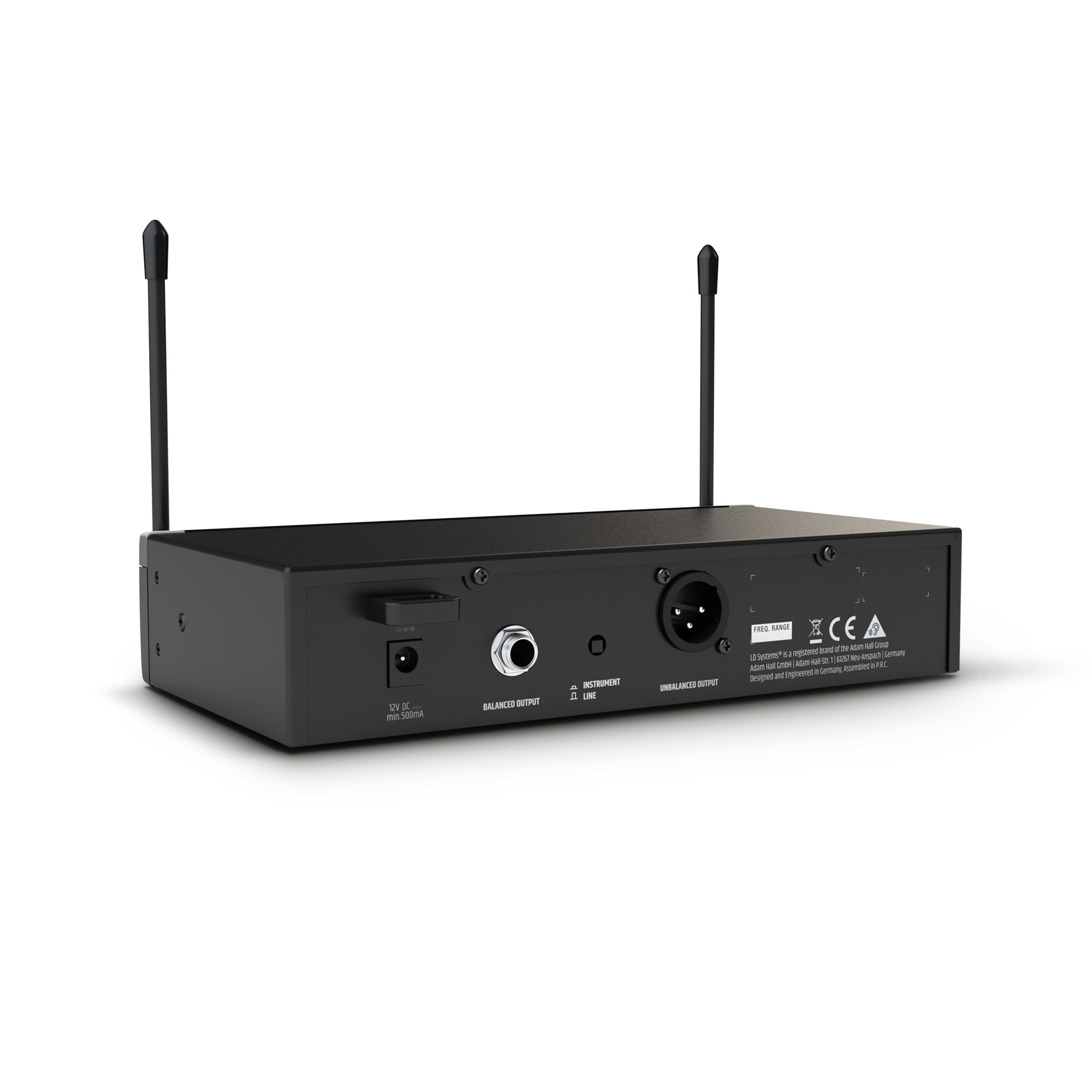

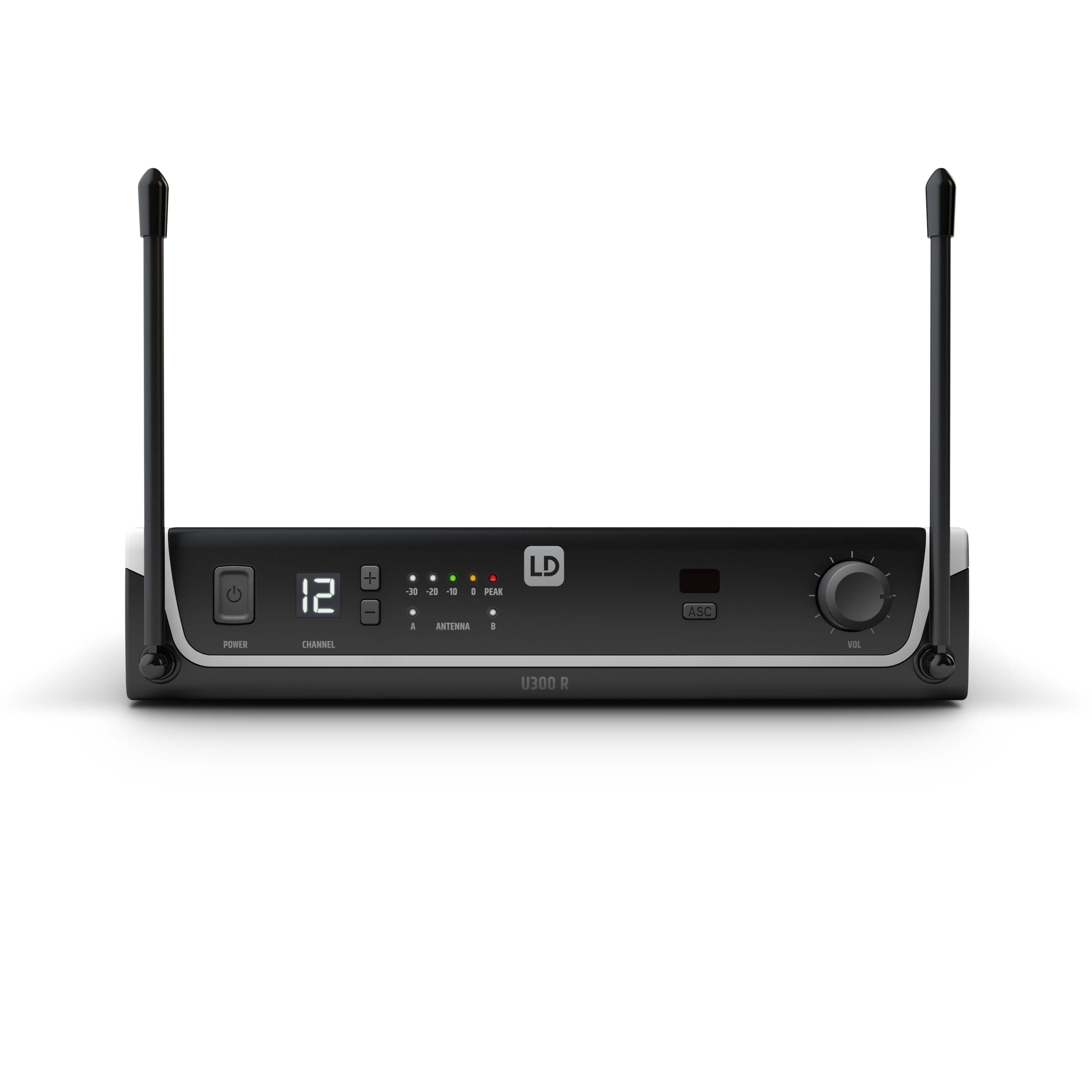

Operating in the 584 - 608 Mhz band, this U300 Series diversity UHF receiver features FM technology, 12 channels and a 25Hz - 16 kHz frequency response. It provides convenient one-touch IR syncing with the series' microphone or bodypack transmitters for q...uick and trouble-free setup while a pilot tone squelch circuit prevents noise and interference. The U305 receiver comes in a stylish metal housing sporting a bright LCD channel display, up and down channel selector buttons plus LED audio level and antenna indicators. The rear panel provides balanced XLR and unbalanced 1/4" outputs. For use with guitar and bass amplifiers, the unbalanced output is switchable to instrument level. The receiver package includes a power adapter and balanced XLR audio cable.
VIAC
Product typeWireless Microphone System AccessoriesTypeReceiversModulation TypeFMTransmission frequency range584 - 608 MHzChannels12Groups1Antenna inputs2 x fixedFrequency response25 - 16,000 HzNoise reductionSquelchTransmission optimizationPilot toneTotal Harmonic Distortion (THD)< 0.3 %Signal-to-noise ratio104 dBAudio output, balancedXLRAudio output, unbalanced6.3 mm jack, switchable unbalanced output levelMax. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBuControlsASC Sync, Channel down, Channel up, Line/Instrument Level, Power, volumeIndicators5 LED VU meters, Antenna A/B, LC displayOperating voltage12 V DC - 18 V DC (500 mA), external power supplyWidth211 mmHeight43 mmDepth120 mmWeight0,7 kgAccessories (included)2 x AA battery, Audio cable, Power supplyOther featuresIR frequency synchronisation
