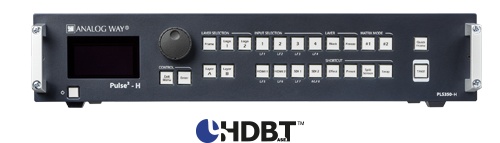

Analog Way® Pulse² - H

Ref. PLS350-HOsem vstupový hi-resolution mixer a seamless switcher s dvomi vstupmi HDBaseT ™, dvoma zrkadlovými výstupmi HDMI / HDBaseT ™ a až 2 živými vrstvami a 2 režimami prevádzky.8 Seamless Inputs

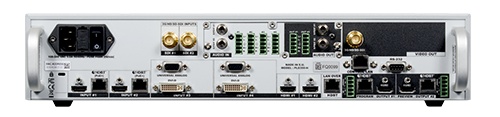

12 total input plugs2x DVI-D up to 2048x1152@60Hz4x HDMI up to 2048x1152@60Hz2x Universal Analog up to 2048x1152@60Hz2x 3G/HD/SD-SDI up to 2K@60Hz2x HDBaseT™ with PoE+ (48V; 30W) up to 2048x1152@60Hz. Support of video, embedded audio and Ethernet pass-through
2 Outputs
Configurable either as two independent Program outputs OR as one Program output and one Preview output2 plugs per output2x HDMI up to 2048x1152@60Hz2x HDBaseT™ up to 2048x1152@60Hz. Support of video, embedded audio, Ethernet, bidirectional RS232 and IRHDMI and HDBaseT™ outputs can output simultaneouslyHigh Performance Video Processing
True-seamless switching technologyReal time image processing and uncompromising video qualityUp to 2 resizable live layers on still background (Switcher mode)1 live background per output (Matrix mod...e)Custom output formats for non-standard display applicationsAdvanced de-interlacing processingPan & Zoom resizing up to 1000%Layer effects: Chroma/Luma Key, Flying, Zooming and CroppingTransitions: Fade, Cut, Wipe & SlideBorder & Shadow
