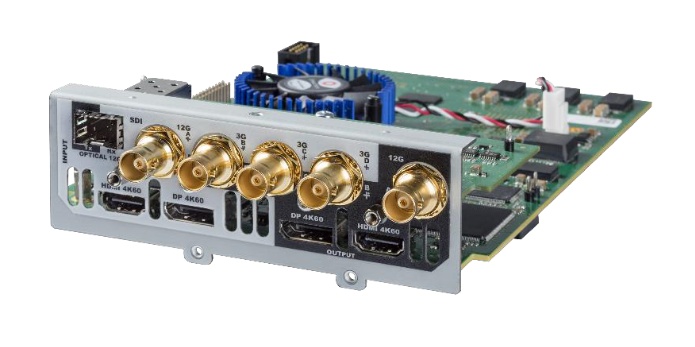

Analog Way® HDMI 2.0/DP 1.2/12G-SDI 4K@60 I/O expansion card

Ref. OPT-4K60P-SDI-VIO4K

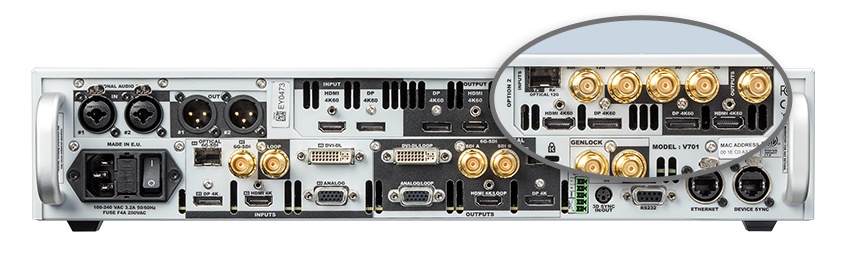

4K @ 60Hz rozšírenie pre rozhranie Input / Output   pre VIO 4K multiformat converter s 12G-SDI, DP 1.2, HDMI 2.0 a Quad-Link 3G-SDI konektivitou.
Rozširujúca karta OPT-4K60P-SDI-VIO4K je vysoko výkonné input / output video rozhranie pre VIO 4K schopné podporovať formáty do UHD / 4K @ 60Hz 4: 4: 4 a vybavené DisplayPort 1.2, HDMI 2.0, 12G-SDI, 12G-SFP and Quad-Link 3G-SDI pripojenie.
HDMI 2.0
Up to 18Gbps bandwidth
Up to UHD/4K@60Hz 4:4:4 8 bits
Up to 2560x1440@60Hz 4:4:4 10 bits
Up to 2560x1440@120Hz 4:4:4 8 bits
HDCP 1.4 and HDCP 2.2 compliant
RGB 4:4:4; YCbCr: ITU-R BT.601, ITU-R BT.709 and ITU-R BT.2020 color spaces
12G-SDI and 12G-SFP Cage
Up to 12Gbps bandwidth
Up to 2160@60Hz 4:2:2 10 bits
YCbCr: ITU-R BT.601, ITU-R BT.709 and ITU-R BT.2020 color spaces
Also compatible with 3G-SDI / 6G-SDI and 3G-SFP / 6G-SFP
DisplayPort 1.2
Up to 21.6Gbps bandwidth
Up to UHD/4K@60Hz 4:4:4 10 bits
HDCP 1.3 Compliant
RGB 4:4:4; YCbCr: ITU-R BT.601 and ITU-R... BT.709 color spaces
Quad-Link 3G-SDI
Either as input or output
Up to 3Gbps bandwidth
Support of 3G-SDI Level A and Level B
Four quadrants or ST 425-5 2SI
YCbCr: ITU-R BT.601, ITU-R BT.709 color spaces
