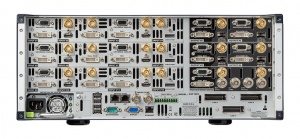

12 Seamless Inputs
42 total input plugs
6x HDMI (3x HDMI up to 4K@30Hz included)
3x DisplayPort (up to 4K@30Hz)
9x DVI-I (3x DVI Dual-Link up to 2560x1600 included)
12x 3G/HD/SD-SDI
12x Universal Analog (6x HD15 and 6x DVI-A)
Supports quad-head HD sources
4 Outputs
5 plugs per output
8x Universal Analog (4x HD15 and 4x DVI-A)
4x 3G/HD/SD-SDI
2x DVI-I Dual-Link up to 2560x1600
2x DVI/HDMI 4K up to 4K@30Hz 4:4:4 or up to 4K@60Hz 4:2:0
4x SFP (Optical for SDI Fiber transmission)
Supports Quad HD (4K@60Hz 4:4:4 on 4 cables)
State-of-the-art Processing
Ultra-low latency 10 bit 4:4:4 processing
Uncompromising scaling performance and image quality
Supports de-interlacing, frame rate and aspect ratio conversion
2 true seamless scaled layers per output (16 scalers)
1 native background per output using still images or live sources
Advanced layer management
Advanced Video Effects
Seamless crossfade on all layers, on all 12 sources
Borders: Edge, Smooth, Smooth Edge, Shadow
Transitions: Cut, Fade, Slide, Wipe, Circle, Stretch, Depth, Flying window with programmable paths
Layer effects: Background Cut, Transparency, Luma/Chroma Key, DSK, H&V Flip, Cut and Fill
Color effects: B&W, Negative, Sepia and Solarize
