Martin Exterior Linear Quad Graze

Exterior™ Linears sú séria LED farbu meniacich svetiel v robustnom outdoorovom obale. Dodávajú vysoký výkon a sú dostupné v cove a graze variantách.

Exterior™ Linear 1210 Graze QUAD a Exterior™ Linear 310 Graze QUAD používajú štvor-farebné LED pre nadpriemerné miešanie farieb priamo na šošovke a aby sme sa vyhli viac farebným tieňom.

Sú dizajnované aby osvetlili steny, alebo akýkoľvek iný typ lineárnej štruktúry a majú nadštnadardné miešanie farieb a rovnomernú distribúciu svetla pri troch rôznych uhloch lúča, ideálne pre zvýrazňovanie textúr povrchov. Exterior Linear svetlá sú DMX ovládateľné, ľahké na inštaláciu vďaka integrovanému univerzálnemu zdroju a dajú sa reťaziť pomocou kombinovaného energetického a dátového konektora.

Na objednávku

1,50

Hmotnosť

CENA:

na dopyt

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

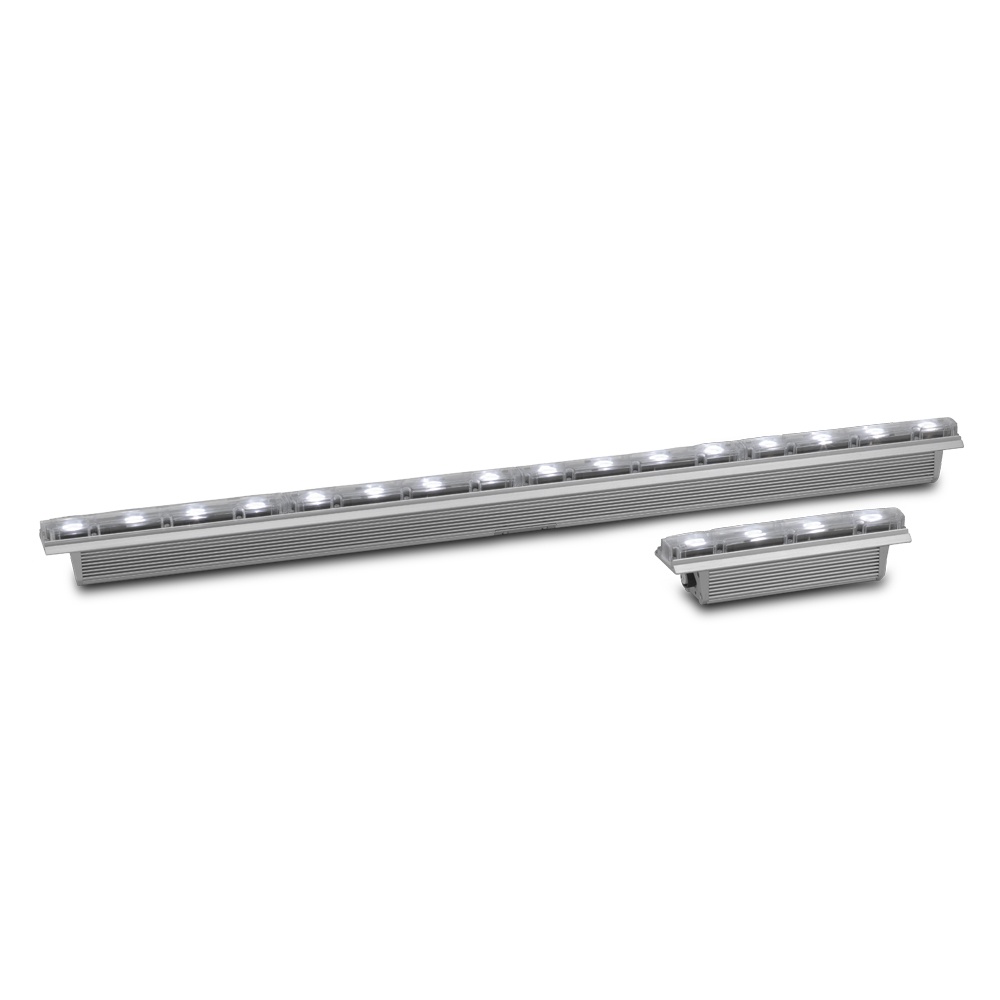

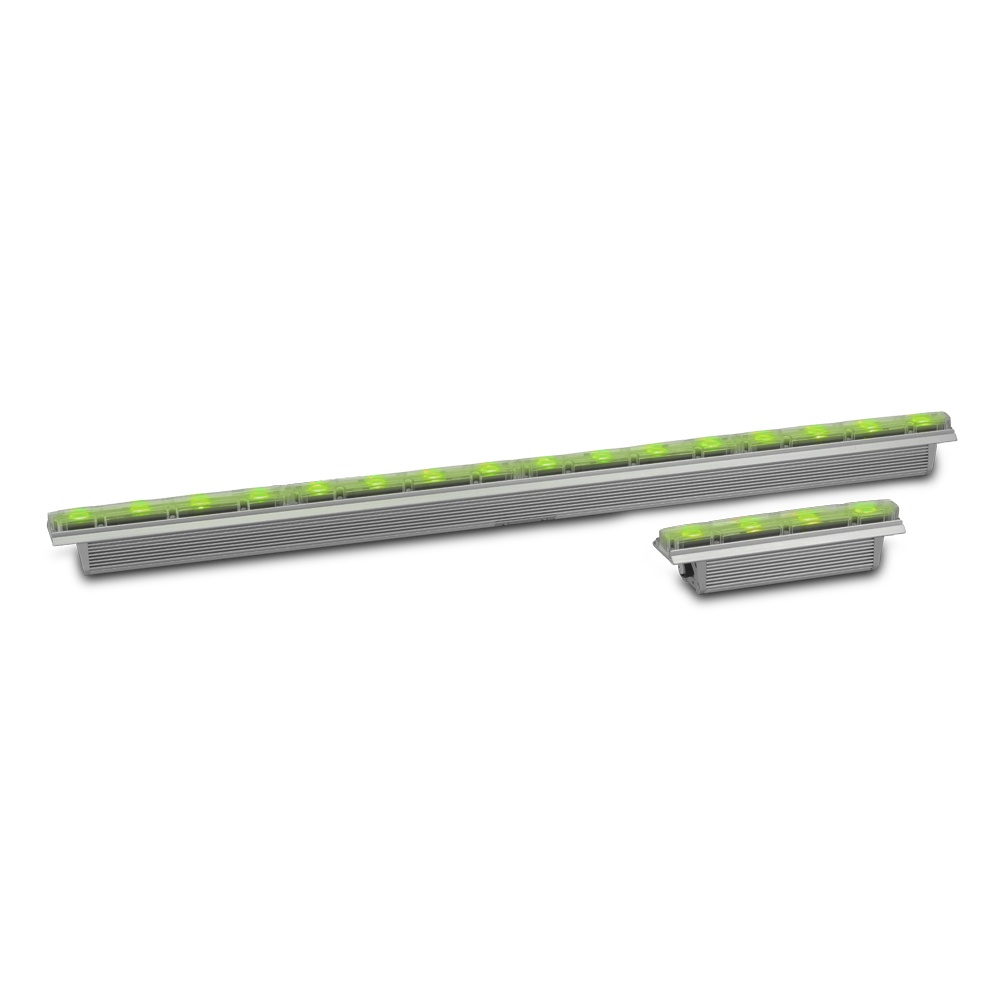

The Exterior™ Linear 1210 Graze QUAD and the Exterior™ Linear 310 Graze QUAD use quad-color LEDs for superior color mixing directly at the lens and to avoid multi-colored shadows.

They are designed to illuminate walls or any type of linear structure and feature superb premixed color mixing and uniform light distribution at three different beam angles, ideal for highlighting textured surfaces. The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

FEATURES
Premixed color mixing out of the lens.
Low power consumption (max 20 W/ft).
No extra control boxes required – connects directly to line voltage and DMX.
Internal power and control (DMX, RDM and magnetic tool).
Super rugged IP66 housing.
0–100% intensity control.

PHYSICAL

310 series (1 ft.) fixtures:
Length:	305 mm (12.0 in.)
Width:	72 mm (2.8 in.)
Height:	101 mm (4.0 in.) including bracket
Weight:	1.5 kg (3.4 lbs.)

1210 series (4 ft.) fixtures:
Length:	1219 mm (48.0 in.)
Width:	72 mm (2.8 in.)
Height:	101 mm (4.0 in.) including bracket
Weight:	6.0 kg (13.3 lbs.)

DYNAMIC EFFECTS

Color mixing:	RGBW
Intensity:	0 - 100%

CONTROL AND PROGRAMMING

Control systems:	DMX, RDM
Control resolution:	8-bit DMX control of each color
User interface:	Magnetic button to call up fixture status and test fixture
DMX channels:	2 - 16 depending on model and mode
DMX compliance:	USITT DMX512/1990 RDM
RDM compliance:	ANSI/ESTA E1.20

OPTICS

Light source:	Quad-color Osram OSTAR
Minimum LED lifetime:	50,000 hours (to >70% luminous output)*
Beam angle variants:	Narrow	15° Wide	62° Asymmetric	17° x 67°
Binning:	Tight color and flux binning

*Figure obtained under manufacturer's test conditions

PHOTOMETRIC DATA

CCT:	White Light LED 6500K
Exterior Linear 310 QUAD Graze:
Total luminous output:	705 lumens
Red output:	174 lumens
Green output:	435 lumens
Blue output:	102 lumens
White output:	615 lumens

Exterior Linear 1210 QUAD Graze:

Total luminous

output:	2820 lumens
Red output:	696 lumens
Green output:	1740 lumens
Blue output:	407 lumens
White output:	2460 lumens

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

CONSTRUCTION

Housing:	Aluminum
Front:	Clear polycarbonate with diffuser
Protection rating:	IP66
IK rating:	IK08
Corrosion resistance:	C5-M (very high corrosivity / marine, ISO 12944)
Vibration resistance:	1.0g, Sinusoidal (IEC 60068-2-6)

0,7g RMS Random (IEC 60068-2-64)
RoHS compliant

INSTALLATION

Orientation:	Any
Minimum distance to illuminated surfaces:	0.1 m (0.3 ft.)

CONNECTIONS

Power/data in/thru:

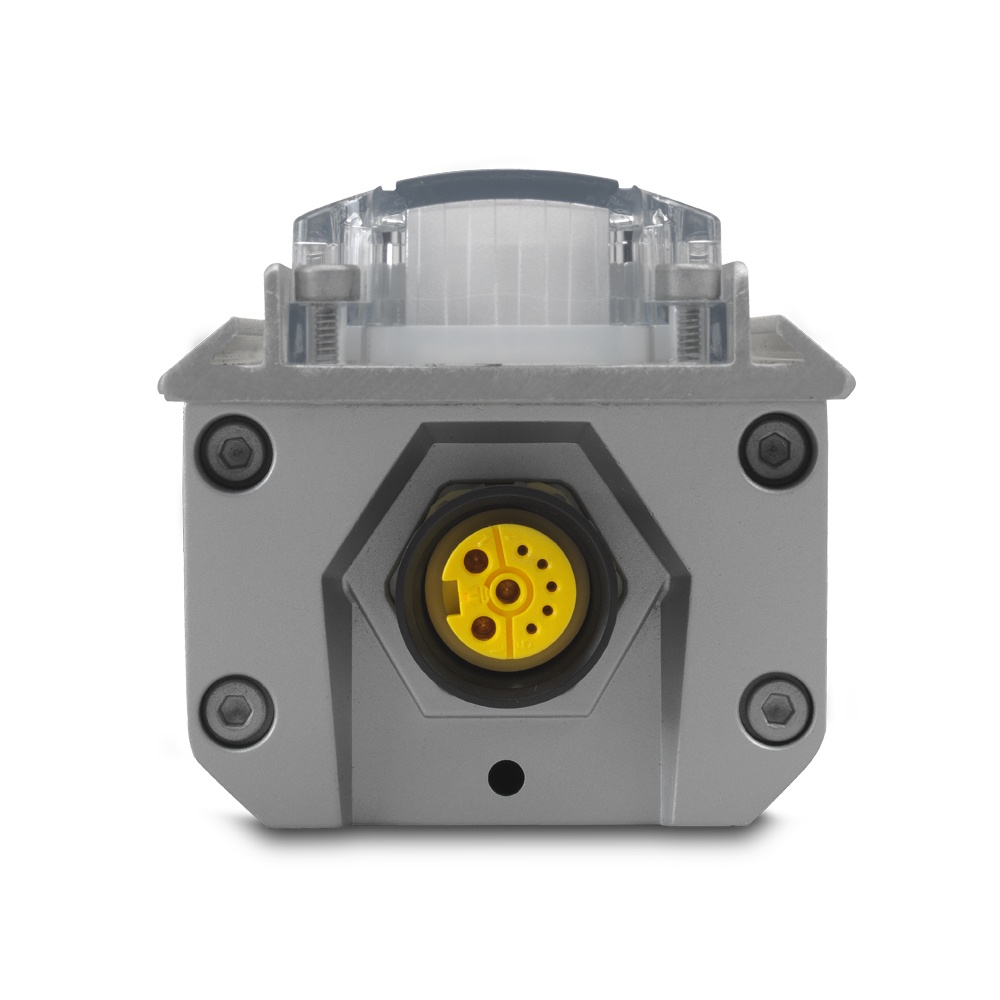

8-pin custom connectors

ELECTRICAL

AC power:	100-277 V nominal, 50/60 Hz
Maximum total length of fixtures in chain at 120 V:	15.24 meters (50 ft.)*
Maximum total length of fixtures in chain at 240 V:	30.48 m (100 ft.)*
Typical half-cycle RMS inrush current:	0.3 A, 1210 QUAD models 0.7 A
Power supply unit:	Auto-ranging electronic switch-mode
Maximum total length of fixtures at 120V:	15.2 m / 50 ft
Maximum total length of fixtures at 240V:	30.5 m / 100 ft
Maximum total length of fixtures at 277V:	100 m / 328 ft
Maximum total cable length at 120V:	70 m / 230 ft
Maximum total cable length at 240V:	100 m / 328 ft
Surge protection:	4 KV
Typical earth-leakage current:	4ft fixture	0,50 mA, 1ft fixture	0,15 mA

*Consult local regulations to determine maximum fixture runs

TYPICAL POWER AND CURRENT

100-240 V, 50/60 Hz:	20 W per foot +/- 1 W, PF 0.95 +/- 0.05
277 V, 50/60 Hz:	20 W per foot +/- 1 W, PF 0.90 +/- 0.05

Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.

THERMAL

Cooling:	Convection
Maximum ambient temperature (Ta max.):	45° C (113° F)*
Minimum ambient temperature (Ta min.):	-30° C (-22° F)
Total heat dissipation (calculated, +/- 10%):	70 BTU/hr. per foot

*Above this temperature, the fixture regulates output to protect from overheating.

ENVIRONMENTAL

RoHS:	Compliant
REACH:	Compliant
WEEE:	Compliant
Proposition 65:	Compliant
Efficacy (max output):	35 lm/W
LWR*:	470 lm/kg (207 lm/lb)

*LWR = Lumen-to-Weight Ratio

APPROVALS

Global CB Certification/IECEE:	IEC 60598-2-5 (IEC 60598-1)
EU safety:	EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493
EU EMC:	EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3
US safety:	ANSI/UL 1598
US EMC:	47 CFR Part 15 Class B
Canadian safety:	CSA C22.2 No. 250.0
Australia/NZ:	RCM
India:	BIS

RELATED ITEMS

Martin Companion Cable:

P/N 91616091

Martin Companion Software Suite (including firmware uploader)

ACCESSORIES

Magnetic Test Tool, set of 10:	P/N 91610139
Cables:

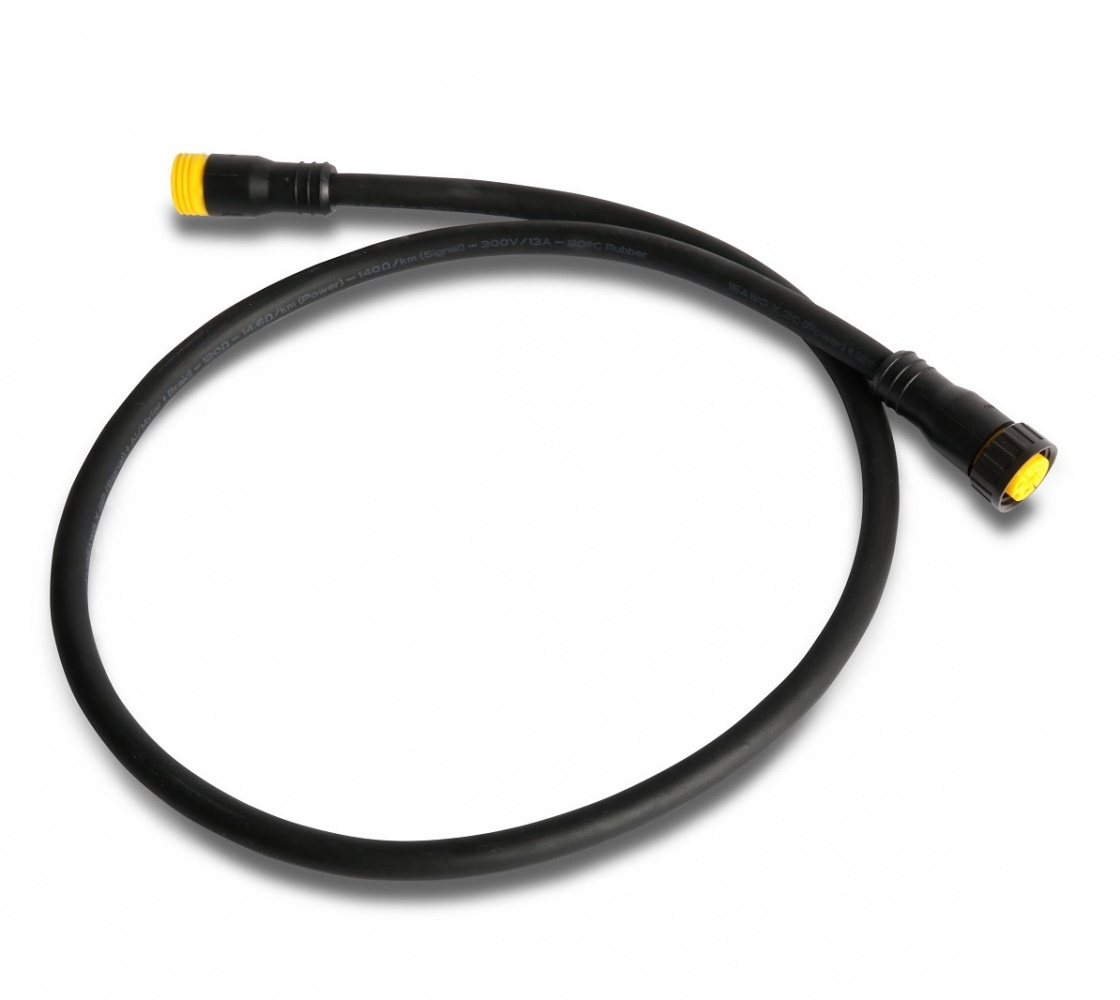

Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU:	P/N 91611754
Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US:	P/N 91611755
Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU:	P/N 91611156
Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US:	P/N 91611157
Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU:	P/N 91611758
Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US:	P/N 91611759
Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU:	P/N 91611760
Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US:	P/N 91611761
Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU:	P/N 91611762
Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US:	P/N 91611763
Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU:	P/N 91611764
Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US:	P/N 91611765
End Termination Cap for power + data link:	P/N 91611766

Optical:
Exterior Linear 300 Series Glare Shield, set of 4:	P/N 91611752
Exterior Linear 1200 Series Glare Shield, set of 4:	P/N 91611753

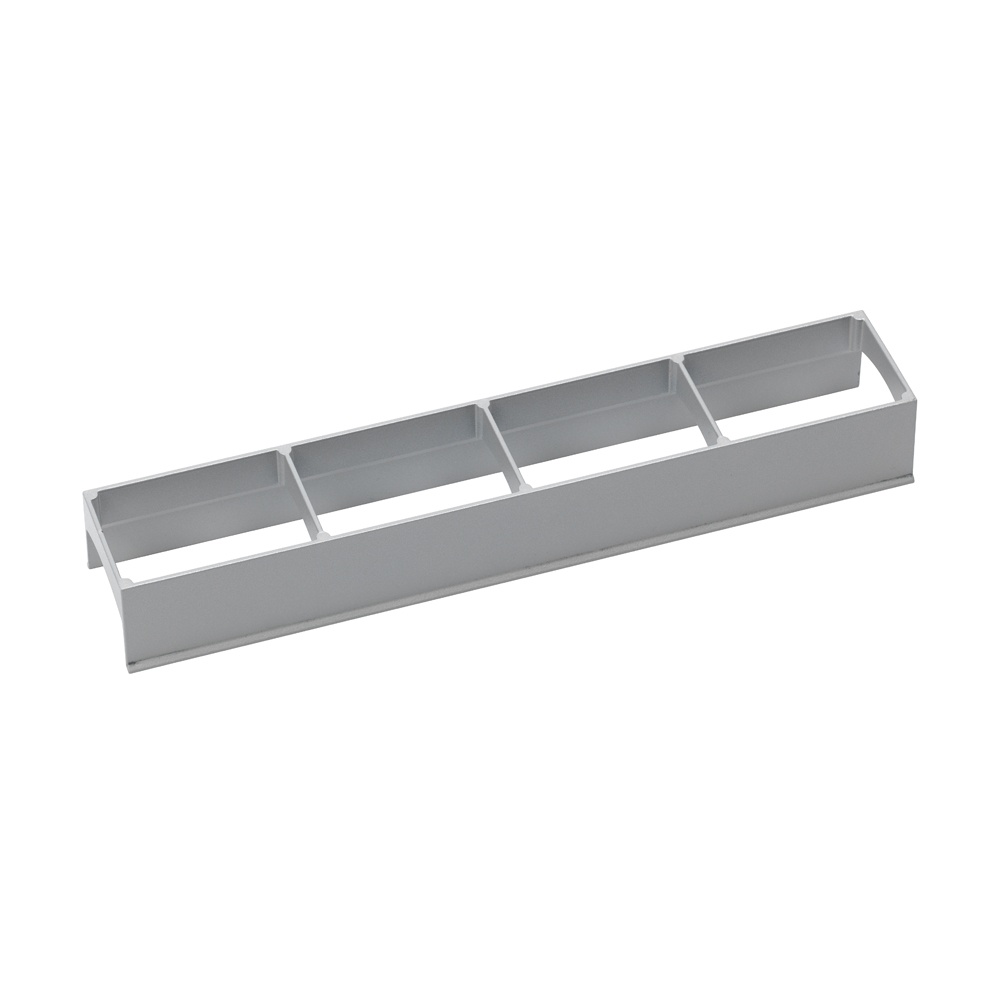

Exterior Linear 310/1210 QUAD Graze Louvre, set of 4:	P/N 91611850

ORDERING INFORMATION

Exterior Linear 1210 Quad Graze:
Exterior Linear 1210 QUAD Graze, Narrow:	P/N MAR-90356993
Exterior Linear 1210 QUAD Graze, Wide:	P/N MAR-90356994
Exterior Linear 1210 QUAD Graze, Asymmetric:	P/N MAR-90356995

Exterior Linear 310 Quad Graze:
Exterior Linear 310 QUAD Graze, Narrow:	P/N MAR-90356990
Exterior Linear 310 QUAD Graze, Wide:	P/N MAR-90356991
Exterior Linear 310 QUAD Graze, Asymmetric:	P/N MAR-90356992
