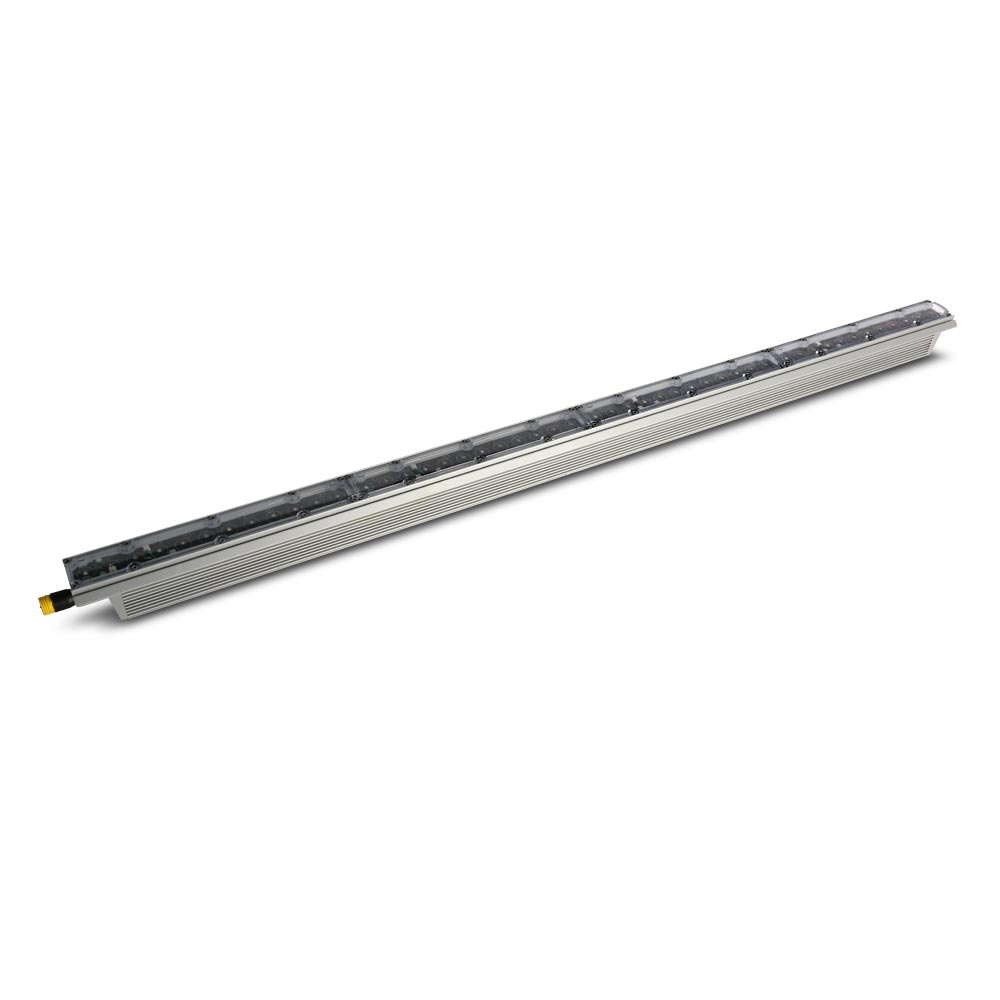

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

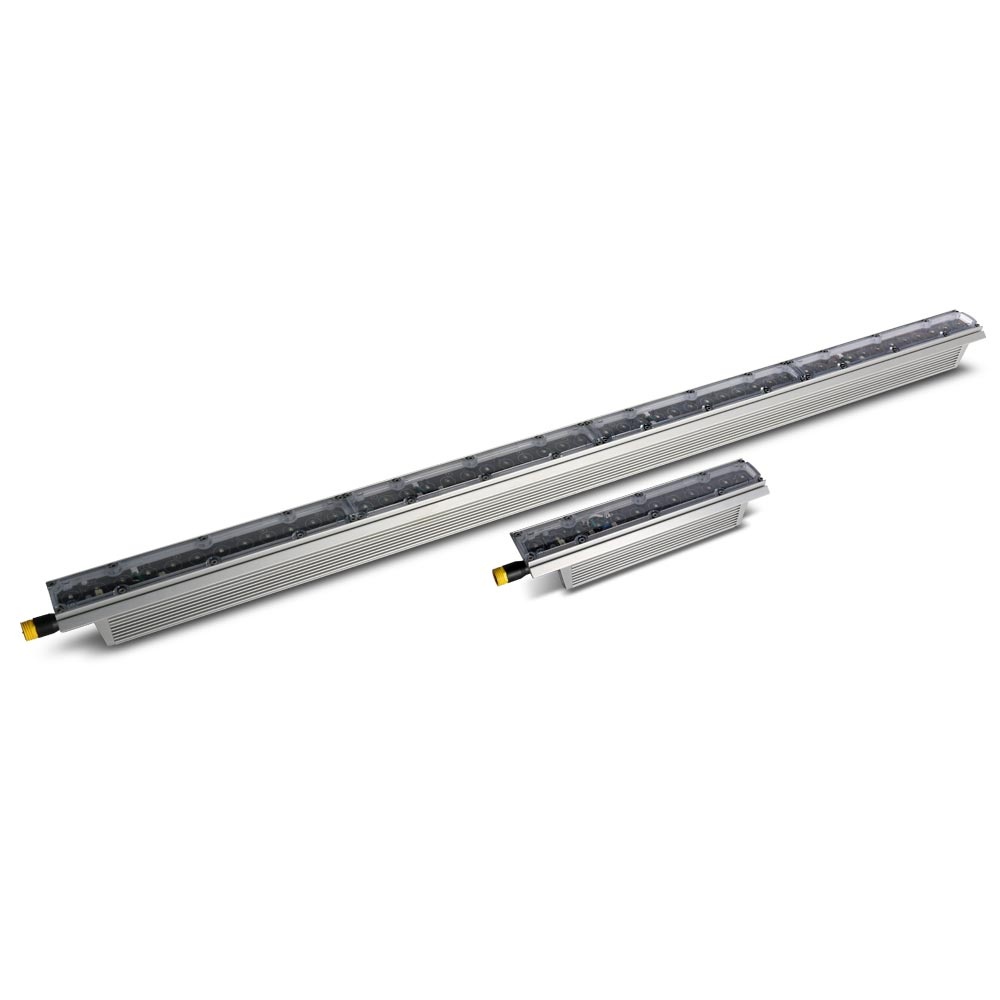

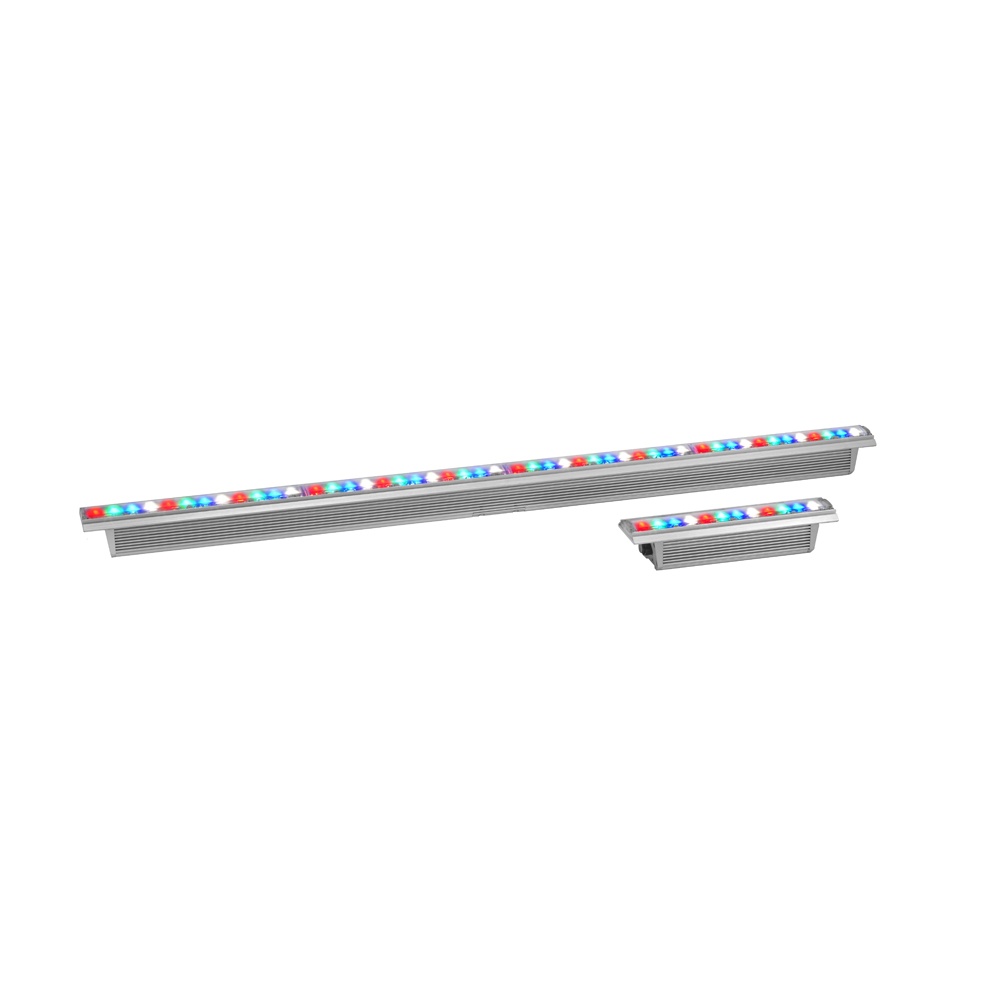

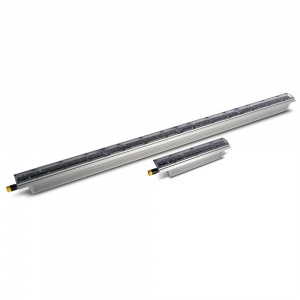

Exterior™ Linear 1200 Cove RGBW and Exterior™ Linear 300 Cove RGBW feature superb color mixing and a uniform light distribution at a beam angle of 120°, suitable for a wide range of indirect lighting applications such as cove lighting in ceilings, decorative wall lighting and other structures.
The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.
FEATURES
Wide spread and uniform color mixing.
Very low power consumption (max 20 W/ft).
No extra control boxes required – connects directly to line voltage and DMX.
Internal power and control (DMX, RDM and magnetic tool).
Super rugged IP66 housing.
0–100% intensity control.
PHYSICAL
|
300 series (1 ft.) fixtures: | |
|
Length: | 305 mm (12.0 in.) |
|
Width: | 72 mm (2.8 in.) |
|
Height: | 95 mm (3.8 in.) including bracket |
|
Weight: | 1.6 kg (3.6 lbs.) |
|
1200 series (1 ft.) fixtures: | |
|
Length: | 1219 mm (48.0 in.) |
|
Width: | 72 mm (2.8 in.) |
|
Height: | 95 mm (3.8 in.) including bracket |
|
Weight: | 6.4 kg (14.2 lbs.) |
DYNAMIC EFFECTS
|
Color mixing: | RGBW |
|
Intensity: | 0 - 100% |
CONTROL AND PROGRAMMING
|
Control systems: | DMX, RDM |
|
Control resolution: | 8-bit DMX control of each color |
|
User interface: | Magnetic button to call up fixture status and test fixture |
|
DMX compliance: | USITT DMX512/1990 RDM |
|
RDM compliance: | ANSI/ESTA E1.20 |
OPTICS
|
Light source: | Quad-color OSRAM Ostar |
|
Minimum LED lifetime: | 50,000 hours (to >70% luminous output)* |
|
Beam angle: | 120° |
|
Binning: | Tight color and flux binning |
*Figure obtained under test conditions
PHOTOMETRIC DATA
|
Exterior Linear 300 RGBW Cove: | |
|
Total luminous output: | 874 lumens |
|
Red output: | 134 lumens |
|
Green output: | 296 lumens |
|
Blue output: | 42 lumens |
|
White output: | 308 lumens |
|
Exterior Linear 1200 RGBW Cove: | |
|
Total luminous output: | 3496 lumens |
|
Red output: | 536 lumens |
|
Green output: | 1184 lumens |
|
Blue output: | 168 lumens |
|
White output: | 1232 lumens |
|
CCT: | 4000 K (White LED) |
|
CRI: | > 70 |
* All Photometric Data measured in stea
dy state (30 minutes warm-up time) at 25°C ambient.
CONSTRUCTION
|
Housing: | Aluminum |
|
Front: | Clear polycarbonate with diffuser |
|
Protection rating: | IP66 |
|
IK rating: | IK08 |
|
Corrosion resistance: | C5-M (very high corrosivity / marine, ISO 12944) |
|
Vibration resistance: | 1.0g, Sinusoidal (IEC 60068-2-6) |
0,7g RMS Random (IEC 60068-2-64)
RoHS compliant
INSTALLATION
|
Orientation: | Any |
|
Minimum distance to illuminated surfaces: | 0.1 m (0.3 ft.) |
CONNECTIONS
|
Power/data in/thru: | 8-pin custom connectors |
ELECTRICAL
|
AC power: | 100-277 V nominal, 50/60 Hz |
|
Maximum total length of fixtures in chain at 120 V: | 15.24 meters (50 ft.) |
|
Maximum total length of fixtures in chain at 240 V: | 30.48 m (100 ft.) |
|
Typical half-cycle RMS inrush current: | 0.3 A, 1210 QUAD models 0.7 A |
|
Power supply unit: | Auto-ranging electronic switch-mode |
|
Surge protection: | 4 KV |
|
Typical earth-leakage current: | 4ft fixture | 0,50 mA, 1ft fixture | 0,15 mA |
Consult local regulations to determine maximum fixture runs
TYPICAL POWER AND CURRENT
|
100-240 V, 50/60 Hz: | 20 W per foot +/- 1 W, PF 0.95 +/- 0.05 |
|
277 V, 50/60 Hz: | 20 W per foot +/- 1 W, PF 0.90 +/- 0.05 |
Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
THERMAL
|
Cooling: | Convection |
|
Maximum ambient temperature (Ta max.): | 45° C (113° F) |
|
Minimum ambient temperature (Ta min.): | -30° C (-22° F) |
|
Total heat dissipation (calculated, +/- 10%): | 70 BTU/hr. per foot |
ENVIRONMENTAL
|
RoHS: | Compliant |
|
REACH: | Compliant |
|
WEEE: | Compliant |
|
Proposition 65: | Compliant |
|
Efficacy (max output): | 44 lm/W |
|
LWR*: | 583 lm/kg (243 lm/lb) |
*LWR = Lumen-to-Weight Ratio
APPROVALS
|
Global CB Certification/IECEE: | IEC 60598-2-5 (IEC 60598-1) |
|
EU safety: | EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493 |
|
EU EMC: | EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3 |
|
US safety: | ANSI/UL 1598 |
|
US EMC: | 47 CFR Part 15 Class B |
|
Canadian safety: | CSA C22.2 No. 250.0 |
|
Australia/NZ: | RCM |
|
India: | BIS |
RELATED ITEMS
|
Martin Companion Cable: | P/N 91616091 |
Martin Companion Software Suite (including firmware uploader)
ACCESSORIES
|
Magnetic Test Tool, set of 10: | P/N 91610139 |
|
Cables: | |
|
Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: | P/N 91611754 |
|
Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: | P/N 91611755 |
|
Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: | P/N 91611156 |
|
Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: | P/N 91611157 |
|
Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: | P/N 91611758 |
|
Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: | P/N 91611759 |
|
Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: | P/N 91611760 |
|
Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: | P/N 91611761 |
|
Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: | P/N 91611762 |
|
Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: | P/N 91611763 |
|
Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: | P/N 91611764 |
|
Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: | P/N 91611765 |
|
End Termination Cap for power + data link: | P/N 91611766 |
|
Optical: | |
|
Exterior Linear 300 Glare Shield, set of 4: | P/N 91611752 |
|
Exterior Linear 1200 Glare Shield, set of 4: | P/N 91611753 |
ORDERING INFORMATION
|
Exterior Linear 300 RGBW COVE: | P/N 90356976 |
|
Exterior Linear 1200 RGBW COVE: | P/N 90356979 |
