Martin Exterior Linear Pro Cove CTC
Martin Exterior Linear Pro Cove CTC sú flexibilné, kompaktné, LEDkové architektonicke svetlá. Doručujúc rovnomernú distribúciu svetla pri 100 stupňovom uhle lúča, sú ideálne pre nepriame osvetlovanie stropov, stien a iných povrchov na štadiónoch a v arénach, výletných lodiach, zábavných parkoch, hoteloch, kasínach, mostoch, tuneloch a iných permanentných vnútorných aj vonkajších lokáciách.
Majú vysoko efektívnu controlu teploty farby, vysoký CRI a 12 LEDs/ft, Cove CTC modely dodávajú robustný výkon 800 lm/ft. Napchané inteligentnými funkciami, Cove CTC svetlá majú viacero výkonových módov, RDM, ľahko nastavitelný výstup lúmenov pre nízke energetické nároky, DMX ovládanie, a jednoduchú inštaláciu skrz zabudovaný univerzálny zdroj.
So silným zameraním na udržatelnosť, svetlá sa dajú reťaziť pomocou kombinovaného energetického a dátového konektora, povolujúc dlhé svetlá pre jednoduchšie infraštruktúry. Jednoduchá nastavitelnosť uhla lúča robí zmeny dizajnu a úpravy na mieste hračkou a i...nteligentný dizajn montážneho panelu pasuje pre rozsah štandardných i na mieru vyrobených úchytov.
Úzky dizajn týhto svetiel ich robí ľahšími pre integráciu do architektonických prvkov s nižšími nárokmi. Všetky modely sú dostupné v dĺžkach 1 a 4 stôp.
VIAC

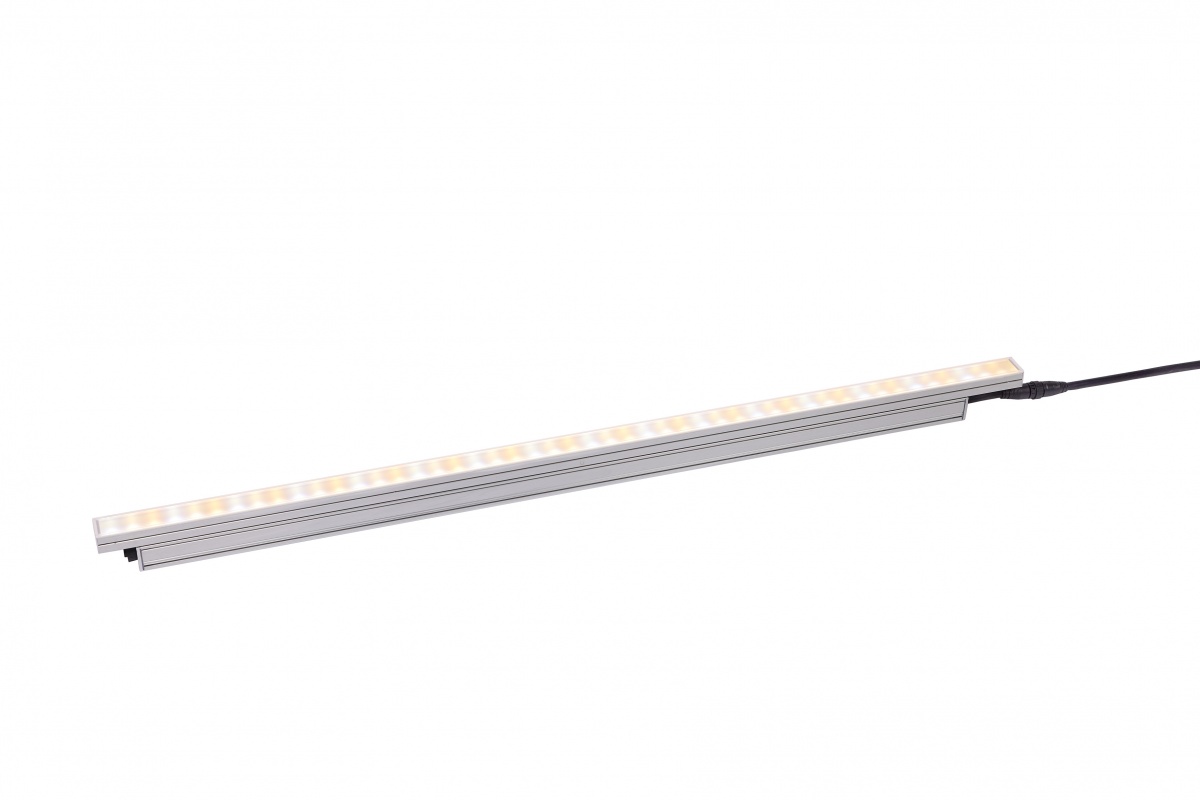

Martin Exterior Linear Pro Cove CTC lights are flexible, compact, LED-based architectural fixtures. Delivering uniform light distribution at a 100 degree beam angle, they are ideal for striking indirect lighting of ceilings, walls and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels or other permanent indoor or outdoor locations.
Featuring highly efficient color temperature control (2700K, 4000K, 6500K), a high color rendering index (CRI) and 12 LEDs/ft, Cove CTC models deliver robust output of 800 lm/ft, perfect for illuminating high walls and surfaces while maintaining lumen intensity. Packed with intelligent features, Cove CTC lights include multiple power modes, Remote Device Management (RDM), simple-to-adjust total lumen output for low power requirements, DMX-controllability, and easy installation via the integrated universal power supply.

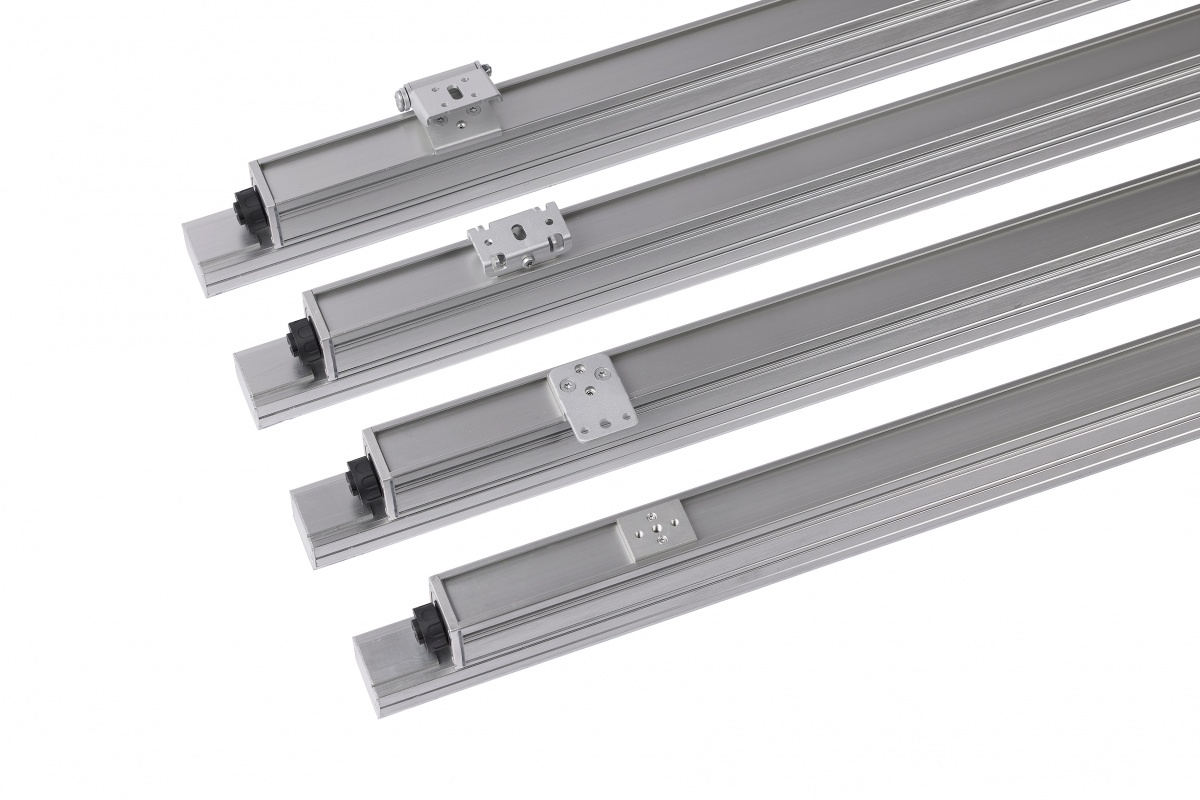

With a high focus on sustainability, these fixtures can be daisy-chained using a combined power and data connector, enabling long fixture runs for simpler infrastructures. Simple beam angle changeability makes late design changes and on-site adjustments easy and a smart mounting plate design allows for a range of standard or custom bracket solutions.

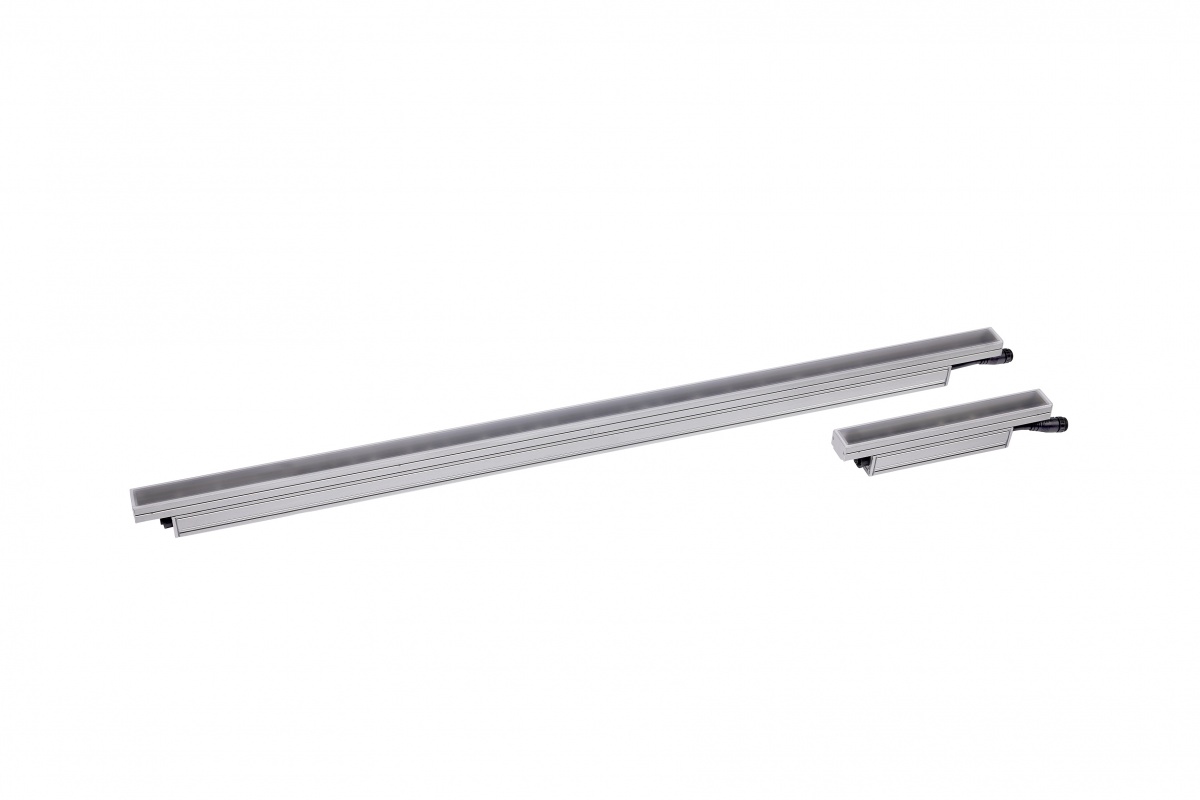

The slim design makes these lights easier to integrate into architectural elements with less structural requirements. All models are available in either 1ft or 4ft linear lengths and are shipped in FSC certified packaging.
FEATURES

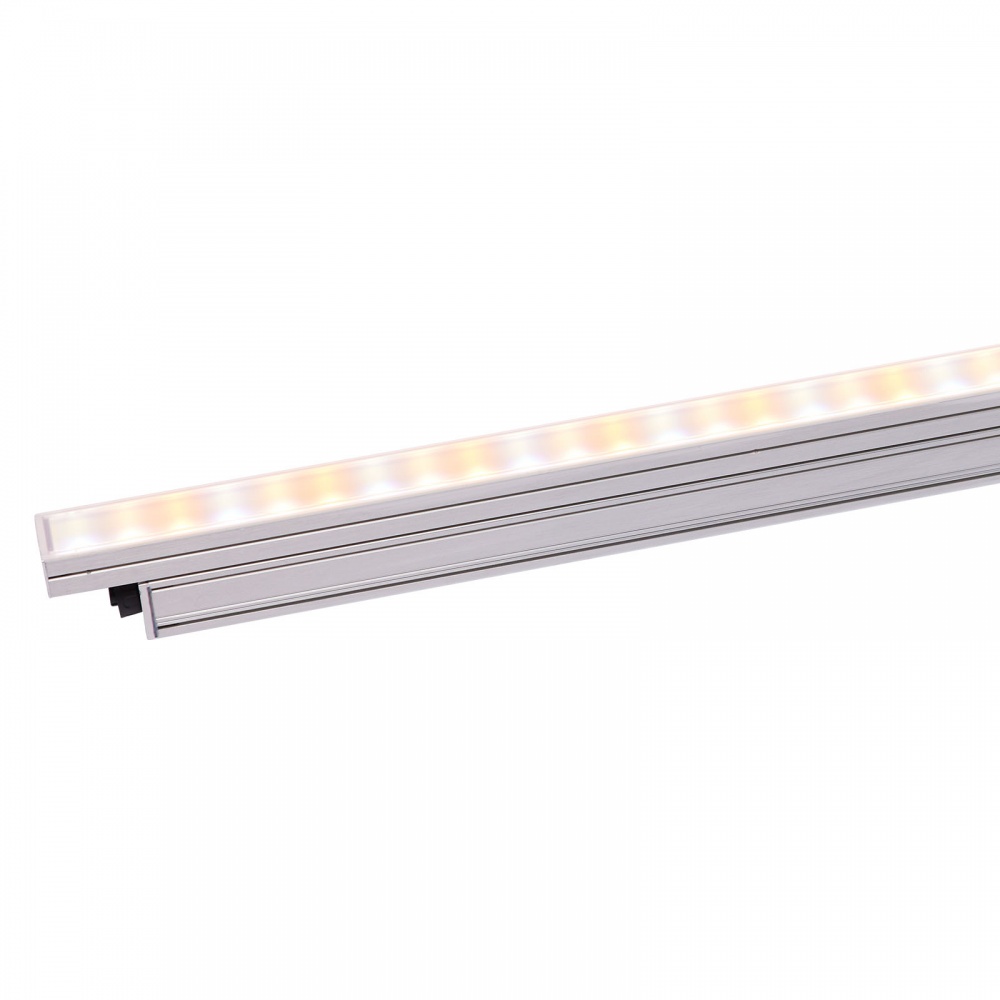

Warm, neutral and cold white LED color temperature control (2700K, 4000K, 6500K) (12 LEDs/ft)
100° beam angle for indirect lighting applications
Selectable segment modes (1, 4 or 8 segments)
Selectable power consumption (12W/10W/5W) per foot
Integrated multi-range power supply unit (PSU) 100-277V for long fixture runs
Hybrid power and data connector for easy daisy-chained configurations
DMX and RDM control
Integrated magnetic switch for local diagnostics
Rugged IP66 housing designed for permanent outdoor installations
Low weight 0.8 kg/ft (1.9 lbs/ft)
Compact design - 40mm (1.57 inch) width
PHYSICAL
|
Width: | 40 mm (1.57 inch.) |
|
Height: | 68 mm (2.67 inch) |
|

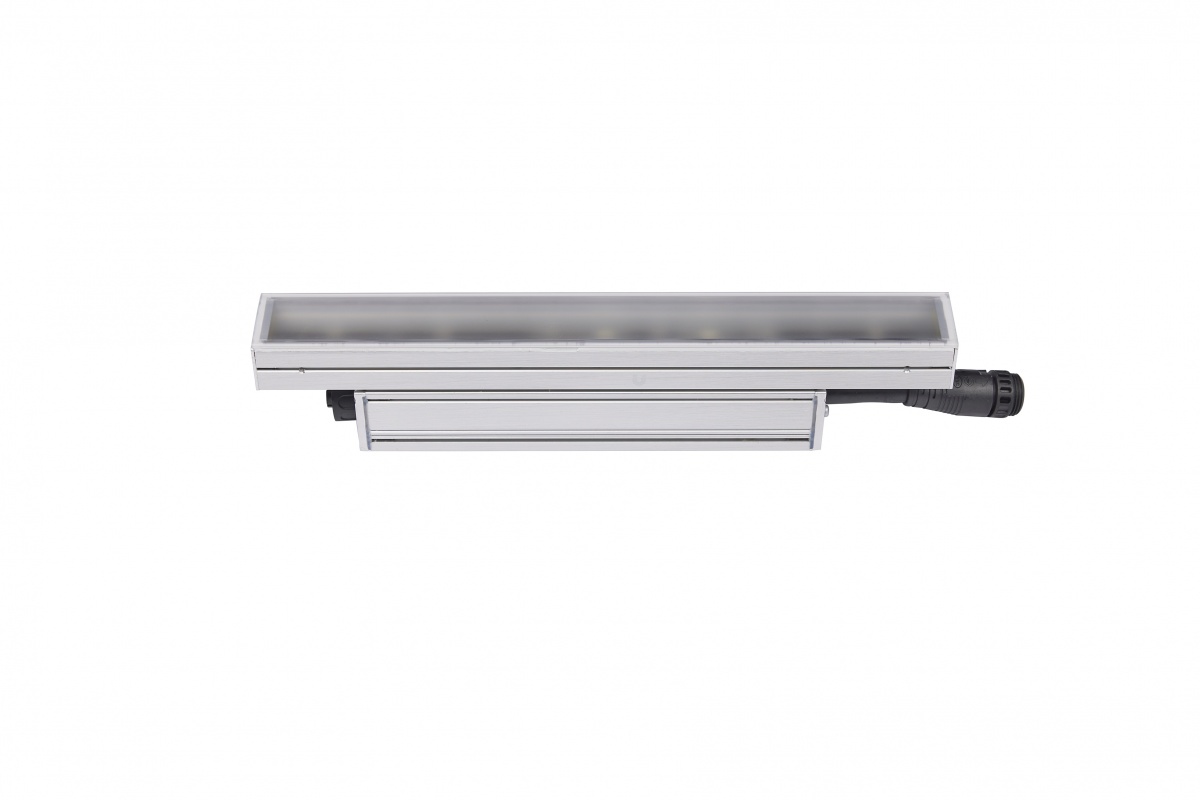

Length - 1 ft Version: | 312mm (1.02 ft) |
|

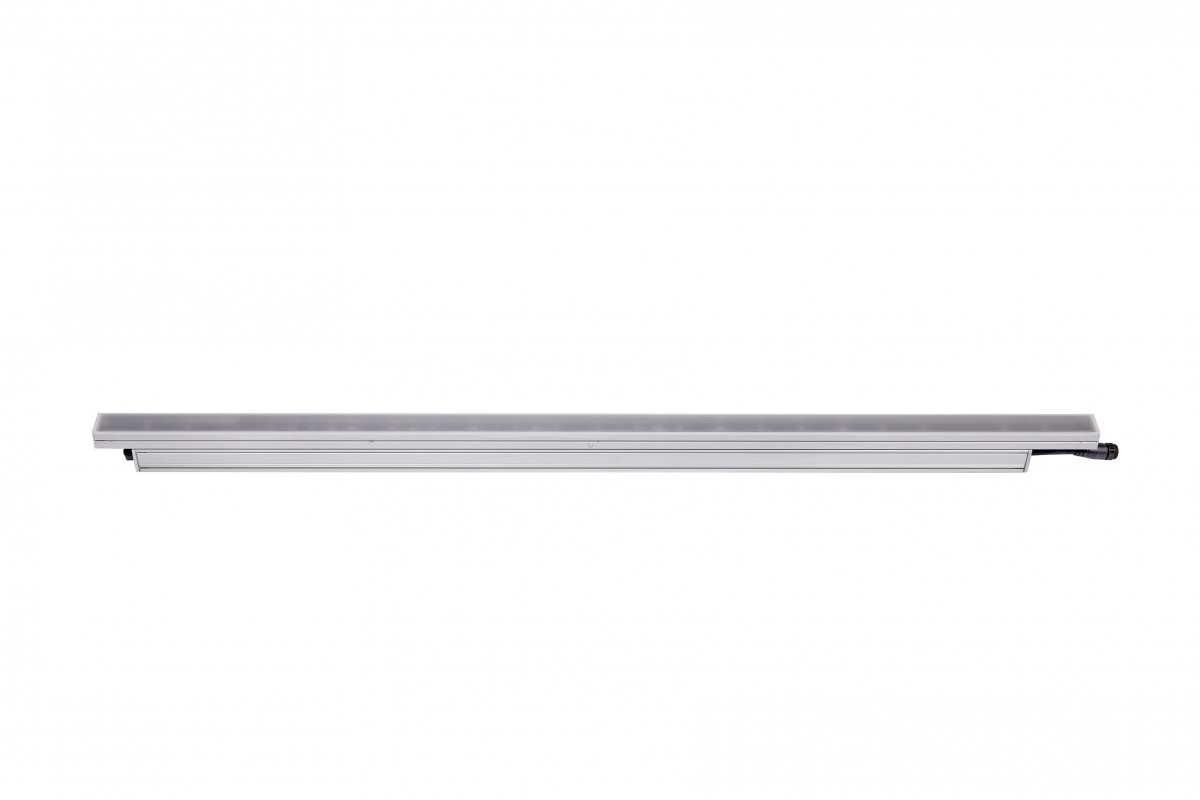

Length - 4 ft Version: | 1227mm (4.02 ft) |
|
Weight - 1 ft Version: | 0.85 kg (1.9 lbs) |
|
Weight - 4 ft Version: | 2.8 kg (6.2 lbs) |
DYNAMIC EFFECTS
|
Color temperature control: | 2700 K – 6500 K |
|
Intensity: | 0 - 100% |
|
Segment Control: | 0.5ft, 1 ft or full 4 ft fixture control |
CONTROL AND PROGRAMMING
|
Control systems: | DMX, RDM |
|
Control resolution: | 8-bit DMX individual color control |
|
User interface: | Magnetic button to call up fixture status and test fixture |
|
Stand-alone control: | Up to 20 scenes with individual fade/hold times |
|
DMX compliance: | USITT DMX512/1990 |
|
RDM compliance: | ANSI/ESTA E1.20 |
|
Dimmer Resolution: | 16-bit DMX control of intensity |
|
DMX channels 4ft: | 3/3/12/24 (standard/1 seg/4 seg/8 seg) |
|
DMX channels 1ft: | 3/6/3 (standard/1 seg/2 seg) |
OPTICS
|
Light source: | White color (2700k, |
4000K, 6500K) LED (12 LEDs per foot)
|
Minimum LED lifetime: | 50 000 hours (to >70% luminous output)* |
|
Beam angle: | 100° |
|
Binning: | Tight color and flux binning |
|
Calibration: | Full Gamut Color Calibration (1 step MacAdam ellipse) |
*Figure obtained under manufacturer's test conditions
PHOTOMETRIC DATA
|
CRI (Color Rendering Index) : | >70 (higher CRI available on request) |
|
CCT: | 2700K - 6500K |
|
Luminous output: | |
1 ft at 12W 4 ft at 12W
|
2700K: | 520 lumens 2100 lumens |
|
4000K: | 580 lumens 2360 lumens |
|
6500K: | 560 lumens 2250 lumens |
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
CONSTRUCTION
|
Housing: | Aluminum |
|
Finish: | Clear anodized or optional colors on request |
|
Front: | Clear polycarbonate |
|
Protection rating: | IP66 |
|
IK rating: | IK08 |
|
Effective Projected Area (EPA): | 0.04 m2 per ft |
|
Corrosion resistance: | C5 - very high corrosivity / Durability Range | High (ISO 12944-6) |
|
Vibration resistance: | 1.0g, Sinusoidal (IEC 60068-2-6), 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31) |
INSTALLATION
|
Orientation: | Any |
|
Minimum distance to illuminated surfaces: | 0.1 m / 0.3 ft. |
ELECTRICAL
|
AC power: | 100-277 V nominal, 50/60 Hz |
|
Typical half-cycle RMS inrush current: | 0.35 A |
|
Power supply unit: | Auto-ranging electronic switch-mode |
|
Surge protection: | 4KV |
|

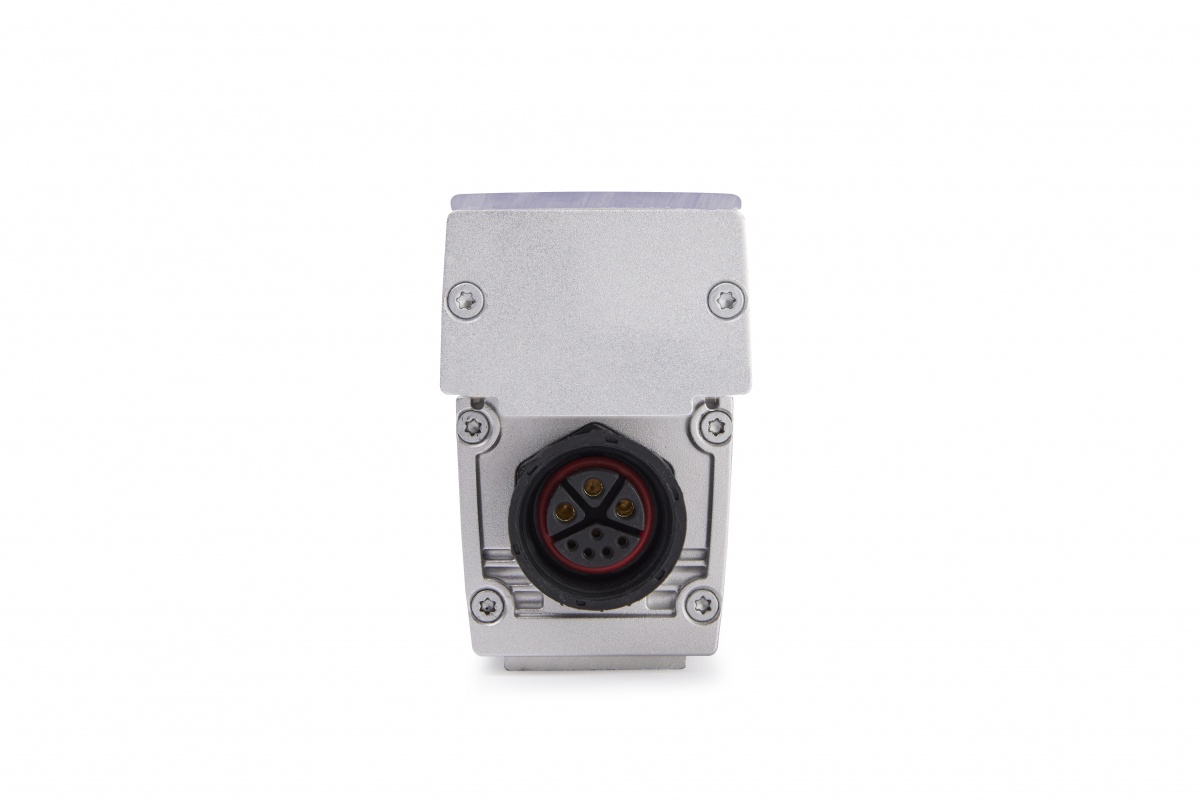

Power/data in/thru: | 8-pin custom connectors |
|
Idle power consumption: | 1ft length | 1.54 W, 4ft length | 2.30W (steady state, all LEDs at zero intensity) |
|
Max earth leakage: | 1ft length | 0.15 mA, 4ft length | 0.21 mA |
|
Maximum connected 4ft fixtures*: | 42 pcs (52 m /169 ft) @ 230V-277V |
|
Maximum total string length (cable + fixtures)*: | 150 m / 328 ft |
* Refer to system diagram for details on fixture run limitations
TYPICAL POWER AND CURRENT
|
12W mode: | |
|
100-240 V, 50/60 Hz: | 12 W per foot +/- 1 W, PF 0.95 +/- 0.05 |
|
277 V, 50/60 Hz: | 12 W per foot +/- 1 W, PF 0.90 +/- 0.05 |
|
10W mode: | |
|
100-240 V, 50/60 Hz: | 10 W per foot +/- 1 W, PF 0.95 +/- 0.05 |
|
277 V, 50/60 Hz: | 10 W per foot +/- 1 W, PF 0.90 +/- 0.05 |
|
5W mode: | |
|
100-240 V, 50/60 Hz: | 5 W per foot +/- 0.5W, PF 0.90 +/- 0.05 |
|
277 V, 50/60 Hz: | 5 W per foot +/- 0.5W, PF 0.70 +/- 0.05 |
Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
THERMAL
|
Cooling: | Convection |
|
Total heat dissipation (calculated, +/- 10%): | 41 BTU/hr. per foot |
|
Maximum ambient temperature: | 45° C (113° F)* |
|
Minimum ambient temperature: | -30° C (-22° F) |
*Above this temperature, the fixture regulates output to protect from overheating
ENVIRONMENTAL
|
RoHS: | Compliant |
|
REACH: | Compliant |
|
WEEE: | Compliant |
|
Proposition 65: | Compliant |
|
FSC: | Certified cardboard inlay and outer packaging |
APPROVALS
|
Global CB Certification/IECEE: | IEC 60598-2-5 (IEC 60598-1) |
|
EU safety: | EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493 |
|
EU EMC: | EN 55015, EN 55032, EN55035, EN 61547, EN 61000-3-2, EN 61000-3-3 |
|
US safety: | ANSI/UL 1598 |
|
US EMC: | 47 CFR Part 15 Class B |
|
Canadian safety: | CSA C22.2 No. 250.0 |
|
Australia/NZ: | RCM |
|
India: | BIS IS 10322(Part5/section5) |
RELATED ITEMS
|
Martin Companion Cable: | P/N MAR-91616091 |
|
Martin Companion Cable (for firmware update over DMX): | Free download from www.martin.com |
ACCESSORIES
|
Glare shield, EL Pro 1ft set of 4: | P/N MAR-90570022 |
|
Glare shield, EL Pro, 4ft set of 4: | P/N MAR-90570023 |
|
Adjustable bracket EL Pro 10 pcs: | P/N MAR-90570025 |
|
Flange bracket EL Pro 10 pcs: | P/N MAR-90570026 |
|
Quick mount bracket EL Pro 10 pcs: | P/N MAR-90570027 |
|
Junction Box Power DMX to PD: | P/N MAR-91700019 |
|
Power DMX Cable PD PD 0.2M EU: | P/N MAR-91700004 |
|
Power DMX Cable PD PD 1M EU: | P/N MAR-91700005 |
|
Power DMX Cable PD PD 2.5M EU: | P/N MAR-91700006 |
|
Power DMX Cable PD PD 5M EU: | P/N MAR-91700007 |
|
Power DMX Cable PD PD 10M EU: | P/N MAR-91700008 |
|
Power DMX Cable 100M Roll EU: | P/N MAR-91700009 |
|
Power DMX Cable PD PD 0.2M US: | P/N MAR-91700010 |
|
Power DMX Cable PD PD 1M US: | P/N MAR-91700011 |
|
Power DMX Cable PD PD 2.5M US: | P/N MAR-91700012 |
|
Power DMX Cable PD PD 5M US: | P/N MAR-91700013 |
|
Power DMX Cable PD PD 10M US: | P/N MAR-91700014 |
|
End termination cap PD: | P/N MAR-91700015 |
|
Power DMX Cable 100M Roll US: | P/N MAR-91700016 |
|
Bulk connector PD female: | P/N MAR-91700017 |
|
Bulk connector PD male: | P/N MAR-91700018 |
ORDERING INFORMATION
|
Exterior Linear Pro cove CTC 1ft: | P/N MAR-90570007 |
|
Exterior Linear Pro cove CTC 4ft: | P/N MAR-90570009 |
