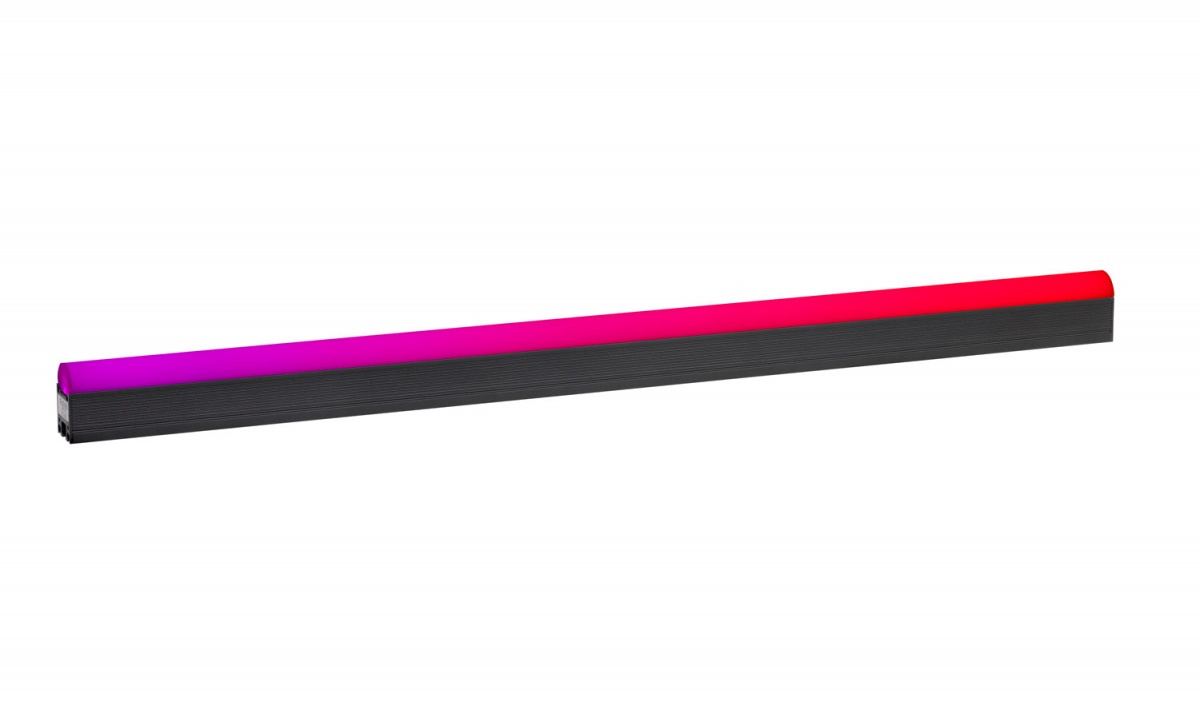

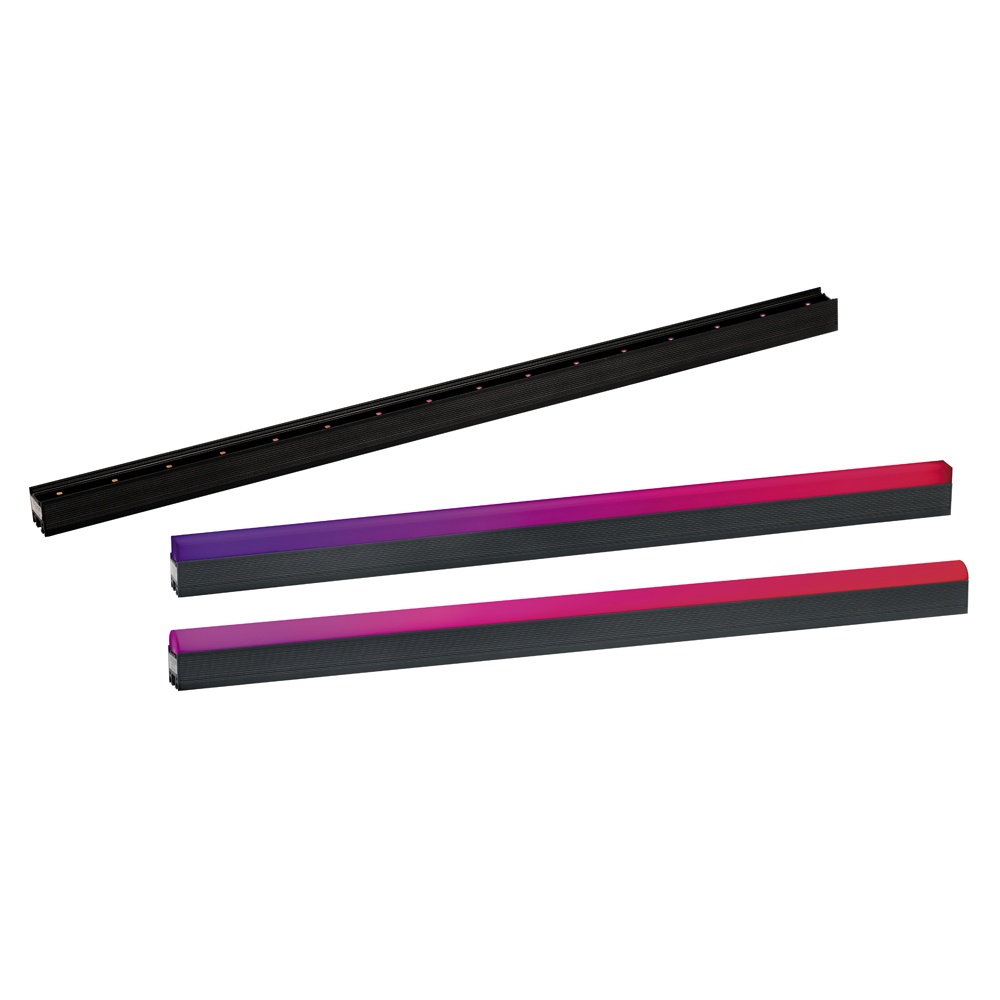

The VDO Sceptron 40 is a linear outdoor-rated LED video fixture for the rental market with 40 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks. The VDO Sceptron 40 is driven by the Martin P3 System Controller family for easy configuration, mapping and setup, and is also backwards compatible with DMX for smaller setups. The integrated power and data cabling allows for long daisy-chains with many fixtures per cable-run, while the power supply can be located backstage (up to 50 m away) for a clean setup avoiding messy cabling and several driver boxes.
FEATURES
Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and simple cabling system
Combined power and data cabling (compatible with other products such as VDO Fatron and VDO Dotron)
DMX Control
P3 Control with VideoMapping
Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
Extensive range of built-in effects
Intuitive mapping and addressing via P3 System Controller
Fully brightness and color calibrated for optimal consistency between products (colors matched with VDO Fatron and VDO Dotron)
Pixel-level brightness and color calibrated for a completely homogenous look
High-quality 16-bit per color image processing technology
40 mm pixel pitch
62 cd per meter calibrated
187 lumen per meter calibrated
Field-exchangeable diffusers and lenses
IP65 rated for outdoor use
Versatile rigging accessories
|
Available in two lengths: | 1000 mm and 320 mm |
FEATURES
Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and simple cabling system
Combined power and data cabling (compatible with other products such as VDO Fatron and VDO Dotron)
DMX Control
P3 Control with VideoMapping
Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
Extensive range of built-in effects
Intuitive mapping and addressing via P3 System Controller
Fully brightness and color calibrated for optimal consistency between products (colors matched wit
h VDO Fatron and VDO Dotron)
Pixel-level brightness and color calibrated for a completely homogenous look
High-quality 16-bit per color image processing technology
40 mm pixel pitch
62 cd per meter calibrated
187 lumen per meter calibrated
Field-exchangeable diffusers and lenses
IP65 rated for outdoor use
Versatile rigging accessories
|
Available in two lengths: | 1000 mm and 320 mm |
INSTALLATION
|
Mounting: | Channel for M6 captive nuts on back of profile |
|

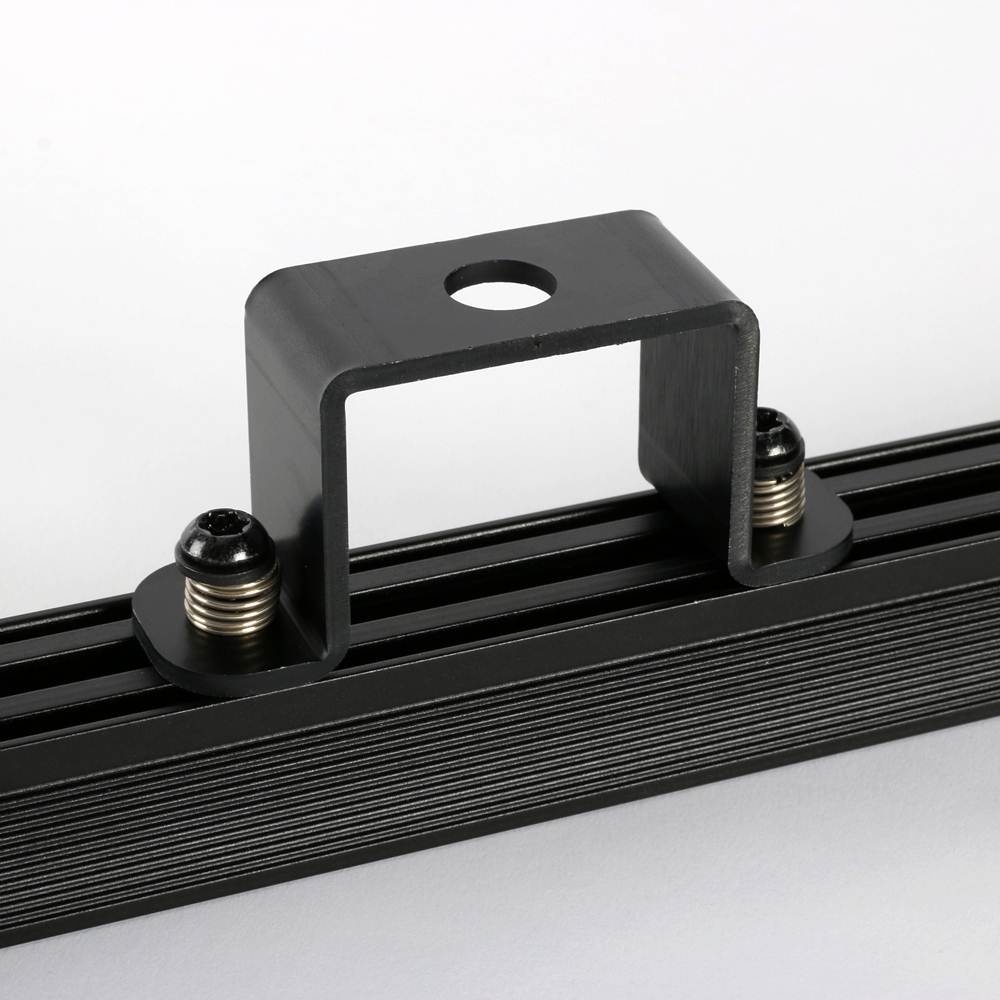

Mounting options: | M6 bolts, optional sliding bracket (accepts M12 bolt), half coupler, spigot adapter, linear coupler, parallel coupler, pivot coupler, floorstand |
|
Orientation: | Any |
CONNECTIONS
|

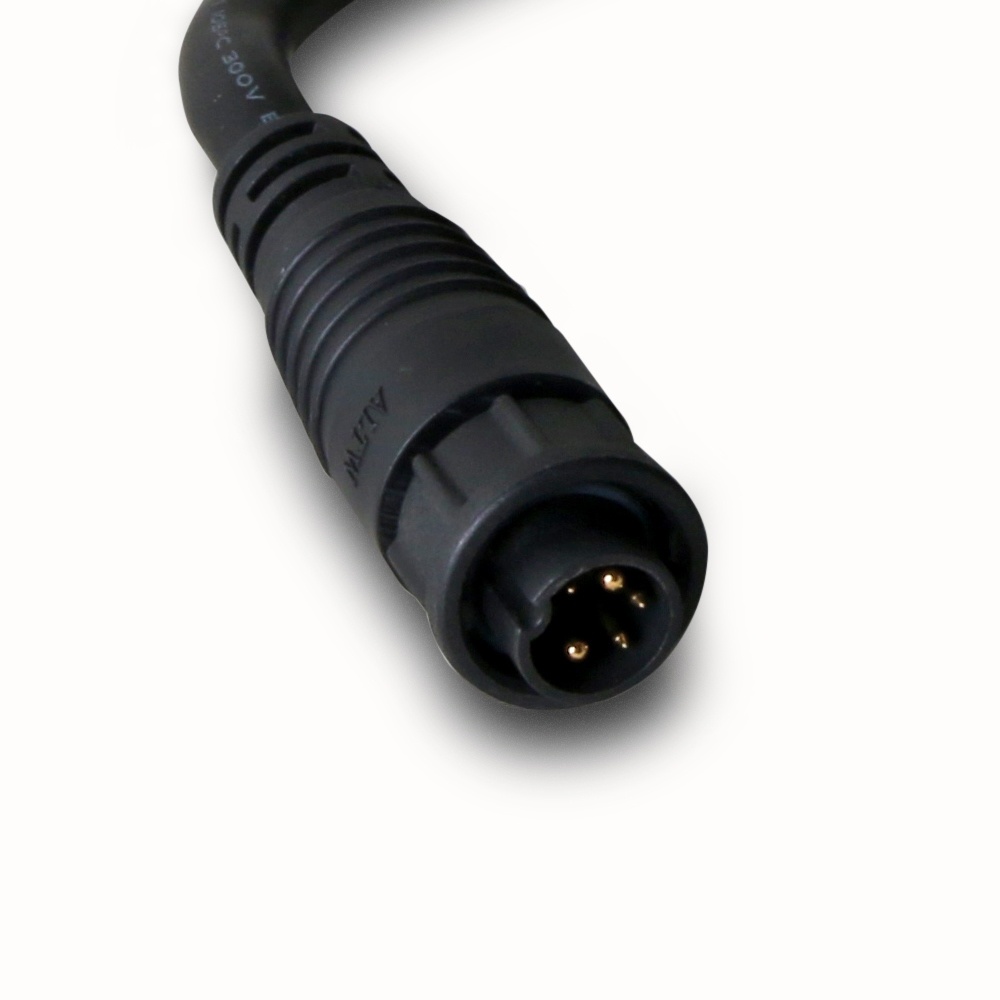

Power and data input: | 6-pin custom (BBD) IP66-rated |
|
Power and data thru: | 6-pin custom (BBD) IP66-rated |
Hot plugging compatible
ELECTRICAL
|
Nominal input voltage: | 48 VDC +/- 4% |
|
Power supply options: | Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin™ DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU |
|
Maximum power consumption, all LEDs at full intensity, VDO Sceptron™ 40, 320 mm: | 2.5 W |
|
Maximum power consumption, all LEDs at full intensity, VDO Sceptron™ 40, 1000 mm: | 7.5 W |
THERMAL
|
Cooling: | Convection |
|
Maximum ambient temperature (Ta max.): | 55° C (131° F) |
|
Minimum ambient temperature (Ta min.): | -30° C (-22° F) |
|
Total heat dissipation (calculated, +/- 10%): | |
|
VDO Sceptron™ 40, 320 mm: | 10 BTU/hr |
|
VDO Sceptron™ 40, 1000 mm: | 30 BTU/hr |
ENVIRONMENTAL
|
RoHS: | Compliant |
|
REACH: | Compliant |
|
WEEE: | Compliant |
|
Proposition 65: | Compliant |
|
Efficacy (max output): | 22.1 lm/W |
|
LWR*: | 138 lm/kg (64 lm/lb) |
LWR = Lumen-to-Weight Ratio
APPROVALS
|
EU safety: | EN 60950-1, EN 60950-22, EN 62471 |
|
EU EMC: | EN 55032, EN 55024 |
|
US safety: | UL 60950-1, UL 60950-22 |
|
US EMC: | FCC Part 15 Class A |
|
Canadian safety: | CSA C22.2 No. 60950-1, No. 60950-22 |
|
Canadian EMC: | ICES-003 Class A |
|
Australia/NZ: | RCM |
|
India: | BIS |
RELATED ITEMS
|
Martin P3™ PowerPort 1500: | P/N 90721040 |
|
Martin P3™ PowerPort 1000 IP Rental: | P/N 90721070 |
|
Martin DMX PowerPort 375: | P/N 90721094 |
|
Martin™ IP66 PSU 240 W external power supply unit: | P/N 90760330 |
|
Martin P3-050™ System Controller: | P/N 90721090 |
|
Martin P3-100™ System Controller: | P/N 90721010 |
|
Martin P3-150™ System Controller: | P/N 90721015 |
|
Martin P3-200™ System Controller: | P/N 90721020 |
|
Martin P3-300™ System Controller: | P/N 90721060 |
|
Martin P3-PC™ System Controller: | Free download from martin.com |
ACCESSORIES
|

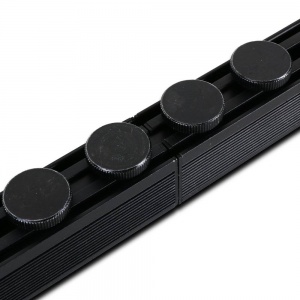

Magnetic Test Tool, set of 10: | P/N 91610139 |
|
VDO Sceptron™ Diffuser Lens Removal Jaws: | P/N 91611836 |
|
Hardware: | |
|

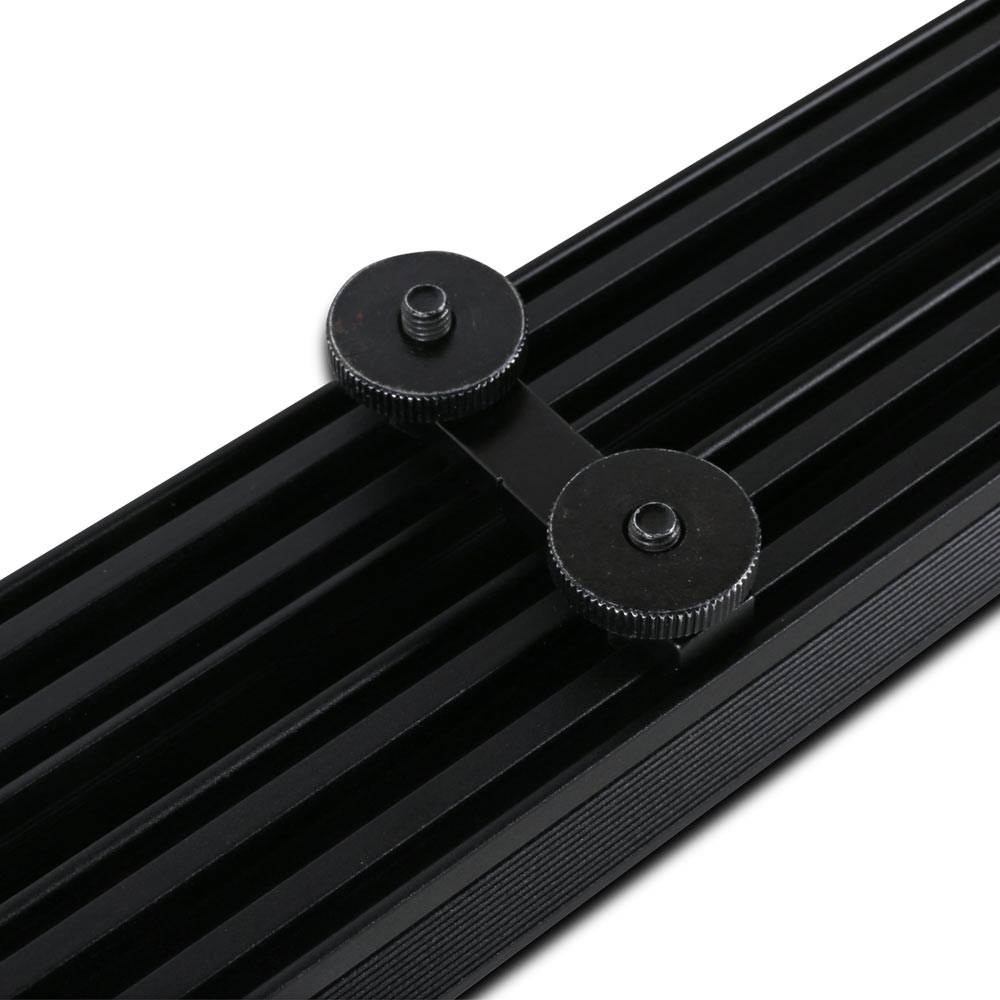

VDO Sceptron™/Fatron™ Sliding Brackets, set of 10: | P/N 91610123 |
|
VDO Sceptron™ Parallel Couplers, 30/40/50 mm, set of 10: | P/N 91610125 |
|
VDO Sceptron™ Parallel Couplers, 60/70/80 mm, set of 10: | P/N 91610138 |
|
VDO Sceptron™ Linear (End-to-End) Couplers, set of 10: | P/N 91610124 |
|
VDO Sceptron™/Fatron™ Linear Coupler: | P/N 91611843 |
|
Super Lightweight Half Coupler Rigging Clamp, black: | P/N 91602018 |
|
Low Profile VDO Sceptron™/Fatron™ Half Coupler: | P/N 91611790 |
|
VDO Sceptron™/Fatron™ Spigot Adapter, 28 mm (1.1 in.): | P/N 91611791 |
|
VDO Sceptron™/Fatron™ Floorstands, set of two: | P/N 91611792 |
|
VDO Sceptron™ Pivot Coupler: | P/N 91611793 |
|
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: | P/N 91604006 |
|
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: | P/N 91604007 |
|
Optical 320mm: | |
|

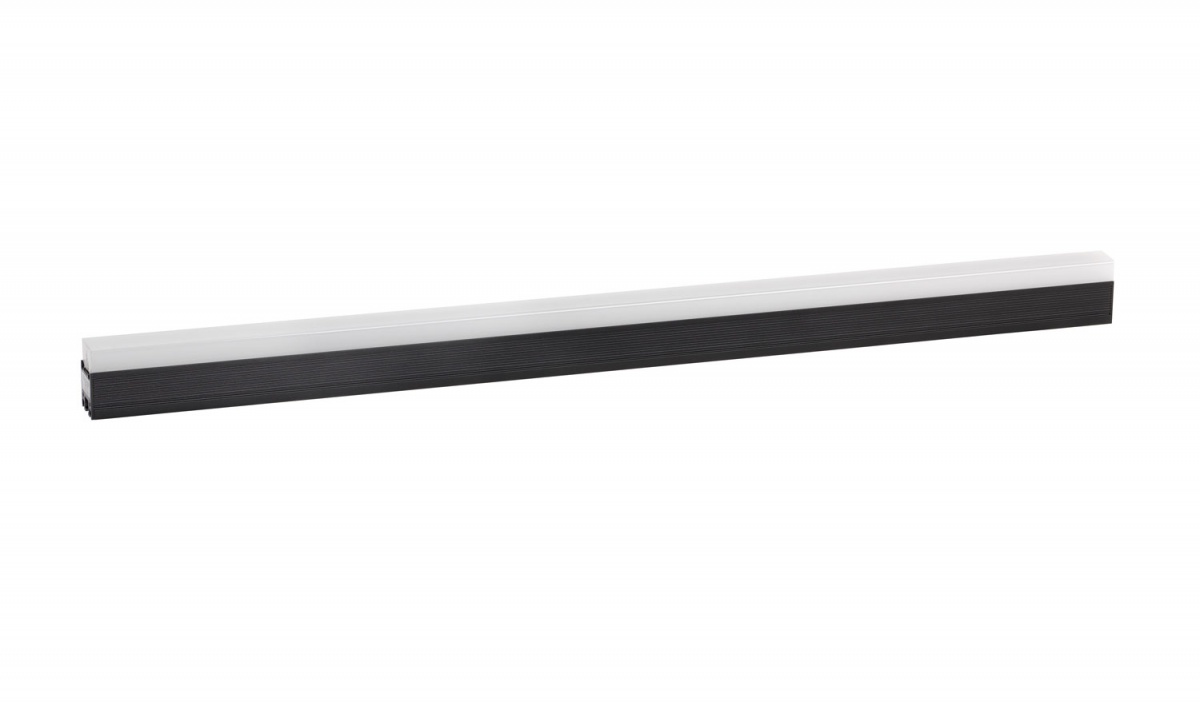

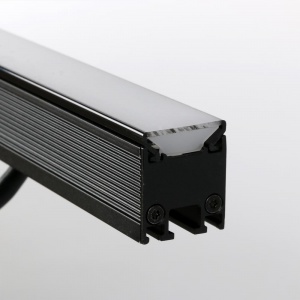

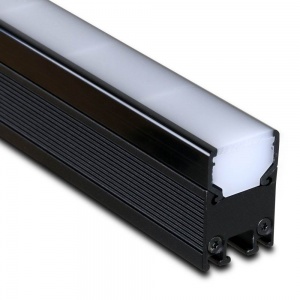

VDO Sceptron™ Flat Diffuser, 320 mm: | P/N 91610111 |
|

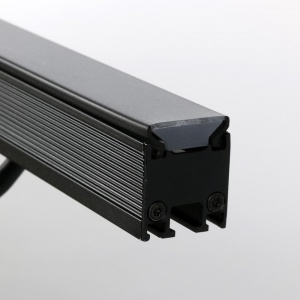

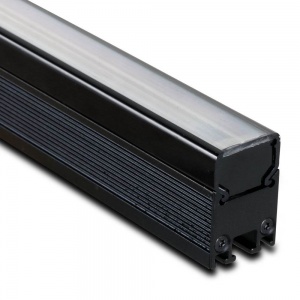

VDO Sceptron™ Flat Smoked Diffuser, 320 mm: | P/N 91610113 |
|

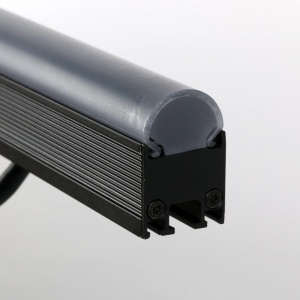

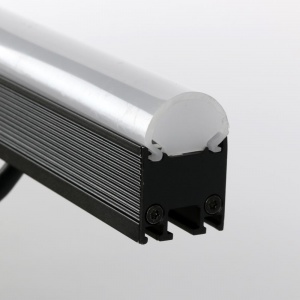

VDO Sceptron™ Round Diffuser, 320 mm: | P/N 91610115 |
|
VDO Sceptron™ Round Smoked Diffuser, 320 mm: | P/N 91610117 |
|

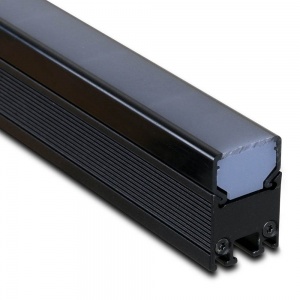

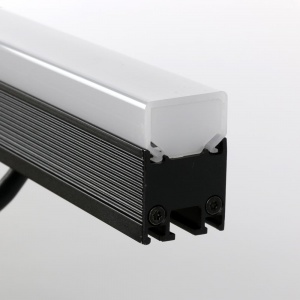

VDO Sceptron™ Square Diffuser, 320 mm: | P/N 91610119 |
|

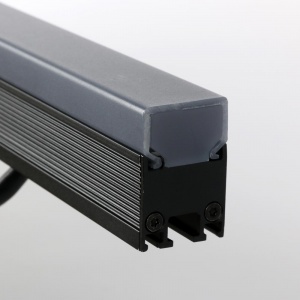

VDO Sceptron™ Square Smoked Diffuser, 320 mm: | P/N 91610121 |
|

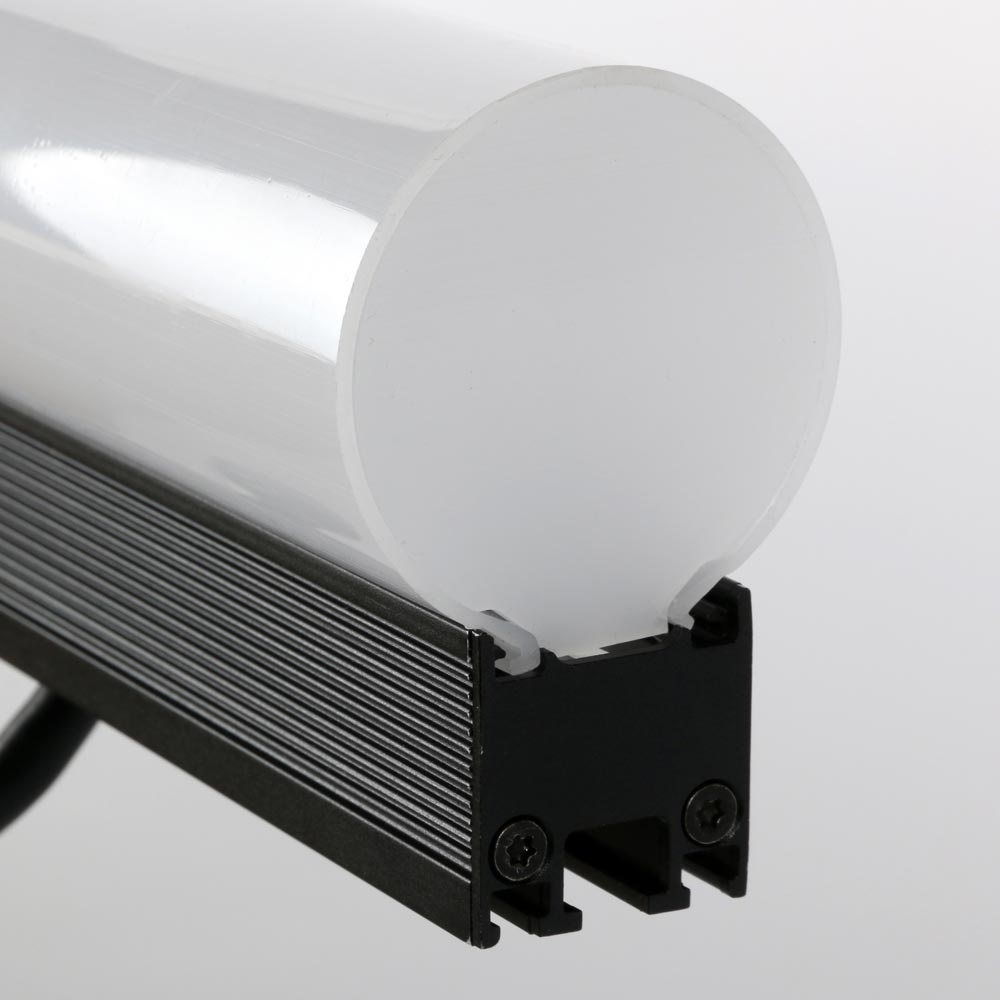

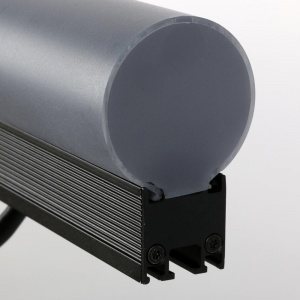

VDO Sceptron™ Tube Diffuser, 320 mm: | P/N 91611630 |
|
VDO Sceptron™ Tube Smoked Diffuser, 320 mm: | P/N 91611650 |
|
VDO Sceptron 40™ NoBlend Diffuser, 320 mm: | P/N 91610134 |
|
VDO Sceptron 40™ NoBlend Smoked Diffuser, 320 mm: | P/N 91610136 |
|

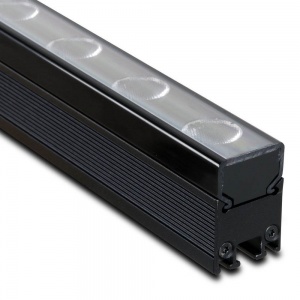

VDO Sceptron 40™ Lens Array Narrow, 320 mm: | P/N 91610142 |
|
VDO Sceptron™ Asymmetric Lens, 320 mm: | P/N 91611670 |
|
Optical 1000mm: | |
|
VDO Sceptron™ Flat Diffuser, 1000 mm: | P/N 91610112 |
|
VDO Sceptron™ Flat Smoked Diffuser, 1000 mm: | P/N 91610114 |
|
VDO Sceptron™ Round Diffuser, 1000 mm: | P/N 91610116 |
|
VDO Sceptron™ Round Smoked Diffuser, 1000 mm: | P/N 91610118 |
|
VDO Sceptron™ Square Diffuser, 1000 mm: | P/N 91610120 |
|
VDO Sceptron™ Square Smoked Diffuser, 1000 mm: | P/N 91610122 |
|
VDO Sceptron™ Tube Diffuser, 1000 mm: | P/N 91611640 |
|
VDO Sceptron™ Tube Smoked Diffuser, 1000 mm: | P/N 91611660 |
|
VDO Sceptron 40™ NoBlend Diffuser, 1000 mm: | P/N 91610135 |
|
VDO Sceptron 40™ NoBlend Smoked Diffuser, 1000 mm: | P/N 91610137 |
|
VDO Sceptron 40™ Lens Array Narrow, 1000 mm: | P/N 91610143 |
|
VDO Sceptron™ Asymmetric Lens, 1000 mm: | P/N 91611680 |
|
BBD input adapters: | |
|
Power + Data Input Cable, 4-pin male XLR (for P3 PowerPort 1500 or DMX PowerPort 375) to female BBD, 0.25 m (9.8 in.): | P/N 91616046 |
|
Power + Data Input Cable, 5-pin male XLR (for DMX) + wire tails (for PSU) to female BBD, 0.25 m (9.8 in.): | P/N 91616048 |
|
Power + Data Input Cable, 5-pin male XLR (for DMX) + 4-pin male XLR (for P3 PowerPort) to female BBD, 0.25 m (9.8 in.): | P/N 91616049 |
|
Power + Data Input Cable, 5-pin male XLR (for DMX) + male Tripix type (for Martin IP66 PSU 240W) to female BBD, 0.25 m (9.8 in.): | P/N 91616050 |
|
BBD output adapters: | |
|
Power + Data Output Cable, male BBD to 4-pin female XLR, 0.25 m (9.8 in.): | P/N 91616047 |
|
DMX Lead-out Cable, male BBD to 5-pin female XLR, 0.25 m (9.8 in.): | P/N 91616051 |
|
BBD extension cables: | |
|
Power + Data Extension Cable, Rental Type, BBD to BBD, 1 m (3.3 ft.): | P/N 91616041 |
|
Power + Data Extension Cable, Rental Type, BBD to BBD, 2.5 m (8.2 ft.): | P/N 91616024 |
|
Power + Data Extension Cable, Rental Type, BBD to BBD, 5 m (16.4 ft.): | P/N 91616042 |
|
Power + Data Extension Cable, Rental Type, BBD to BBD, 10 m (32.8 ft.): | P/N 91616043 |
|
Power + Data Extension Cable, Rental Type, BBD to BBD, 25 m (82.1 ft.): | P/N 91616044 |
|
Power + Data Cable, Rental Type, 100 m (328 ft.) bulk without connectors: | P/N 91616045 |
|
Connectors: | |
|
Power + Data Cable Connector, BBD, Male: | P/N 91611750 |
|
Power + Data Cable Connector, BBD, Female: | P/N 91611751 |
|
Blanking Caps for unused female BBD connectors, set of 10: | P/N 91616052 |
ORDERING INFORMATION
|
Flightcase for 10 x VDO Sceptron™ 1000mm / 30 x VDO Sceptron™ 320 mm: | P/N 91515030 |
|
Flightcase Extender for 10 x VDO Sceptron™ 1000 mm / 30 x VDO Sceptron™ 320 mm: | P/N 91515031 |
|
VDO Sceptron 40™, 320 mm, in cardboard box: | P/N 90357670 |
|
VDO Sceptron 40™, 1000 mm, in cardboard box: | P/N 90357675 |
