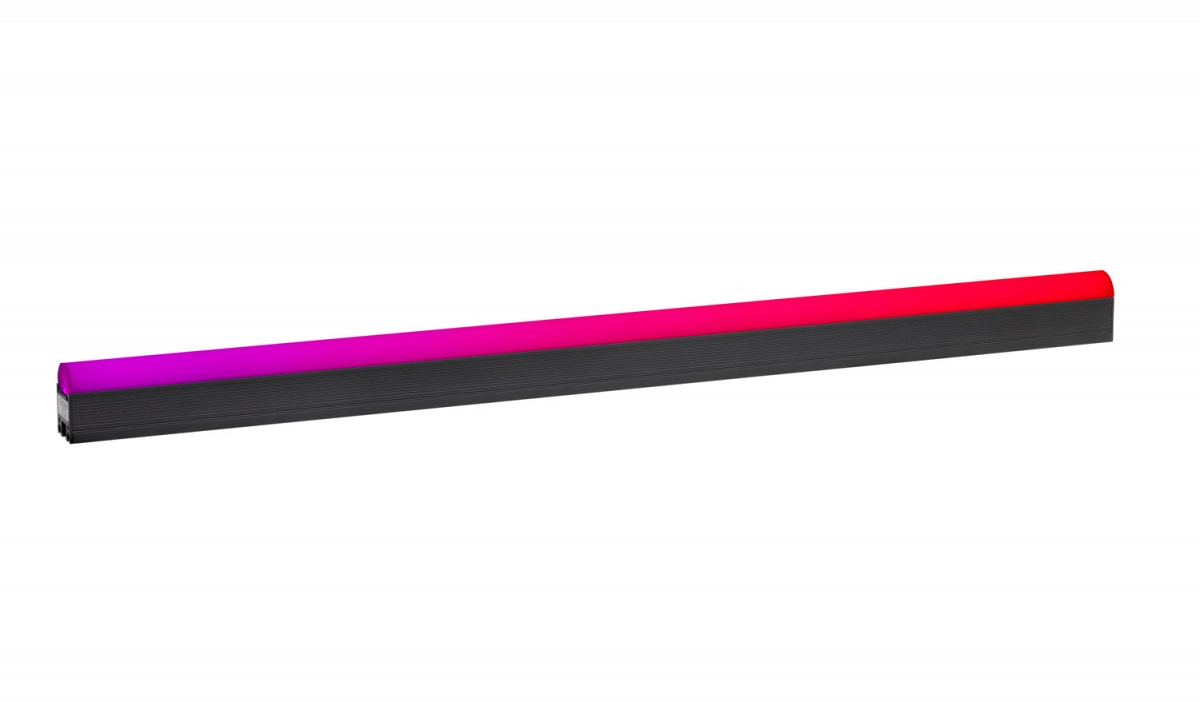

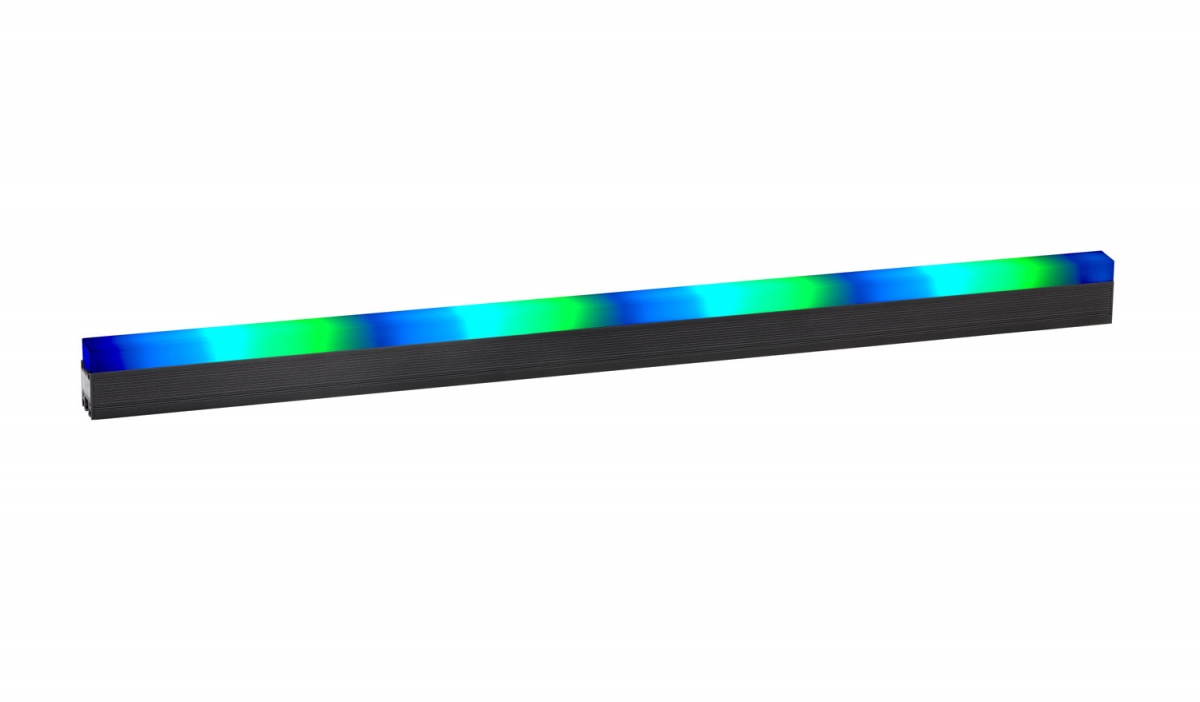

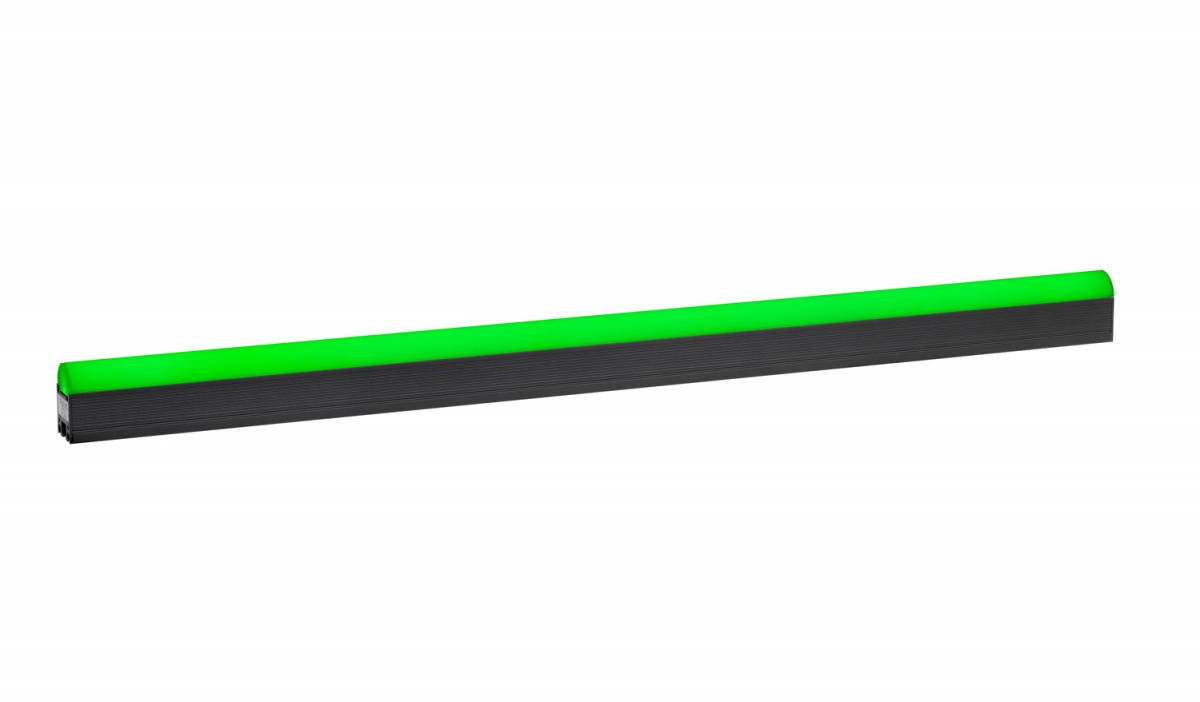

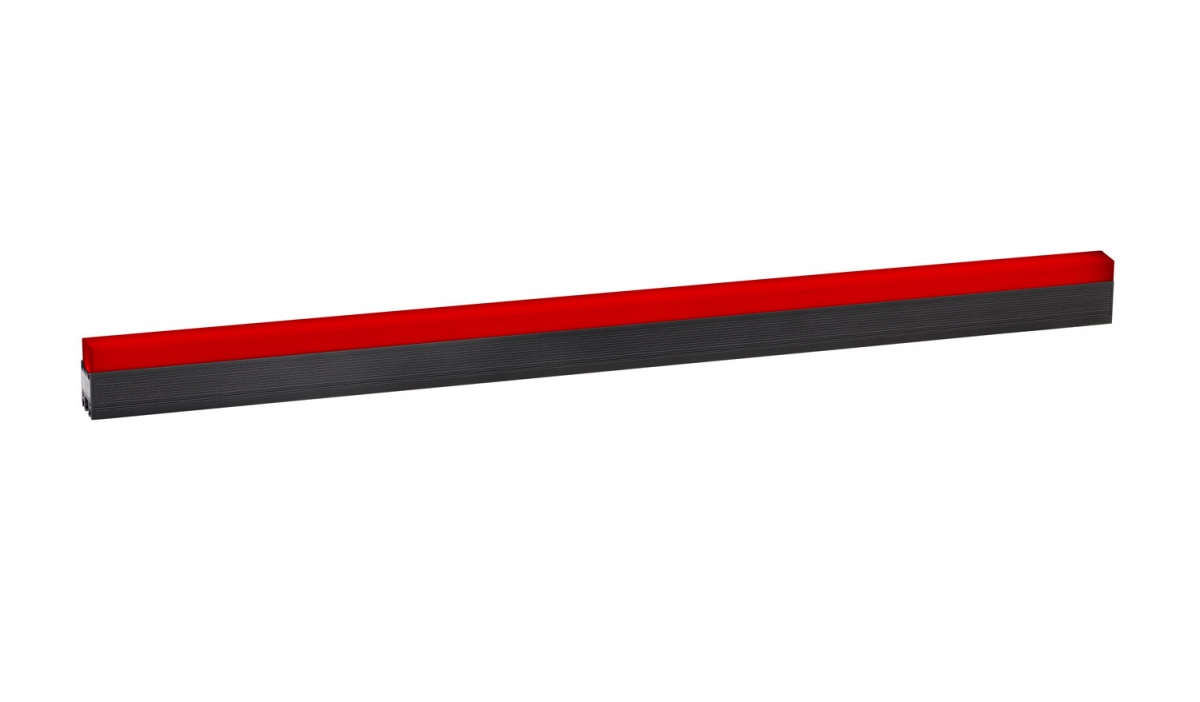

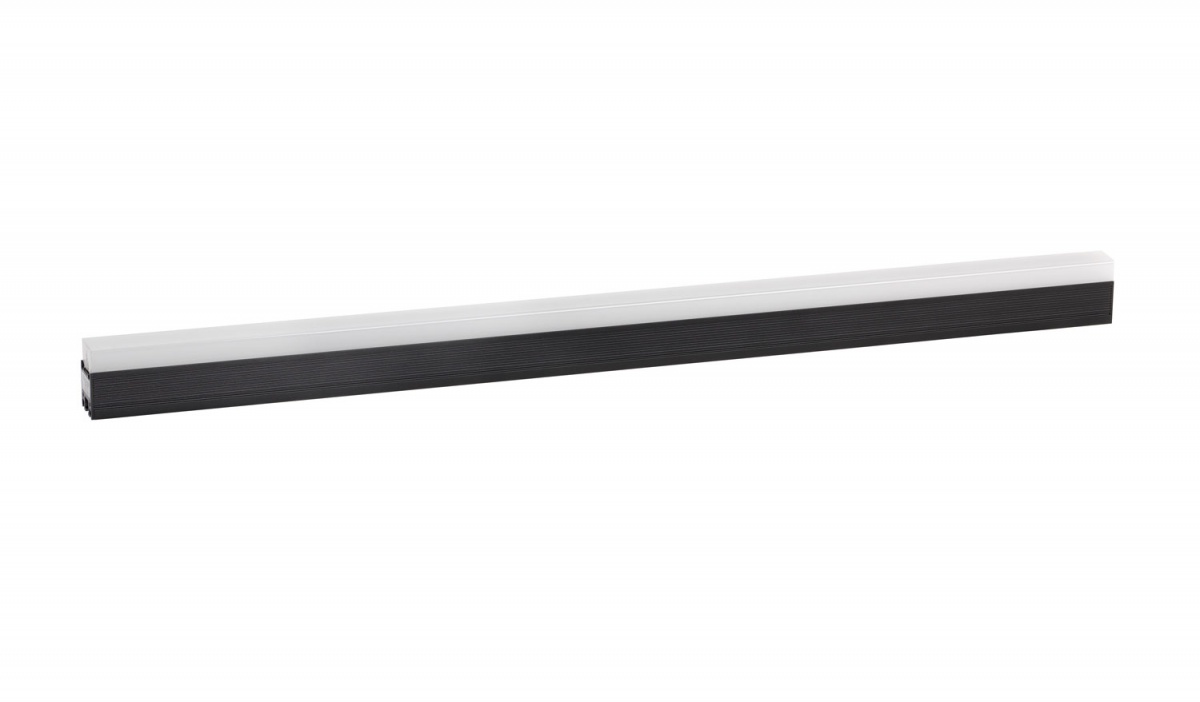

The VDO Sceptron 10 is a linear outdoor-rated LED video fixture for the rental market with 10 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks. The VDO Sceptron 10 is driven by the Martin P3 System Controller family for easy configuration, mapping and setup, and is also backwards compatible with DMX for smaller setups. The integrated power and data cabling allows for long daisy-chains with many fixtures per cable-run, while the power supply can be located backstage (up to 50 m away) for a clean setup avoiding messy cabling and several driver boxes.
FEATURES
Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and simple cabling system
Combined power and data cabling (compatible with other products such as VDO Fatron and VDO Dotron)
DMX Control
P3 Control with VideoMapping
Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
Extensive range of built-in effects
Intuitive mapping and addressing via P3 System Controller
Fully brightness and color calibrated for optimal consistency between products (colors matched with VDO Fatron and VDO Dotron)
Pixel-level brightness and color calibrated for a completely homogenous look
High-quality 16-bit per color image processing technology
10 mm pixel pitch
250 cd per meter calibrated
750 lumen per meter calibrated
Field-exchangeable diffusers and lenses
IP65 rated for outdoor use
Versatile rigging accessories
|

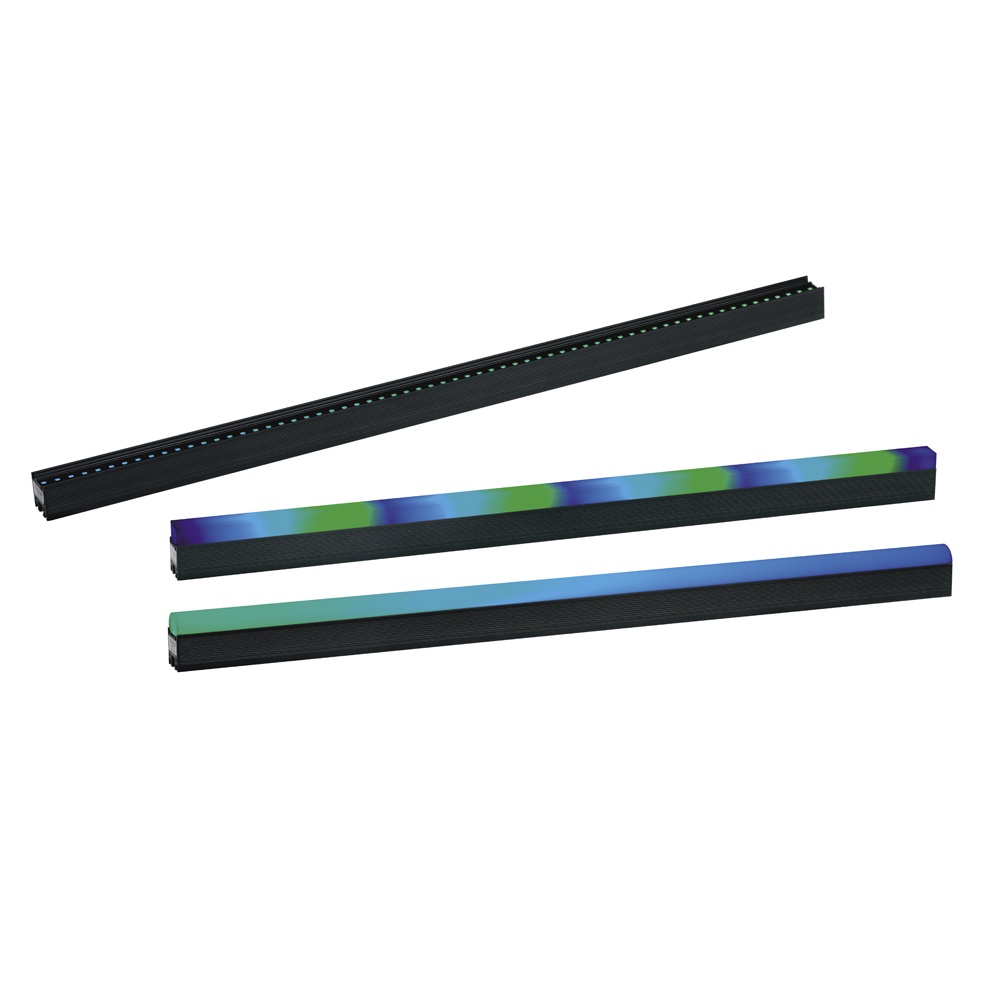

Available in two lengths: | 1000 mm and 320 mm |
PHYSICAL
|
VDO Sceptron™ 10, 320 mm model: | |
|
Length: | 320 mm (12.6 in.) |
|
Width: | 27 mm (1.06 in.) |
|
Height without front: | 28 mm (1.10 in.) |
|
Height with standard front (Square Diffuser): | 42 mm (1.65 in.) |
|
Weight without front: | 0.40 kg (0.9 lbs.) |
|
Weight with standard front (Square Diffuser): | 0.50 kg (1.1 lbs.) |
|
VDO Sceptron™ 10, 1000 mm model: | |
|
Length: | 1000 mm (39.4 in.) |
|
Width: | 27 mm (1.06 in.) |
|
Height without front: | 28 mm (1.10 in.) |
|
Height with standard front (Square Diffuser): | 42 mm (1.65 in.) |
Weight wi
| thout front: | 1.2 kg (2.6 lbs.) |
|
Weight with standard front (Square Diffuser): | 1.4 kg (3.1 lbs.) |
CONTROL AND PROGRAMMING
|
Control options: | Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX |
|
Control resolution: | 16-bit (P3) or 8-bit (DMX) control of each color |
|
Protocol detection: | Automatic |
|
Setting and addressing: | Martin P3™ System Controller or RDM-compliant controller |
|
Color and intensity calibration: | Pixel-level |
|
DMX compliance: | USITT DMX512-A |
|
RDM compliance: | ANSI/ESTA E1.20 |
|
Firmware update: | Via Martin P3™ System Controller |
|
Control modes, direct DMX control: | RGB, Basic, Segment and Pixel |
|
DMX channels, direct DMX control: | 3/10/13/22/103/307 |
|
Control modes, DMX via P3: | P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap |
|
DMX channels, DMX via P3: | Wide range of options from 1 to 303 |
CONTROL/USER INTERFACE
|
Device status: | Multi-color visual indication |
|
Device test and reset: | Magnetic pushbutton to call up local test patterns and reset device |
OPTICS
|
Minimum LED lifetime: | 50,000 hours (to >70% luminous output)* |
*Figure obtained under manufacturer’s test conditions
|
Binning: | Tight color and flux binning |
|
Calibration: | Full Gamut Pixel Calibration |
|
Diffuser/Lens Options: | |
Open Front

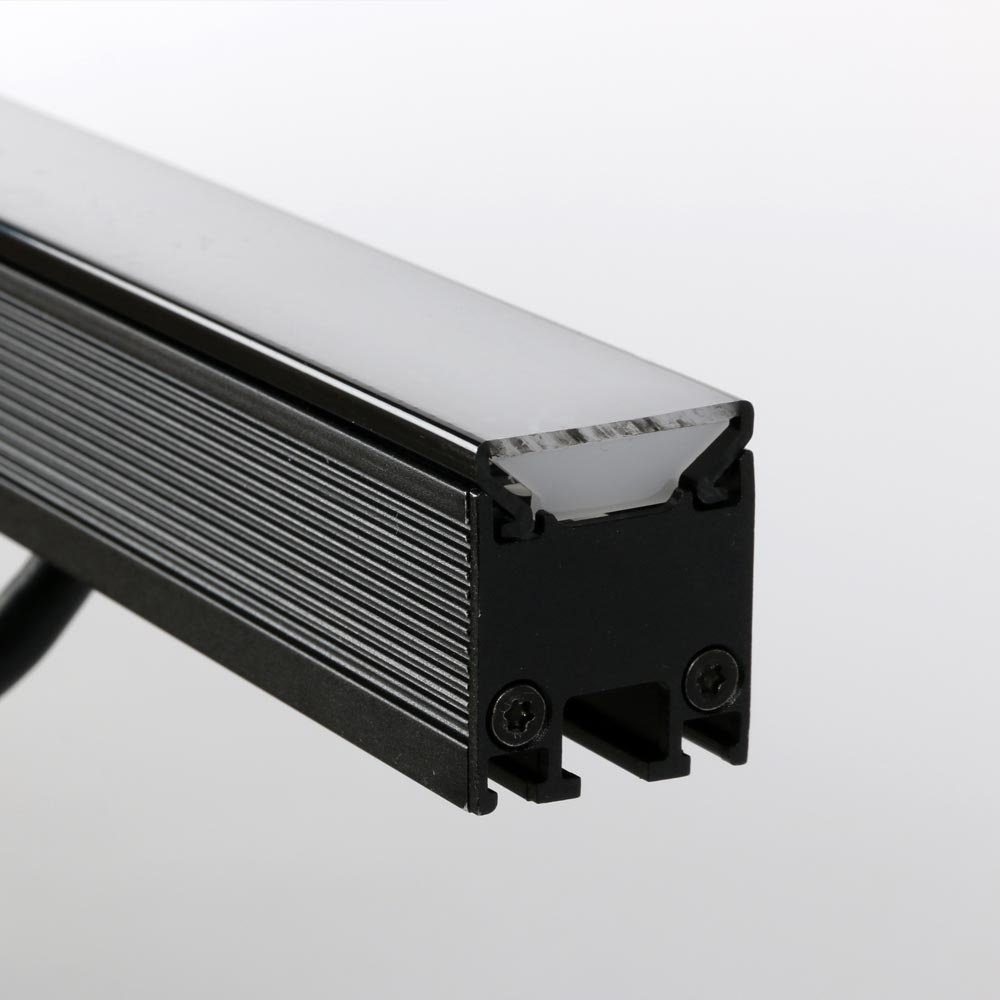

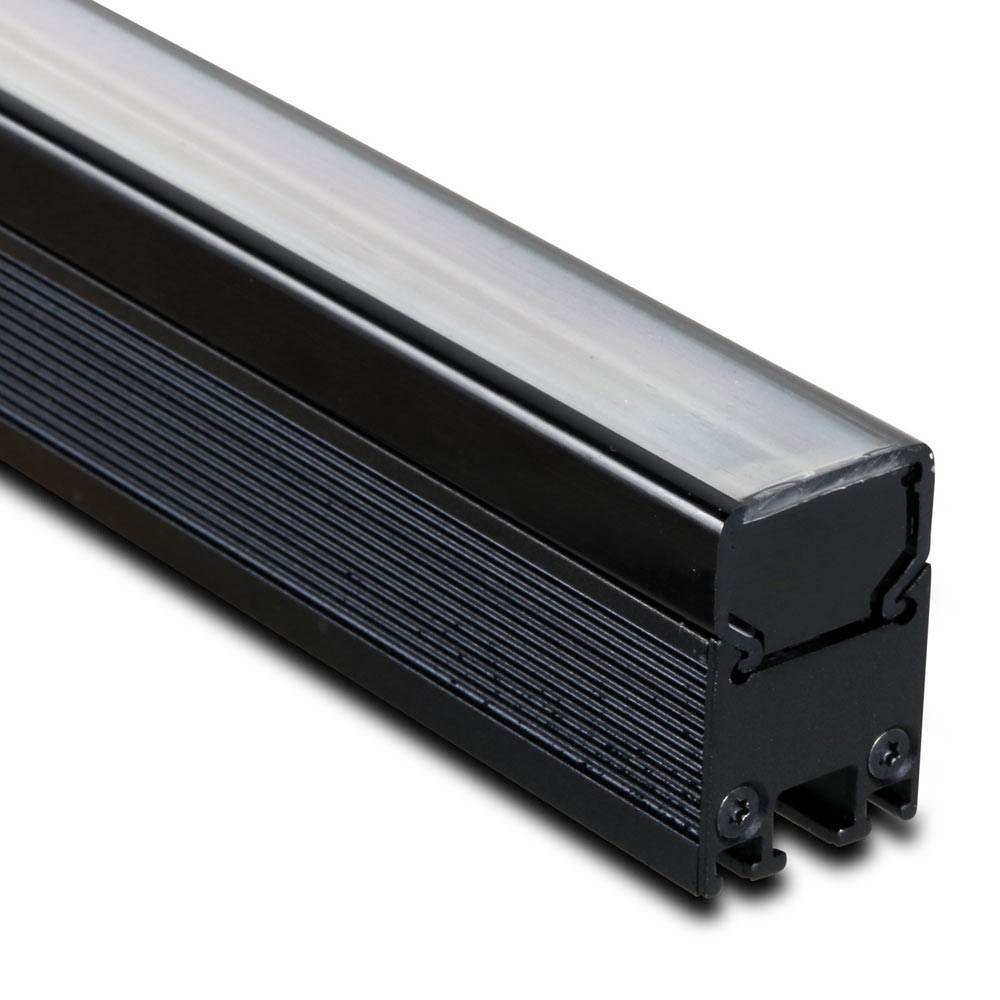

Flat Diffuser

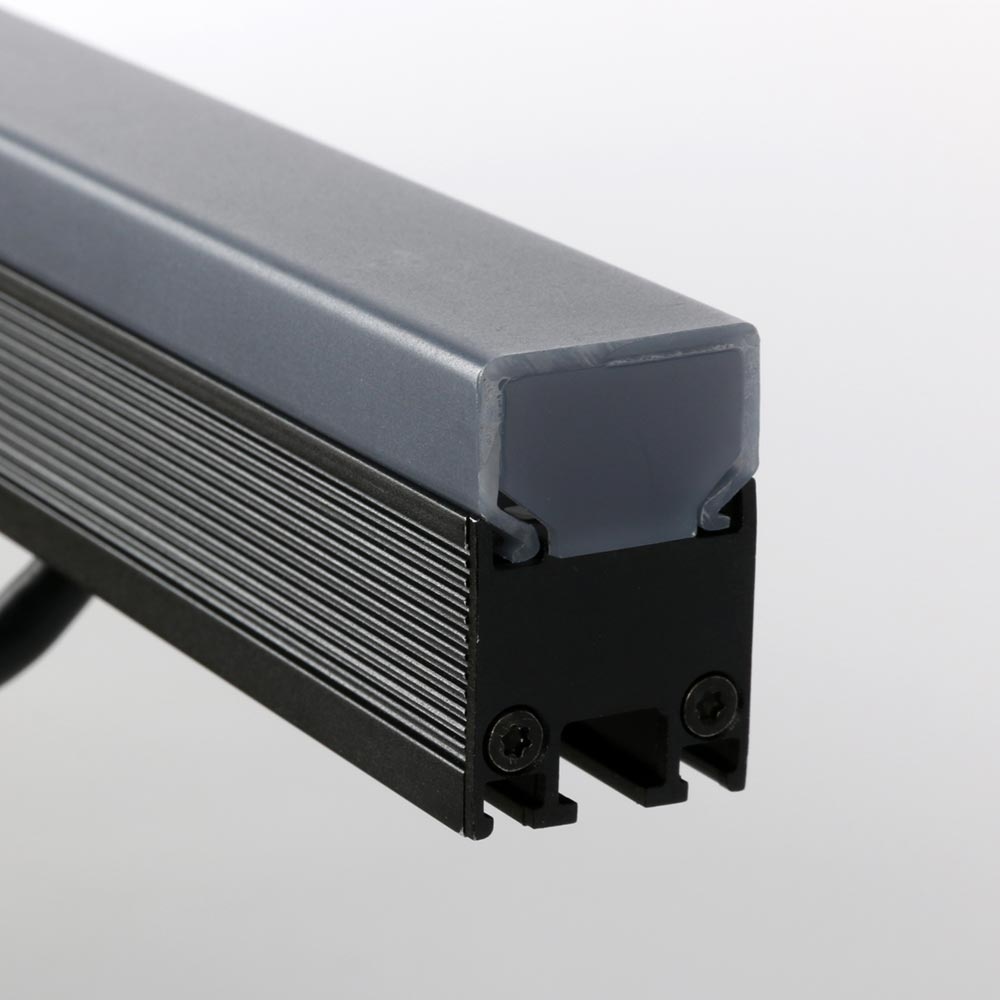

Flat Smoked Diffuser

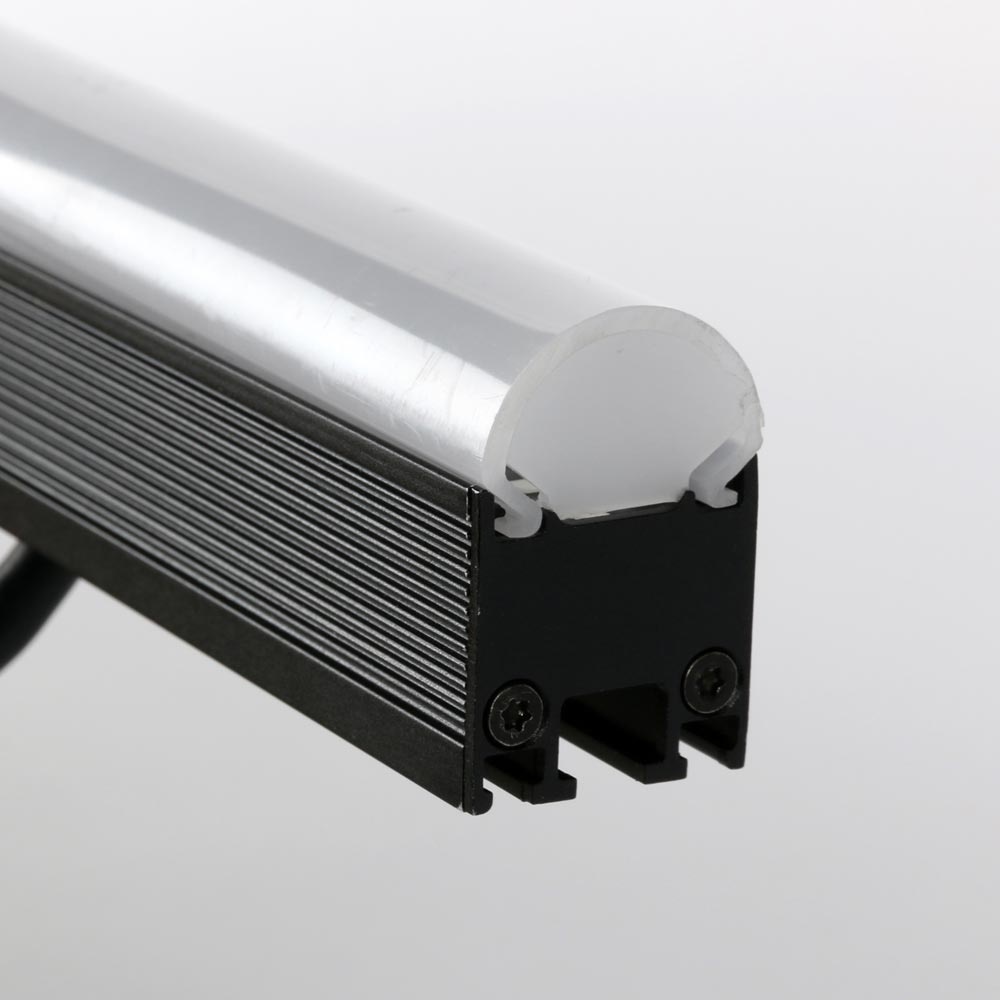

Round Diffuser

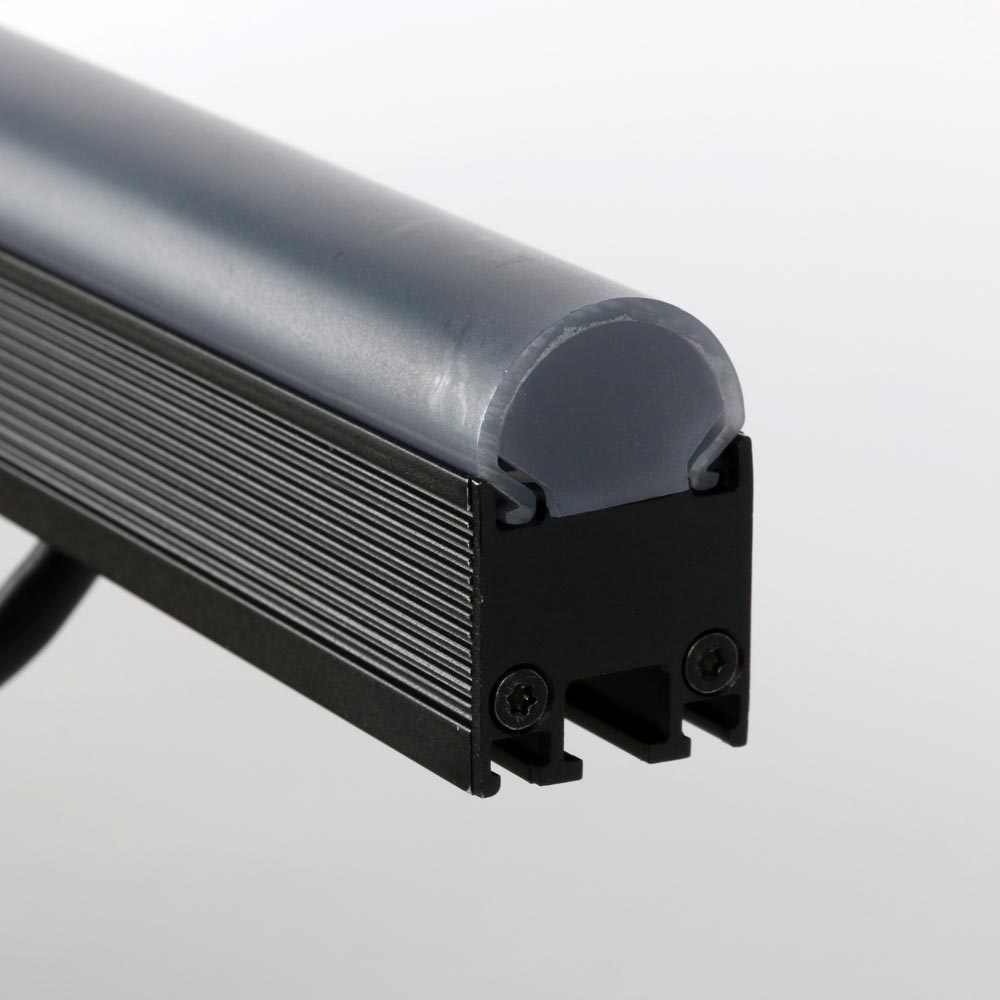

Round Smoked Diffuser

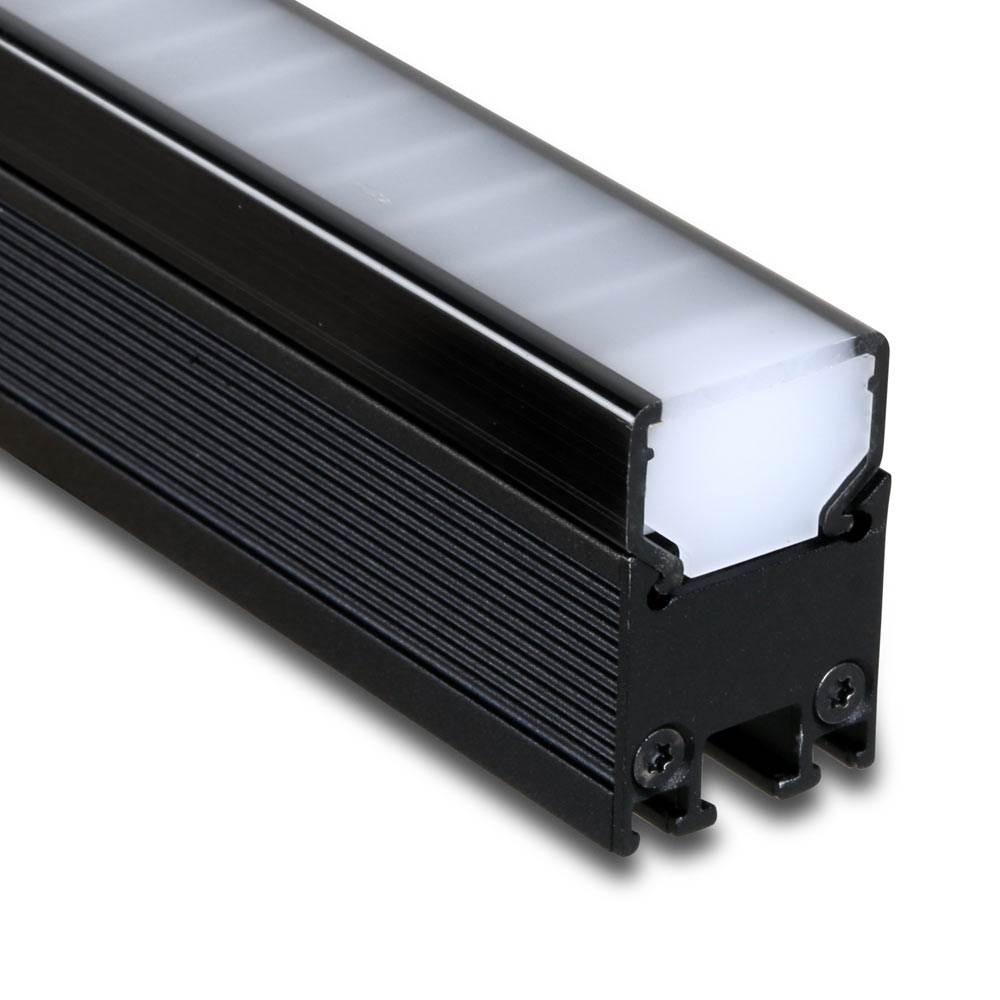

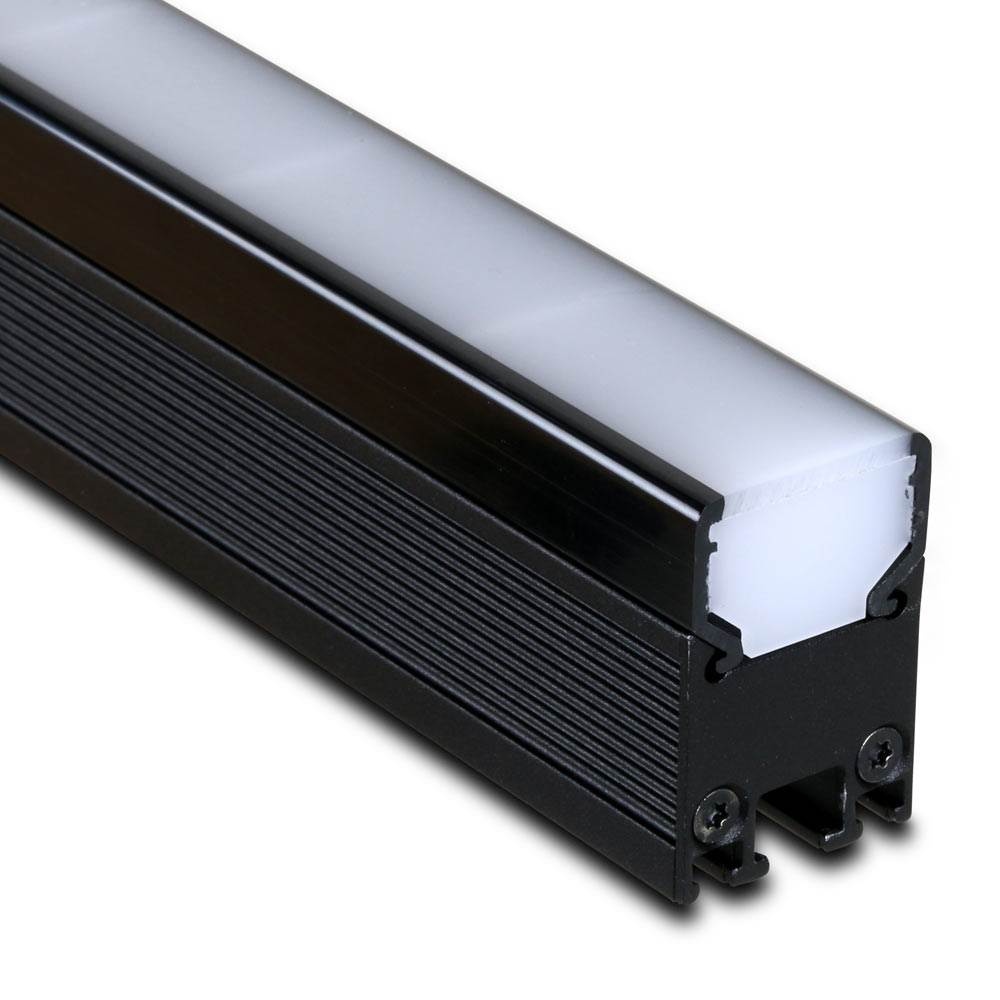

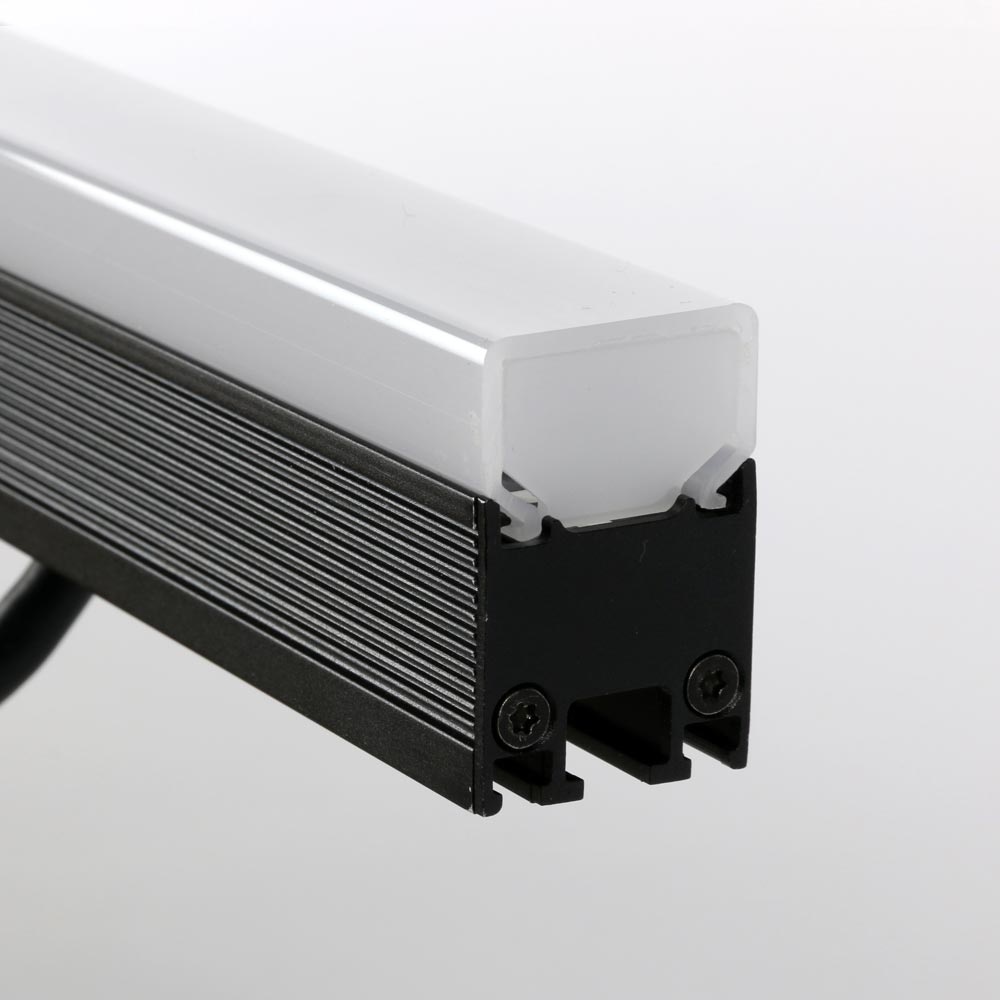

Square Diffuser (supplied standard with fixture)

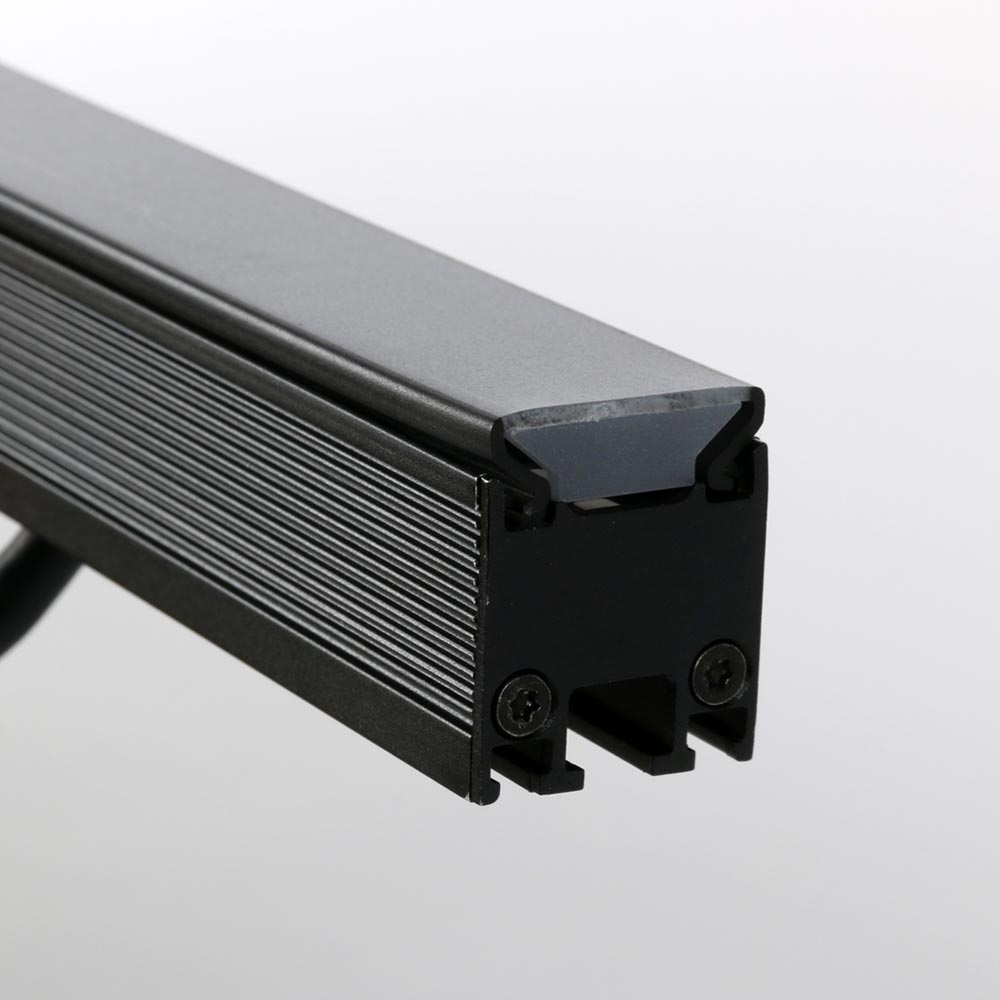

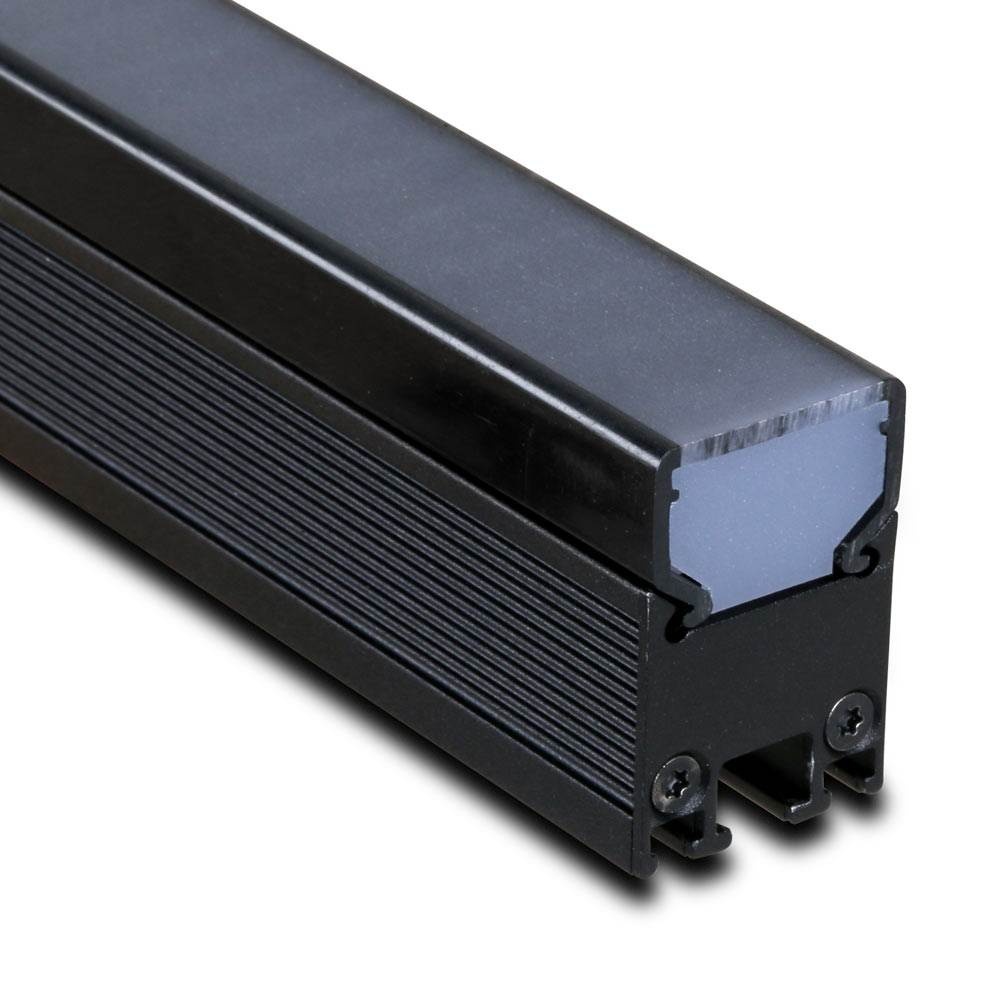

Square Smoked Diffuser

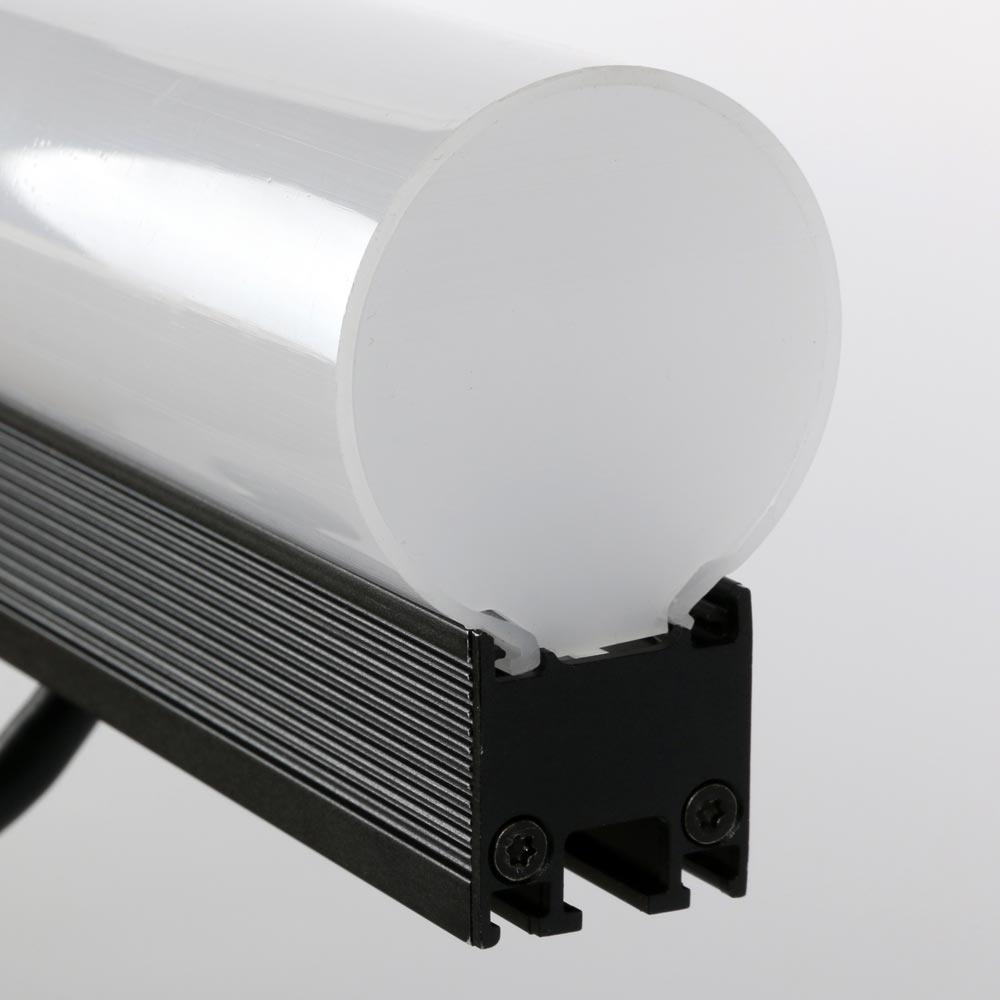

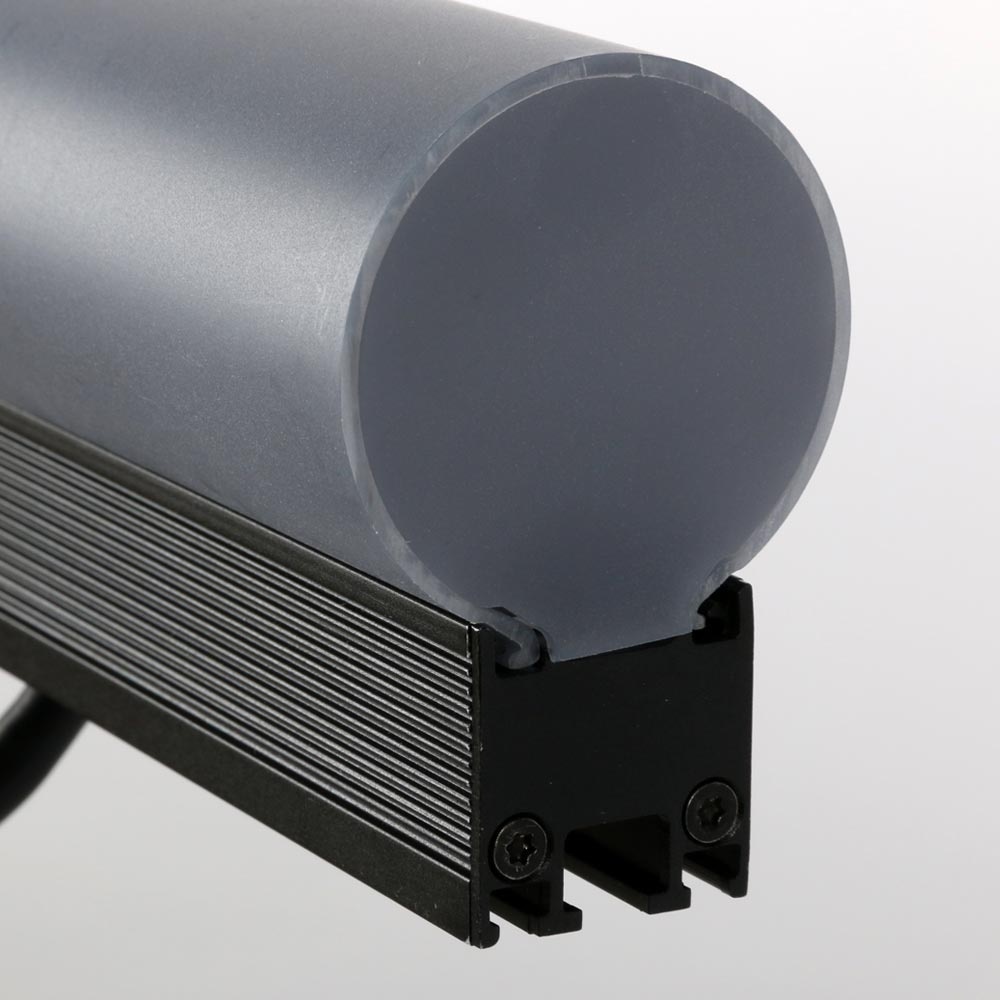

Tube Diffuser
Tube Smoked Diffuser

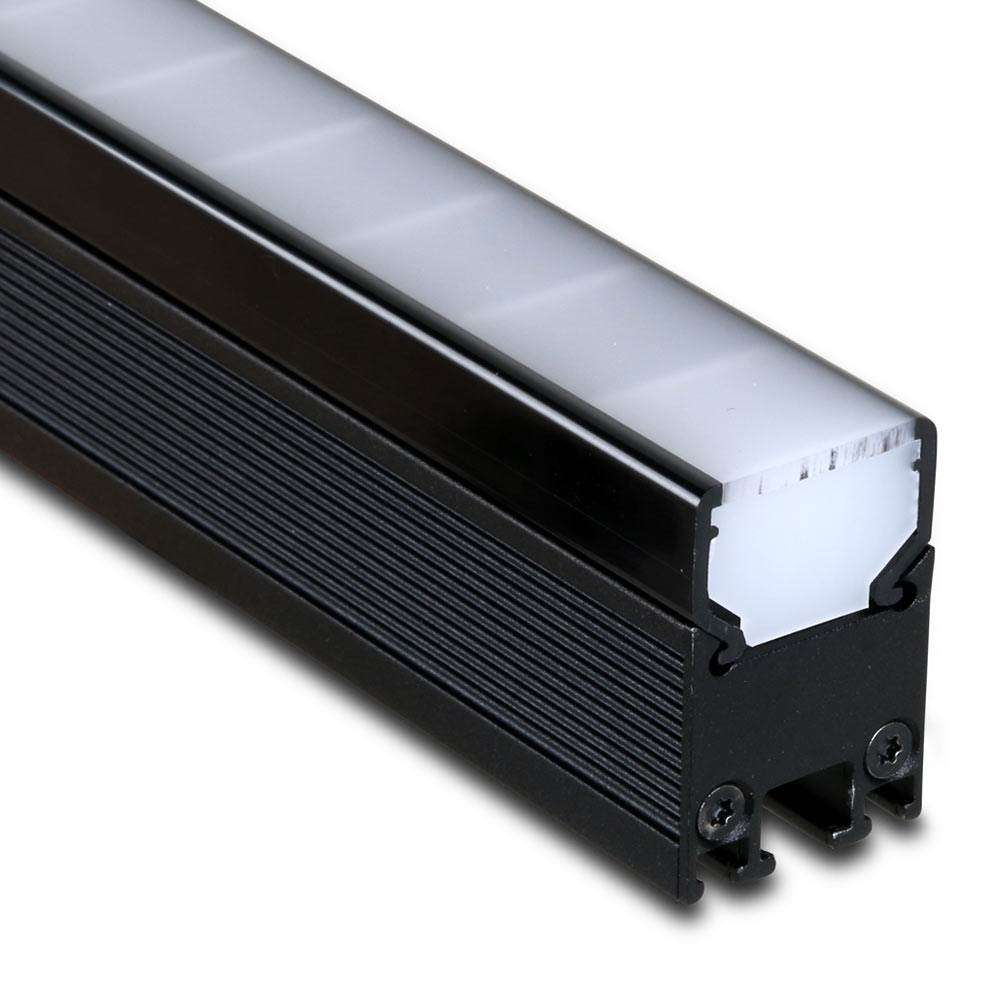

NoBlend Diffuser 10 mm

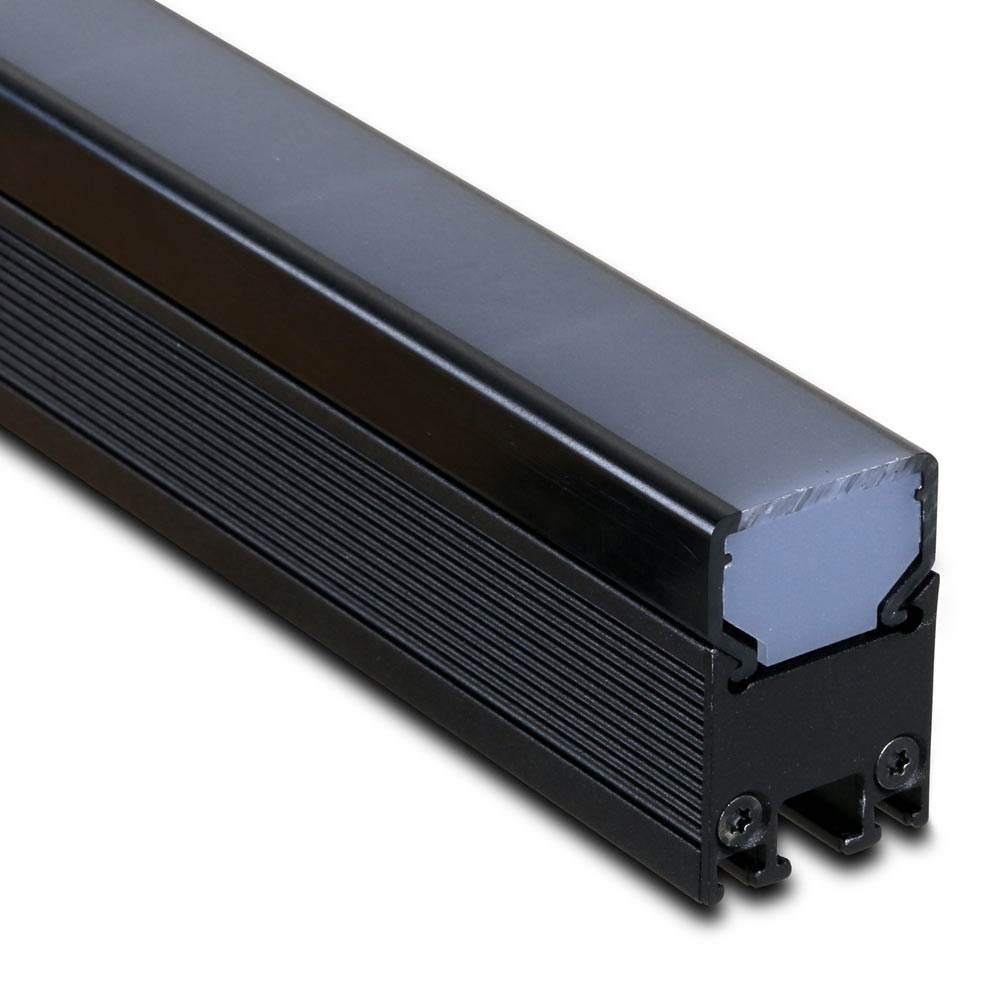

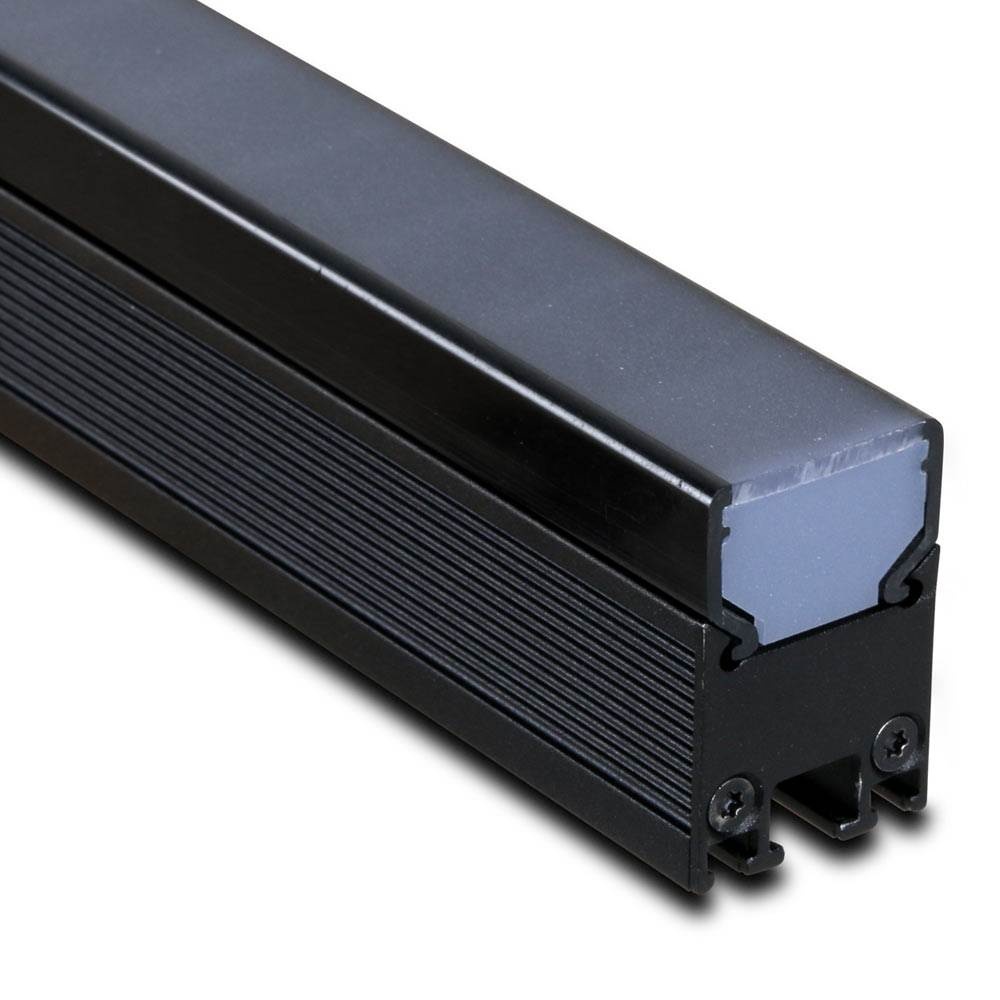

NoBlend Smoked Diffuser 10 mm
NoBlend Diffuser 20 mm
NoBlend Smoked Diffuser 20 mm
NoBlend Diffuser 40 mm
NoBlend Smoked Diffuser 40 mm
Asymmetric (Wall-Washing) Lens
All optical accessories are interchangeable and clip onto fixtures
PHOTOMETRIC DATA
|
Color resolution: | 16 bits per color (48 bits per pixel) |
|
Viewing angle: | 120° x 120° (half-peak) |
|
Pitch (pixel center-to-center): | 10.00 mm |
|
Luminous intensity, calibrated mode: | 250 cd per meter |
|
Luminous output, calibrated mode: | 750 lumen per meter |
|
Total output, calibrated mode: | 8333 nits (fixtures placed in continuous surface at 30 mm center-to-center) |
|
LED Array VDO Sceptron 10 320mm: | 1 x 32 |
|
LED Array VDO Sceptron 10 1000mm: | 1 x 100 |
|
CCT: | 6500 Kelvin |
|
LED refresh rate - Standard Mode: | 1001 Hz |
|
LED refresh rate - High Refresh Mode: | 4004 Hz |
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
VIDEO PROCESSING
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
SIGNAL PROTOCOL
Martin P3 (via Martin P3™ PowerPort) or DMX
CONSTRUCTION
|
Color: | Matte black |
|
Base: | Extruded aluminum profile |
|
Protection rating: | IP65 |
RoHS compliant
INSTALLATION
|
Mounting: | Channel for M6 captive nuts on back of profile |
|
Mounting options: | M6 bolts, optional sliding bracket (accepts M12 bolt), half coupler, spigot adapter, linear coupler, parallel coupler, pivot coupler, floorstand |
|
Orientation: | Any |
CONNECTIONS
|

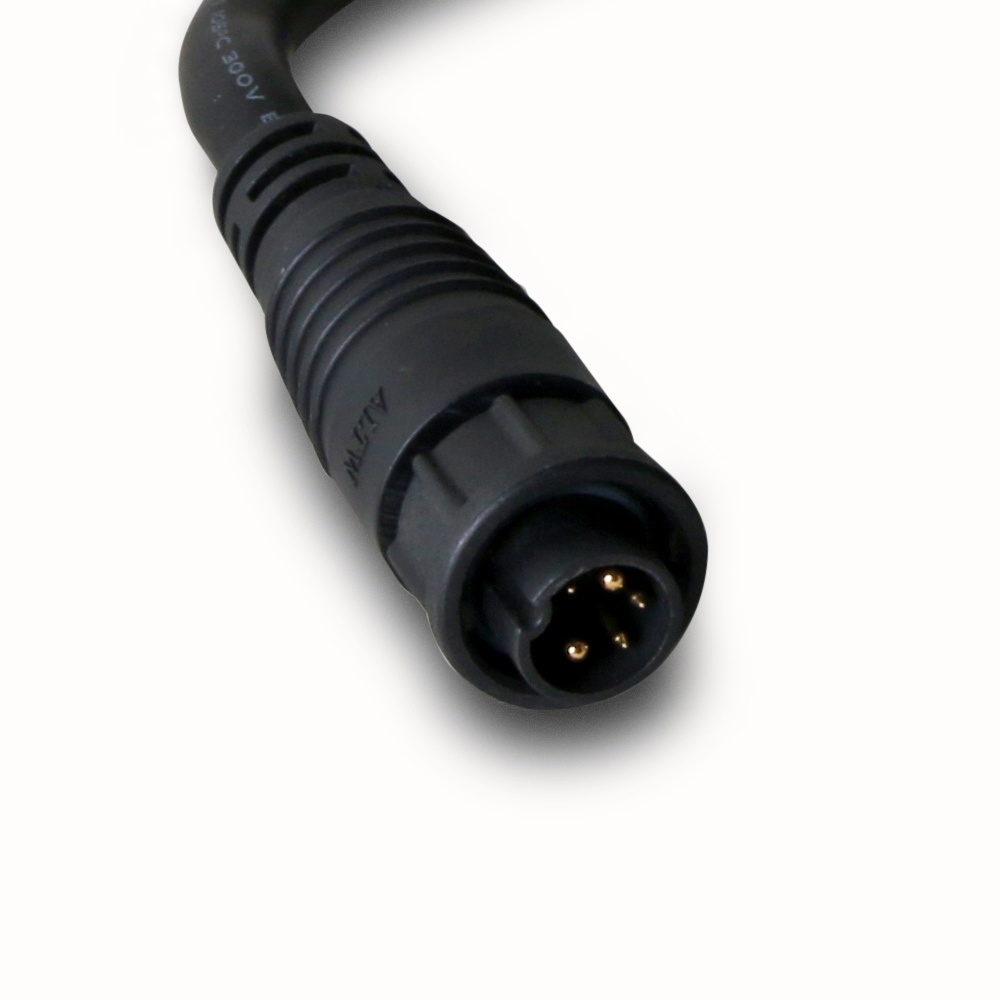

Power and data input: | 6-pin custom (BBD) IP66-rated |
|
Power and data thru: | 6-pin custom (BBD) IP66-rated |
Hot plugging compatible
ELECTRICAL
|
Nominal input voltage: | 48 VDC +/- 4% |
|
Power supply options: | Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin™ DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU |
|
Maximum power consumption, all LEDs at full intensity, VDO Sceptron™ 10, 320 mm: | 10 W |
|
Maximum power consumption, all LEDs at full intensity, VDO Sceptron™ 10, 1000 mm: | 30 W |
THERMAL
|
Cooling: | Convection |
|
Maximum ambient temperature (Ta max.): | 55° C (131° F) |
|
Minimum ambient temperature (Ta min.): | -30° C (-22° F) |
|
Total heat dissipation (calculated, +/- 10%): | |
|
VDO Sceptron™ 10, 320 mm: | 37 BTU/hr |
|
VDO Sceptron™ 10, 1000 mm: | 115 BTU/hr |
ENVIRONMENTAL
|
RoHS: | Compliant |
|
REACH: | Compliant |
|
WEEE: | Compliant |
|
Proposition 65: | Compliant |
|
Efficacy (max output): | 22.1 lm/W |
|
LWR*: | 553 lm/kg (255 lm/lb) |
LWR = Lumen-to-Weight Ratio
APPROVALS
|
EU safety: | EN 60950-1, EN 60950-22, EN 62471 |
|
EU EMC: | EN 55032, EN 55024 |
|
US safety: | UL 60950-1, UL 60950-22 |
|
US EMC: | FCC Part 15 Class A |
|
Canadian safety: | CSA C22.2 No. 60950-1, No. 60950-22 |
|
Canadian EMC: | ICES-003 Class A |
|
Australia/NZ: | RCM |
|
India: | BIS |
RELATED ITEMS
|
Martin P3™ PowerPort 1500: | P/N 90721040 |
|
Martin P3™ PowerPort 1000 IP Rental: | P/N 90721070 |
|
Martin DMX PowerPort 375: | P/N 90721094 |
|
Martin™ IP66 PSU 240 W external power supply unit: | P/N 90760330 |
|
Martin P3-050™ System Controller: | P/N 90721090 |
|
Martin P3-100™ System Controller: | P/N 90721010 |
|
Martin P3-150™ System Controller: | P/N 90721015 |
|
Martin P3-200™ System Controller: | P/N 90721020 |
|
Martin P3-300™ System Controller: | P/N 90721060 |
|
Martin P3-PC™ System Controller: | Free download from martin.com |
ACCESSORIES
|

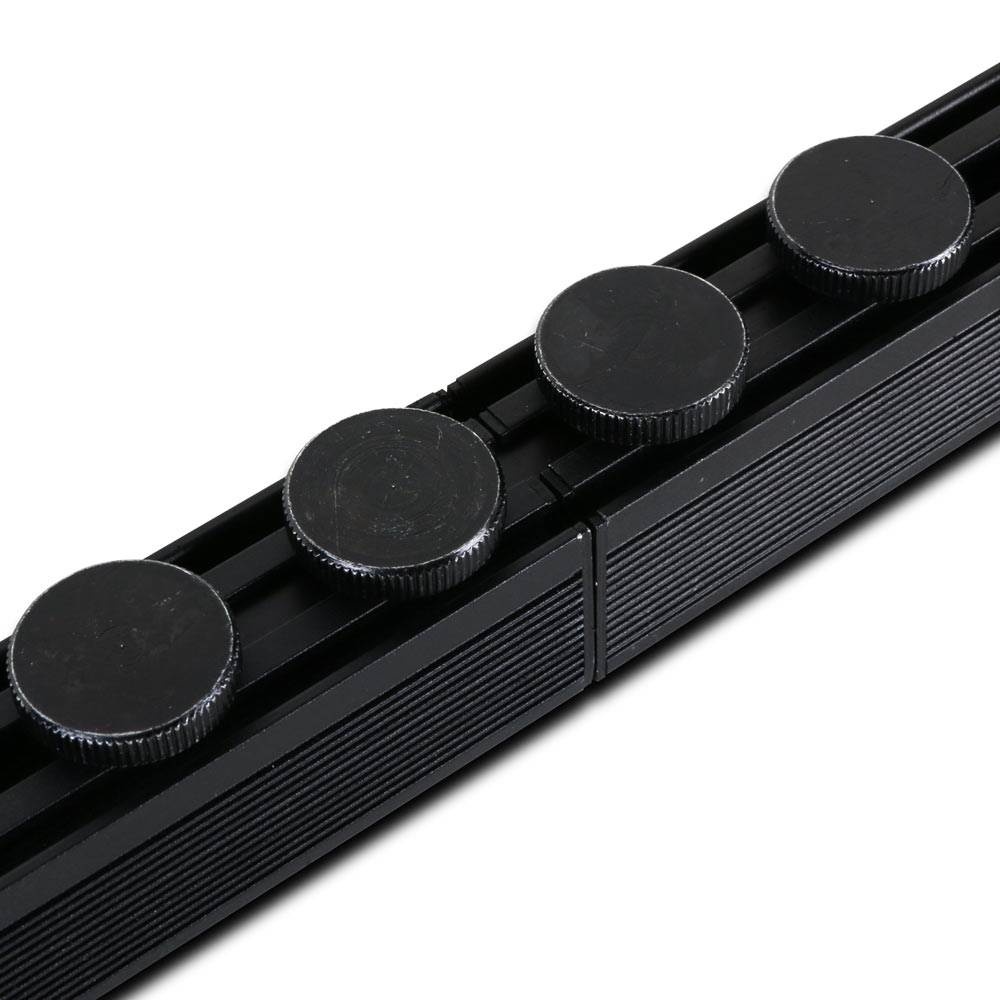

Magnetic Test Tool, set of 10: | P/N 91610139 |
|
VDO Sceptron™ Diffuser Lens Removal Jaws: | P/N 91611836 |
|
Hardware: | |
|
VDO Sceptron™/Fatron™ Sliding Brackets, set of 10: | P/N 91610123 |
|
VDO Sceptron™ Parallel Couplers, 30/40/50 mm, set of 10: | P/N 91610125 |
|
VDO Sceptron™ Parallel Couplers, 60/70/80 mm, set of 10: | P/N 91610138 |
|

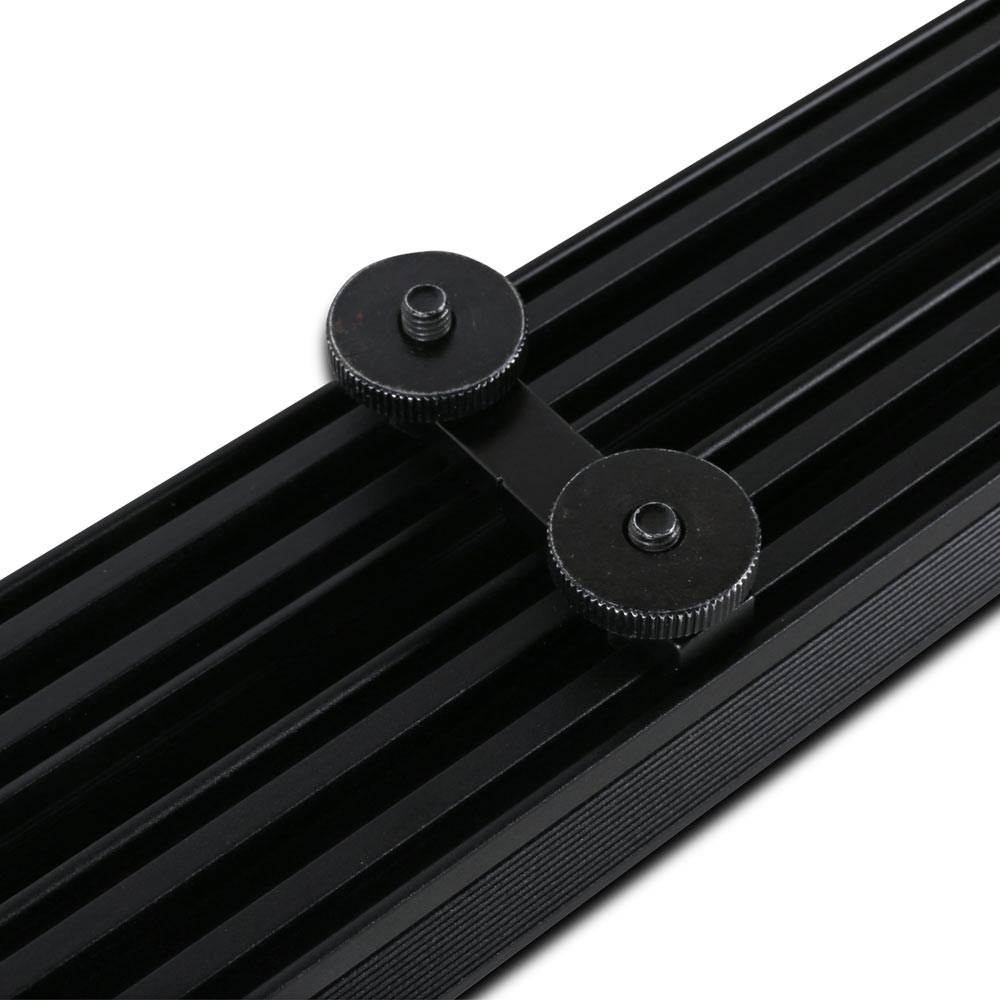

VDO Sceptron™ Linear (End-to-End) Couplers, set of 10: | P/N 91610124 |
|
VDO Sceptron™/Fatron™ Linear Coupler: | P/N 91611843 |
|
Super Lightweight Half Coupler Rigging Clamp, black: | P/N 91602018 |
|
Low Profile VDO Sceptron™/Fatron™ Half Coupler: | P/N 91611790 |
|
VDO Sceptron™/Fatron™ Spigot Adapter, 28 mm (1.1 in.): | P/N 91611791 |
|
VDO Sceptron™/Fatron™ Floorstands, set of two: | P/N 91611792 |
|
VDO Sceptron™ Pivot Coupler: | P/N 91611793 |
|
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: | P/N 91604006 |
|
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: | P/N 91604007 |
|
Optical 320mm: | |
|
VDO Sceptron™ Flat Diffuser, 320 mm: | P/N 91610111 |
|
VDO Sceptron™ Flat Smoked Diffuser, 320 mm: | P/N 91610113 |
|
VDO Sceptron™ Round Diffuser, 320 mm: | P/N 91610115 |
|
VDO Sceptron™ Round Smoked Diffuser, 320 mm: | P/N 91610117 |
|
VDO Sceptron™ Square Diffuser, 320 mm: | P/N 91610119 |
|
VDO Sceptron™ Square Smoked Diffuser, 320 mm: | P/N 91610121 |
|
VDO Sceptron™ Tube Diffuser, 320 mm: | P/N 91611630 |
|
VDO Sceptron™ Tube Smoked Diffuser, 320 mm: | P/N 91611650 |
|
VDO Sceptron 10™ NoBlend Diffuser, 320 mm: | P/N 91610126 |
|
VDO Sceptron 10™ NoBlend Smoked Diffuser, 320 mm: | P/N 91610128 |
|
VDO Sceptron 20™ NoBlend Diffuser, 320 mm: | P/N 91610130 |
|
VDO Sceptron 20™ NoBlend Smoked Diffuser, 320 mm: | P/N 91610132 |
|
VDO Sceptron 40™ NoBlend Diffuser, 320 mm: | P/N 91610134 |
|
VDO Sceptron 40™ NoBlend Smoked Diffuser, 320 mm: | P/N 91610136 |
|
VDO Sceptron™ Asymmetric Lens, 320 mm: | P/N 91611670 |
|
Optical 1000mm: | |
|
VDO Sceptron™ Flat Diffuser, 1000 mm: | P/N 91610112 |
|
VDO Sceptron™ Flat Smoked Diffuser, 1000 mm: | P/N 91610114 |
|
VDO Sceptron™ Round Diffuser, 1000 mm: | P/N 91610116 |
|
VDO Sceptron™ Round Smoked Diffuser, 1000 mm: | P/N 91610118 |
|
VDO Sceptron™ Square Diffuser, 1000 mm: | P/N 91610120 |
|
VDO Sceptron™ Square Smoked Diffuser, 1000 mm: | P/N 91610122 |
|
VDO Sceptron™ Tube Diffuser, 1000 mm: | P/N 91611640 |
|
VDO Sceptron™ Tube Smoked Diffuser, 1000 mm: | P/N 91611660 |
|
VDO Sceptron 10™ NoBlend Diffuser, 1000 mm: | P/N 91610127 |
|
VDO Sceptron 10™ NoBlend Smoked Diffuser, 1000 mm: | P/N 91610129 |
|
VDO Sceptron 20™ NoBlend Diffuser, 1000 mm: | P/N 91610131 |
|
VDO Sceptron 20™ NoBlend Smoked Diffuser, 1000 mm: | P/N 91610133 |
|
VDO Sceptron 40™ NoBlend Diffuser, 1000 mm: | P/N 91610135 |
|
VDO Sceptron 40™ NoBlend Smoked Diffuser, 1000 mm: | P/N 91610137 |
|
VDO Sceptron™ Asymmetric Lens, 1000 mm: | P/N 91611680 |
|
BBD input adapters: | |
|
Power + Data Input Cable, 4-pin male XLR (for P3 PowerPort 1500 or DMX PowerPort 375) to female BBD, 0.25 m (9.8 in.): | P/N 91616046 |
|
Power + Data Input Cable, 5-pin male XLR (for DMX) + wire tails (for PSU) to female BBD, 0.25 m (9.8 in.): | P/N 91616048 |
|
Power + Data Input Cable, 5-pin male XLR (for DMX) + 4-pin male XLR (for P3 PowerPort) to female BBD, 0.25 m (9.8 in.): | P/N 91616049 |
|
Power + Data Input Cable, 5-pin male XLR (for DMX) + male Tripix type (for Martin IP66 PSU 240W) to female BBD, 0.25 m (9.8 in.): | P/N 91616050 |
|
BBD output adapters: | |
|
Power + Data Output Cable, male BBD to 4-pin female XLR, 0.25 m (9.8 in.): | P/N 91616047 |
|
DMX Lead-out Cable, male BBD to 5-pin female XLR, 0.25 m (9.8 in.): | P/N 91616051 |
|
BBD extension cables: | |
|
Power + Data Extension Cable, Rental Type, BBD to BBD, 1 m (3.3 ft.): | P/N 91616041 |
|
Power + Data Extension Cable, Rental Type, BBD to BBD, 2.5 m (8.2 ft.): | P/N 91616024 |
|
Power + Data Extension Cable, Rental Type, BBD to BBD, 5 m (16.4 ft.): | P/N 91616042 |
|
Power + Data Extension Cable, Rental Type, BBD to BBD, 10 m (32.8 ft.): | P/N 91616043 |
|
Power + Data Extension Cable, Rental Type, BBD to BBD, 25 m (82.1 ft.): | P/N 91616044 |
|
Power + Data Cable, Rental Type, 100 m (328 ft.) bulk without connectors: | P/N 91616045 |
|
Connectors: | |
|
Power + Data Cable Connector, BBD, Male: | P/N 91611750 |
|
Power + Data Cable Connector, BBD, Female: | P/N 91611751 |
|
Blanking Caps for unused female BBD connectors, set of 10: | P/N 91616052 |
ORDERING INFORMATION
|
Flightcase for 10 x VDO Sceptron™ 1000mm / 30 x VDO Sceptron™ 320 mm: | P/N 91515030 |
|
Flightcase Extender for 10 x VDO Sceptron™ 1000 mm / 30 x VDO Sceptron™ 320 mm: | P/N 91515031 |
|
VDO Sceptron 10™, 320 mm, in cardboard box: | P/N 90357650 |
|
VDO Sceptron 10™, 1000 mm, in cardboard box: | P/N 90357655 |
