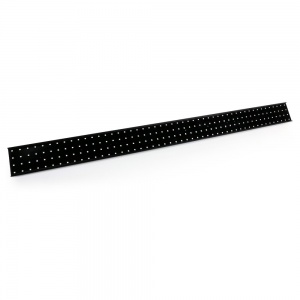

VDO Fatron 20 is a 20 mm pixel pitch outdoor-rated LED video batten with an extensive range of optical accessories for a wide variety of looks that allows you to seriously play with creativity in 3D stage designs. Easy video-mapping and creative mix ‘n’ match with other Martin LED video products via the P3 System Controller. It uses the same integrated power and data cabling as VDO Sceptron and VDO Dotron, making installation a breeze. Be creative.
FEATURES
Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and simple cabling system

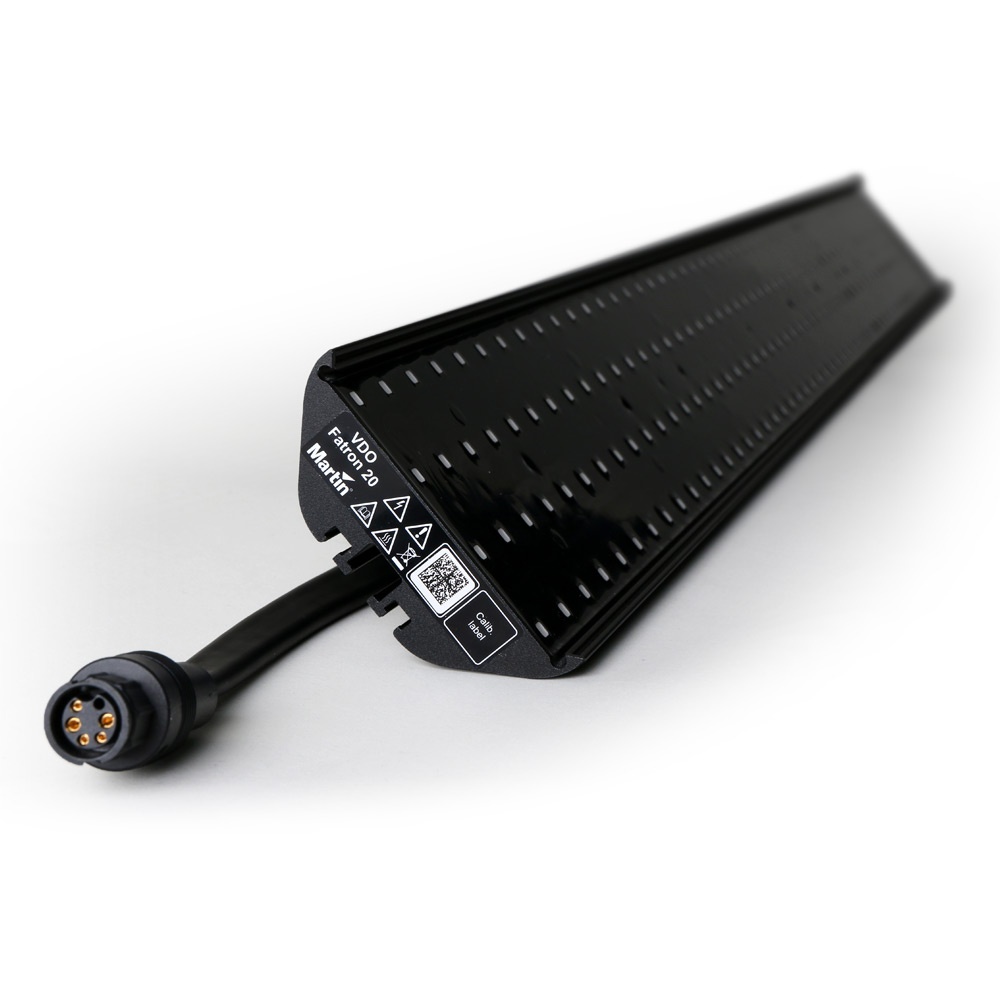

Combined power and data cabling (compatible with other products such as VDO Sceptron and VDO Dotron)
DMX Control
P3 Control with VideoMapping
Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
Extensive range of built-in effects
Intuitive mapping and addressing via P3 System Controller
Fully brightness and color calibrated for optimal consistency between products (colors matched with VDO Sceptron and VDO Dotron)
Pixel-level brightness and color calibrated for a completely homogenous look
High-quality 16-bit per color image processing technology
20 mm pixel pitch
500 cd per meter calibrated
1500 lumen per meter calibrated
8 different diffuser options plus 1 lens option (all field-exchangeable)
IP65 rated for outdoor use

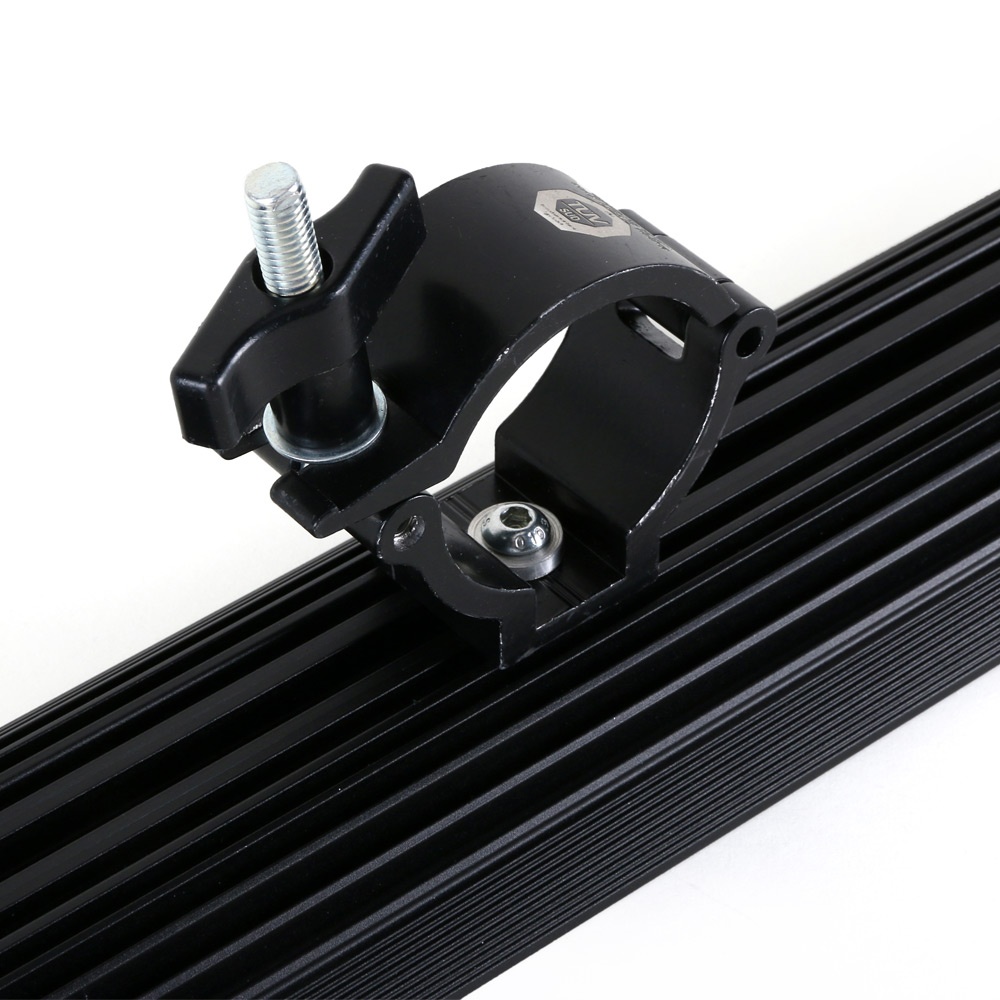

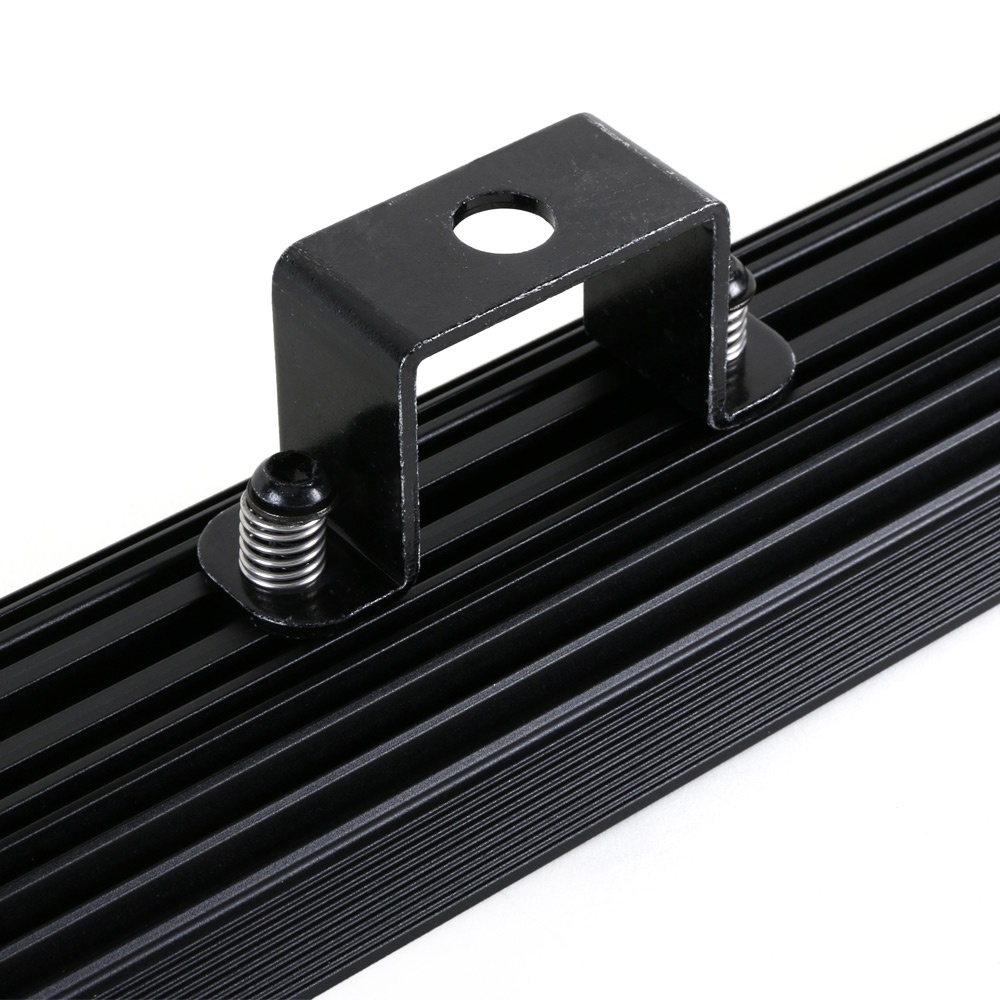

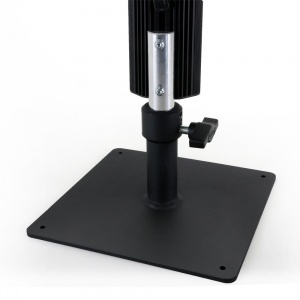

Versatile rigging accessories
|
Available in two lengths: | 1000 mm and 320 mm |
PHYSICAL
|
VDO Fatron™ 20, 320 mm model: | |
|
Length: | 320 mm (12.6 in.) |
|
Width: | 80 mm (3.15 in.) |
|
Height without front: | 28 mm (1.10 in.) |
|
Height with standard front (Square Diffuser): | 48 mm (1.89 in.) |
|
Weight without front: | 0.85 kg (1.9 lbs.) |
|
Weight with standard front (Square Diffuser): | 0.95 kg (2.1 lbs.) |
|
VDO Fatron™ 20, 1000 mm model: | |
|
Length: | 1000 mm (39.4 in.) |
|
Width: | 80 mm (3.15 in.) |
|
Height without front: | 28 mm (1.10 in.) |
|
Height with standard front (Square Diffuser): | 48 mm (1.89 in.) |
Weight wi
| thout front: | 2.5 kg (5.6 lbs.) |
|
Weight with standard front (Square Diffuser): | 2.8 kg (6.2 lbs.) |
CONTROL AND PROGRAMMING
|
Control options: | Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX |
|
Control resolution: | 16-bit (P3) or 8-bit (DMX) control of each color |
|
Protocol detection: | Automatic |
|
Setting and addressing: | Martin P3™ System Controller or RDM-compliant controller |
|
Color and intensity calibration: | Pixel-level |
|
DMX compliance: | USITT DMX512-A |
|
RDM compliance: | ANSI/ESTA E1.20 |
|
Firmware update: | Via Martin P3™ System Controller |
|
Control modes, direct DMX control: | RGB, Basic, Segment and Pixel |
|
DMX channels, direct DMX control: | 3/10/19/37/55/157 |
|
Control modes, DMX via P3: | P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap |
|
DMX channels, DMX via P3: | Wide range of options from 1 to 603 |
CONTROL/USER INTERFACE
|
Device status: | Multi-color visual indication |
|

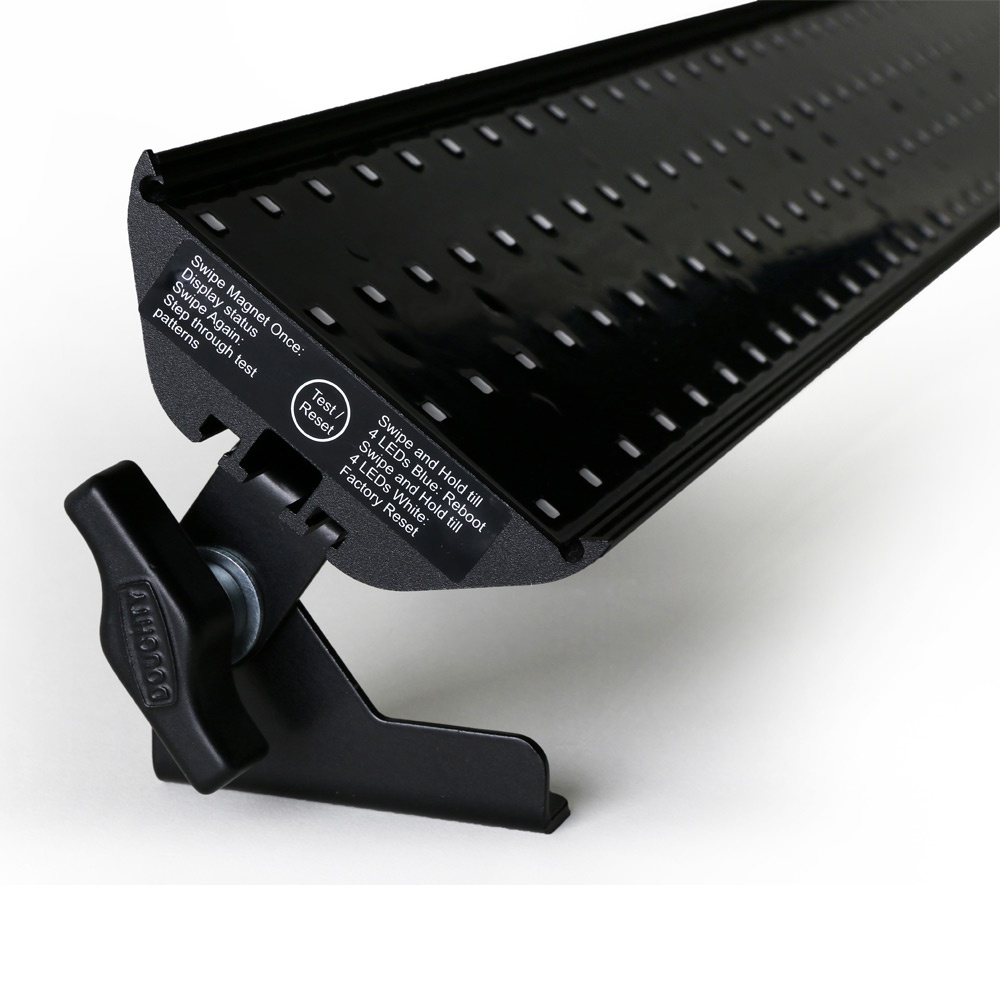

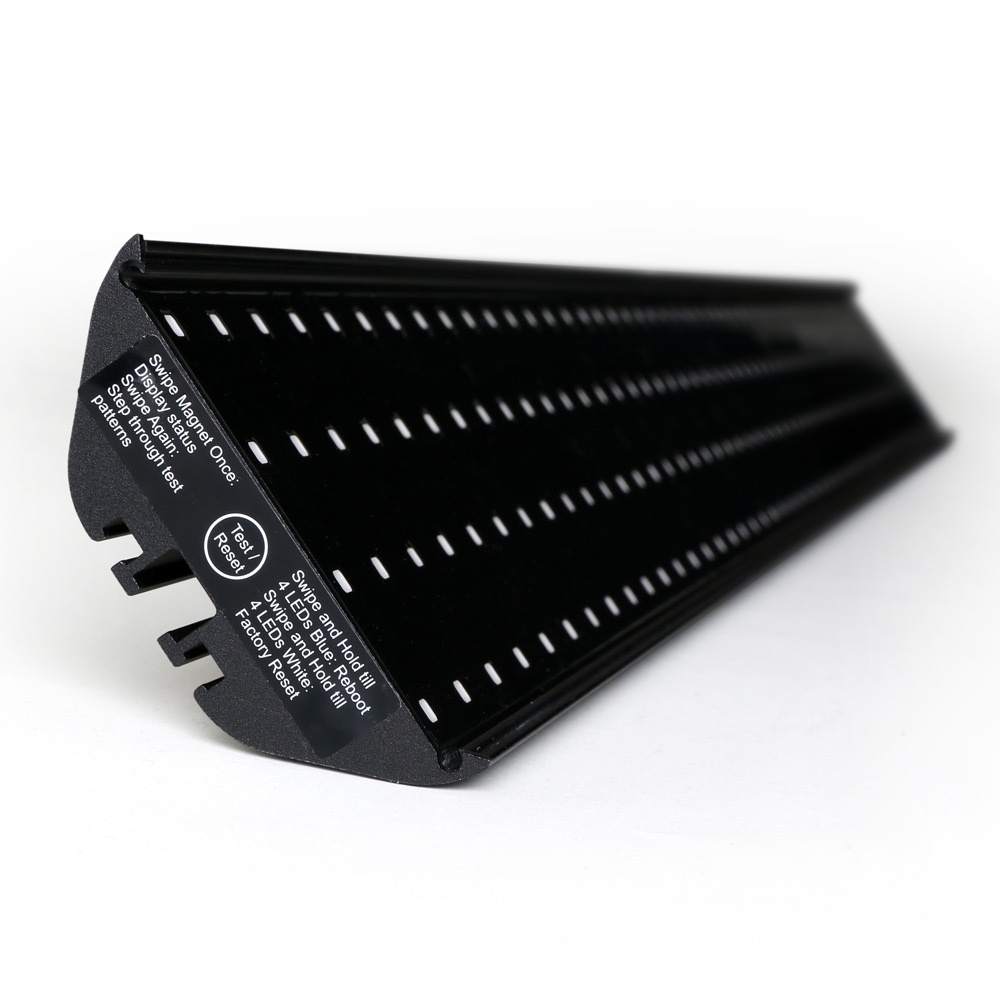

Device test and reset: | Magnetic pushbutton to call up local test patterns and reset device |
OPTICS
|
Minimum LED lifetime: | 50,000 hours (to >70% luminous output)* |
*Figure obtained under manufacturer’s test conditions
|
Binning: | Tight color and flux binning |
|
Calibration: | Full Gamut Pixel Calibration |
|

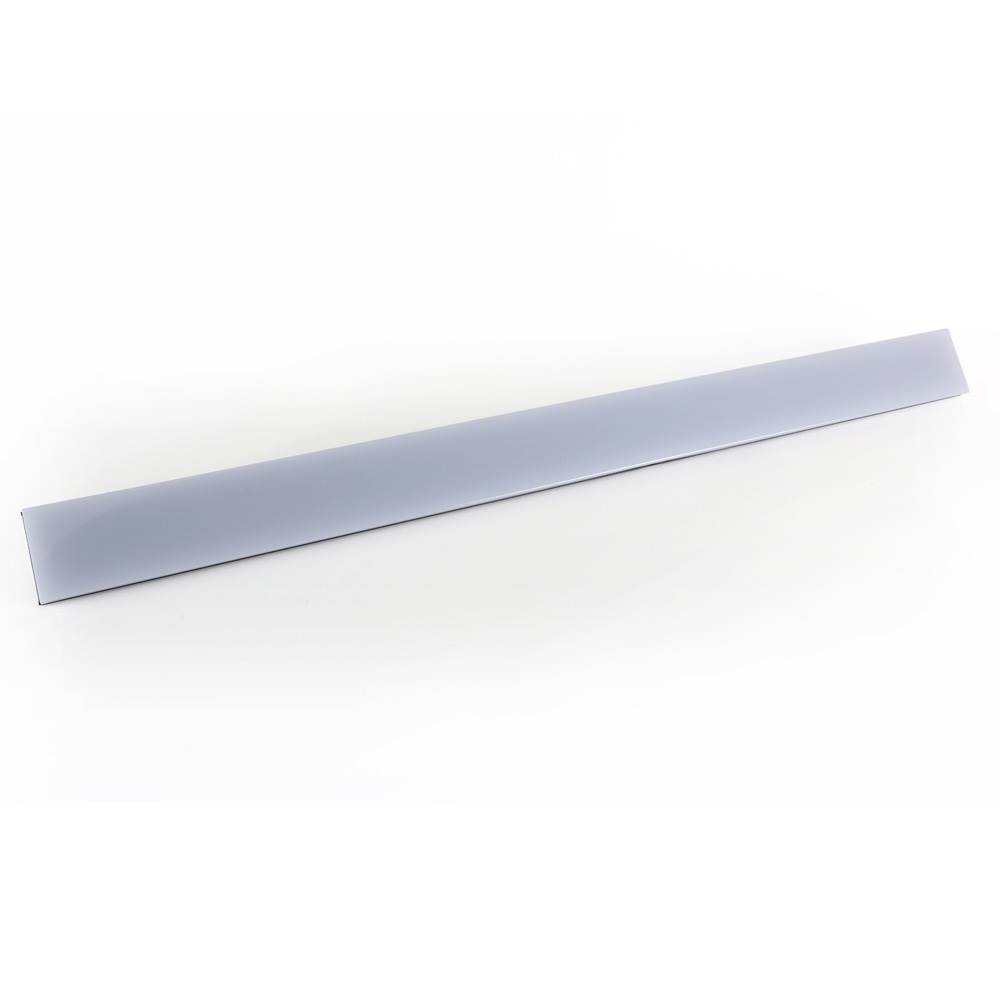

Diffuser/Lens Options: | |

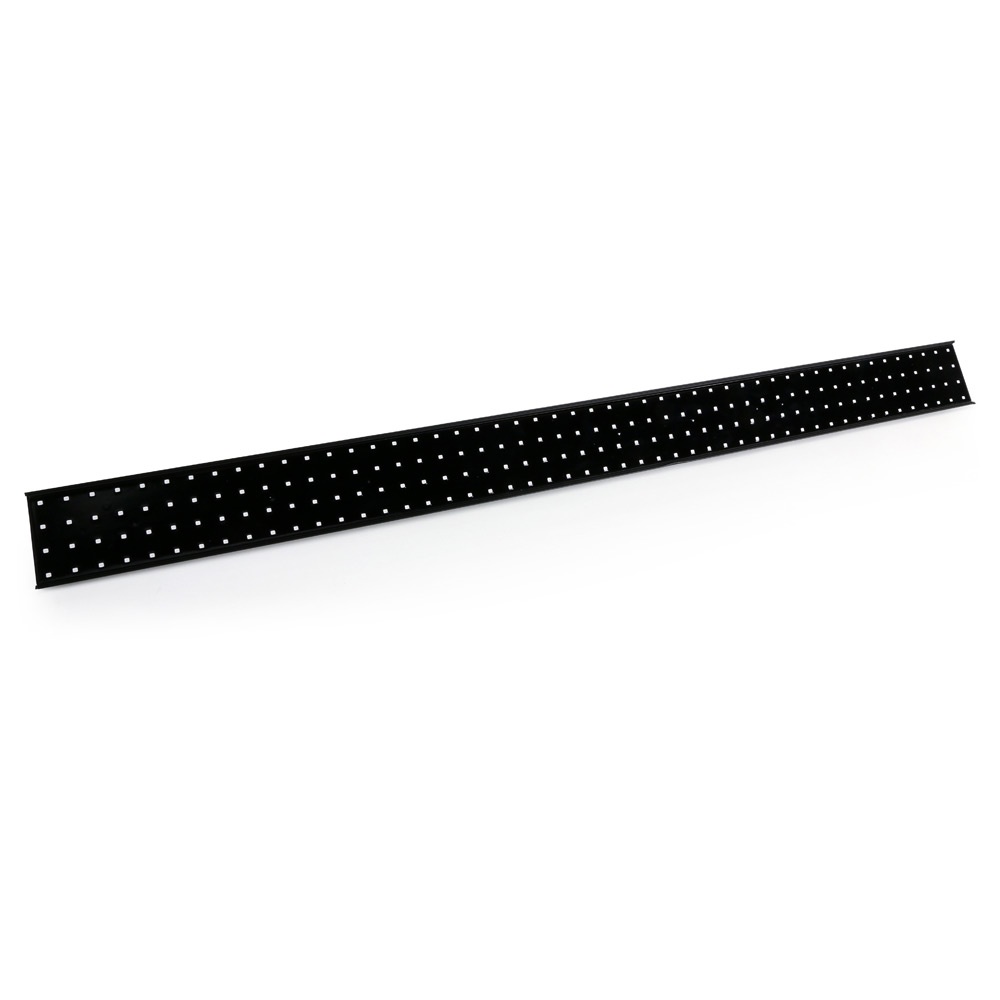

Open Front

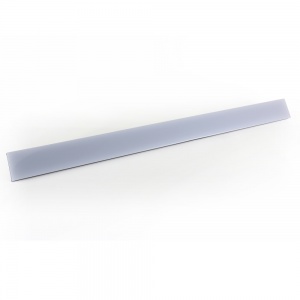

Flat Diffuser
Flat Smoked Diffuser
Round Diffuser
Round Smoked Diffuser

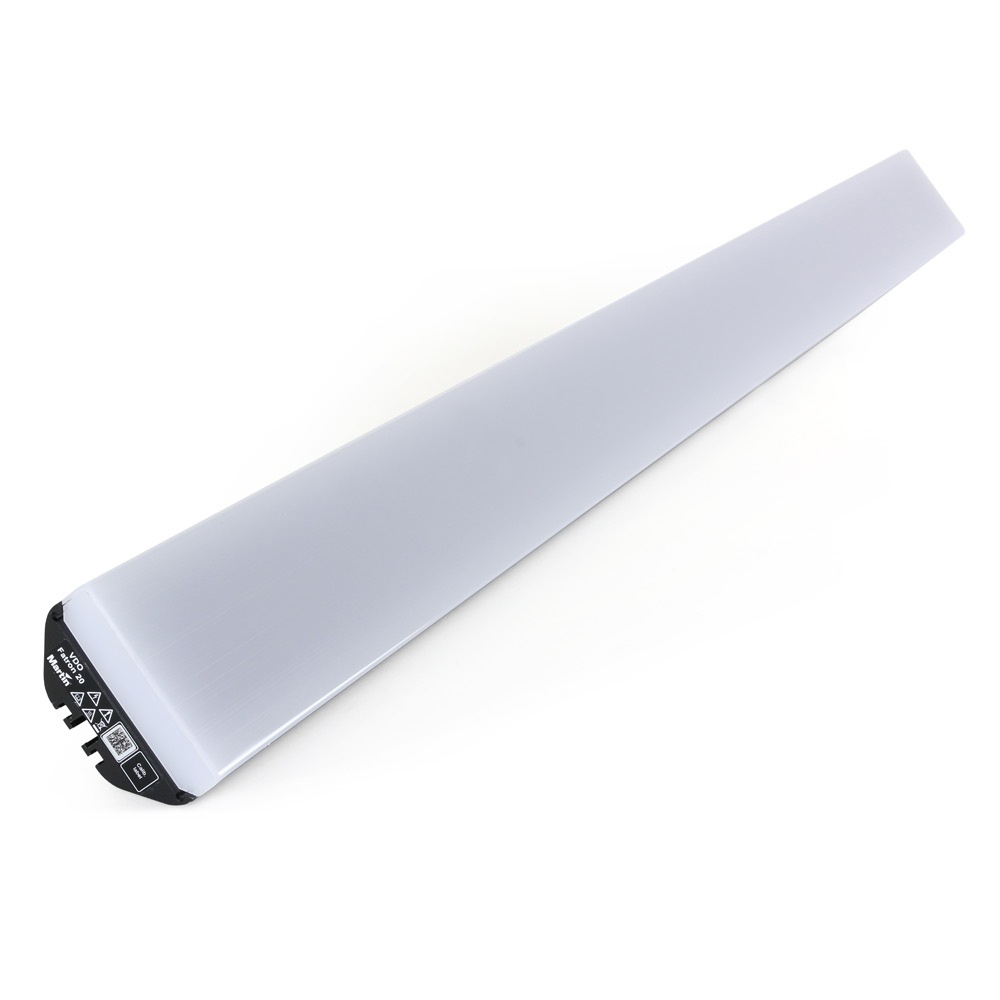

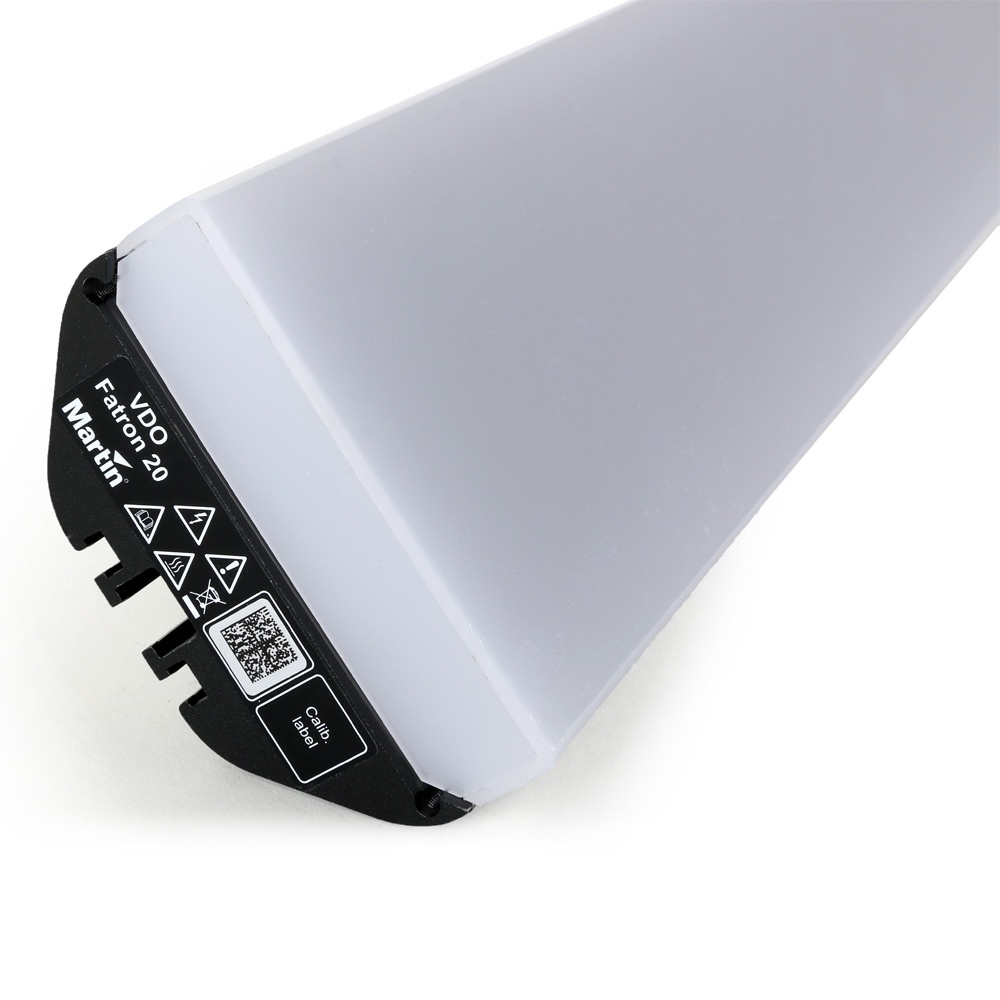

Square Diffuser (supplied standard with fixture)
Square Smoked Diffuser
NoBlend Diffuser
NoBlend Smoked Diffuser
Lens Array Narrow
All optical accessories are interchangeable and clip onto fixtures
PHOTOMETRIC DATA
|
Color resolution: | 16 bits per color (48 bits per pixel) |
|
Viewing angle: | 120° x 120° (half-peak) |
|
Pitch (pixel center-to-center): | 20.00 mm |
|
Luminous intensity, calibrated mode: | 500 cd per meter |
|
Luminous output, calibrated mode: | 1500 lumen per meter |
|
Total output, calibrated mode: | 6250 nits (fixtures placed in continuous surface) |
|
LED Array VDO Fatron 20 320mm: | 4 x 16 |
|
LED Array VDO Fatron 20 1000mm: | 4 x 50 |
|
CCT: | 6500 Kelvin |
|
LED refresh rate - Standard Mode: | 1001 Hz |
|
LED refresh rate - High Refresh Mode: | 4004 Hz |
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
VIDEO PROCESSING
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
SIGNAL PROTOCOL
Martin P3 (via Martin P3™ PowerPort) or DMX (direct)
CONSTRUCTION
|
Color: | Matte black |
|
Base: | Extruded aluminum profile |
|
Protection rating: | IP65 |
RoHS compliant
