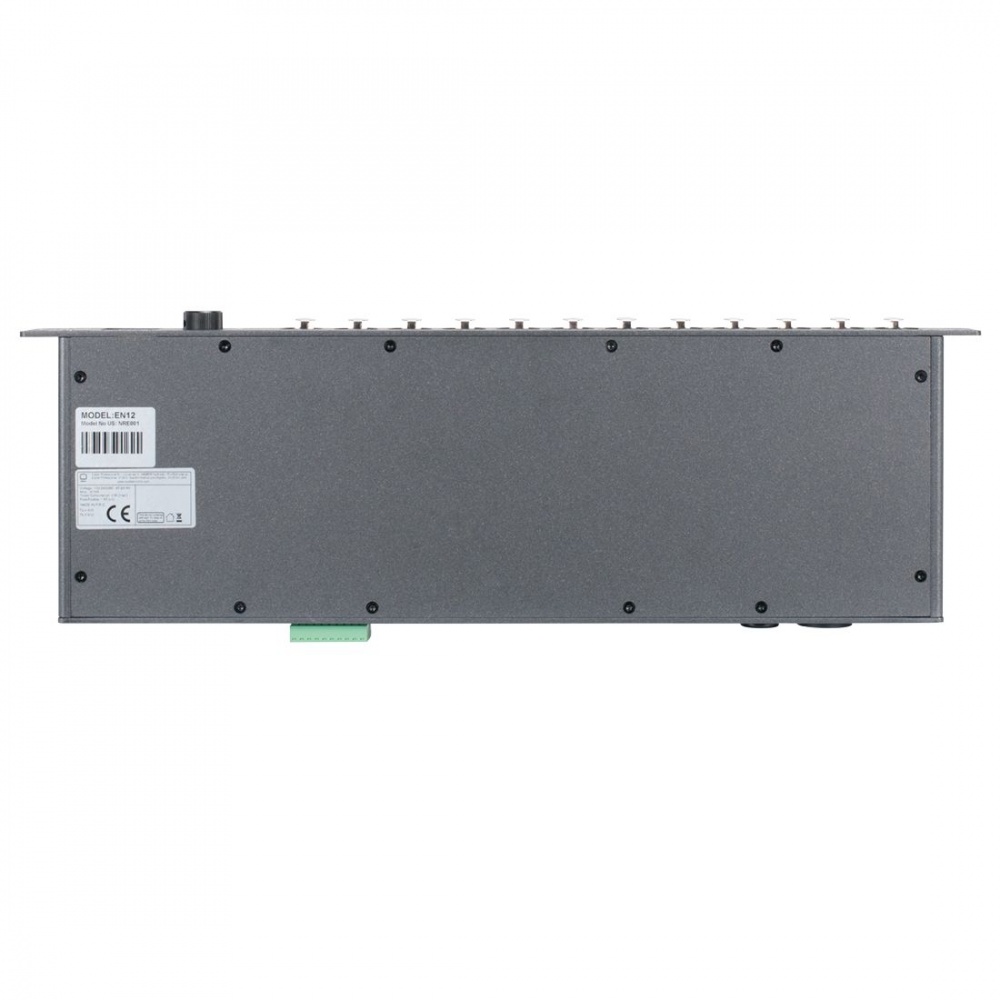

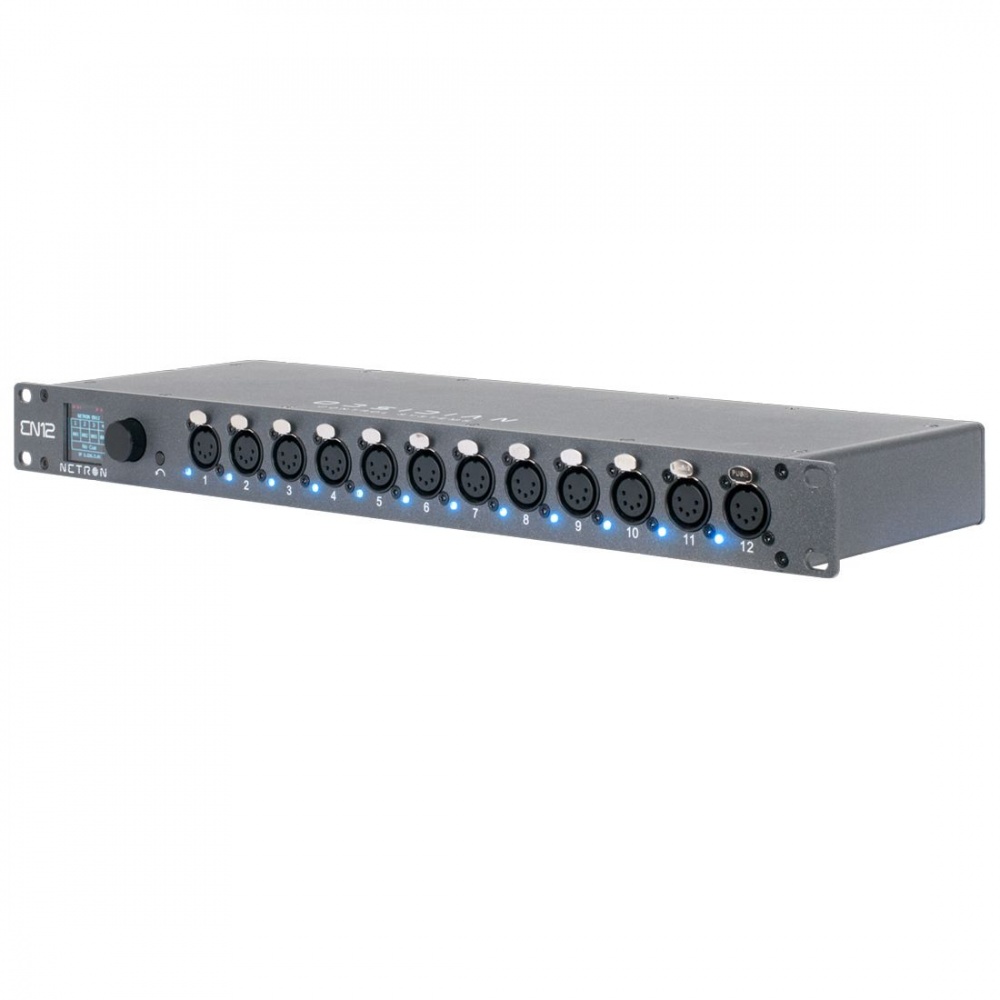

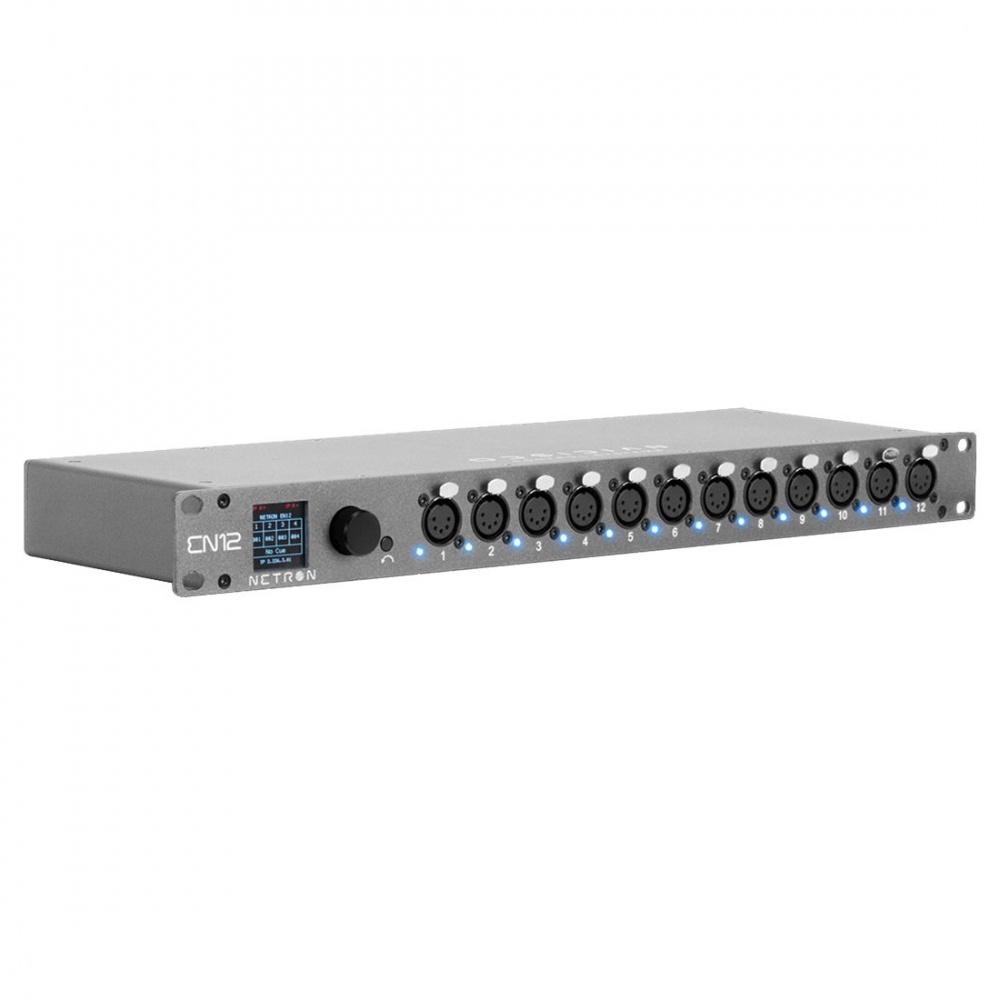

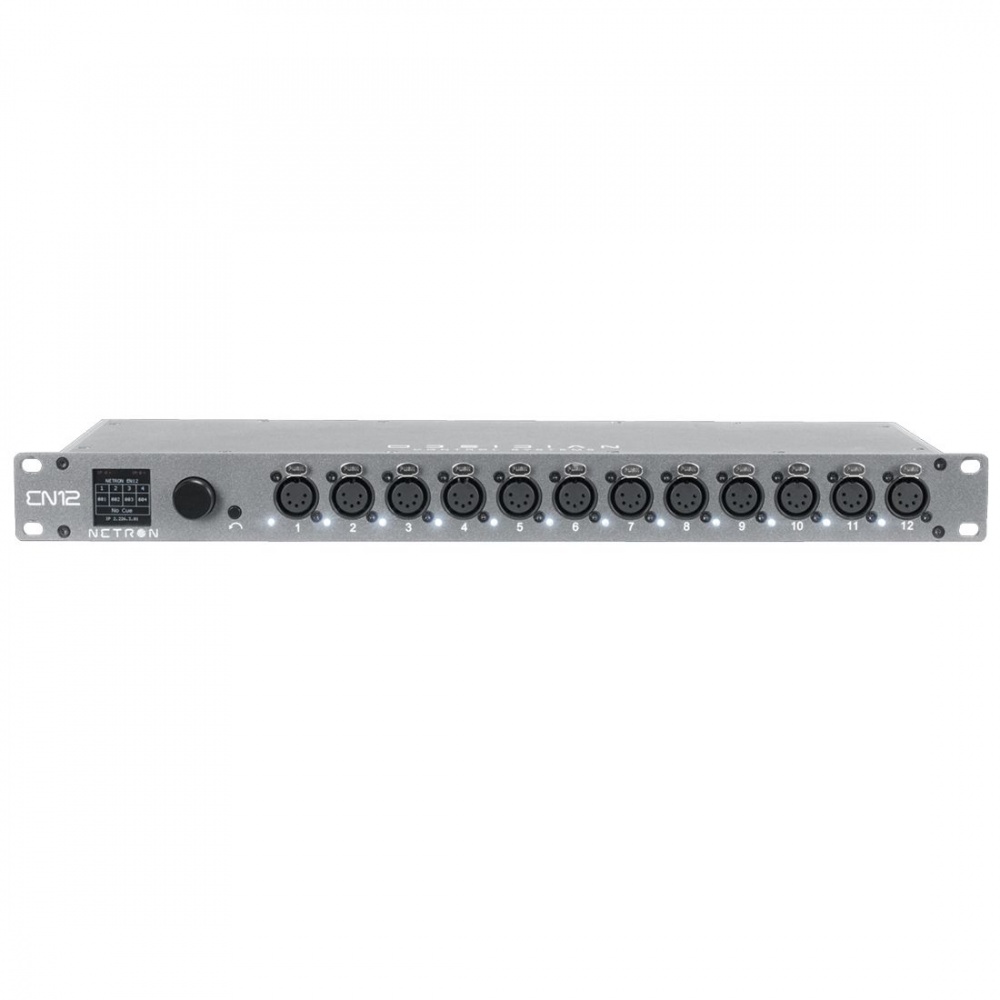

The Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
FEATURES:
• RDM, Artnet and sACN support
• Factory and user presets for plug and play setups
• 1.8” OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Customizable routing and merging options
• Remote configuration via internal webpage
• Contact closures for cue or preset recall
• Powder-coated aluminum rackmount housing

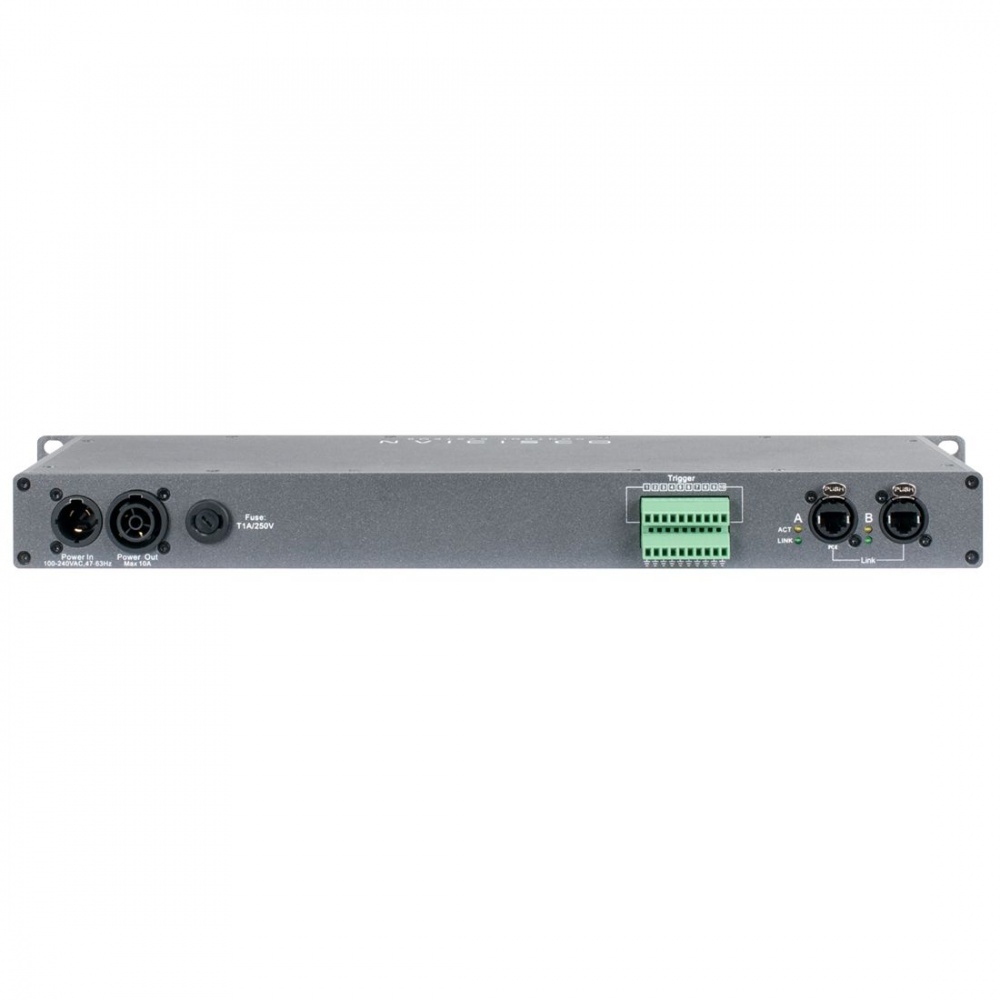

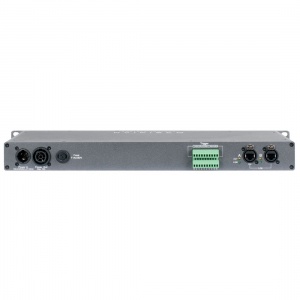

CONNECTIONS
(12) Locking 5pin Opto-Isolated DMX XLR Connector Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button
(2) Locking RJ45 Ethernet network Connector In/Out
(10) Contact Closures (Terminal Block)
Locking IP65 Power Connector In/Out
SIZE / WEIGHT
Length: 19.0” (482mm)
Width: 6.3” (160mm)
Vertical Height: 1.7” (44mm)
Weight: 3.4 lbs. (1.5kg)
ELECTRICAL
AC 100-240V - 50/60Hz
7W Max Power Consumption
INCLUDED ITEMS
Locking IP65 Power Connector to CEE 7/7 Cable
