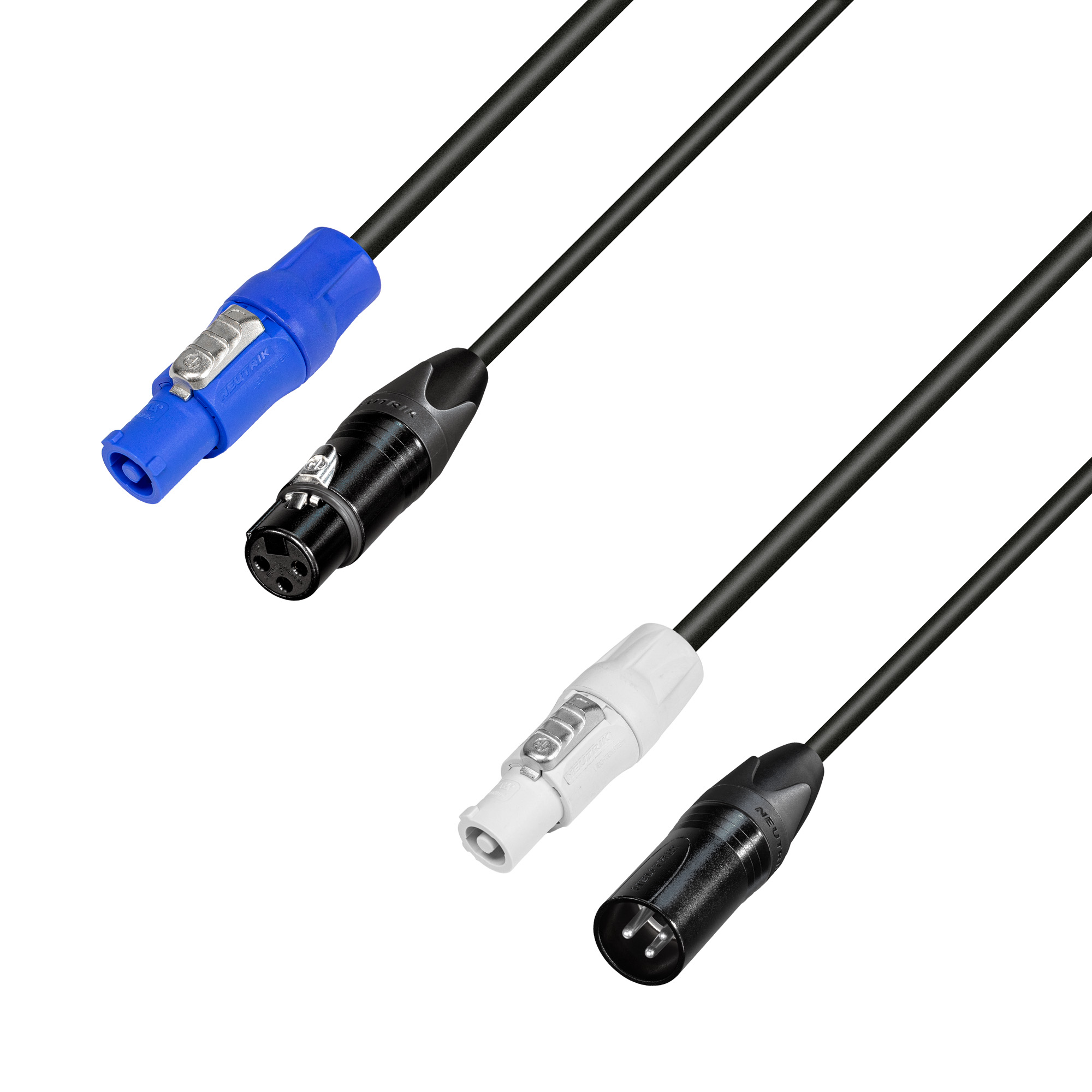

Adam Hall Cables 8101 PSDT 0150 N - Power & DMX Cable PowerCon In & XLR female to PowerCo

• Už žiadne neporiadky v kábloch s jediným káblom k vášmu zariadeniu
• Pre paralelné napájanie a prenos DMX signálu
• Vybavené konektormi Genunine Neutrik XLR a PowerCon
• 3 x 2,5 mm² prierez pre DMX
• 3 x 1,5 mm² prierez pre napájanie
• Obsahuje voľnú, priehľadnú zmršťovaciu hadičku na vlastné označenie kábla

No more cable mess with just one cable to your equipmentFor parallel power and DMX signal transmissionEquipped with Genunine Neutrik XLR and PowerCon connectors2 x 0,22mm2 cross section for DMX3 x 1,5mm2 cross section for power

Na objednávku

77,39

62,92 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typePre-assembled CablesTypePower / Signal CableLength1.5 mSplice length40 cmColorBlackOverall diameter15 mmJacket materialPVCConnector 1-ANAC3FCAConnector 1-BNC3FXX-BAGConnector 2-ANAC3FCBConnector 2-BNC3MXX-BAGAssembly mains cable3 x 1.5 mm2AWG24Cross-section0.22 mm2Assembly signal conductor2 x 0,22 mm2IsolationPE 1.7 mmInner conductor construction7 x 0.20 mm, bare copperNumber of internal conductors2Conductor resistance85 ohm/kmCurrent carrying capacity55 pF/mSurge Impedance120 ohm/kmOperating Temperature-20 - 70 °CShieldPE filler, tinned copper braided shielding with 96 x 0.10 mm + ALWeight0,43 kg
