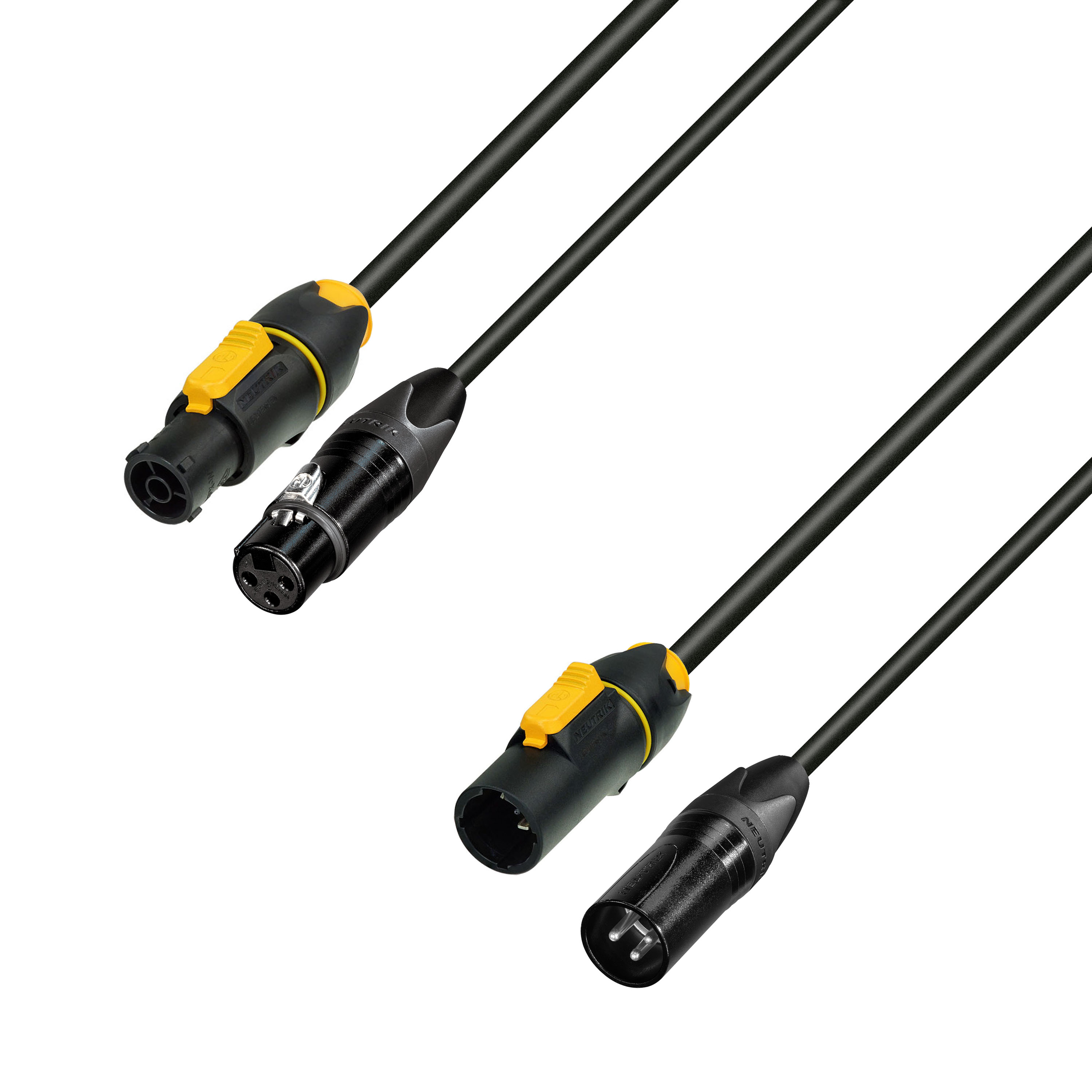

Adam Hall Cables 8101 PSDP 0500 N - Power & DMX Cable PowerCon True In & XLR female to Po

No more cable mess with just one cable to your equipmentFor parallel power and DMX signal transmissionEquipped with Genunine Neutrik XLR and PowerCon True connectors3 x 1,5 mm2 cross section for power2 x 0,22 mm2 cross section for DMX

4049521338830-8101PSDP0500N_1

Hmotnosť

97,80

81,50 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typePre-assembled CablesTypePower / Signal CableLength5 mSplice length40 cmColorBlackOverall diameter15 mmJacket materialPVCConnector 1-ANAC3FX-W-TOPConnector 1-BNC3FXX-BAGConnector 2-ANAC3MX-W-TOPConnector 2-BNC3MXX-BAGAssembly mains cable3 x 1.5 mm2AWG24Cross-section0.22 mm2Assembly signal conductor2 x 0,22 mm2IsolationPE 1.7 mmInner conductor construction7 x 0.20 mm, bare copperNumber of internal conductors2Conductor resistance85 ohm/kmCurrent carrying capacity55 pF/mSurge Impedance120 ohm/kmOperating Temperature-20 - 70 °CShieldPE filler, tinned copper braided shielding with 96 x 0.10 mm + ALWeight0,93 kg
