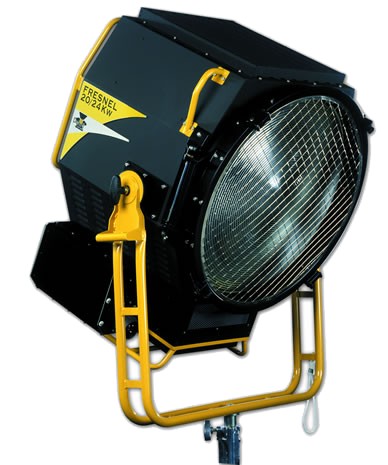

The SuperLeo 20.000W is a Fresnel lens spotlight properly designed for use in those situations where it is required to locate the luminaire far from the scene; its high quality performances in terms of photometric characteristics make this luminaire essential for the TV and Film Industry. The built-in dimmer, with a local/remote control selector, permits lamp ignition avoiding surge current shocks. A highly efficient air convection cooling system includes a wide top ventilation grid, for air flow/heat dissipation, featuring an internal baffle to either prevent direct water leaking on the lamp or avoid light spilling; double walls grant low temperature value on the external surfaces. A bottom sledge, a tubolar rear grab handle and a single tilt locking the locking knob ensure easy handling and orientation of the luminaire.
PHISICAL
octagonal-shaped lightweight stainless steel construction
double wall & internal baffles for efficient ventilation
coated with a high temperature heatresistant powder coat black epoxy paint finish
supplied with a stainless steel wireguard
hinged lens door with wire guard for easy re-lamping including accessory clips which can be positioned to suit various applications
top locking safety bracket for barndoor & colorframe
capable of being disassembled with a screwdriver for easy replacement of parts & maintenance
reinforced steel tube yoke with 1” male spigot attached for C-clamp
clutch activated T-handle for secure, single hand operation
UL Listed
ELECTRICAL
115-240V, 50/60Hz
12/3 SO type cable
six foot (6’) standard detachable power cable
built-in 125 amp on/off toggle switch
LAMP
24000w Maximum
capable of interchanging a 20,000w or 24,000w lamp
G38 bi-post locking lever socket for long life tungsten halogen lamps (see table for suitable lamps)
OPTICAL/FOCUS MECHANISM
24-1/2” (625m) shock resistant borosilicate glass fresnel lens
special bi-metallic clad aluminum reflector for high degree of reflectivity and thermal resistance for long life
focusable from both the front and the rear cable driven focus mechanism guides Teflon bushings along a brass guide rail that is chrome plated to ensure smooth operation
teflon bushings provide a wiping action which cleans the chrome plated brass guide rail during focusing
