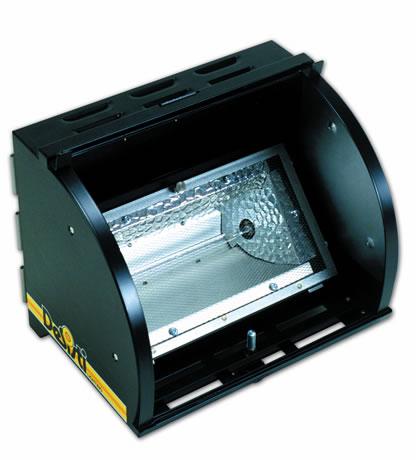

DeSisti 4230.120 DUCCIO Ground Row Cyclorama Luminaires

DUCCIO Ground Row Cyclorama Luminaires, dĺžka žiarovky 118 mm DUCCIO "1" Jednodielna jednotka, for lamp length 118 mm., balenie obsahuje: ochrannú mriežku, rám na filtre, 2m prívodný kábel každý diel. PHYSICAL Constructed of double skinned, punched sheet steel with a rounded front profile Finished with a high temperature, heat resistant, electro statically deposed epoxy powder paint Supplied with a colorframe made from flexible alloy steel mounted inside carefully positioned slots allowing heat to dissipate from the unit Supplied with a stainless steel wireguard, easily removed by two twist locking screws for fast & secure re-lamping Equipped with an adjustable foot to vary the angle of the unit Groundrow cyc lights are modular and capable of being combined with additional units into different configurations Each unit is equipped with a catch and hinges to make connections to other modular units The units can be attached by locking the catch to form a straight line or the units can be u...nlatched, making them flexible for curved cyc corners UL Listed ELECTRICAL 120-230V, 50/60Hz 16/3 SO 90° type cable Six foot standard lead assembled to each cell via a rubber bushing and cable guard LAMP 1000w Maximum R7s socket for linear double ended Tungsten halogen lamps (see table for suitable lamps) Lampsocket has ceramic insulation, nickel brass housing and terminal contacts in silvered copper OPTICAL Reflector is made of a specially coated aluminum with optics that provide a wide reflection and even light across the entire field Reflector is specially designed in three sections, each having different reflective properties to ensure optimum performance

VIAC

Na objednávku

5386

412,50

343,75 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

The Duccio groundrow cyclorama luminaire is the result of an accurated design from De Sisti which has developed a floor standing source to produce artificial horizon or effects on a cyclorama and to be used in conjuction with the Giotto Top Light System for very tall depths or whenever it’s required. The unit is built in bunched and slotted sheet metal with an asymmetrical reflector conceived with a revolutionary shape and material to allow outstanding photometric characteristics. The Duccio compartments are conceived to be added together in order to have a configuration of two or more units. Each compartment is complete with stainless steel wire guard and colour frame, which is designed to hold the gel almost perpendicular to all the emitted light beam in order to have no color aberration on the projection.

Thee Duccio is a compact, high quality & modular ground-row lighting fixture, with an exceptionally even output over the projected area, achieving a uniform distributed illumination of backgrounds. Its modular construction allows various configuration by combining 2, 3 or 4 pieces of the basic compartment. Each compartment accepts linear quartz-halogen lamps with R7s caps 118 mm. overall length: • 118 mm (Mod. N° xxxx.210) 120 V & 230-240V lamps available Max. Power 1.000W per lamp The standard compartments are equipped with individual power cord of 1 m., but multi-pin versions are available on request for multiple compartments configurations.
