FEATURES

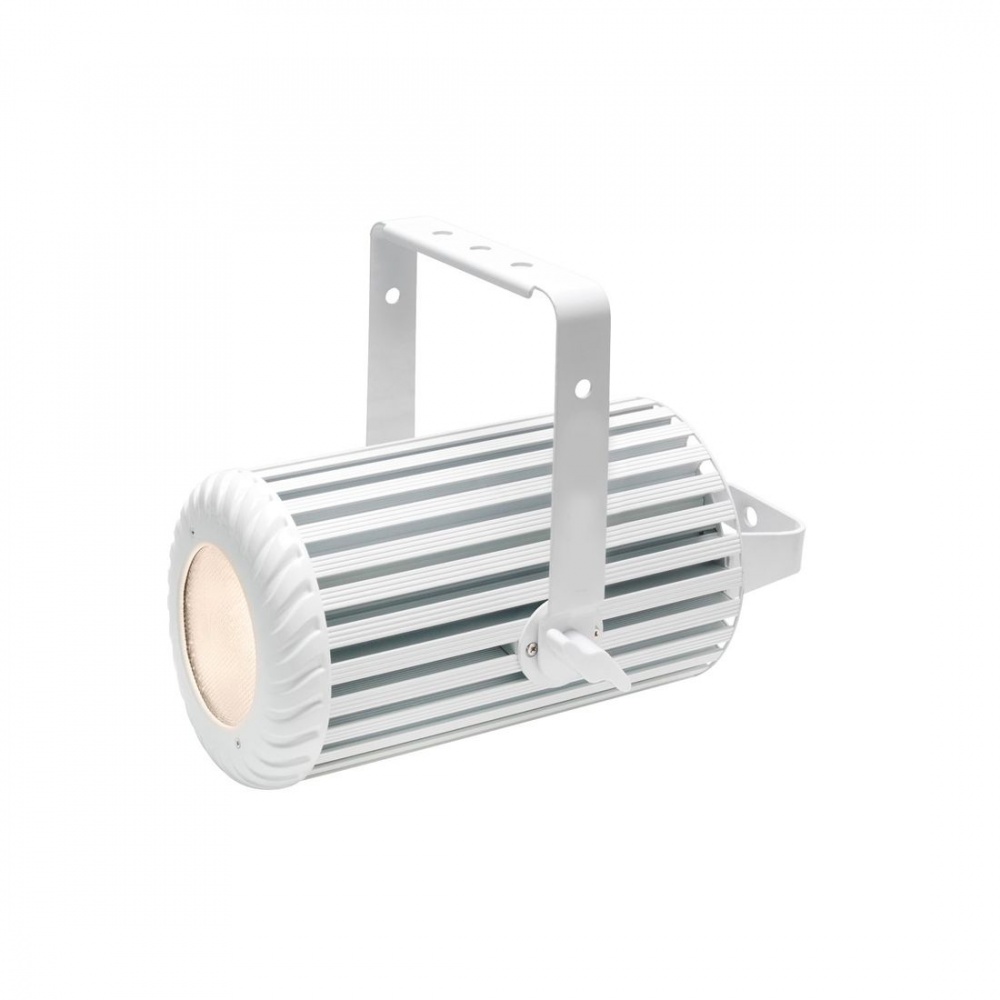

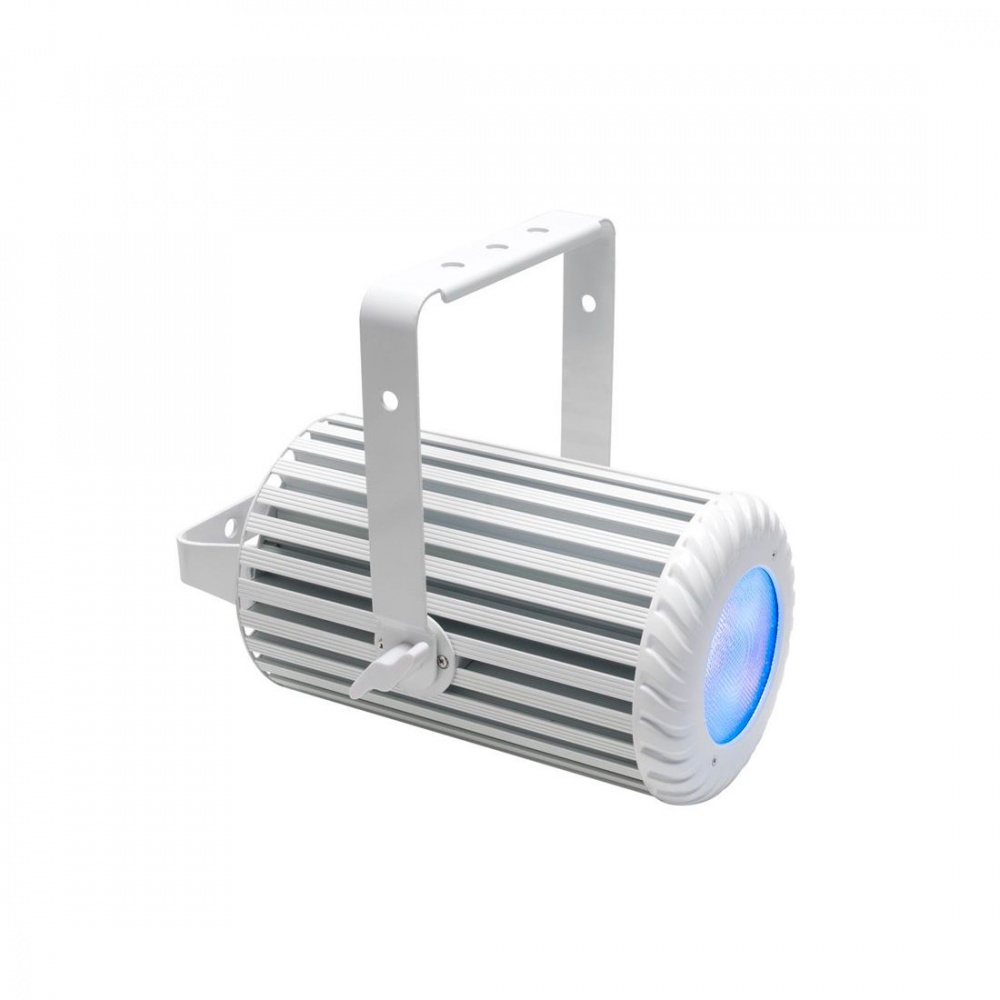

LED Pendant Luminaire
36x 3W RGBW LEDs
Fully Blended Color Transformations
41° Beam and 66° Field Angle
Removable Pendant and Yoke Mounting Brackets

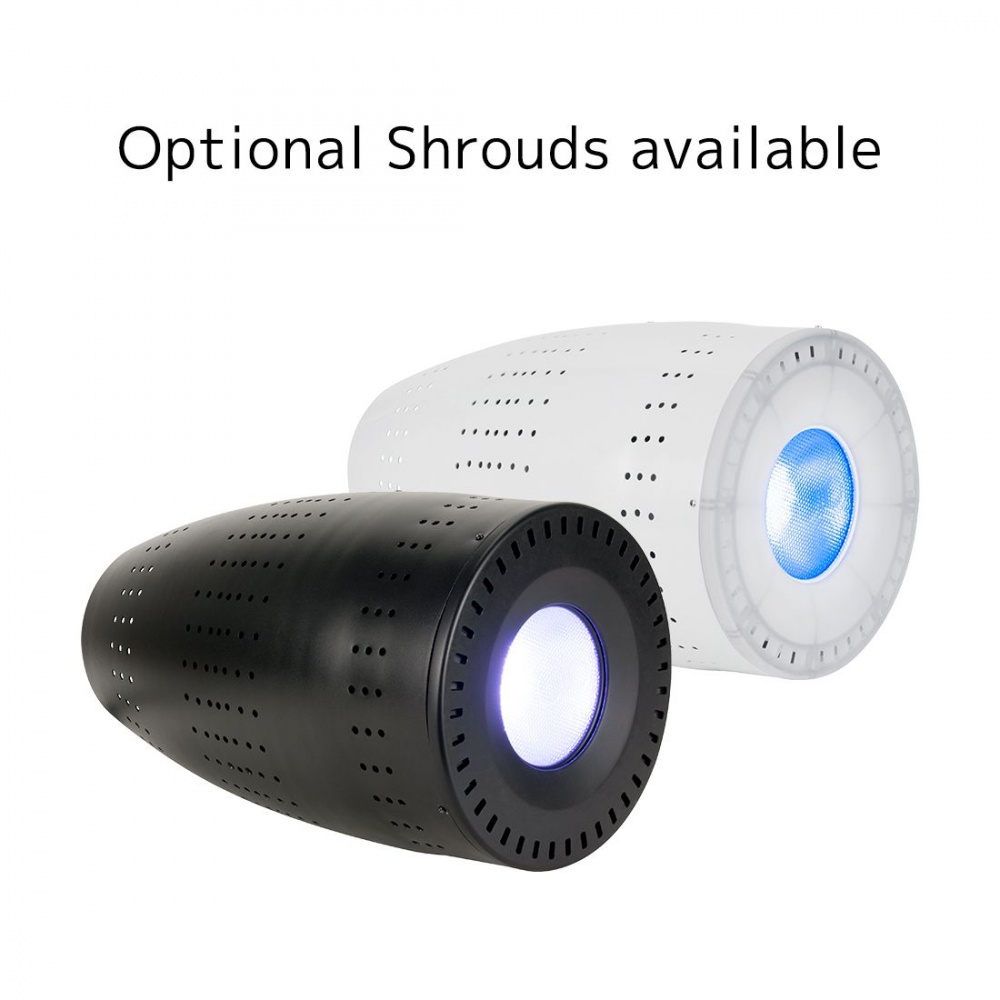

Optional Shroud Mounting
No Fans, Silent Operation
Adjustable Refresh Frequency
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
Internal E-Fly™ Wireless DMX Receiver
SOURCE
36x 3W RGBW LED
3,100 Total Output Lumen
100,000 Hour Average Life*
PHOTOMETRIC DATA
458 LUX 43 FC @ 9.8’ (3m)
EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBW
Variable Color Temperature (2,700 – 8,000K)
CONTROL / CONNECTIONS
11 DMX Channel Modes (1 - 10)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (1200Hz, 2400Hz, 4800Hz, 9600Hz)
8 / 16 Bit Dimming Control

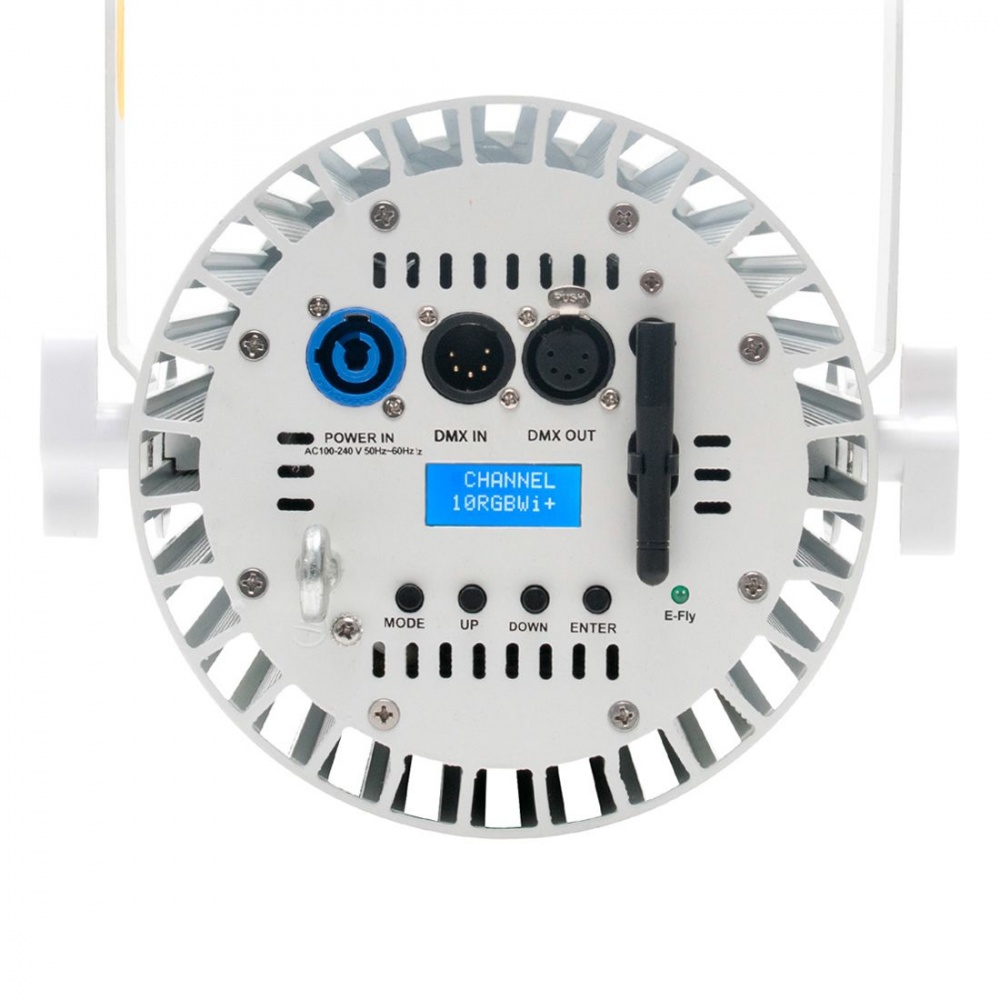

4 Button Control Panel
LCD Menu Display
Internal E-Fly™ Wireless DMX Receiver
Locking 5pin XLR Connector In/Out
Locking Power Connector In
SIZE / WEIGHT|
Length: | 14.7” (374mm) |
|
Width: | 9.9” (252.5mm) |
|
Diameter: | 7.0” (183.7mm) |
|
Weight: | 14.0 lbs. (6.4 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1236100132 Exterior Shroud Kit WH
1236100133 Exterior Shroud Kit BL
1322000055 E-Fly Wireless DMX Transceiver
1322000060 C-Loader II
FEATURES
LED Pendant Luminaire
36x 3W RGBW LEDs
Fully Blended Color Transformations
41° Beam and 66° Field Angle
Removable Pendant and Yoke Mounting Brackets
Optional Shroud Mounting
No Fans, Silent Operation
Adjustable Refresh Frequency
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
Internal E-Fly™ Wireless DMX Receiver
SOURCE
36x 3W RGBW LED
3,100 Total Output Lumen
100,000 Hour Average Life*
PHOTOMETRIC DATA
458 LUX 43 FC @ 9.8’ (3m)
EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBW
Variable Color Temperature (2,700 – 8,000K)
CONTROL / CONNECTIONS
11 DMX Channel Modes (1 - 10)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (1200Hz, 2400Hz, 4800Hz, 9600Hz)
8 / 16 Bit Dimming Control
4 Button Control Panel
LCD Menu Display
Internal E-Fly™ Wireless DMX Receiver
Locking 5pin XLR Connector In/Out
Locking Power Connector In
SIZE / WEIGHT
|
Length: | 14.7” (374mm) |
|
Width: | 9.9” (252.5mm) |
|
Diameter: | 7.0” (183.7mm) |
|
Weight: | 14.0 lbs. (6.4 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1236100132 Exterior Shroud Kit WH
1236100133 Exterior Shroud Kit BL
1322000055 E-Fly Wireless DMX Transceiver
1322000060 C-Loader II
