FEATURES

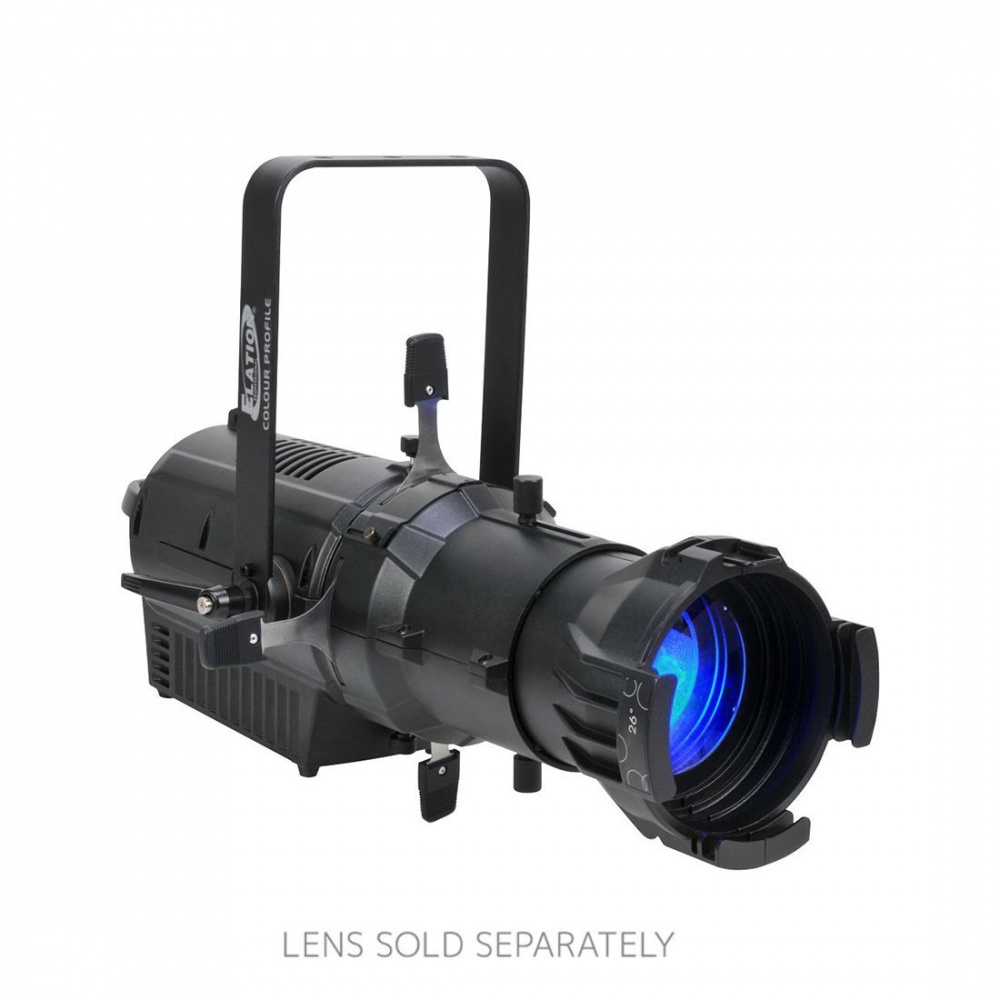

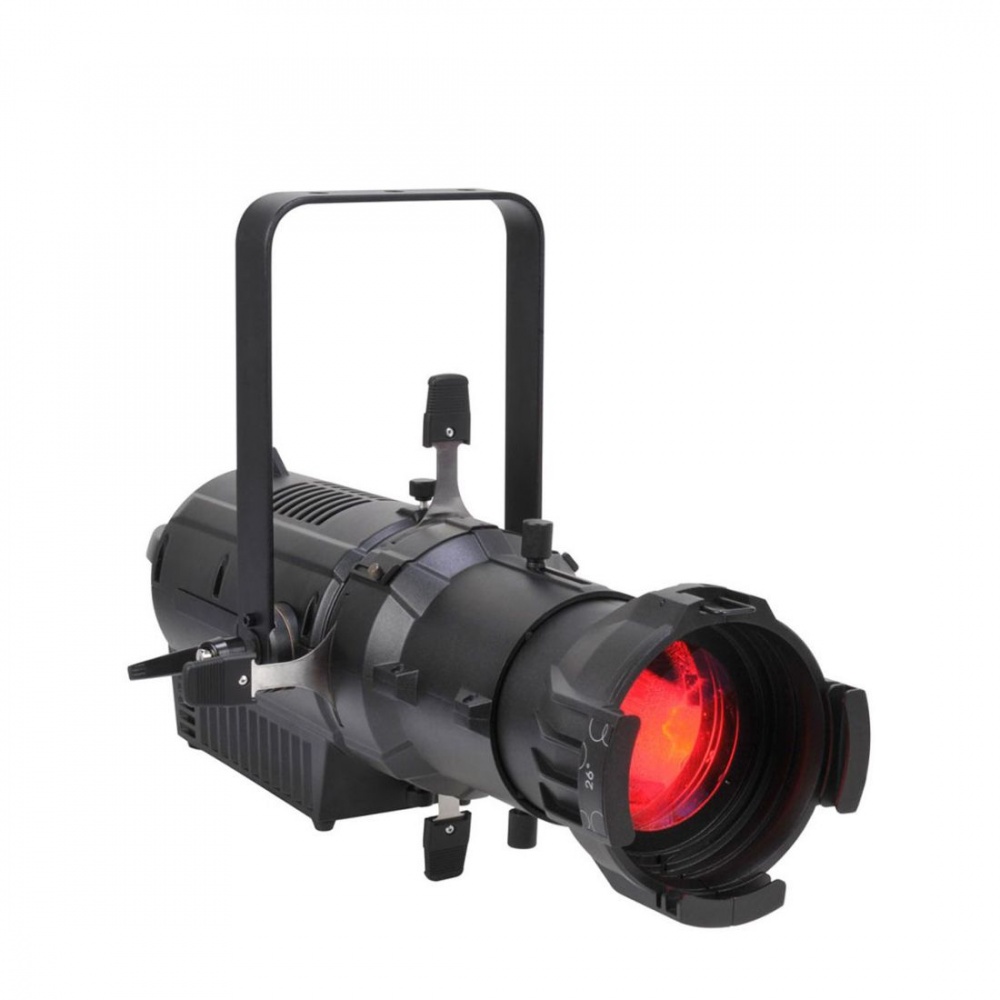

180W RGBAM LED Profile Luminaire

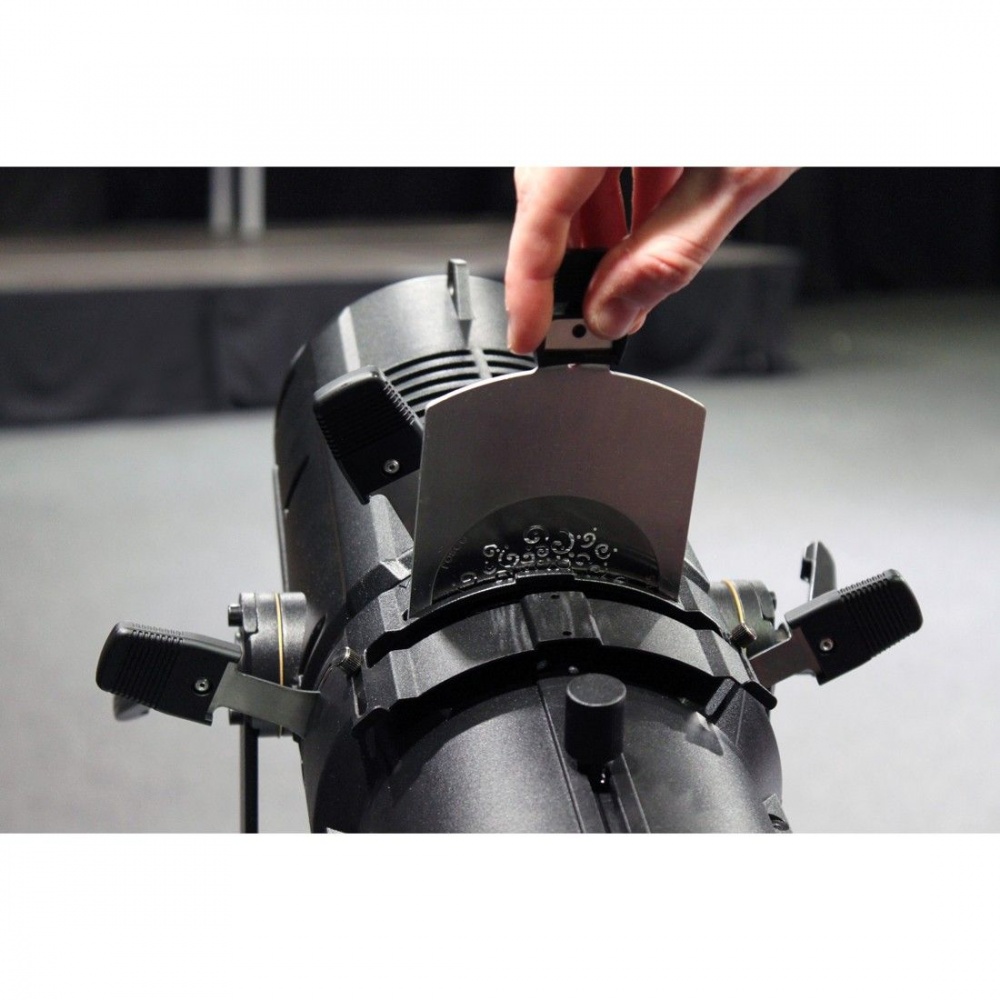

4-Blade Manual Framing Module in Rotatable Barrel

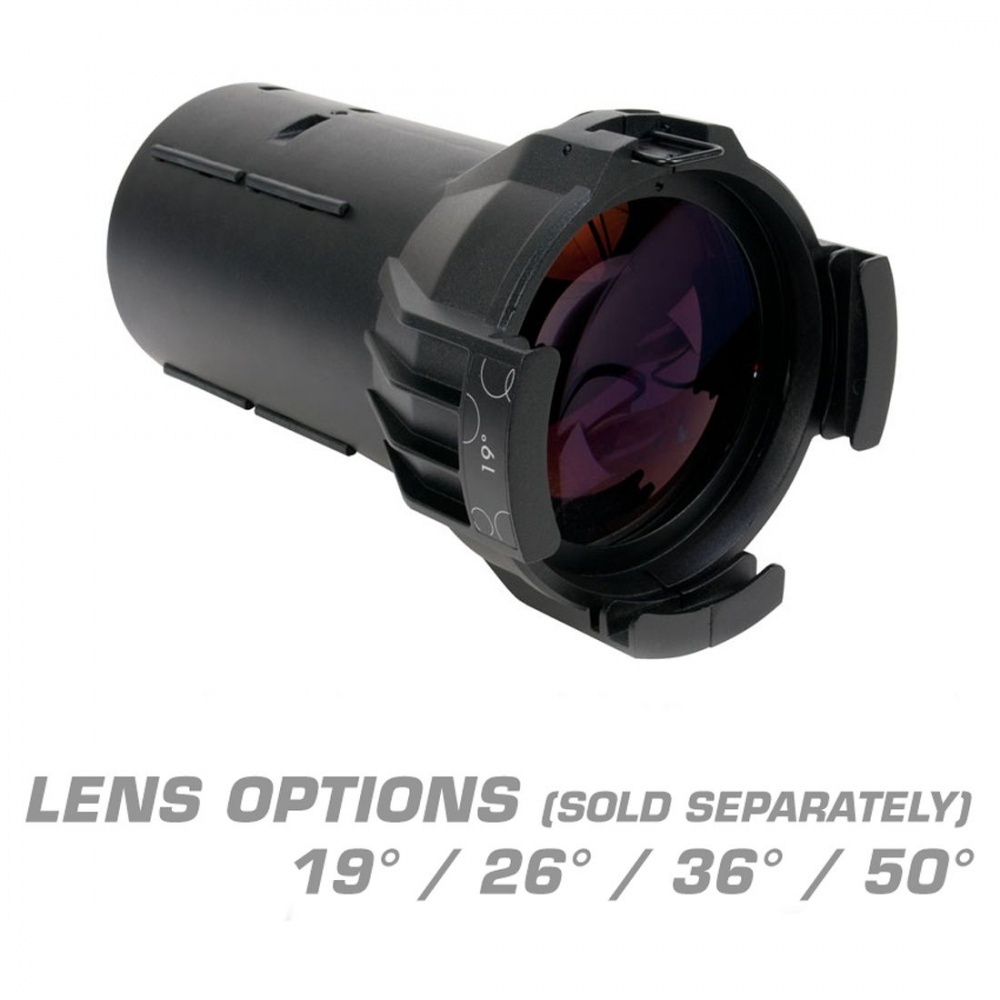

Interchangeable Lens Options (19°, 26°, 36°, 50°)**
Supports B Size Metal or HT Transparency Gobos
Supports Adjustable Iris
Silent Operation
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves

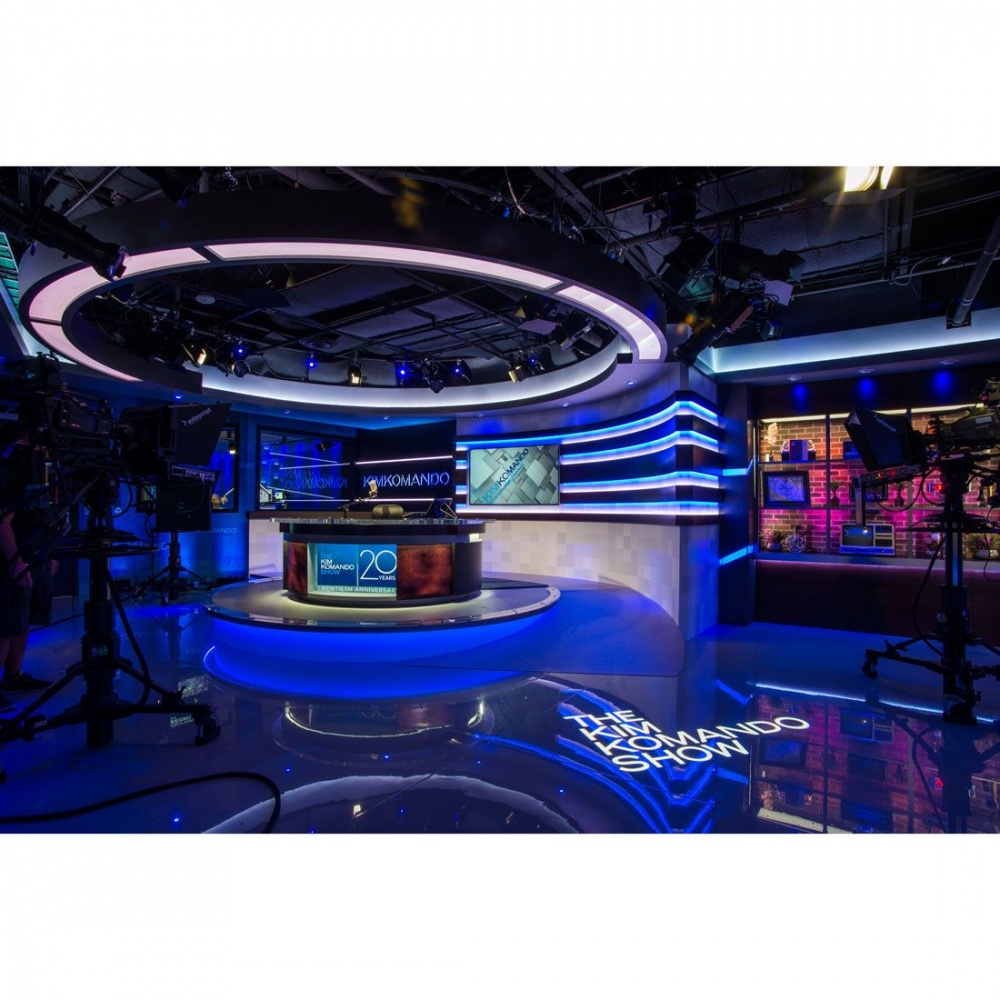

Flicker Free Operation for Broadcast TV and Film
SOURCE
180W RGBAM LED Engine
4,100 Total Output Lumens*, 94CRI
50,000 Hour Average LED Life***
PHOTOMETRIC DATA
2,809 LUX 261 FC @ 9.8’ (3m)*
EFFECTS
Supports Adjustable Iris
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGB + Amber + Mint Multi-Chip LED
Variable Color Temperature (2,700K – 8,000K)
GOBOS
Supports B Size Metal or HT Transparency Gobos
|
Gobo Size: | OD 86mm / ID 64mm / Thickness 0.15mm |
CONTROL / CONNECTIONS
5 DMX Channel Modes (5 - 19)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 - 1500, 25,000 Hz)
Adjustable Gamma (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Dimming Control

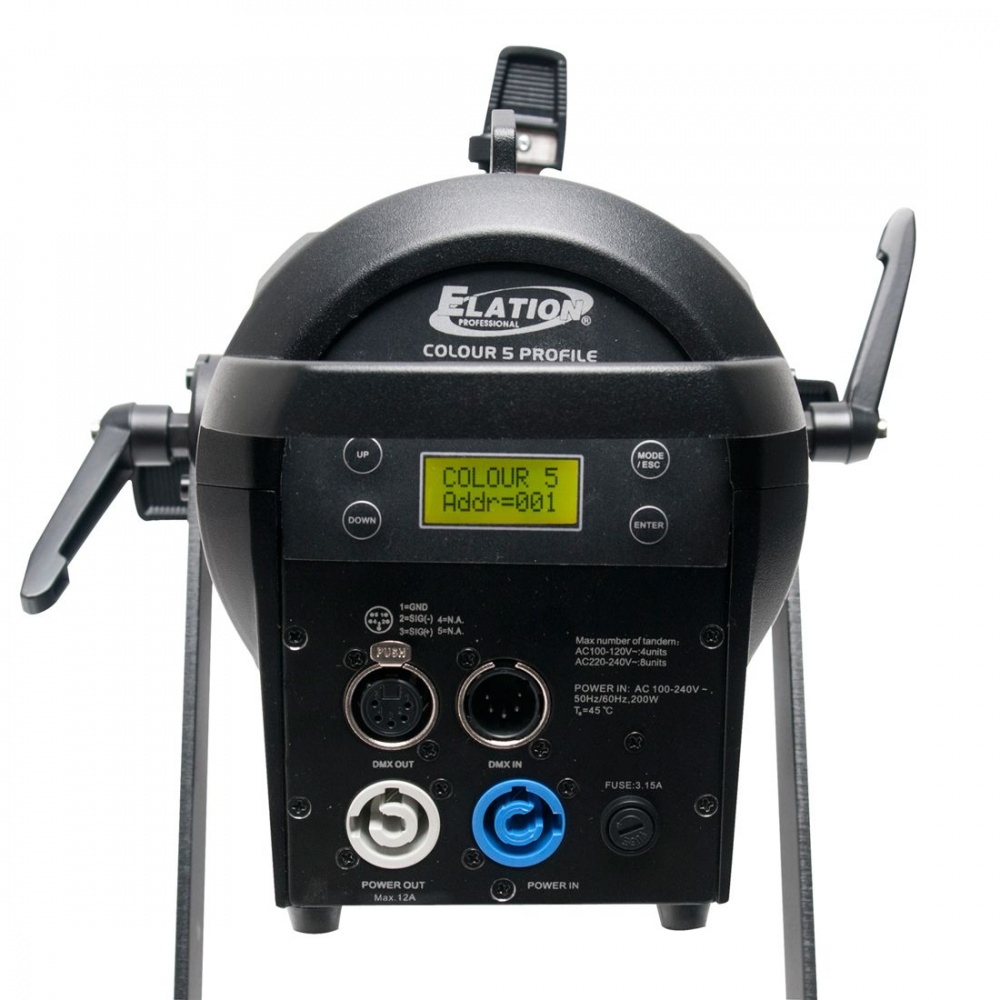

4 Button Control Panel
LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking Power Connector In/Out
SIZE / WEIGHT|
Length: | 24.3” (618mm) |
|
Width: | 12.2” (310mm) |
|
Vertical Height: | 10.6” (269mm) |
|
Weight: | 21.0 lbs. (9.5 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
225W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1322000054 E Loader III
1236100117 PHDL19 Lens for LED Profile
1236100118 PHDL26 Lens for LED Profile
1236100119 PHDL36 Lens for LED Profile
1236100120 PHDL50 Lens for LED Profile
1236100128 Goboholder for LED Profile
*with 26° lens
**sold separately
