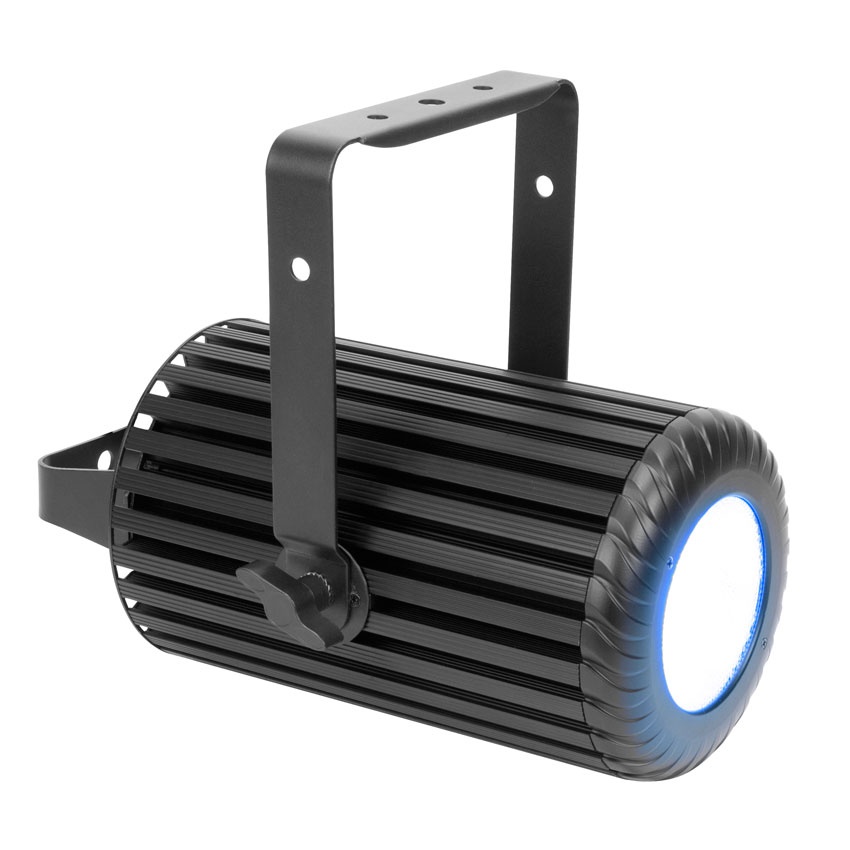

The DW PENDANT™ wash luminaire features (36) 3W 2-in-1 Cool White / Warm White LEDs, a 41° beam angle, silent convection-cooled operation, full-color temperature range control from Tungsten (2,900K) to Daylight (6,800K), variable dimming curve modes, strobe effects, adjustable refresh frequency and gamma brightness for flicker-free operation for TV and Film, DMX and RDM (Remote Device Management) protocol support, an internal E-Fly™ extended range wireless DMX transceiver, LOCKING 5pin XLR DMX in/out and power input connections, an LCD menu display with 4 button control panel, removable pendant and yoke mounting brackets, multi-voltage universal auto-switching power supply (100-250v), and optional exterior shroud kits available.
FEATURES
41° Beam / 66° Field Angle
Tungsten to Daylight Control

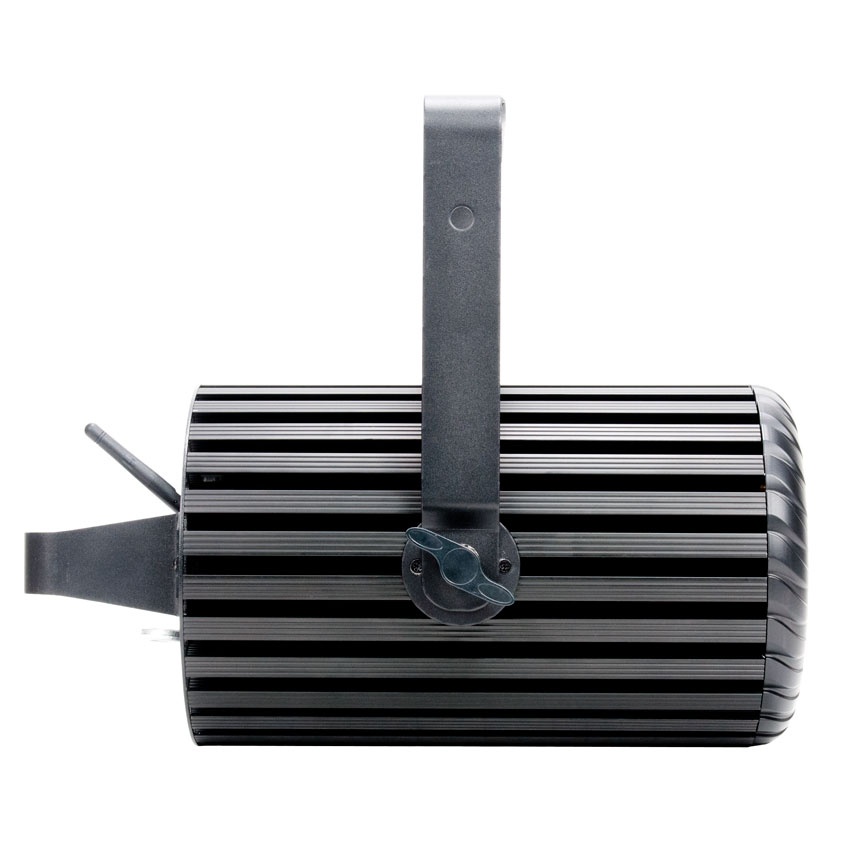

Removable Pendant and Yoke Mounting Brackets
Convection Cooled / Silent Operation
Adjustable Refresh Frequency and Gamma Brightness
Variable Dimming Curves
Flicker-Free Operation for TV and Film
Internal E-Fly™ Wireless DMX Receiver
RDM – Remote Device Management
SOURCE
(36) 3W 2-in-1 Cool White / Warm White LEDs
100,000 Hour Average Life*
PHOTOMETRIC DATA
457 LUX 42 FC @ 9.8’ (3m)
EFFECTS
|
Strobe: | 1-18fps |
|
Dimming: | 0% - 100% |
Variable Dimming Curves
COLOR
Cool White + Warm White
Variable Color Temperatures (2,900K – 6,800K)

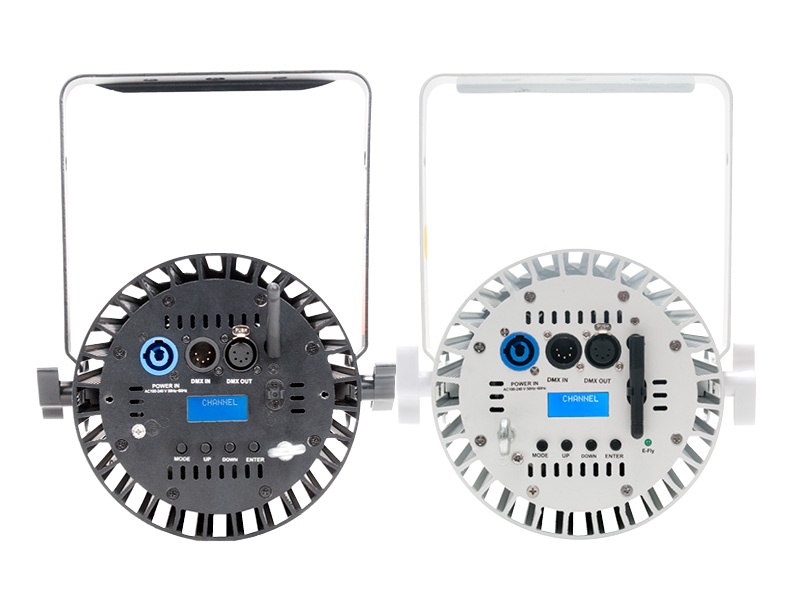

CONTROL / CONNECTIONS
(7) DMX Channel Modes (1 / 2 / 3 / 4 / 5 / 6 / 7)
RDM (Remote Device Management)
Adjustable Refresh Frequency (1200Hz, 2400Hz, 4800Hz, 9600Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Control Panel
LCD Menu Display
5pin DMX In/Out
Internal E-Fly™ Wireless DMX Receiver
powerCON Power In
SIZE / WEIGHT
|
Length: | 14.7” (374mm) |
|
Width: | 9.9” (252.5mm) |
|
Diameter: | 7.2” (183.7mm) |
|
Weight: | 14.0 lbs. (6.4 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

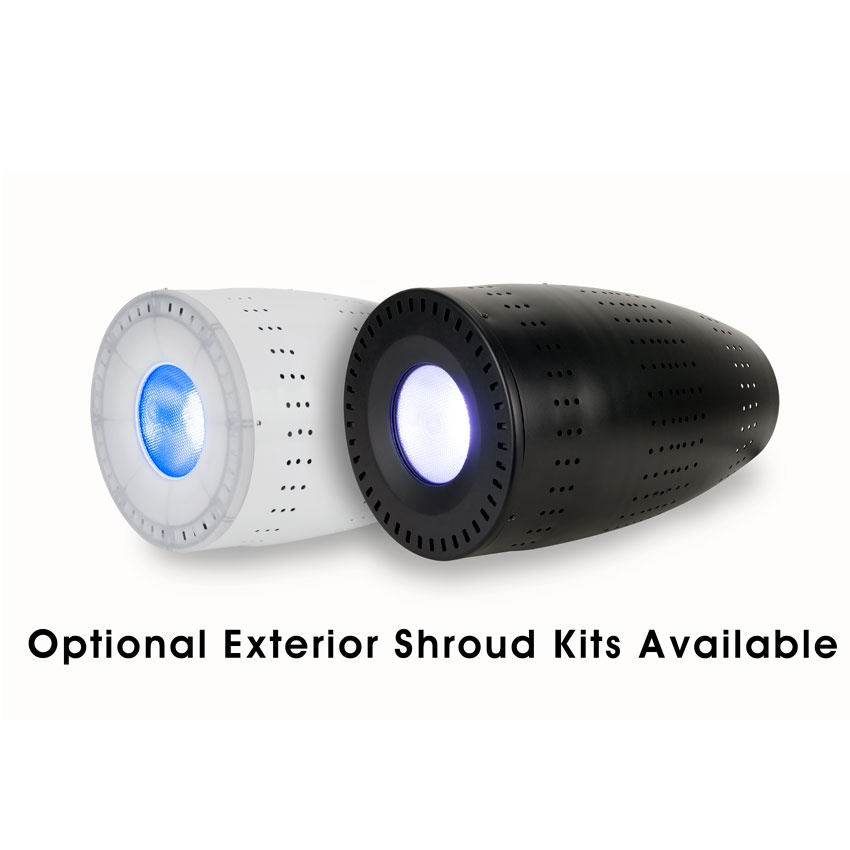

OPTIONAL ACCESSORIES
1236100132 Exterior Shroud Kit WH
1236100133 Exterior Shroud Kit BL
1322000055 E-Fly Wireless DMX Transceiver
1322000060 C-Loader II
|
*LED Life may vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. |
