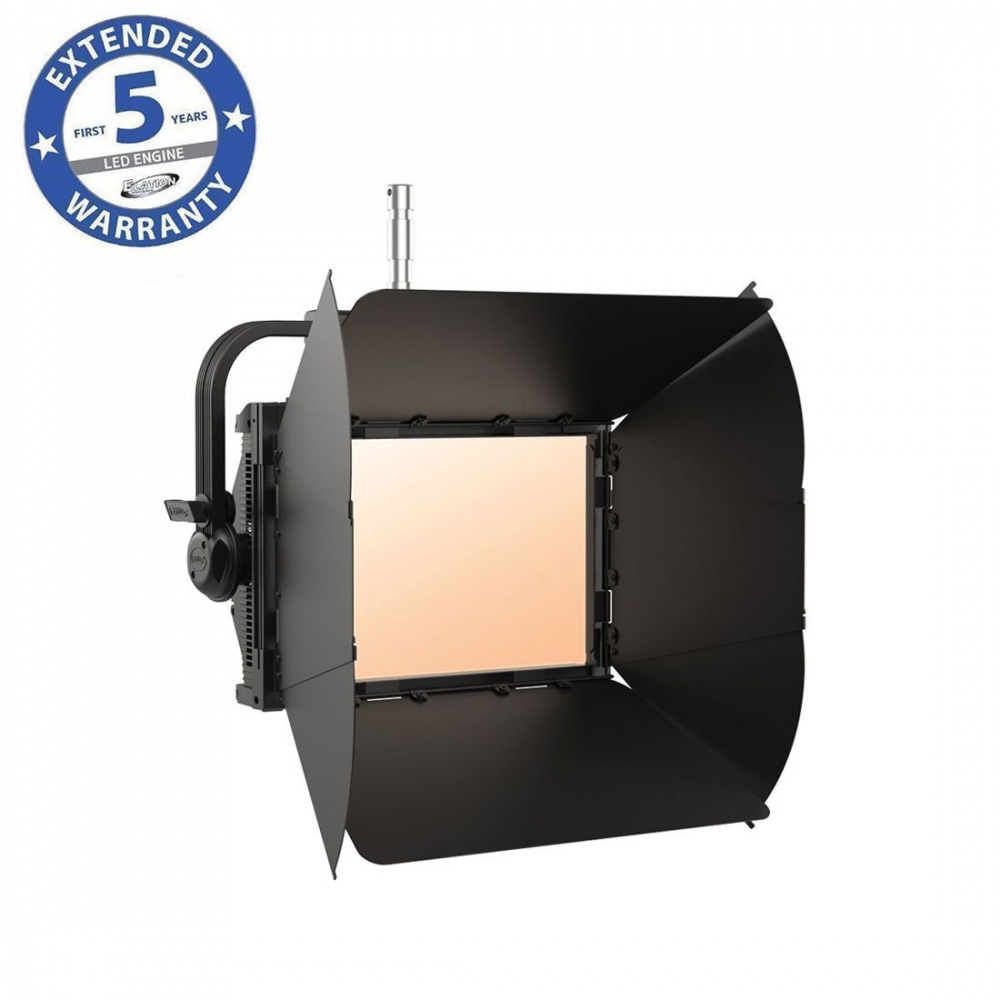

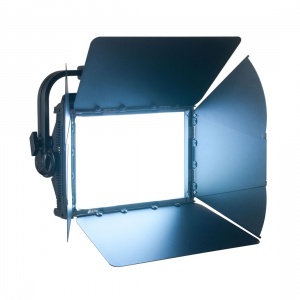

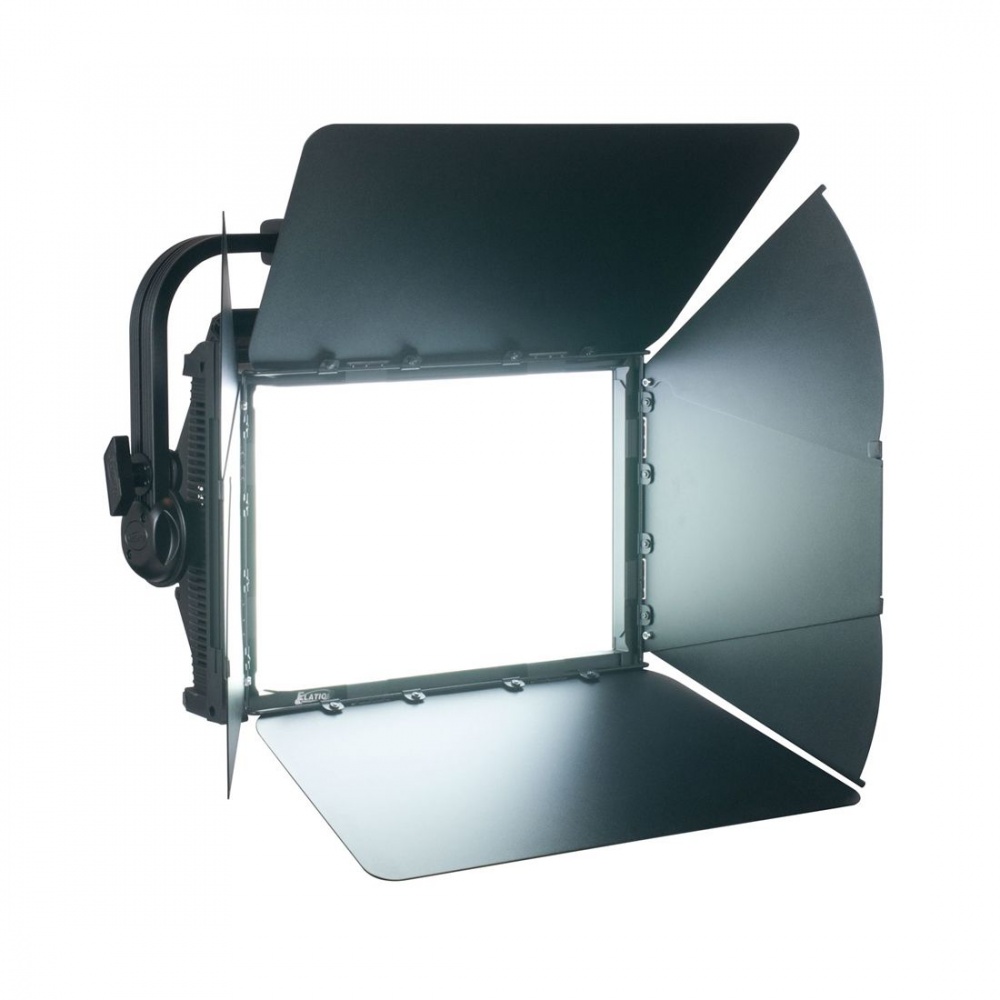

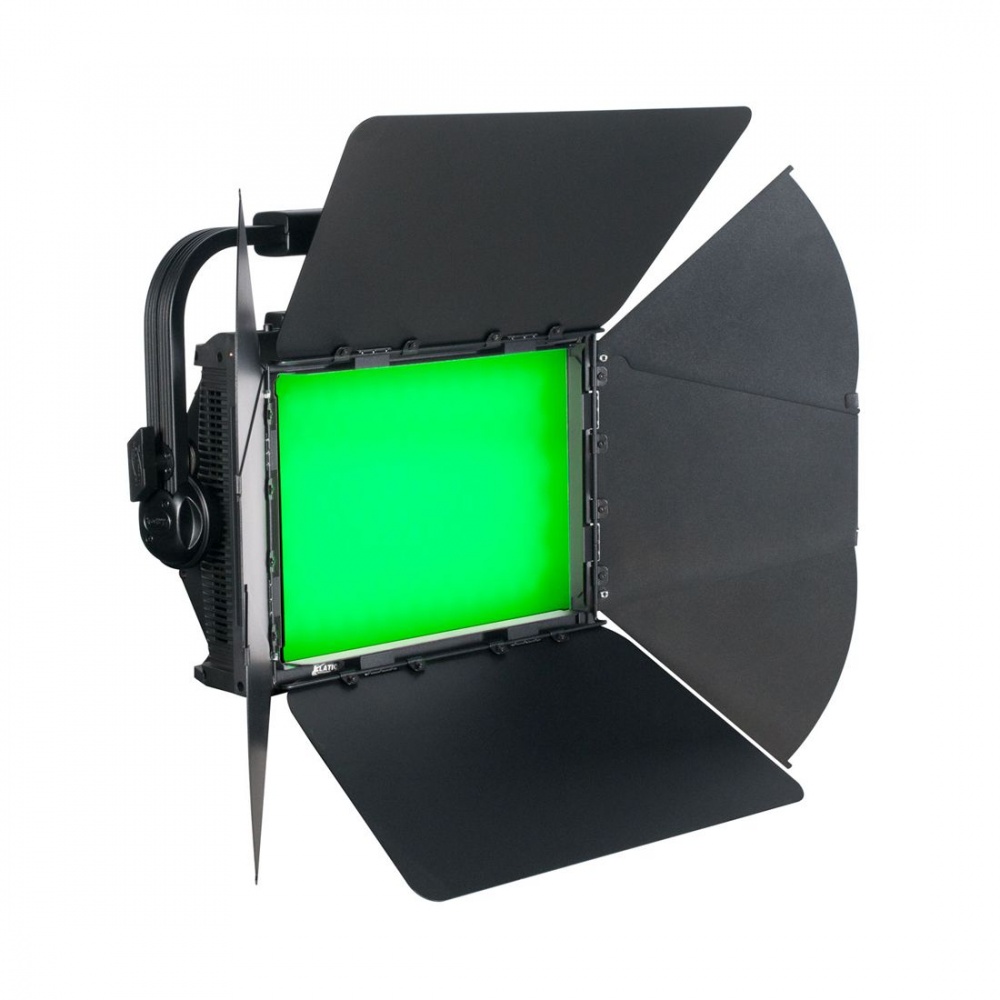

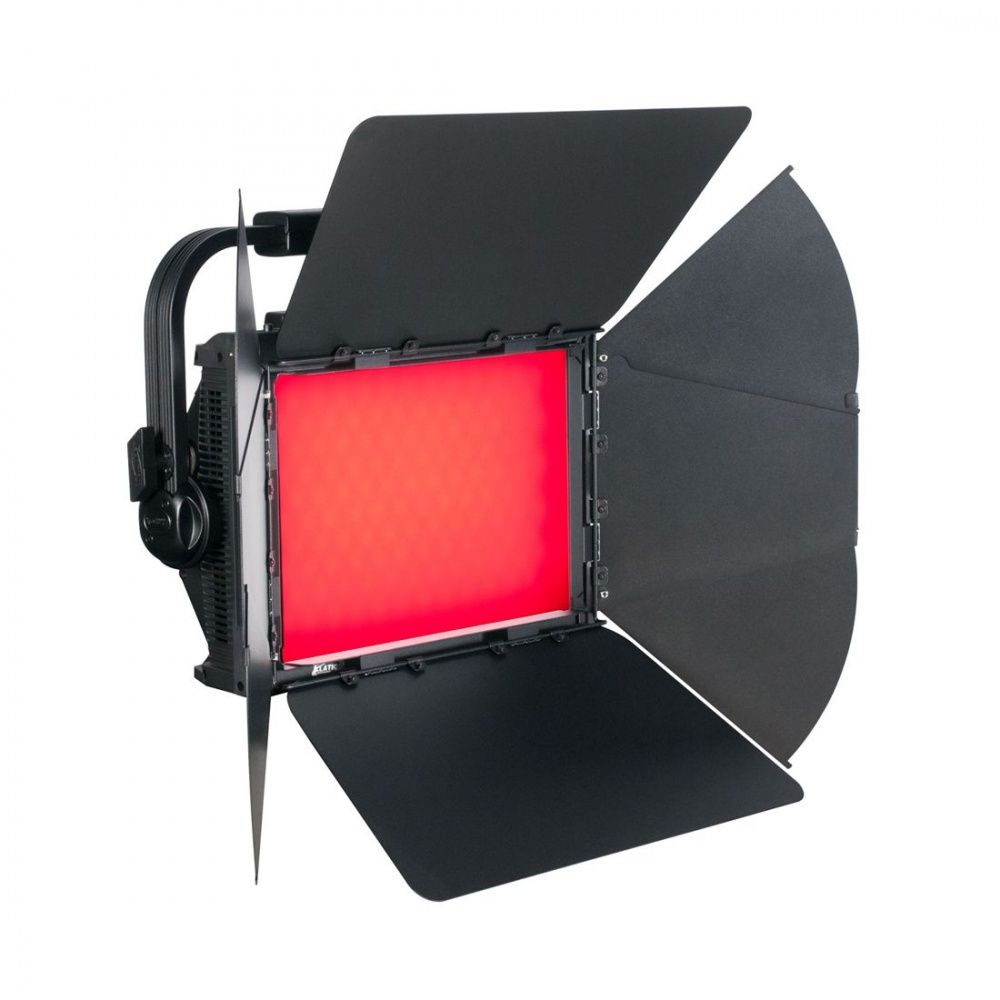

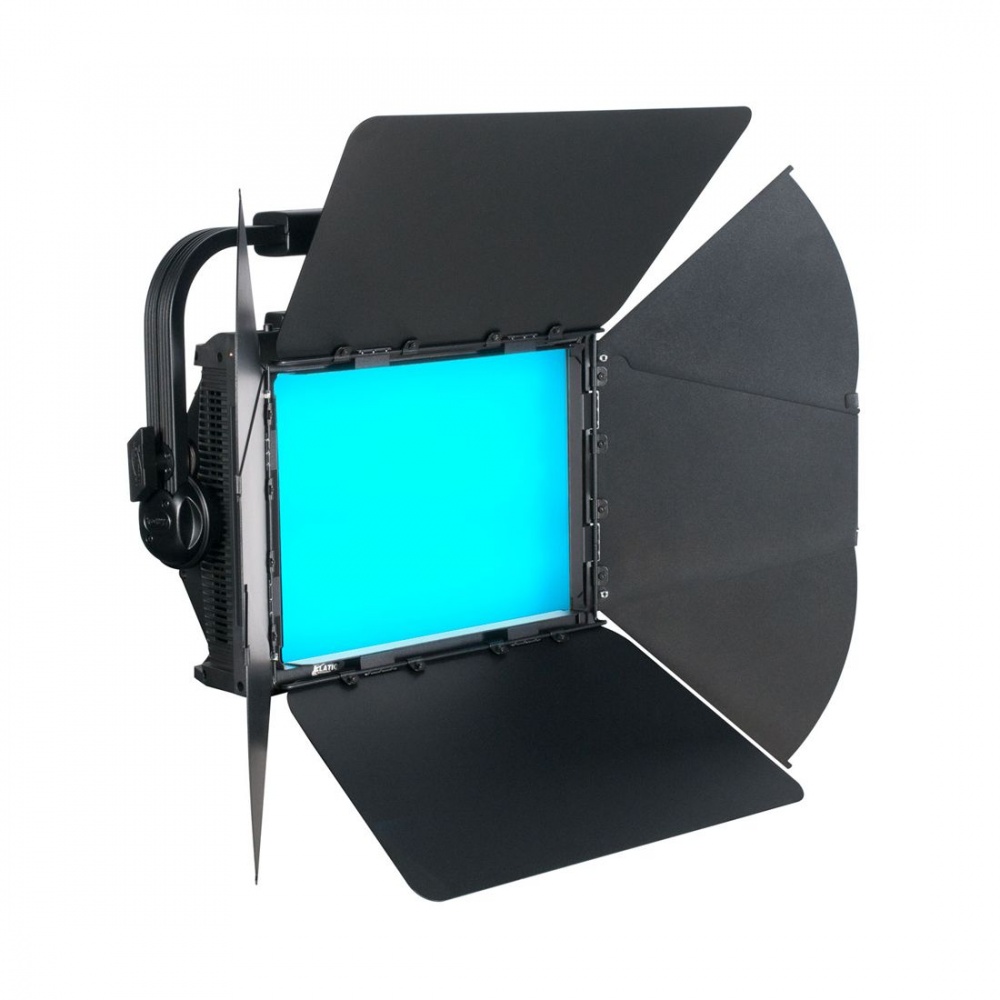

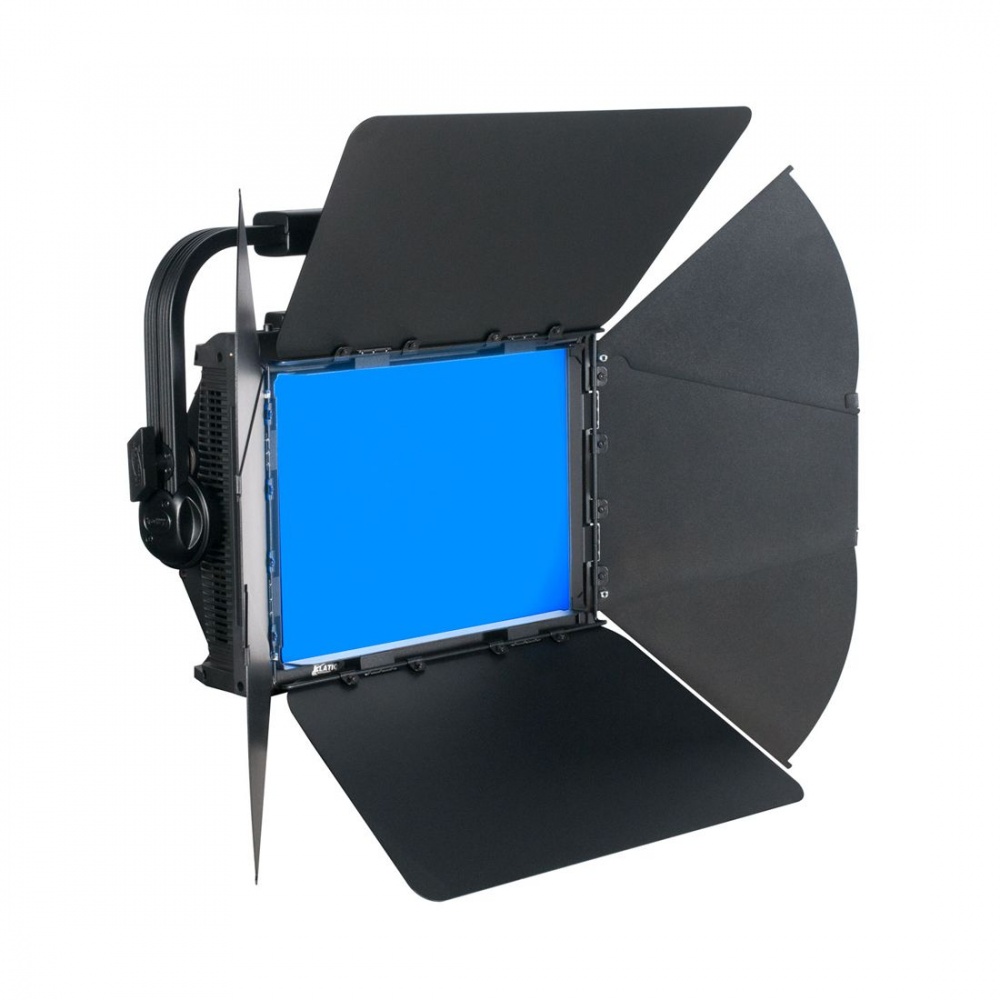

FEATURES295W RGBWLC (Red, Green, Blue, White, Lime, Cyan) LED ArrayCRI 95, CCT Adjustment from 2,000 to 10,000K16,000 Total Lumen Fixture OutputInternal Power Supply with Power Pass-Through24-36 VDC Battery Operation (battery not included)DMX, RDM, Art-NET, and sACN Protocol SupportE-FLY™ Internal Extended Range Wireless DMX TransceiverStand-Alone Control with 3 Encoders and an OLED DisplayBarn Doors, Diffuser, and Junior Pin (1 1/8” - 28mm) Included
SOURCE6-in-1 (Red, Green, Blue, White, Lime, Cyan) LED Array50,000 Hour Average LED Life**Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.PHOTOMETRIC DATA16,000 Total Lumen Fixture Output64° Beam Angle (with diffuser)
EFFECTSVariable CCT 2,000K - 10,000KGreenShift AdjustmentVirtual Gel LibraryVariable 16-bit Dimming Curve Modes High Speed Electronic Shutter and Strobe Remote Adjustable LED Refresh Rate Frequency(900-25kHZ)

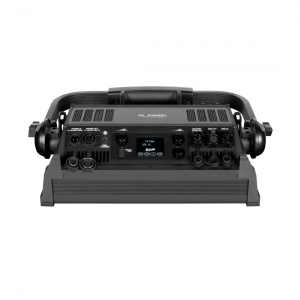

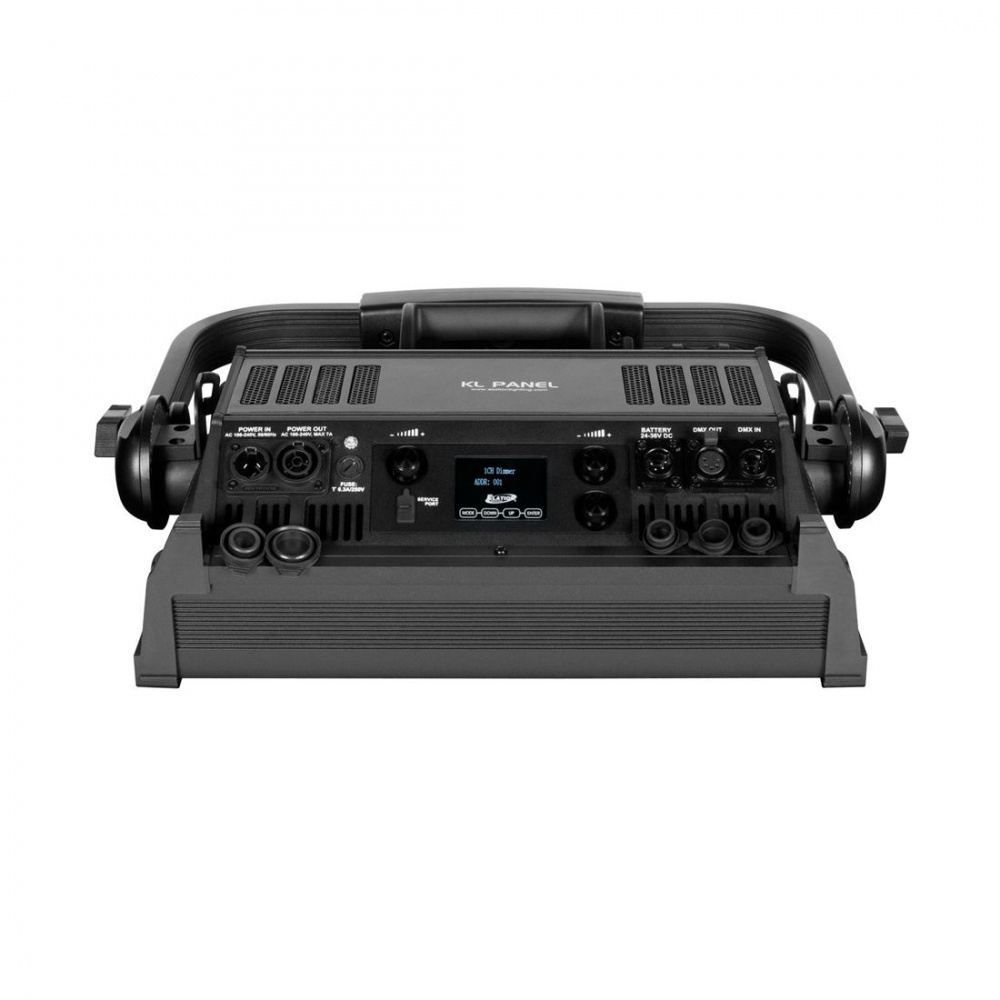

CONTROL / CONNECTIONS9 DMX Channel Modes3x Manual Adjustment Encoders4 Button Control Panel and OLED Menu DisplayDMX, RDM, Art-NET, sACN Protocol SupportE-FLY™ Internal Extended Range Wireless DMX TransceiverLocking 5pin XLR Connector In/OutLocking IP65 Power Connector In/OutUSB Connection (Firmware Updates)4pin XLR External Battery Connection (battery not included)With Wired Digital Communication Network
SIZE / WEIGHTLength: 20.8” (528mm)Width: 5.5” (140.5mm)Height: 16.3” (415.2mm)Weight: 28.6 lbs. (13 kg)
ELECTRICAL / THERMALAC 100-240V - 50/60Hz24-36 VDC (battery operation - battery not included)Max Power Consumption 295W14°F to 113°F (-10°C to 45°C)

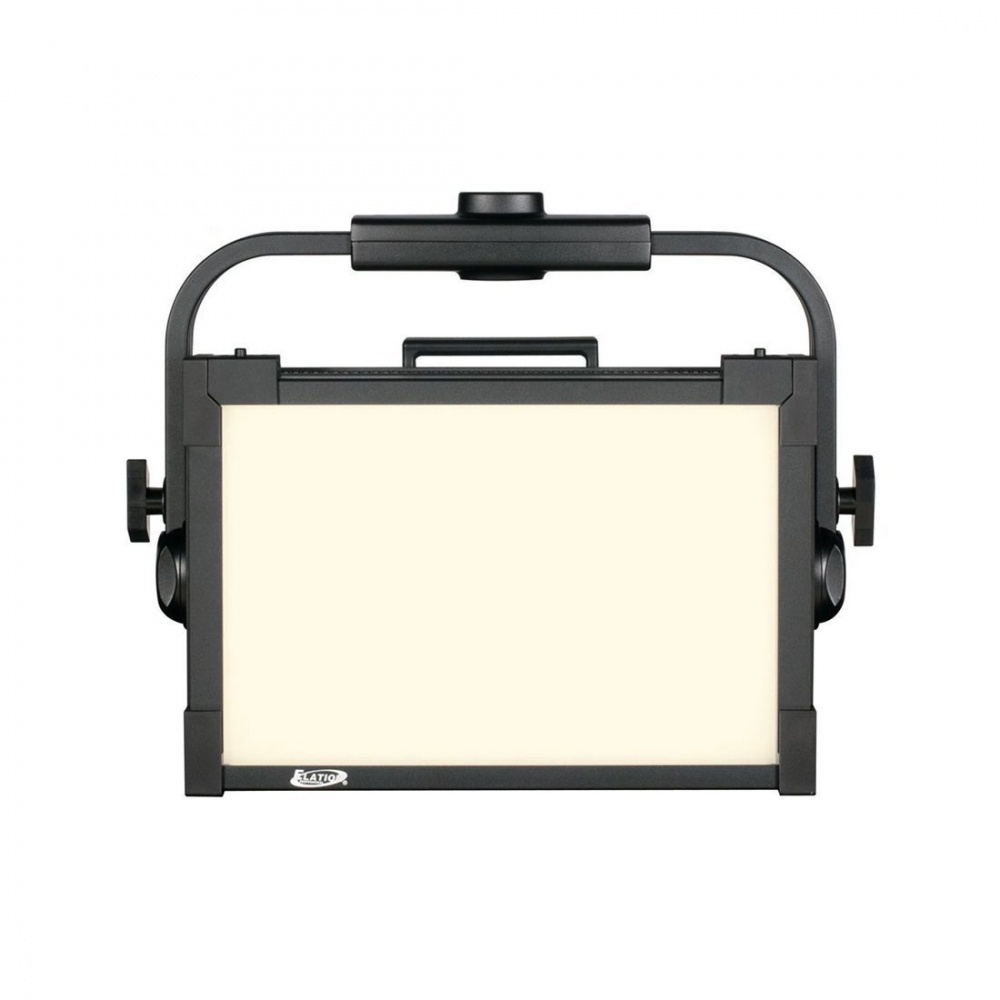

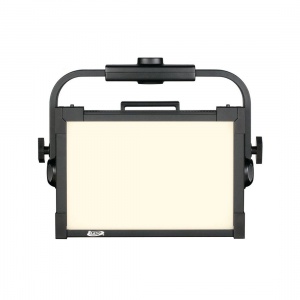

The KL PANEL™ is a full-color-spectrum LED soft light providing high output, precise color rendering and even washes. Optimized for the tunable white light requirements of film and TV, it is an ideal light source for many situations requiring outstanding performance and color quality....
The KL PANEL incorporates a highly efficient 6-in-1 LED package that produces over 16,000 field lumens. Compact and portable, the fixture can be mounted on stands or suspended using the included Junior pin or any regular clamp. It is fully self-contained without the need for external power supplies.
Multiple protocol and control options provide fast and efficient operation in any situation. Direct control, remote DMX or Ethernet connections, as well as Elation’s E-FLY™ wireless system, allow for flexibility of use.VIAC
