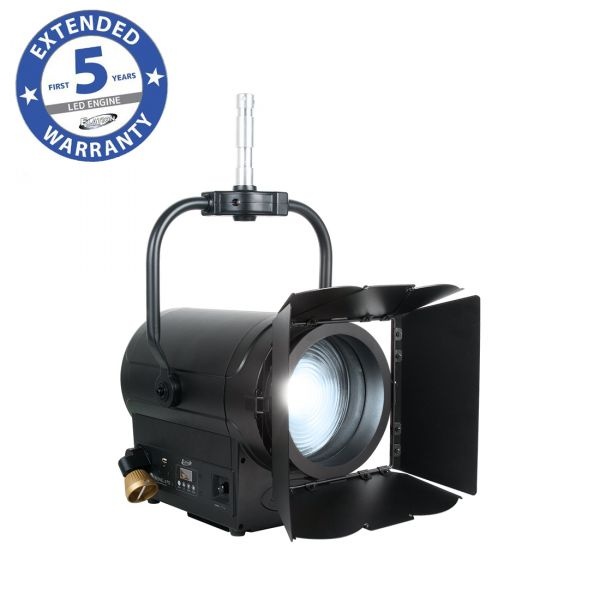

ELATION PROFESSIONAL KL Fresnel 6 CW PO

Séria KL Fresnel CW ™ s výkonom LED S 5 600 K, široký rozsah manuálneho ako aj motorizovaného zoomu pre KL Fresnel 8 CW, tichý režim prevádzky, manuálne a DMX regulované stmievanie, otočný držiak s 8 klapkami ako aj pevne tvarovaný držiak rámiku (v cene), nastaviteľná obnovovacia frekvencia a gama jas, variabilné stmievanie kriviek, DMX, RDM (Remote Device Management), 5pinové vstupy / výstupy DMX a vstupy / výstupy Twist TR1, servisný port USB firmvéru, prevádzka bez blikania pre TV a film, 4 tlačidlá ovládacieho panela a viacúčelový univerzálny automaticky spínaný napájací zdroj (100 - 240 V).

KL Fresnel 6 CW PO
Na objednávku

01801750
CENA:
na dopyt
Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.


*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
 The KL Fresnel PO Series is a line of warm-white or cold-white Fresnel lights with all the benefits of LED. Available in 150W and 350W models, the WW models provide all the warmth of tungsten halogen, a 3,000K fixed color temperature and high color rendering capacity to ideally mimic the warm glow output of traditional tungsten halogen lights while surpassing them in output and efficiency.

The CW models are a line of cold-white LED Fresnel lights with 5,600K Cool White LED engine. All KL Fresnel models house a manual zoom and include barn doors and a filter frame. The PO Series are pole operable units for broadcast studio and theater applications. Pole operation allows for easy pan, tilt and zoom maneuverability while avoiding having to access the fixture by climbing on a ladder.

FEATURES
5,600K Cool White LED Fresnel Luminaire
150W Single Source LED
Pole Operation for Pan and Tilt plus Zoom
Manual and DMX Controlled Dimming
Quick Single Press Light Output for Focusing
15° - 38° Manual Zoom
Including 8-Leaf Barn Doors and Gel Frame Holder
Adjustable Refresh Frequency
Silent Operation
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film

SOURCE
150W Cool White LED Engine
8,500 Total Output Lumens, 5,600K, 97CRI
50,000 Hour Average LED Life*

PHOTOMETRIC DATA
7,924 LUX 736 FC @ 9.8’ (3m) (Min. Zoom)
1,961 LUX 182 FC @ 9.8’ (3m) (Max. Zoom)

EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays

COLOR
5,600K Cool White LED

CONTROL / CONNECTIONS
4 DMX Channels Modes (1 / 2 / 3 / 4)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
8 / 16 Bit Dimming Control
4 Button and 1 Dial Control Panel
Manual and DMX Controlled Dimming
180° Reversible LCD Menu Display
USB Firmware Service Port
Locking 3/5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out

SIZE / WEIGHT
Length: 13.5” (344mm)
Width: 10.8” (273mm)
Vertical Height: 15.5” (393mm)
Weight: 18.5 lbs. (8.4 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
170W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

INCLUDED ITEMS
Rotating Bar
n Doors
Gel Frame Holder
Locking IP65 Power Connector to CEE 7/7 Cable

OPTIONAL ACCESSORIES
1322000060 C-Loader II

SPECIAL WARRANTY
Extended 5 Years LED Engine
Extended 3 Years Fixture Components on Registered Indoor Fixed Installation Projects
