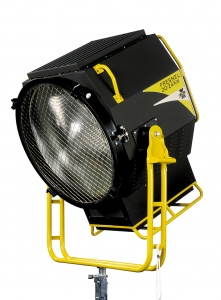

The SuperLeo 20.000W is a Fresnel lens spotlight properly designed for use in those situations where it is required to locate the luminaire far from the scene; its high quality performances in terms of photometric characteristics make this luminaire essential for the TV and Film Industry. The built-in dimmer, with a local/remote control selector, permits lamp ignition avoiding surge current shocks. A highly efficient air convection cooling system includes a wide top ventilation grid, for air flow/heat dissipation, featuring an internal baffle to either prevent direct water leaking on the lamp or avoid light spilling; double walls grant low temperature value on the external surfaces. A bottom sledge, a tubolar rear grab handle and a single tilt locking the locking knob ensure easy handling and orientation of the luminaire.
PHISICAL
• octagonal-shaped lightweight stainless steel construction
• double wall & internal baffles for efficient ventilation
• coated with a high temperature heatresistant powder coat black epoxy paint finish
• supplied with a stainless steel wireguard
• hinged lens door with wire guard for easy re-lamping including accessory clips which can be positioned to suit various applications
• top locking safety bracket for barndoor & colorframe
• capable of being disassembled with a screwdriver for easy replacement of parts & maintenance
• reinforced steel tube yoke with 1” male spigot attached for C-clamp
• clutch activated T-handle for secure, single hand operation
• UL Listed
ELECTRICAL
• 115-240V, 50/60Hz
• 12/3 SO type cable
• six foot (6’) standard detachable power cable
• built-in 125 amp on/off toggle switch
LAMP
• 24000w Maximum
• capable of interchanging a 20,000w or 24,000w lamp
• G38 bi-post locking lever socket for long life tungsten halogen lamps (see table for suitable lamps)
OPTICAL/FOCUS MECHANISM
• 24-1/2” (625m) shock resistant borosilicate glass fresnel lens
• special bi-metallic clad aluminum reflector for high degree of reflectivity and thermal resistance for long life
• focusable from both the front and the rear cable driven focus mechanism guides Teflon bushings along a brass guide rail that is chrome plated to ensure smooth operation
• teflon bushings provide a wiping action which cleans the chrome plated brass guide rail during focusing
