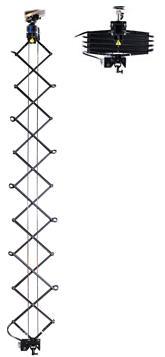

The SPIDER JUNIOR Pole Operated is a special version of a Pantograph, featuring a unique scissor arm assembly with a patented stabilizing system, in order to provide a steady support for the lighting fixtures and allowing also the assembling of an horizontal pipe or rail at bottom to hang more than one instrument.
The following are the common features for the different sizes of SPIDER JUNIOR offered as standard.
– 40 kg. NET lifting capacity (S.W.L.)
– Self sustaining gear box
– 2 independent stainless steel metal belt with compensator device
– Mechanical top and bottom limits
– Aluminum extruded scissor arms joined by screw, self locking nuts and brass spacing for accurate control of pivot
– Top & Bottom patented stabilizing geared device to reduce lateral sway and permit off centered loading of the scissor arms
– Extremely compact closed dimensions
– NET extension up to 5 m. for 7 m. max supports height
– Special long drop versions available on request
– Possibility to install a rail or pipe at the bottom to hang more than one fixture
– Activation with manual or motorized lighting pole (constant resisting torque)
– Electrical configuration of bottom box on request
– Choice of bottom B.S. or DIN sockets & D Rail or 48 mm. diameter pipe
– Max. 1,2 m long
