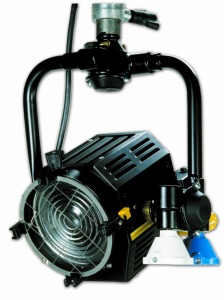

The De Sisti family of Quartz-Halogen Studio Fresnels are rugged, compact and light weight. The De Sisti Leonardo Line begins with the versatile Magis Fresnel which houses a 300, 500 or 650 watt bi postal lamp and can be purchased individually with manual or pole operated yokes, or in a portable lighting kit.
Particularly suitable where efficiency, compactness, ruggedness and lightness are required either for studio or outdoor performances. The Magis series bring to the user, further to durability and ease of maintenance, the benefit of full stainless steel casing. The Magis 300 – 500 – 650 W mantain the performances of a smooth spot and flood focusing, either in MO version or PO version.
• Compact, highly efficient Fresnel lens spotlight using tungsten-quartz-halogen filament lamps having GY 9,5 socket, L.C.L. of 46,5 mm. and max. 650 kW power
120 mm. diameter high quality, shock resistant Borosilicate glass Fresnel lens on spring supports
• Rugged and Lightweight STAINLESS STEEL housing with low glare black epoxy powder coating, with internal double walls and reinforces
• High efficiency convection cooling
• GY 9,5 bi-post socket for tungsten halogen lamps
• Special bimetallic clad aluminum reflector for high degree of reflectivity and thermal resistance for long life
• Brass Helix Screw on TEFLON socket driven focus mechanism which guides Teflon bushings supported lamp carriage along 2 stainless steel rails. This ensures smooth operation, and restricts bouncing or chattering of the lamp carriage during focusing, in any tilting position of the fixture, avoiding lamp failures during operation. The Teflon bushings also provide a wiping action, which cleans the stainless steel guide rails during focus. The focusing mechanism can be activated from the rear of the fixture and the whole spot to flood action is accomplished with 1 and half turn of the focusing knob
• The unit is equipped with a hinged lens door with wire-guard for easy access to the lamp, it includes 4 accessory holding brackets. One of the 4 brackets has a locking knob and is spring loaded, it can be locked to either safely hold barndoor, color frame and scrims or to be rotated 90° and locked in an open position for fast accessories changes
•
The accessories are secure regardless of the orientation of the fixture. Accessories have been designed for one hand installation
• Available with either positive lock manual yokes for comfort and ease of handling, or pole operated yokes which can be used via the lighting pole for Panning and Tilting the lights as well as manually, since the mechanical activators are equipped with clutches
