FEATURES
IP65 Rated Dust and Water Protection
Wash Panel Luminaire
15W RGBW LEDs
Pixel Zone Controlled LEDs
14° Beam and 25° Field Angle

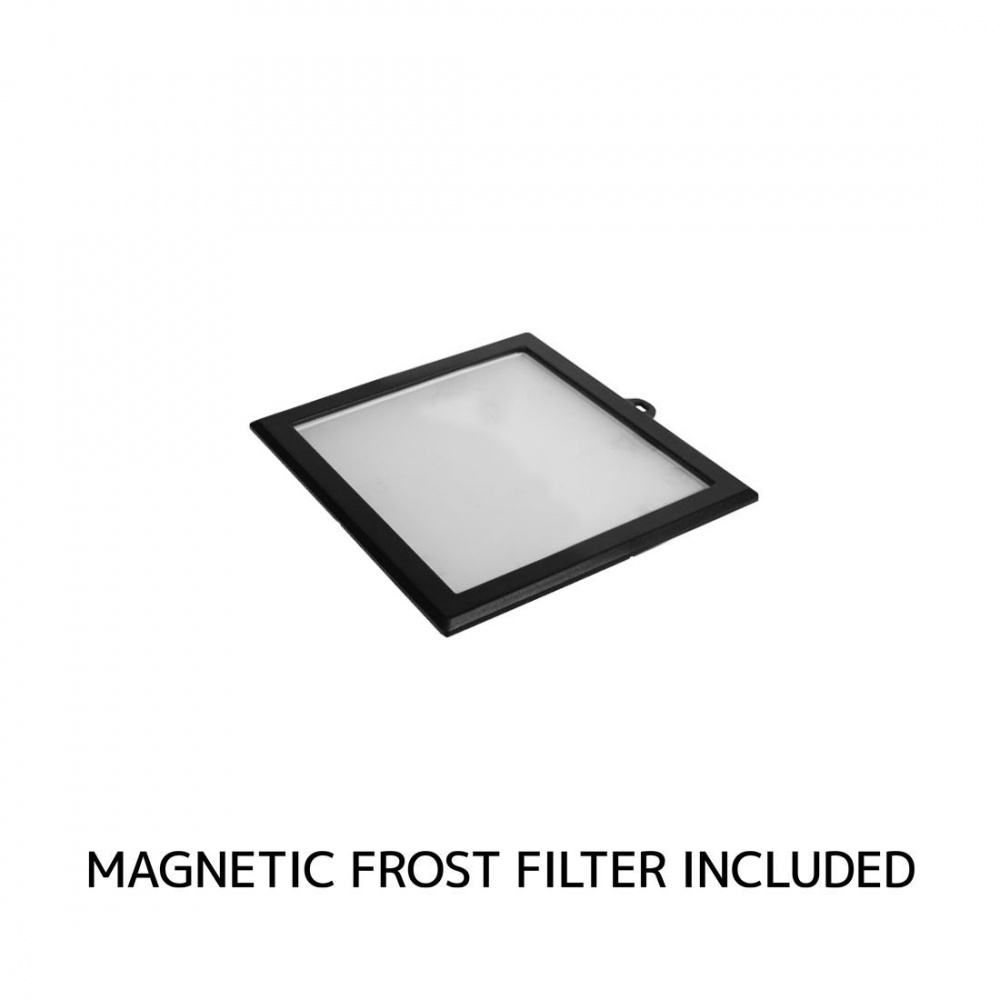

Included Magnetic Frost Filter 26° Beam and 52° Field Angle

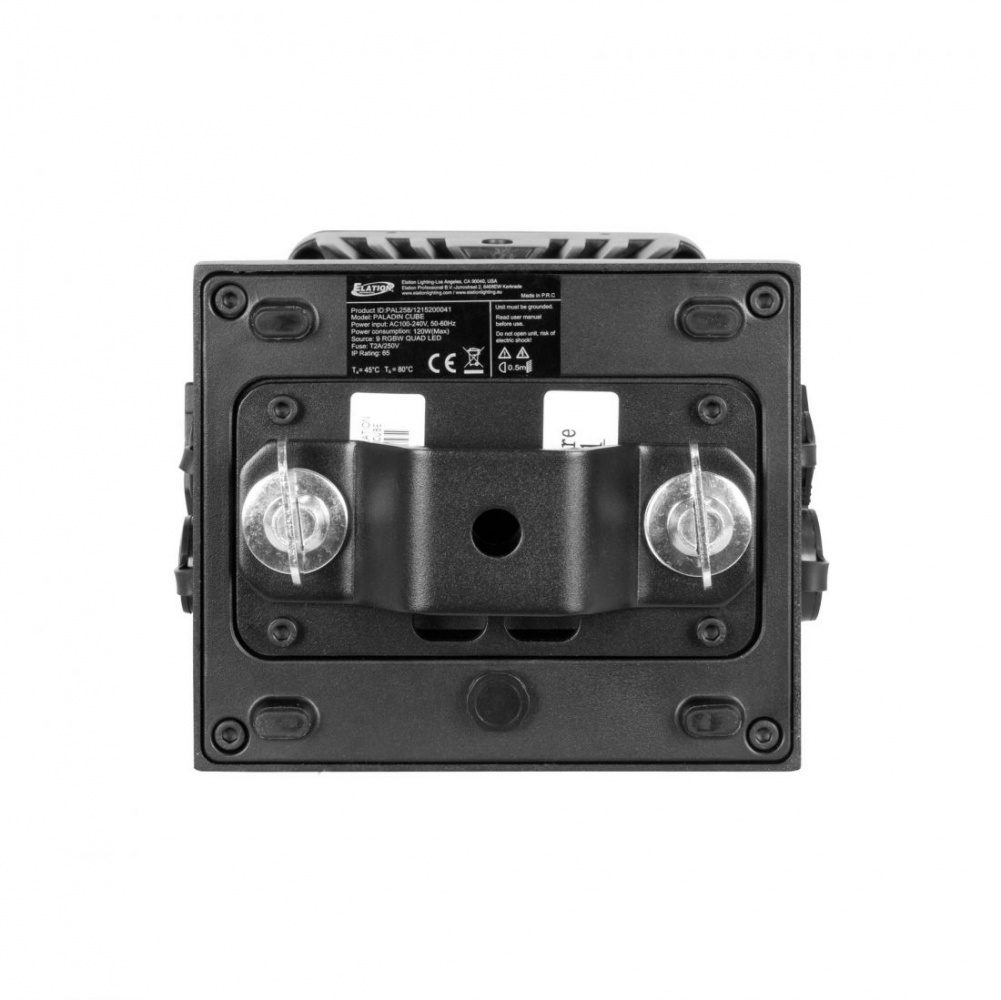

Integrated Quick Locks
Adjustable Refresh Frequency
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
Internal E-FLY™ Wireless DMX Receiver
SOURCE
9x 15W RGBW Multi-Chip LEDs
3,200 Total Output Lumens
50,000 Hour Average LED Life*
COLOUR
RGBW
EFFECTS
Pixel Zone Control
64 Color Presets and 15 Unique Color Macros
Electronic Strobe
16-Bit Dimming and Variable Dimming Curve Modes
PHOTOMETRIC DATA
3.106 LUX 289 FC @ 9.8’ (3m)
CONTROL / CONNECTIONS
11 DMX Channel Modes (3 - 32)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
8 / 16 Bit Dimming Control
4 Button Control Panel

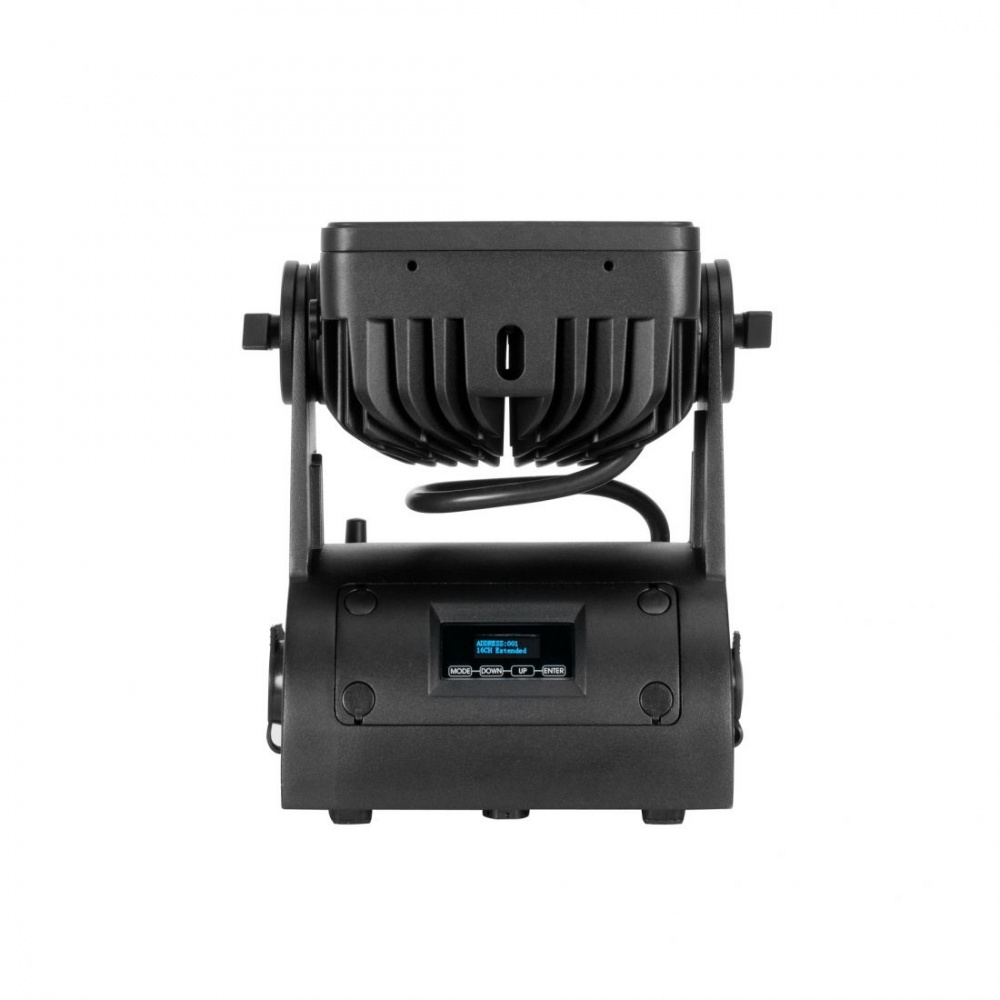

180° Reversible OLED Menu Display
Internal E-FLY™ Wireless DMX Receiver

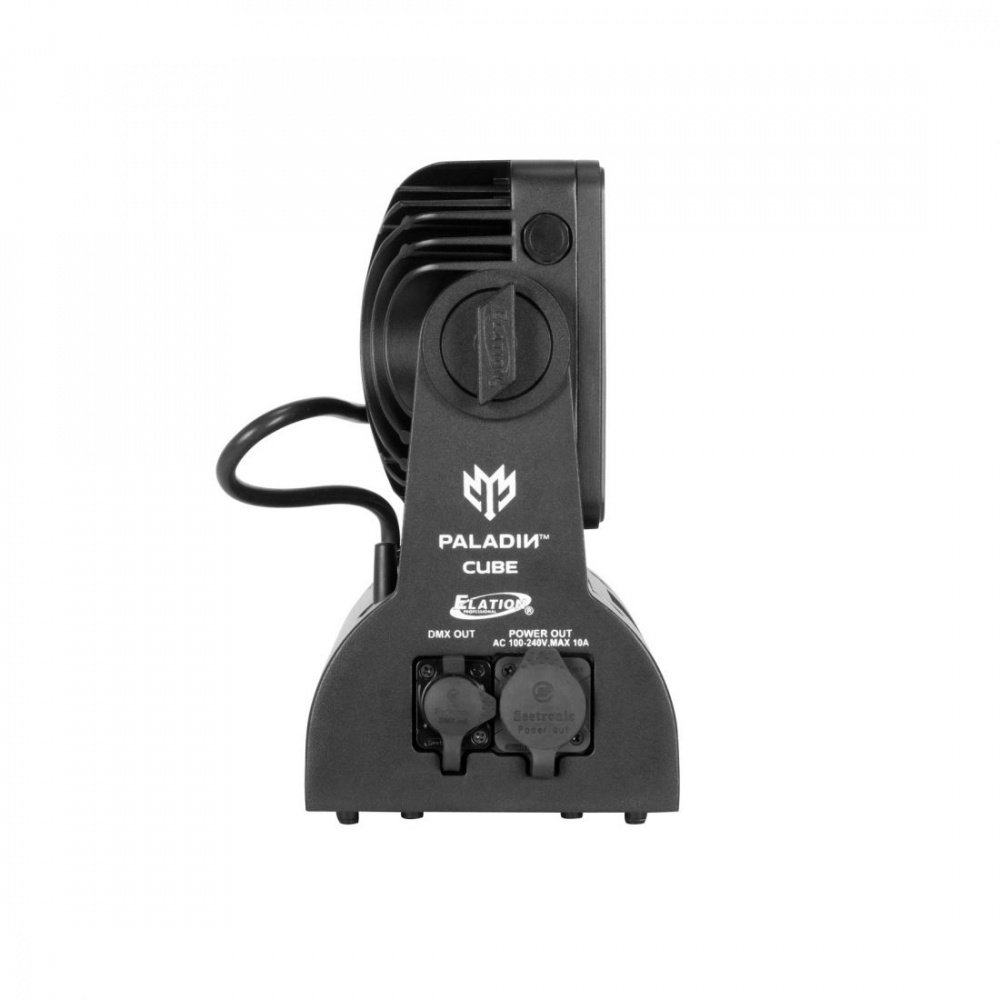

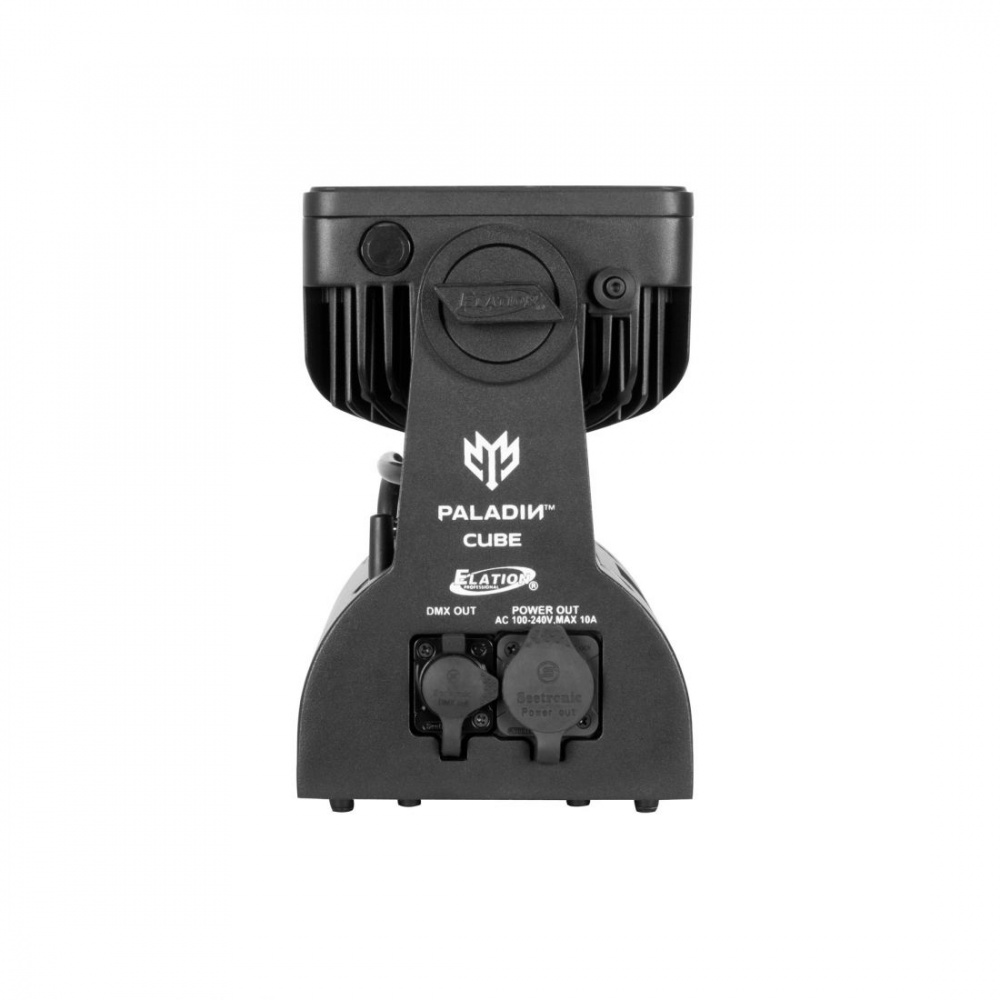

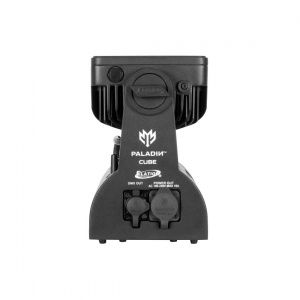

IP65 Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
SIZE / WEIGHT
Length: 7.8” (199mm)
Width: 5.4” (139mm)
Vertical Height: 7.8” (248mm)
Weight: 10.5 lbs. (4.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
120W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Magnetic 20° Filter
IP65 Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1223200056 Barndoor for Paladin Cube

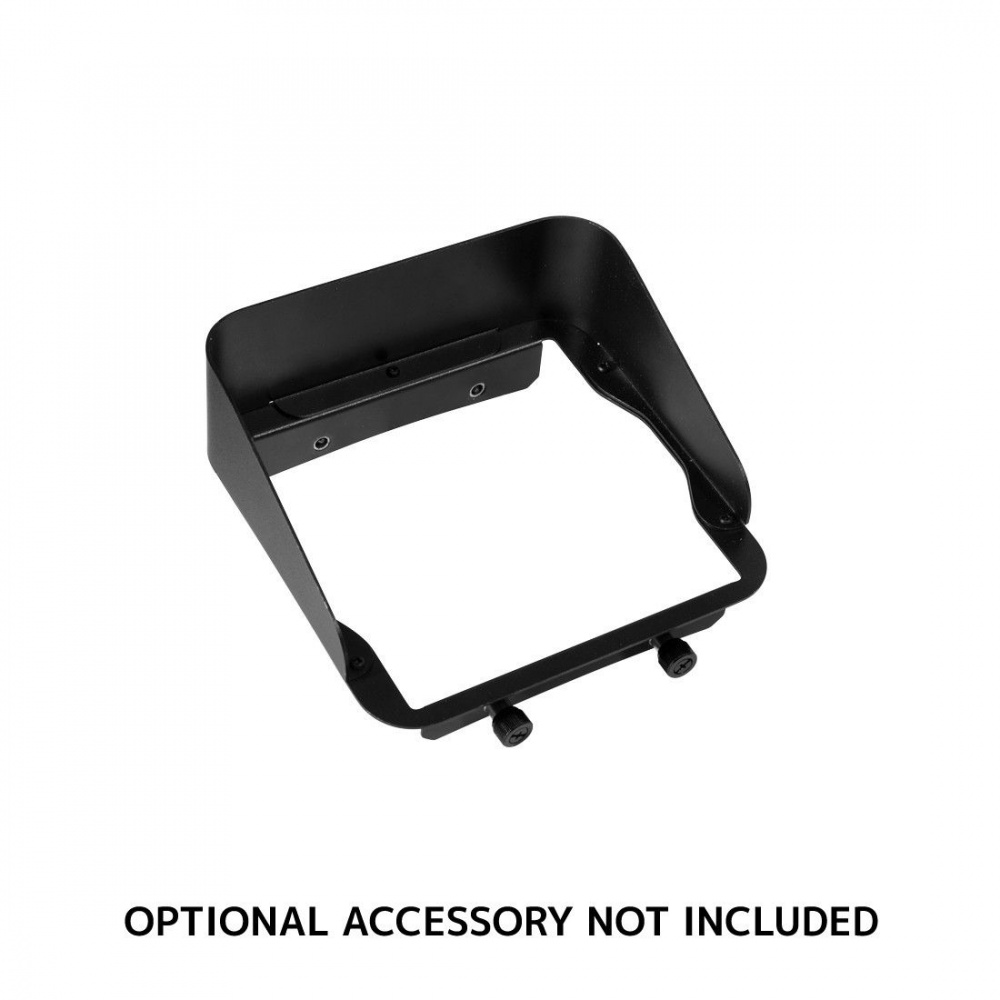

1223200059 Shader for Paladin Cube
1223200074 Paladin Cube Filter 20°
1223200075 Paladin Cube Filter 60°
1223200076 Paladin Cube Filter 100°
1223200077 Paladin Cube Filter 60x10°
1223200078 Paladin Cube Filter 40x1°
1322000061 IP Tester
1322000055 E-Fly Transceiver
1322000060 C-Loader II
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

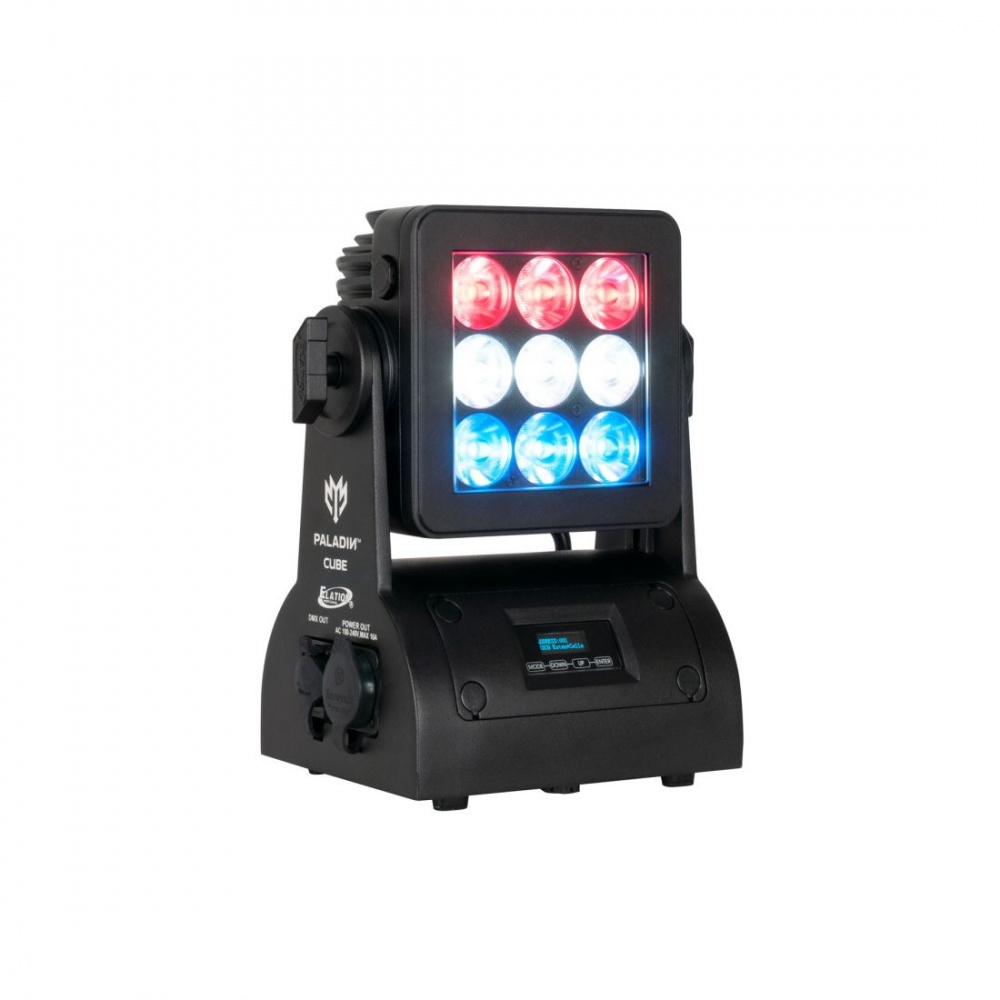

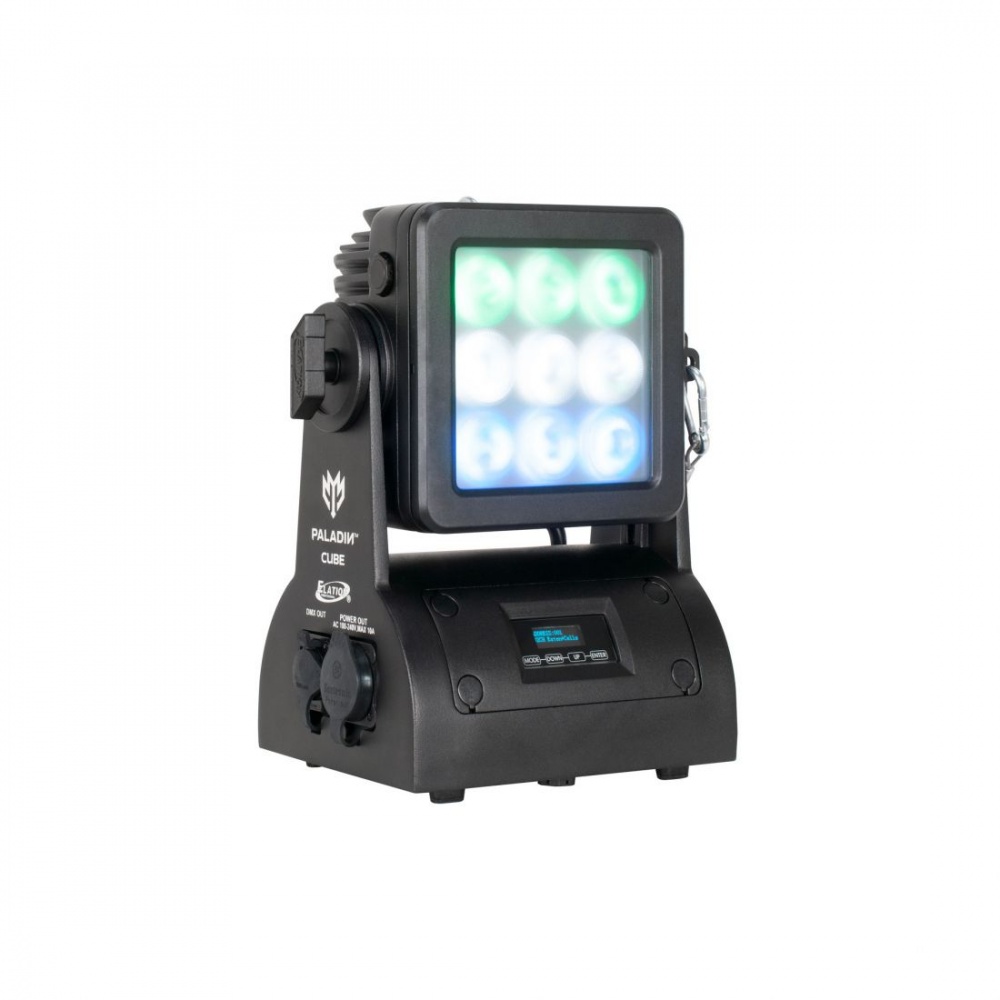

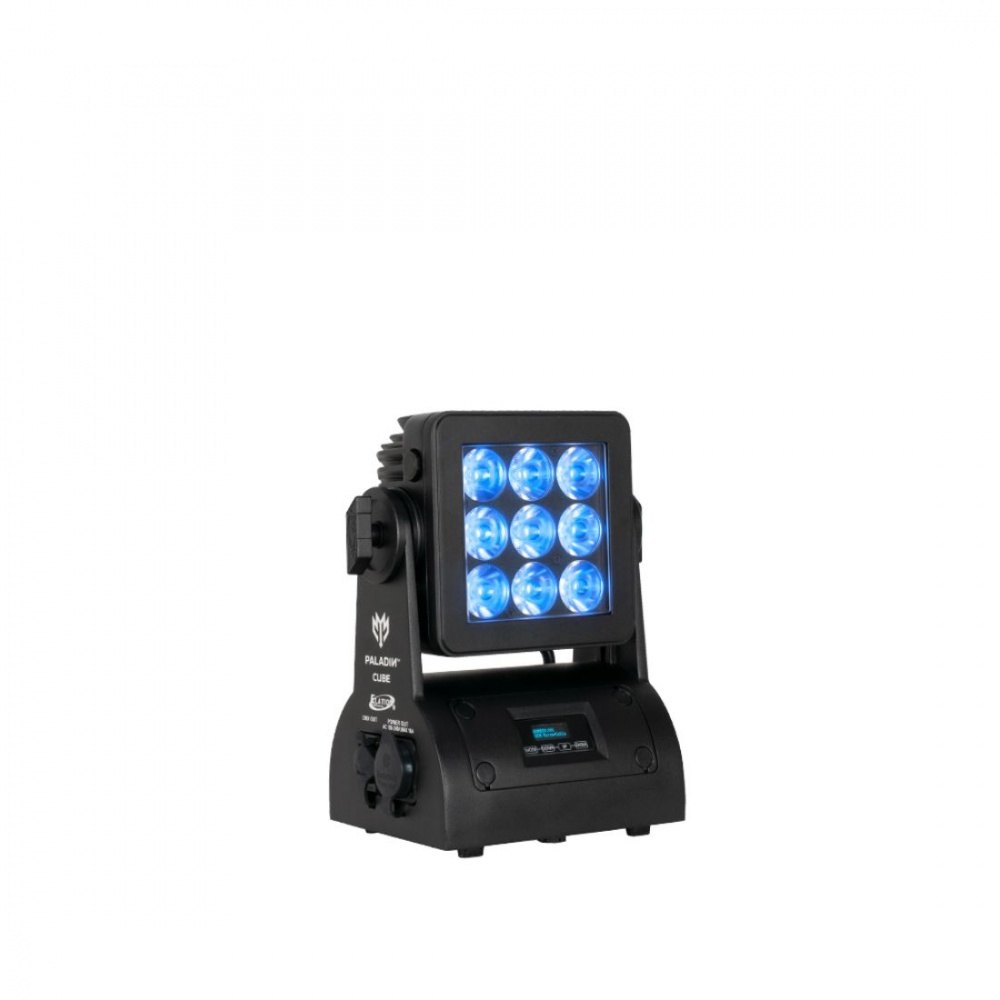

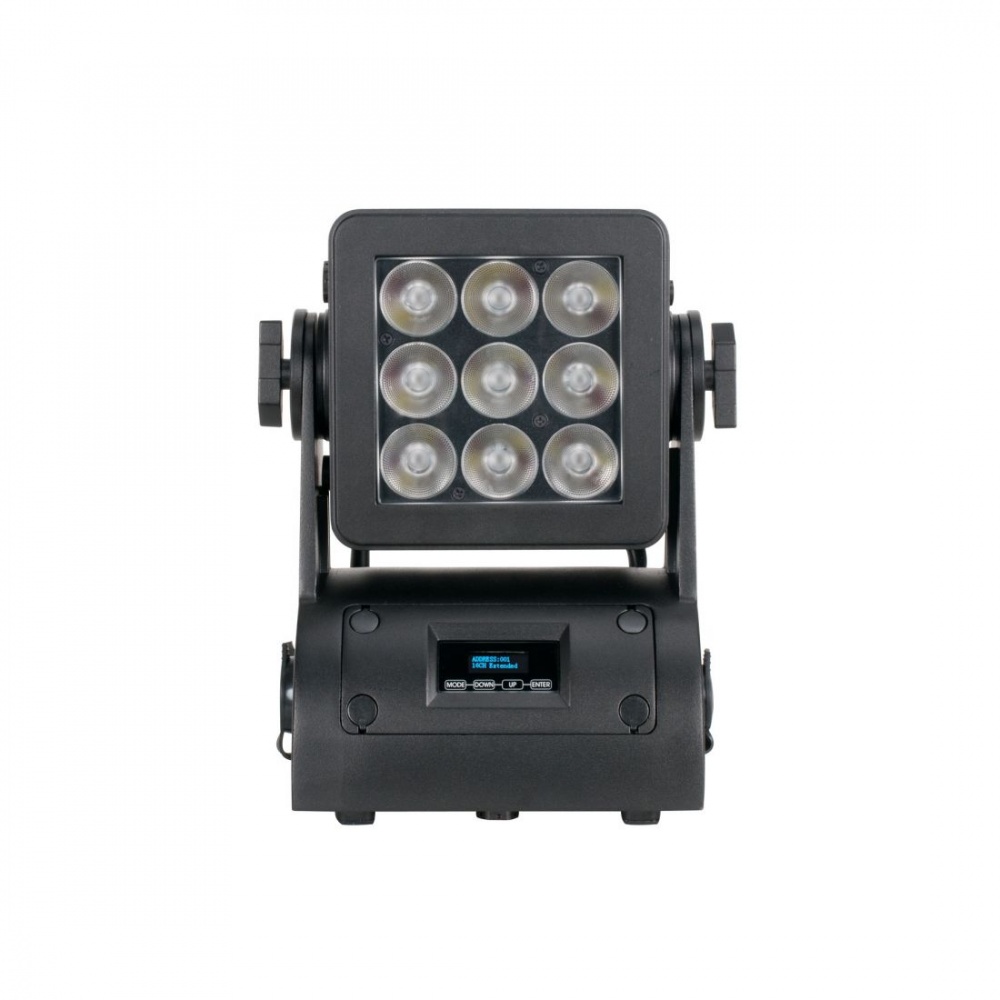

The Pal...adin Cube™ is a powerful LED wash and effect panel with all-weather IP65 protection that fulfills the need for more IP-rated wash/blinder/effect options. Lighting fixtures mounted on a downstage truss are especially exposed to the elements. Now designers can add high-impact color or white light, eye candy or pixel-mapped effects to productions of all types without the worry of weather and cost and inconvenience of protective coverings. The sleekly-designed fixtures use 15W RGBW LEDs and are available in three versions. Individually controllable zones and pixel flip modes add to their creative potential.VIAC
