FEATURES
IP65 Rated Dust and Water Protection

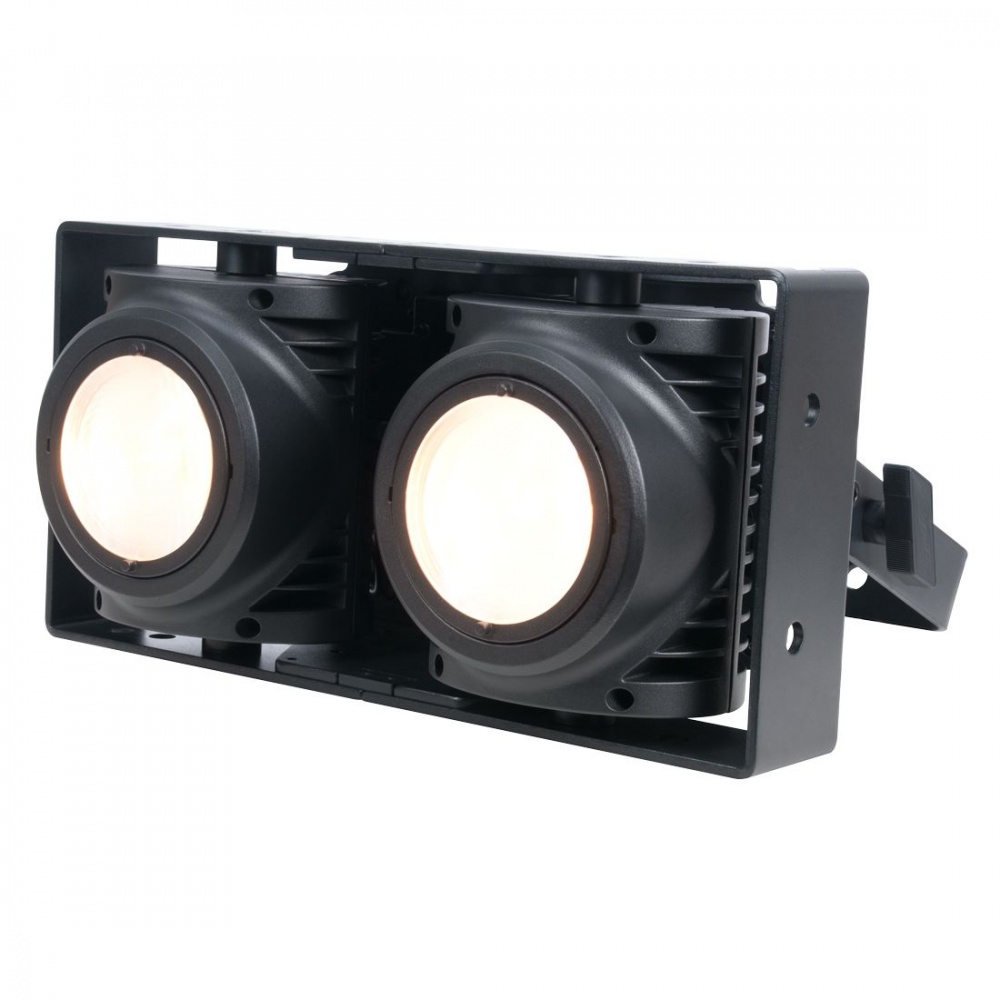

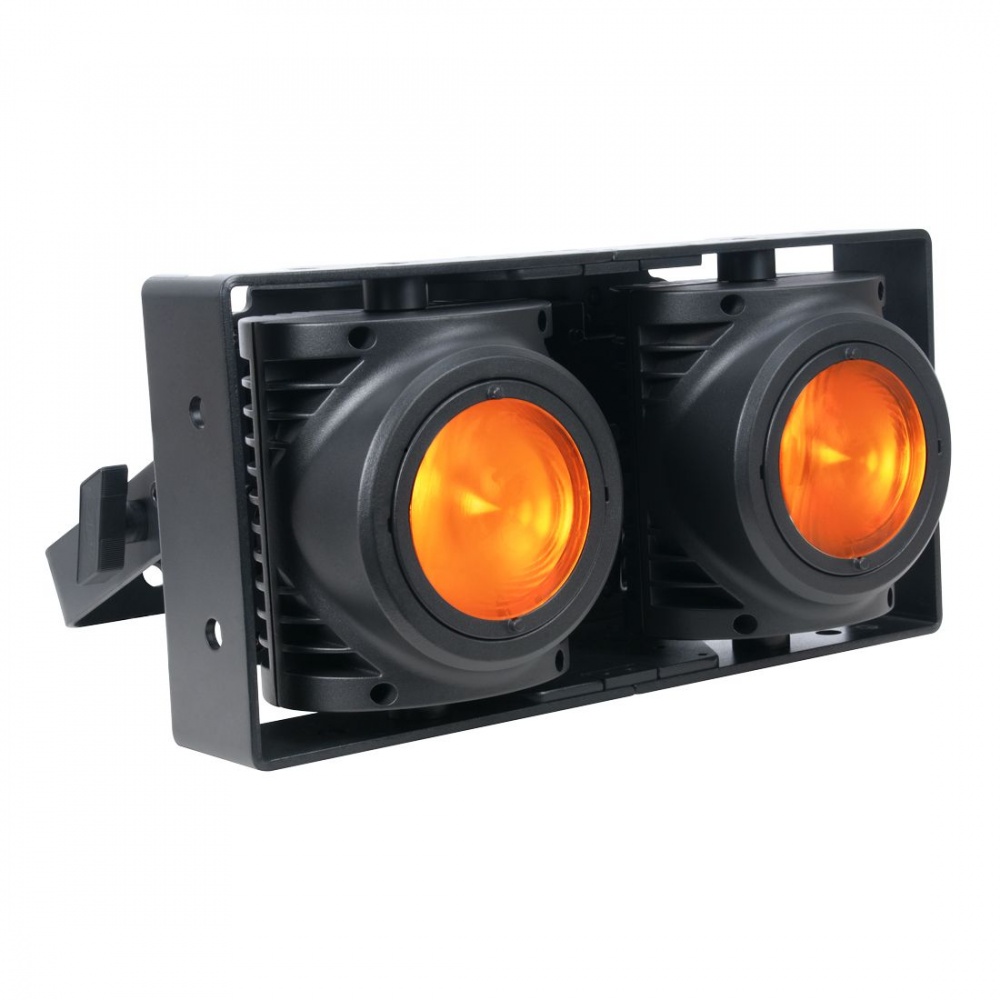

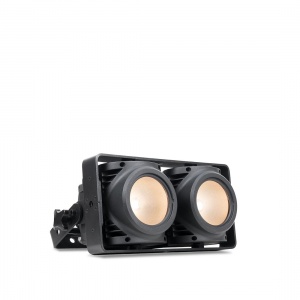

High Power LED Blinder Luminaire
Dim to Warm Technology
Manual Pan Focus
Pixel Controlled LEDs
65° Beam Angle
Included 15° Narrow Beam Lens
Quick Lock Mounts for Omega Bracket
No Fans, Silent Operation
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
2x 175W WW+A Multi-Chip COB LEDs
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
4,216 LUX 392 FC @ 9.8’ (3m) (With Narrow Beam Lens)
593 LUX 51 FC @ 9.8’ (3m) (Without Narrow Beam Lens)
EFFECTS
Dim-to-Warm Channel (3,200K @ 100% - 1,800K @ 1%)
Manual Pan Focus
Included 15° Narrow Beam Lens
Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
Warm White + Amber Multi-Chip LEDs
Color Temperature Control (1,800K – 3,200K)
Dim To Warm Option
CONTROL / CONNECTIONS
9 DMX Channel Modes (1 - 9)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control

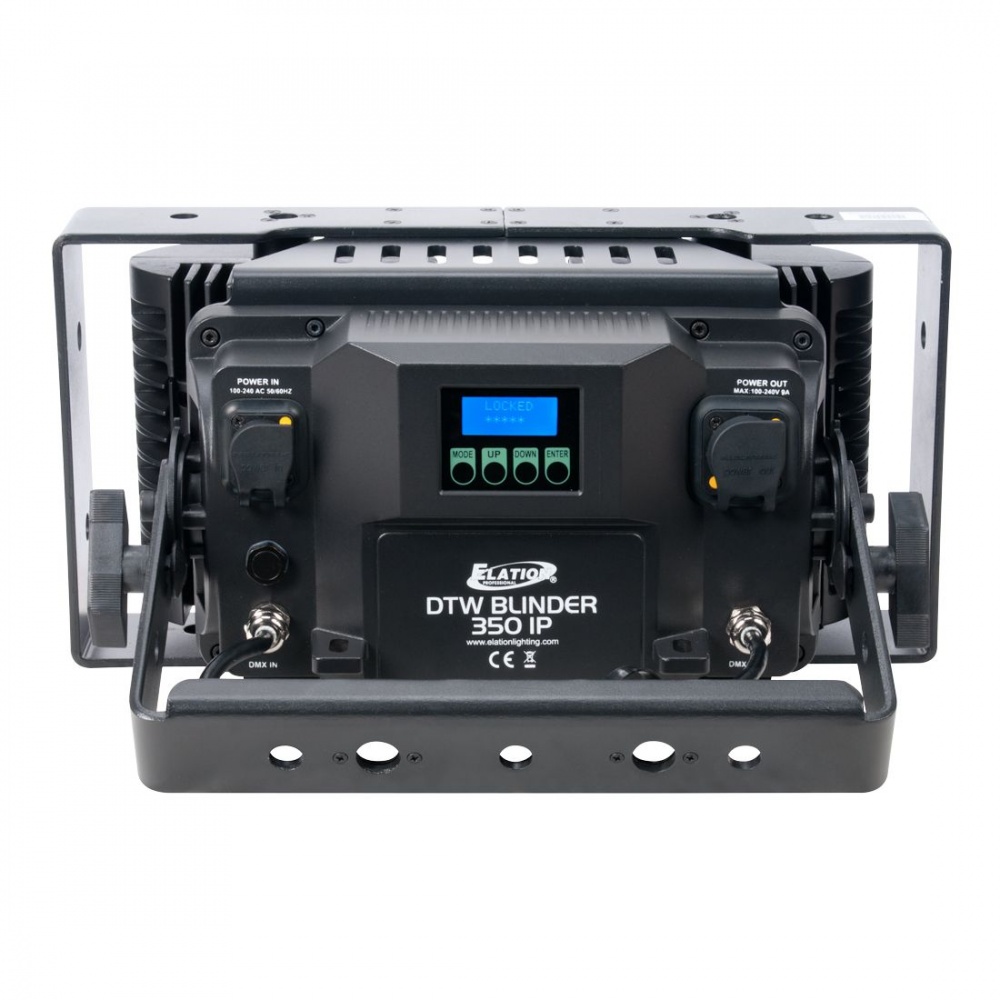

4 Button Control Panel
LCD Menu Display
Locking IP65 5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
SIZE / WEIGHT
Length: | 15.7” (400mm) |
Width: | 9.5” (241mm) |
Vertical Height: | 9.6” (245mm) |
Weight: | 18.0 lbs. (8.2 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
310W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
25 Degree Narrow Beam Filter
Locking IP65 Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
12363000
82 Connector Panel DTW Blinder
1322000060 C-Loader II
1521000314 Touring Case 4x DTW Blinder 350IP
1521000315 Touring Case 6x DTW Blinder 350IP
1521000322 PRO Case 4x DTW Blinder 350IP
1521000323 PRO Case 6x DTW Blinder 350IP
