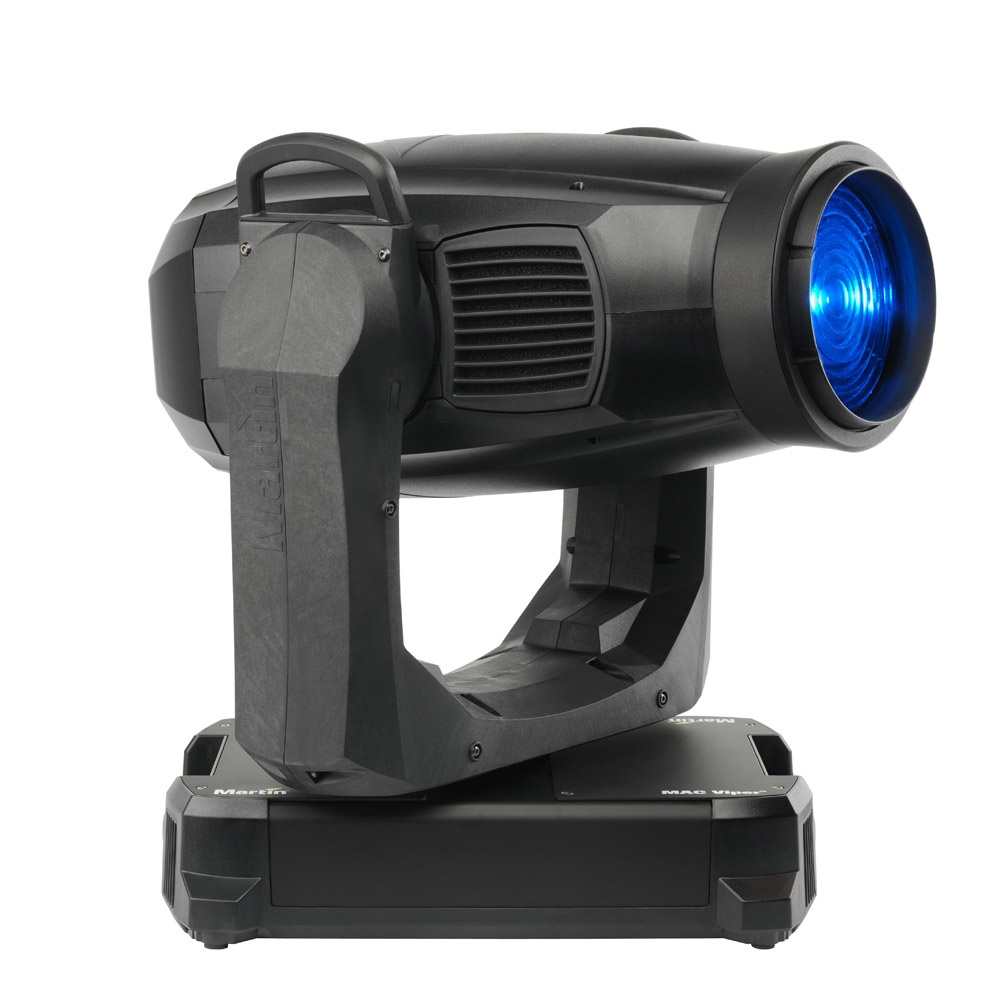

Martin MAC Viper Wash
MAC Viper Wash je plnohodnotné WASH svetlo na vysokej profesionálnej úrovni. Vyznačuje sa vynikajúcou kvalitou svetla s neobmedzenou voľbou farieb a vynikajúcou farebnou stabilitou v celom lúči. Udržiava takmer plnú účinnosť v celom rozsahu priblíženia bez viditeľného skoku MAC Viper Wash má kompaktnú podobu, pôsobivú rýchlosť, vynikajúcu kvalitu svetla a krásne farby, ktoré preslávil MAC Viper Profile.Používa rovnakú 1000-wattovú lampu.
33000 lumenov - Vynikajúca kvalita svetla s jednotným poľom a farebnou teplotou 6000K
Priblíženie 1: 5 - nepretržité a rýchle
CMY - Vibrujúce miešanie farieb s vynikajúcou paletou farieb vrátane pravých červených farieb, primárnej zelenej a hlbokej modrej farby
Lineárny CTO - Riadenie a rozšírenie voliteľného svetla CCT a rozšírenie palety CMY
Stmievač a uzávierka - Kombinovaný systém stmievania / uzávierky s intenzívnymi efektmi
Rôzne efekty strobo
Katalog.č.
90233050 - v kartónovej krabici
90233065 - biele prevedenie, v kartónovej krabici
90233060 - v transport.case pre 2 ks...MAC Viper Wash je plnohodnotné WASH svetlo na vysokej profesionálnej úrovni. Vyznačuje sa vynikajúcou kvalitou svetla s neobmedzenou voľbou farieb a vynikajúcou farebnou stabilitou v celom lúči. Udržiava takmer plnú účinnosť v celom rozsahu priblíženia bez viditeľného skoku MAC Viper Wash má kompaktnú podobu, pôsobivú rýchlosť, vynikajúcu kvalitu svetla a krásne farby, ktoré preslávil MAC Viper Profile.Používa rovnakú 1000-wattovú lampu.
33000 lumenov - Vynikajúca kvalita svetla s jednotným poľom a farebnou teplotou 6000K
Priblíženie 1: 5 - nepretržité a rýchle
CMY - Vibrujúce miešanie farieb s vynikajúcou paletou farieb vrátane pravých červených farieb, primárnej zelenej a hlbokej modrej farby
Lineárny CTO - Riadenie a rozšírenie voliteľného svetla CCT a rozšírenie palety CMY
Stmievač a uzávierka - Kombinovaný systém stmievania / uzávierky s intenzívnymi efektmi
Rôzne efekty strobo
Katalog.č.
90233050 - v kartónovej krabici
90233065 - biele prevedenie, v kartónovej krabici
90233060 - v transport.case pre 2 ks
VIAC
The MAC Viper Wash is a full-range wash luminaire capable of performing at the high level you would expect from a professional wash light. It features an outstanding quality of light with unlimited color choices and excellent color stability across the entire beam. It maintains near full efficiency throughout the entire zoom range with no visible beam jump when zooming from tight to wide. The MAC Viper Wash has adopted the compact form, impressive speed, superior light quality and beautiful colors that the MAC Viper Profile is renowned for and uses the same 1000-watt lamp.
33000 Lumens – Excellent light quality with a uniform field and 6000K color temperature
1:5 zoom - Continuous and fast
CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
Features
33000 lumens – excellent light quality with a flat and uniform field
|
1: | 5 zoom - 13.5 to 59° continuous and fast zoom |
CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
Diverse strobe effects
Physical
|
Length (Head): | 566 mm (22.3 in.) |
|
Width: | 472 mm (18.6 in.) |
|
Width (Base): | 335 mm (13.2 in.) |
|
Height (head straight up): | 731 mm (28.8 in.) |
|
Height (maximum): | 748 mm (29.4 in.) |
|
Weight: | 33 kg (72.8 lbs.) |
Lamp
|
Approved lamp: | Osram HTI 1000/PS Lok-it |
|
Type: | 1000 W short-arc discharge |
|
Color temperature: | 6000 K |
|
CRI (Color rendering index): | >85 |
|
Average lifetime: | 750 hours |
|
Socket: | PGJX36 |
|
Ballast: | Electronic |
Dynamic Effects
|
Color mixing: | CMY, independently variable 0 - 100% |
|
Color temperature control: | CTO, variable 6000 - 3200 K |
|
Mechanical dimmer/shutter: | 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout |
|
Dimming options: | Choice of four dimming curves |
|
Pan: | 540° |
|
Tilt: | 268° |
|
Position correction system: | Absolute position monitoring |
Control and Programming
|
DMX channels: | TBA |
|
Setting and addressing: | Control panel with backlit graphic display and jog wheel or via DMX |
|
16-bit control: | TBA |
|
DMX compliance: | USITT DMX512-A |
|
RDM compliance: | ANSI/ESTA E1.20 |
|
Receiver: | Opto-isolated RS-485 |
|
Firmware update: | USB memory device or USB/DMX har |
dware interface over DMX link
Service Utilities
|
Fixture identification: | User-settable fixture ID number |
Photometric Data
|
Max. total output: | 33 000 lm |
|
Beam angle: | 13.5° - 59° |
Preliminary data
Construction
|
Color(s): | Black |
|
Housing: | UV-resistant fiber-reinforced composite |
|
Reflector: | Glass, cold light |
|
Protection rating: | IP20 |
Installation
|
Mounting points: | Eight quarter-turn locking points |
|
Orientation: | Any |
|
Minimum distance to illuminated surfaces: | 3.4 m (11.2 ft.) |
|
Minimum distance to combustible materials: | 0.3 m (1.0 ft.) |
Connections
|
AC power input: | Neutrik PowerCon |
|
DMX and RDM data in/out: | 5-pin locking XLR |
|
USB memory devices: | USB host socket |
Electrical
|
AC power: | 120-240 V nominal, 50/60 Hz |
|
Power supply unit: | Auto-ranging electronic switch-mode |
|
Typical half-cycle RMS inrush current: | 16.2 A |
Typical Power and Current
|
120 V, 60 Hz: | 1225 W, 10.3 A, PF 0.999 |
|
208 V, 60 Hz: | 1190 W, 5.8 A, PF 0.996 |
|
230 V, 50 Hz: | 1186 W, 5.2 A, PF 0.994 |
|
240 V, 50 Hz: | 1194 W, 5.0 A, PF 0.993 |
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
PF = power factor
Thermal
|
Cooling: | Filtered forced air (temperature-regulated, low noise) |
|
Maximum ambient temperature (Ta max.): | 40° C (104° F) |
|
Minimum ambient temperature (Ta min.): | 5° C (41° F) |
|
Maximum surface temperature, steady state, Ta=40° C: | 150° C (302° F) |
|
Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): | 4180 BTU/hr |
