CLAYPAKY SHARPY X SPOT
Perfektný spoločník pre reflektor Sharpy-X-Frame s bezkonkurenčným pomerom cena/výkon.
Sharpy-X-Spot je zjednodušený model Sharpy-X-Frame so všetkými rovnakými svetelnými, optickými a konštrukčnými funkciami, vďaka ktorým je Sharpy-X-Frame taký úspešný. Predovšetkým sa hodí pre výkonnú 550 wattovú výbojkovú lampu, vďaka ktorej je toto svietidlo mimoriadne jasné a vytvára hlboké, živé a jednotné farby, vrátane jedinečnej sýtej červenej.
Sekcia efektov je vynikajúca.
Obsahuje otočné, vymeniteľné HD gobo koliesko, 18-gobo pevné gobo koliesko (vrátane 6 redukcií priemeru lúča),výnimočné animačné koleso a jednu štvorstrannú a jednu osemstrannú rotačnú prizmu, obe na vyhradených kanáloch. Sharpy-X-Spot bezpochyby ponúka jednu z najatraktívnejších sekcií efektov na trhu!
Je ľahký a kompaktný a je vybavený lineárnym frost filtrom a farebným systémom s CMY, CTO filtrom a samostatným farebným kolieskom. S rozsahom zoomu od 3° do 52° (spot mód) a 2° až 29° (beam mód) dokáže Sharpy-X-Spot vytvár...ať neporovnateľné vizuálne efekty. Jednotka je vhodná pre 160 mm (6,3 palca) prednú šošovku a osvedčený optický systém Claypaky na vytváranie ostrých obrazov a kolimovaných lúčov.
V prípade potreby je možné pridať modul "beam shaper" (tvarovač lúča) - dodávaný ako príslušenstvo - a tak zmeniť Sharpy-X-Spot na plnohodnotný Sharpy-X-Frame! Modul je automaticky rozpoznaný firmvérom produktu.
Sharpy-X-Spot je ideálny pre tých, ktorí chcú svetlo s vynikajúcim výkonom a pomerom cena/výkon, ktorý nemá na trhu obdobu.
VIAC

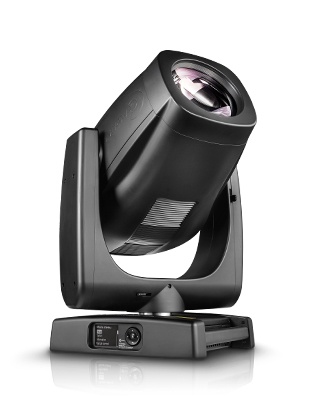

Compact, with a big punch. The perfect spotlight companion for the Sharpy-X-Frame, with an unmatched cost/performance ratio
The Sharpy-X-Spot is a simplified Sharpy-X-Frame model, with all the same lighting, optical and construction features that have made the Sharpy-X-Frame so successful. First of all, it fits a powerful 550 Watt arc lamp, which makes this fixture extremely bright and produces deep, vivid, uniform colours, including an unparalleled deep red.
The effects section is outstanding. It includes a rotating, interchangeable HD gobo wheel, an 18-gobo fixed gobo wheel (including 6 beam diameter reducers), an exceptional animation wheel, and one four-sided and one eight-sided rotating prism, both on dedicated channels. Without a doubt, the Sharpy-X-Spot offers the lighting designer one of the most appealing effects sections on the market!
It is lightweight and compact, and features a linear frost filter and a colour system with CMY, CTO filter and a separate colour wheel. With a zoom range from 3° to 52° (spot mode) and 2° to 29° (beam mode), the Sharpy-X-Spot can create incomparable visual effects. The unit fits a 160mm (6.3 inch) front lens, and tried and tested Claypaky optical system for producing sharp images and collimated beams.
If needed, the "beam shaper" module - provided as an accessory - can be added, thus turning the Sharpy-X-Spot into a fully-fledged Sharpy-X-Frame! The module is automatically recognized by the product firmware.
The Sharpy-X-Spot is ideal for those who want a light with excellent performance and a cost/performance ratio without equal on the market.
LIGHT SOURCE TYPE
Philips 25R 550W lamp
|
CRI: | 80+ |
|
Colour Temperature: | 8000K |
|
Lamp life expectancy: | 1500 hrs |
*It may vary depending on various factors, as type of use and environment
PHOTOMETRIC DATA
|
Zoom range: | 3° to 52° (Spot mode) – 2° to 29° (Beam mode) |
18800 Lumen Output (Integrating Sphere)
|
Front lens diameter: | 160mm |
High efficiency optical system
NOISE LEVEL
CONTROL and CONNECTIONS
|
Personalities: | Single mode with 43 control channels |
|
Control Protocol: | DMX, Art-Net, RDM, sACN |
|
DMX and RDM connectors: | Locking 5 pin XLR IN/THRU |
|
Ethernet port: | RJ45 IN |
|
Power connector: | PowerCon True1 |
Built In Web Server
DYNAMIC EFFECTS
Linear CMY colour mixing (same as Sharpy X Frame)
Linear CTO
Fixed color wheel with 14 dichroic colors
|
Gobos: | |
|
1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos Rotating gobo dimensions: | Ext diam. 19 mm Image diam. 14.5 mm Thickness 1.1mm |
1 Static Gobo Wheel with 18 gobos
Linear heavy frost 5° for wash effect (same as Sharpy X Frame)
Rotating Effects
Aluminum animation wheel with continuous rotation in both direction at variable speed
2 prisms (4 and 8 facet) with rotation in both direction at variable speed
Motorized with variable pulse and random effects
|
Movement: | |
|
Tilt: | 270° - 16bit |
|
Pan: | 540° - 16bit |
|
Accuracy: | Resolution ± 0.27° (Range 0.54°) |
Automatic repositioning
Fast/Standard speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and mainten
ance
Motorized Zoom and Focus
High resolution dimmer 16 bit
Shutter and Strobe effect
