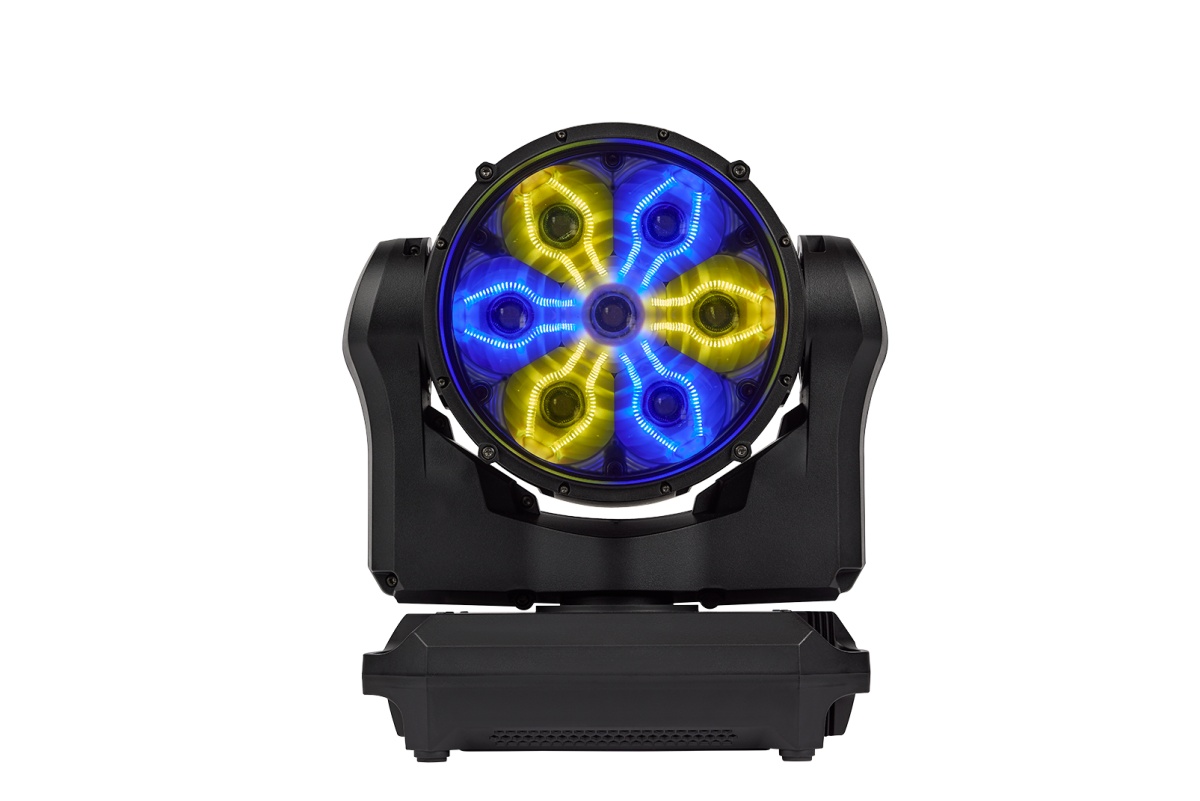

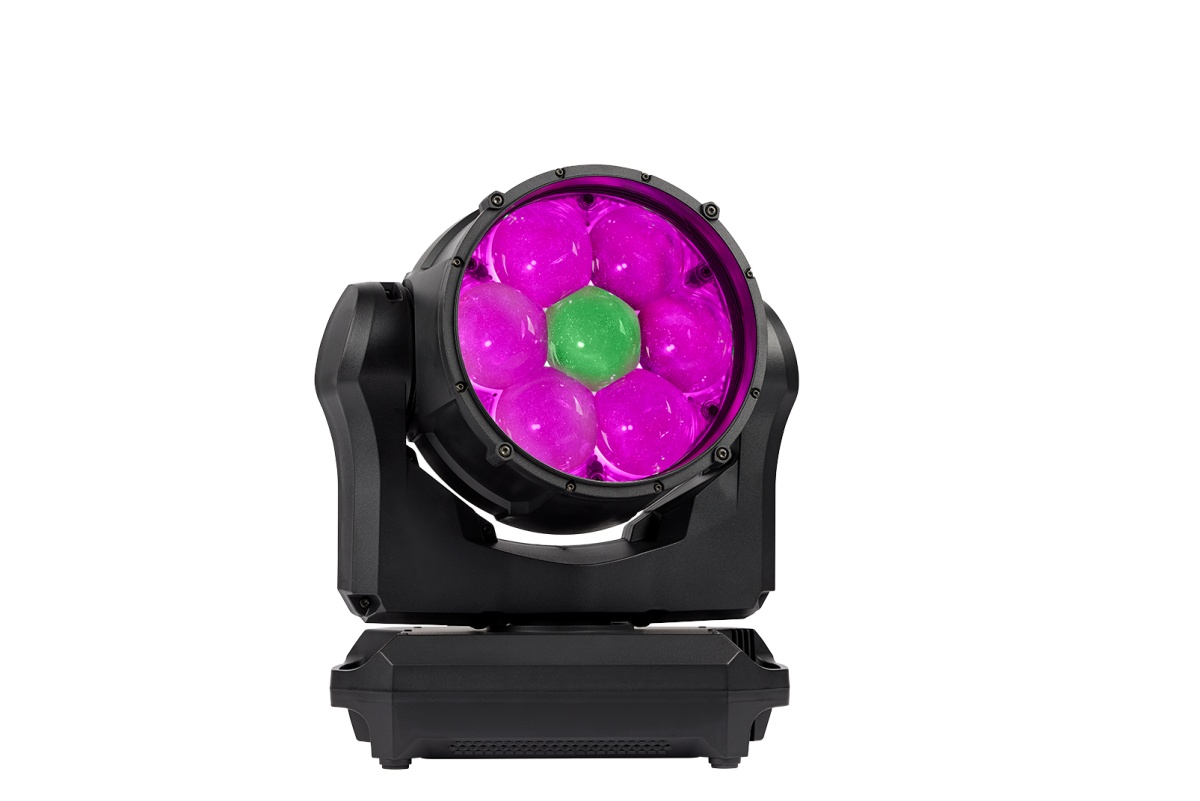

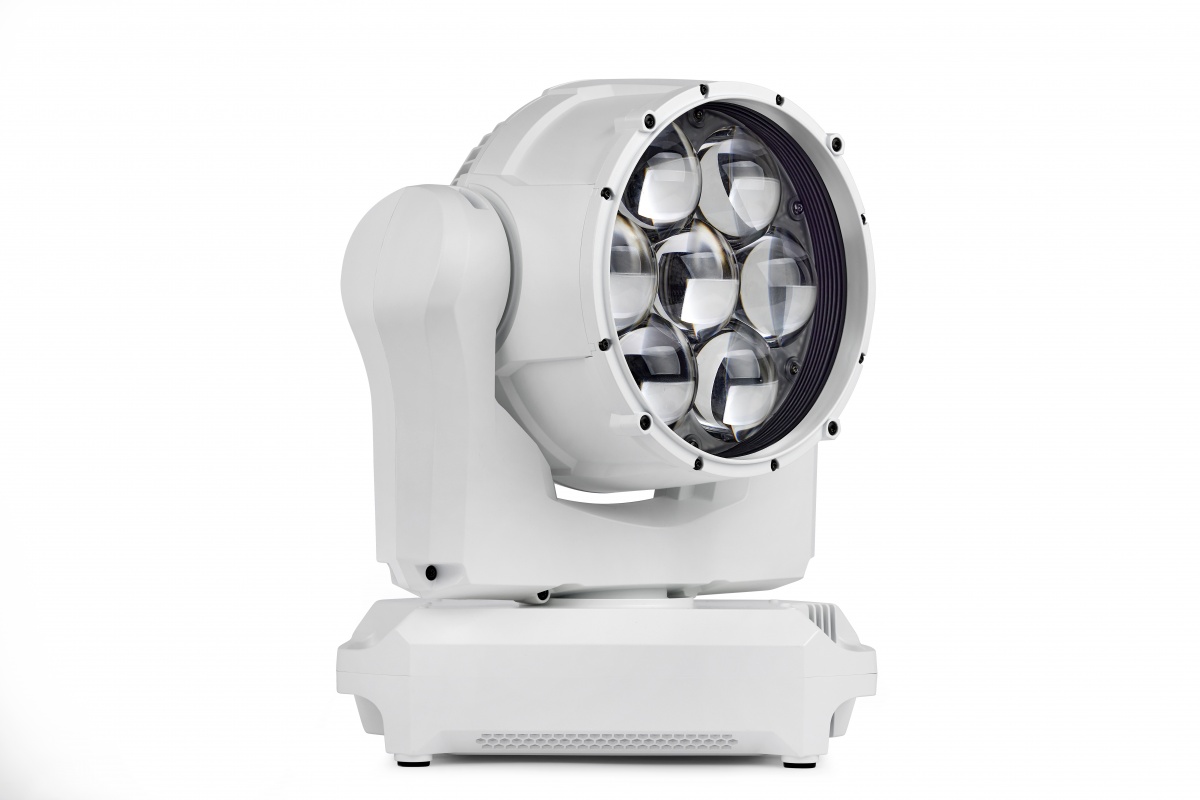

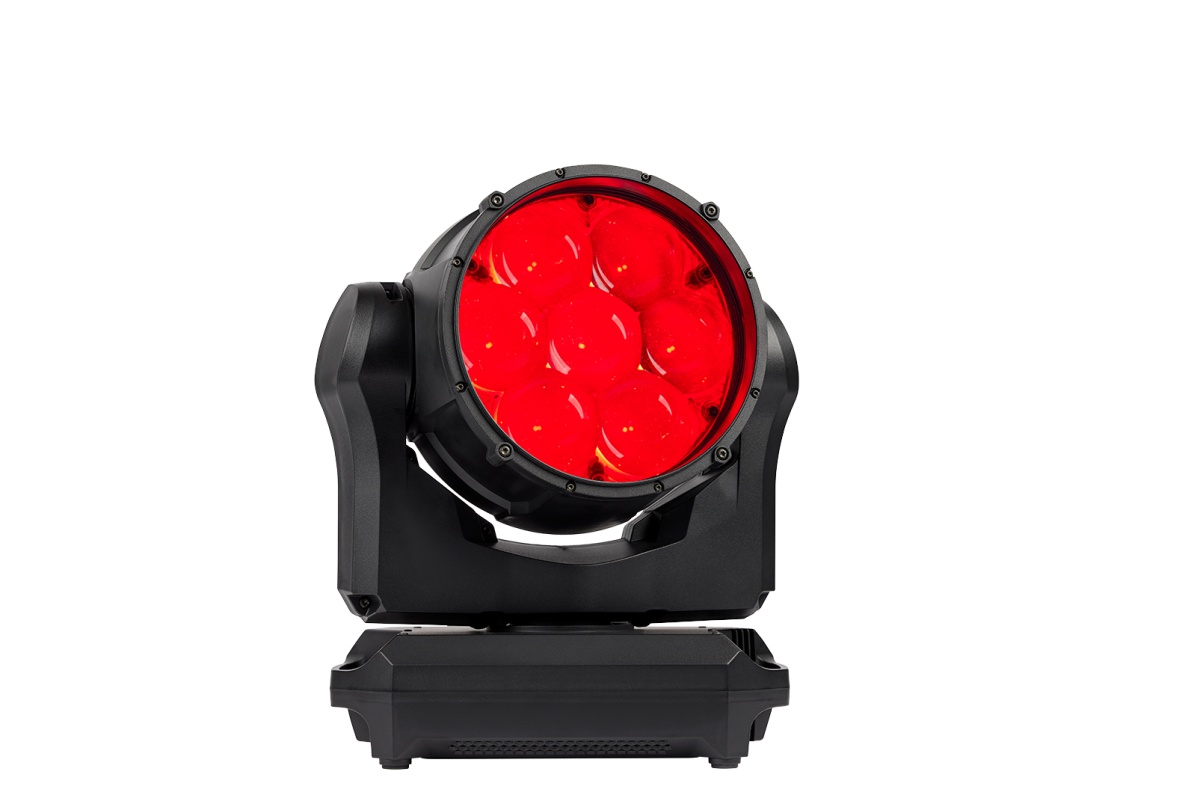

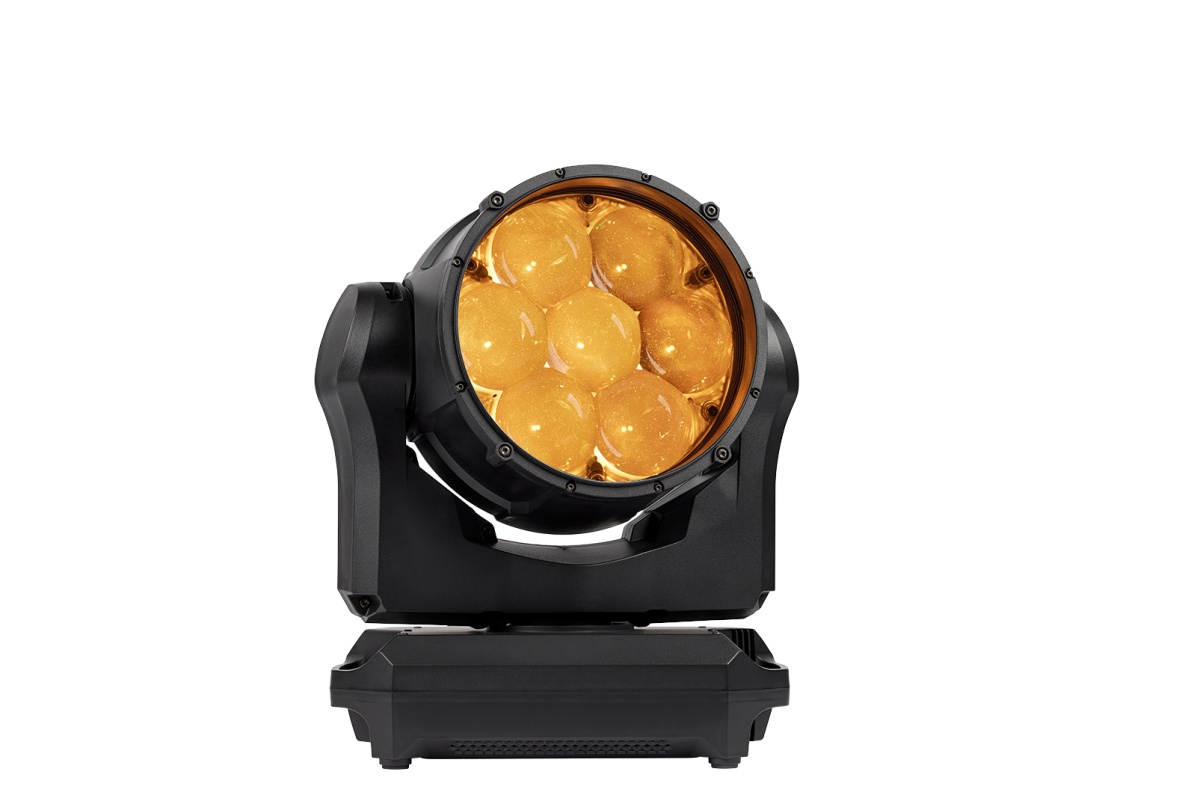

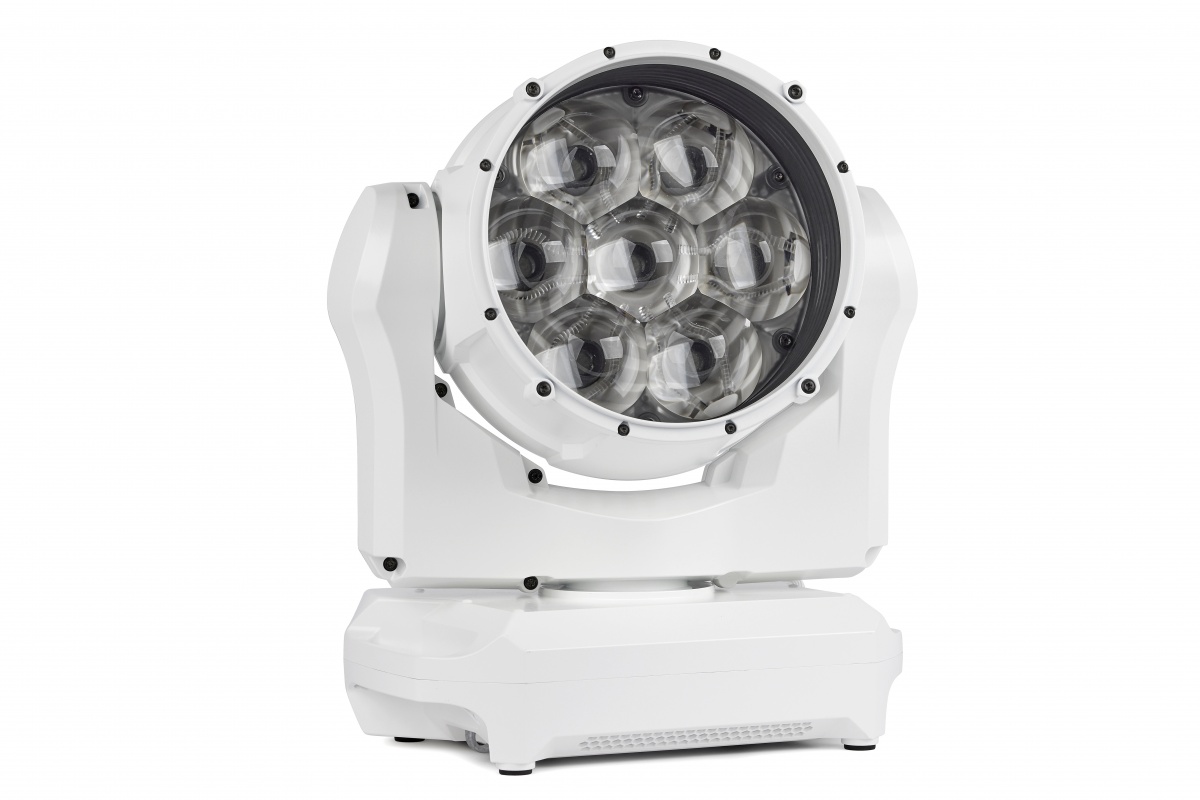

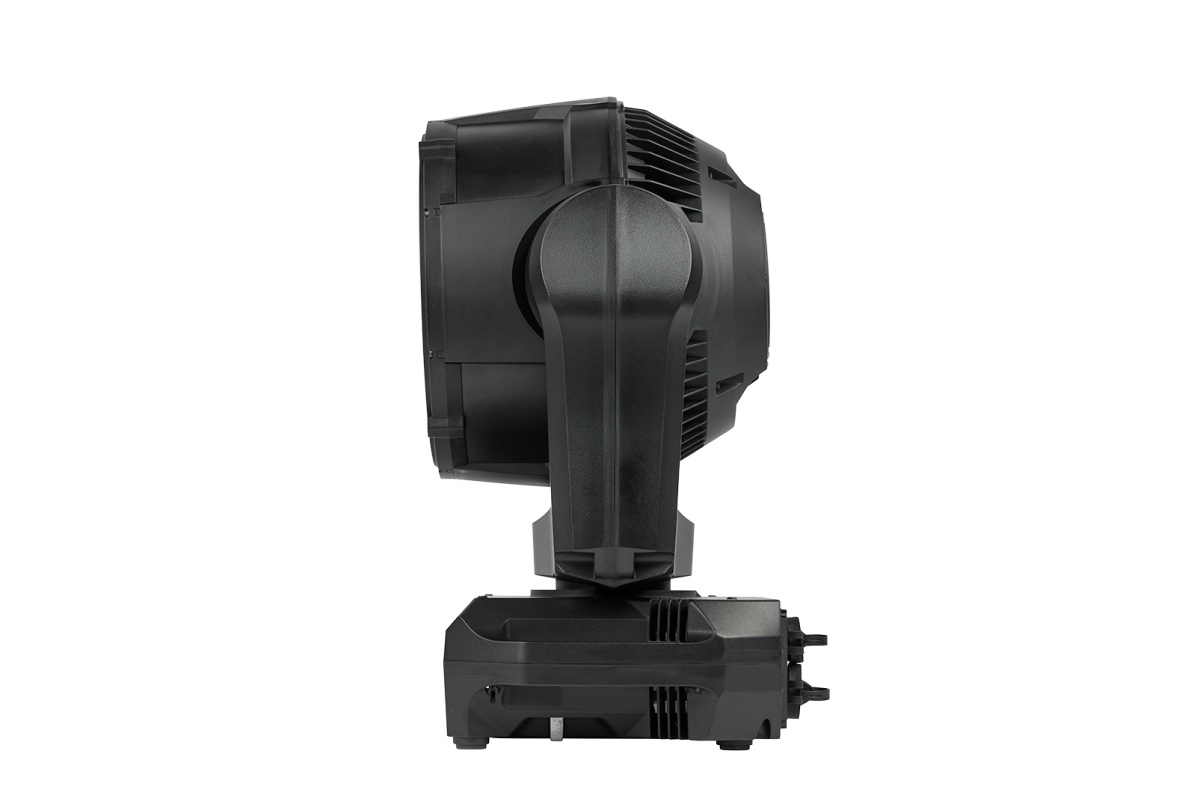

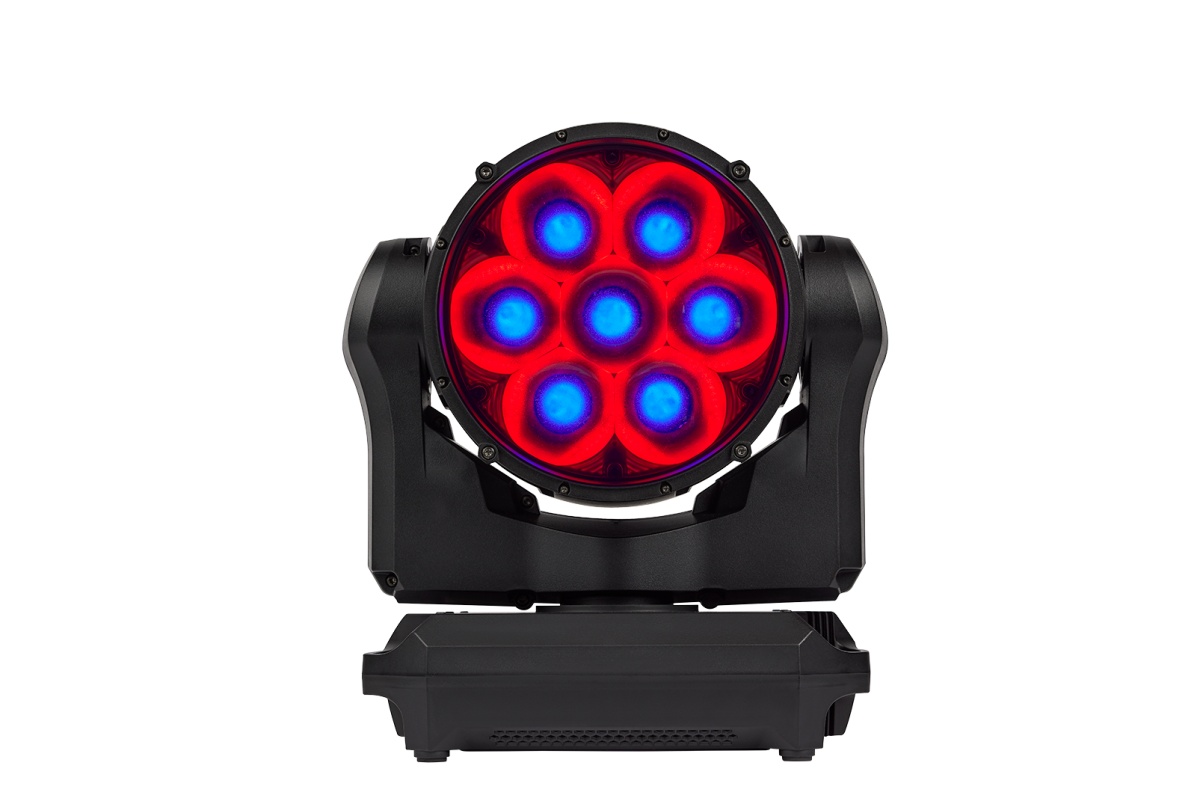

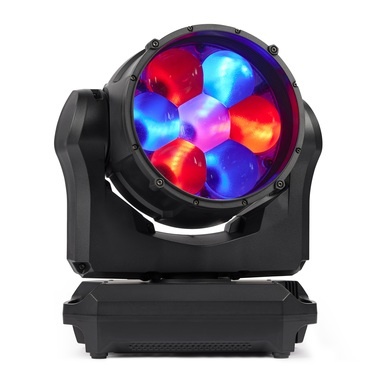

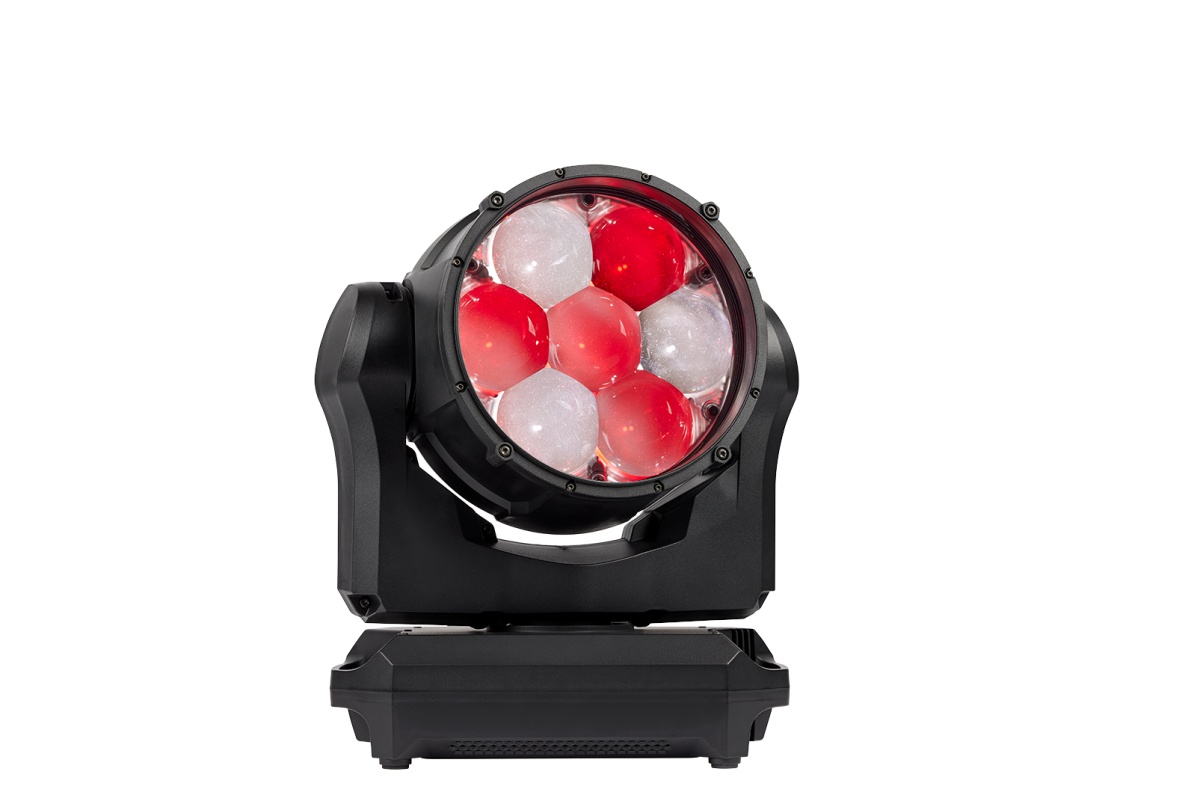

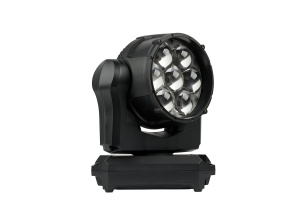

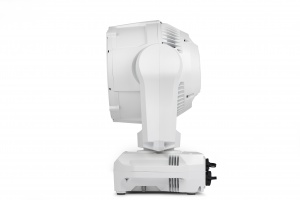

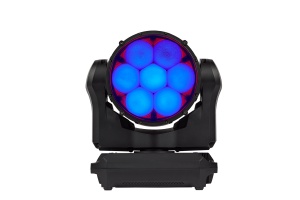

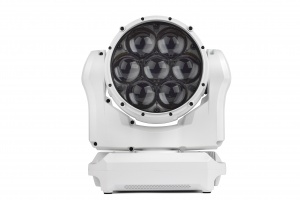

MAC Aura XIP is a premium moving head wash light with a radical aura filament effect and full pixel control with video mapping capabilities onto the beam, aura, or both. It’s Martin's latest addition to the MAC Aura family of workhorse wash lights and the first fixture in its class to be rated for outdoor use, with close to zero compromises in weight, size, and aesthetics due to Martin’s smart outdoor-capable design. It raises the bar for optical quality, featuring an even wash field with soft edge, minimal stray light, and high intensity mid-air beams with improved light engine control.
Perfect for a wide range of concert and touring productions, MAC Aura XIP is equipped with a smart, outdoor design for festivals and events, while still being quiet and lightweight enough for theater, television, corporate events and more.
While MAC Aura XIP offers lighting designers a range of possibilities with its aura filament effect, narrower beam and better wash quality with improved light engine control; rental customers will appreciate a workhorse that is lighter and more versatile with optical improvements and a sealed design, allowing the product to be used virtually anywhere and require less maintenance.
LIGHT SOURCE
6,000 lumens RGBW light output
|
High narrow intensity: | 360,000 cd |
|

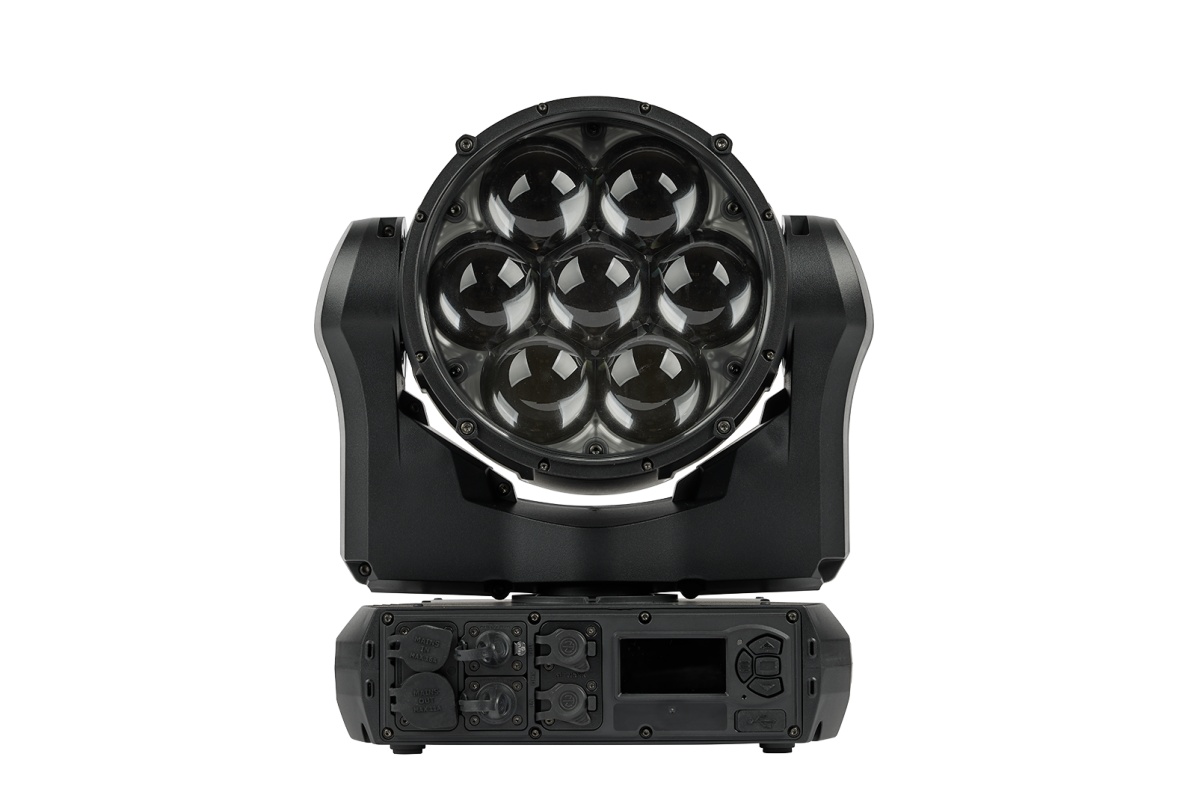

Pixelated Beam: | 7x 60W RGBW LEDs |
|

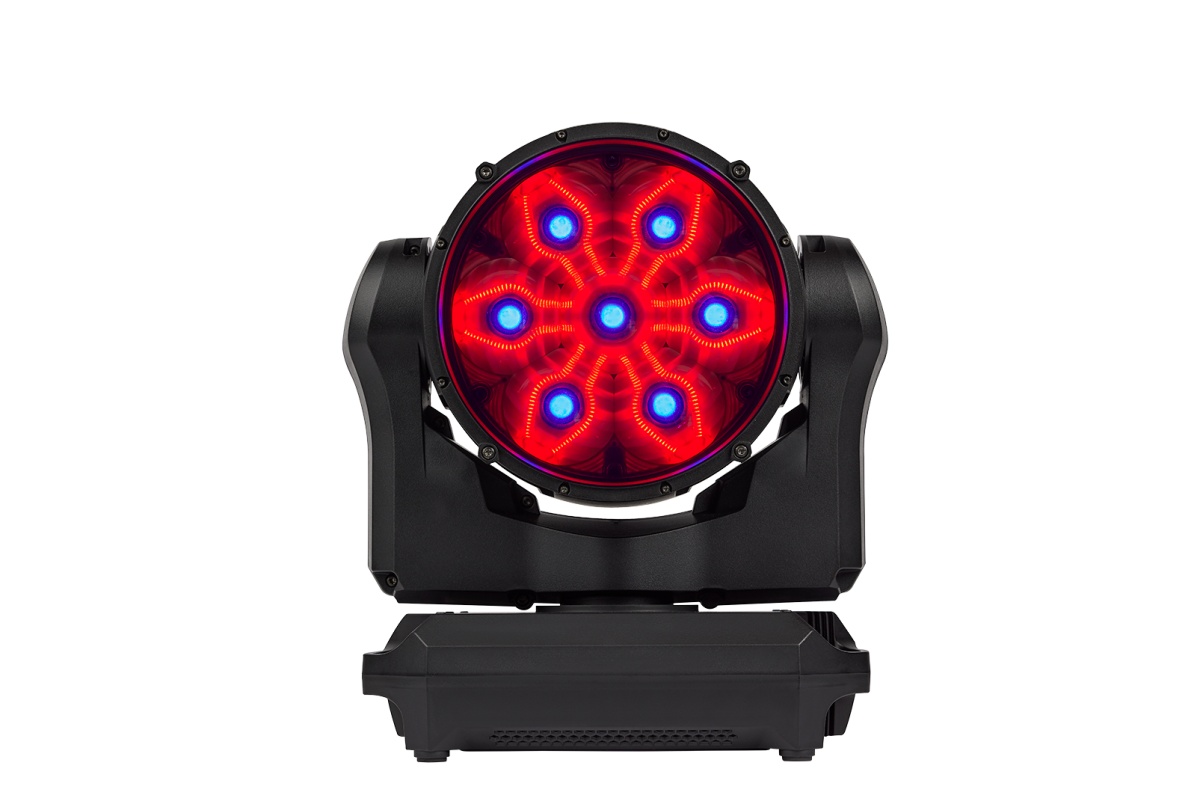

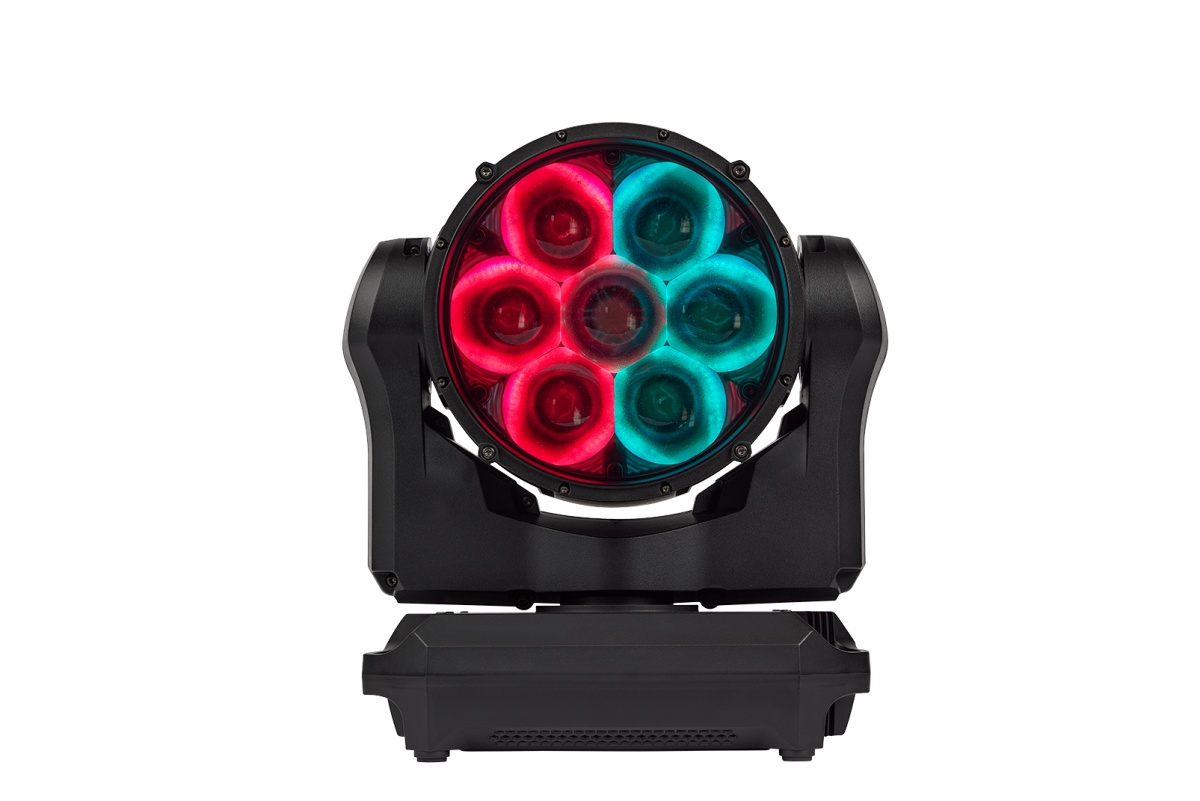

Filament Aura: | 12x 4W RGBW LEDs |
Fully calibrated using Martin's Full Gamut Color Calibration
Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications
LED Driver frequency adjustable for demanding applications
OPTICS
Tight beam and beautiful wash field
6.3 – 50.4˚ zoom – Precise, silent and fast zoom
Even soft edge wash field with zero hotspot
High intensity mid-air beams
Minimal stray light
Minor color temperature shift from center to edge

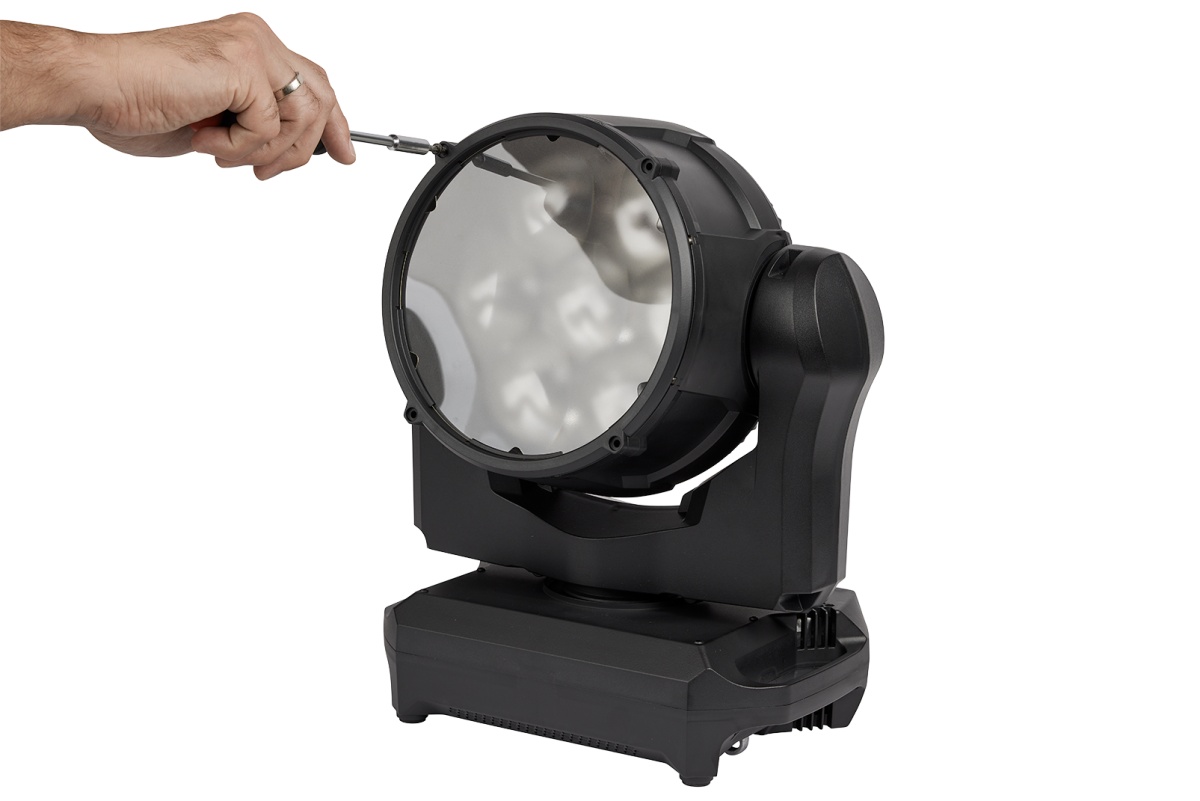

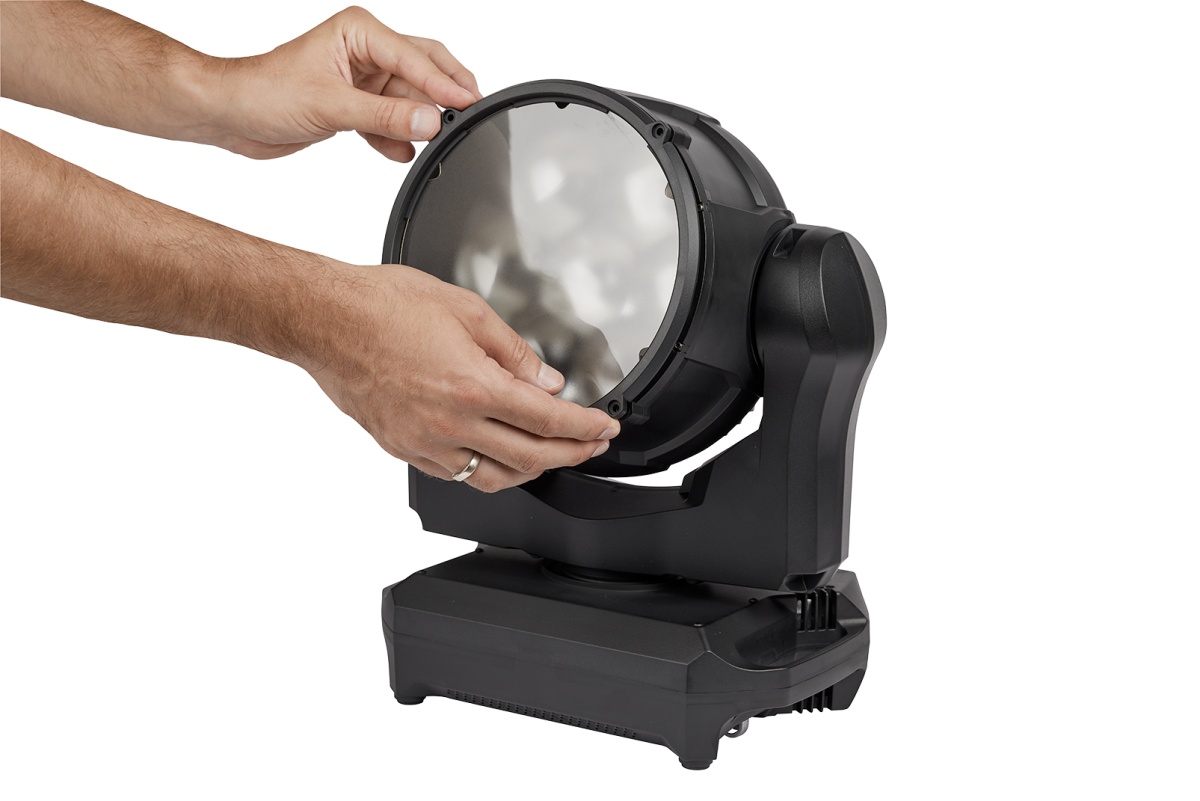

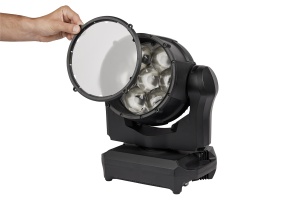

SOFTLENS ACCESSORY INCLUDED
Creates an even softer edge wash field
Minimal impact to Aura filament effects
Attaches to front of fixture
Can remain attached to fixture inside flightcase SiP
COLOR PALETTE

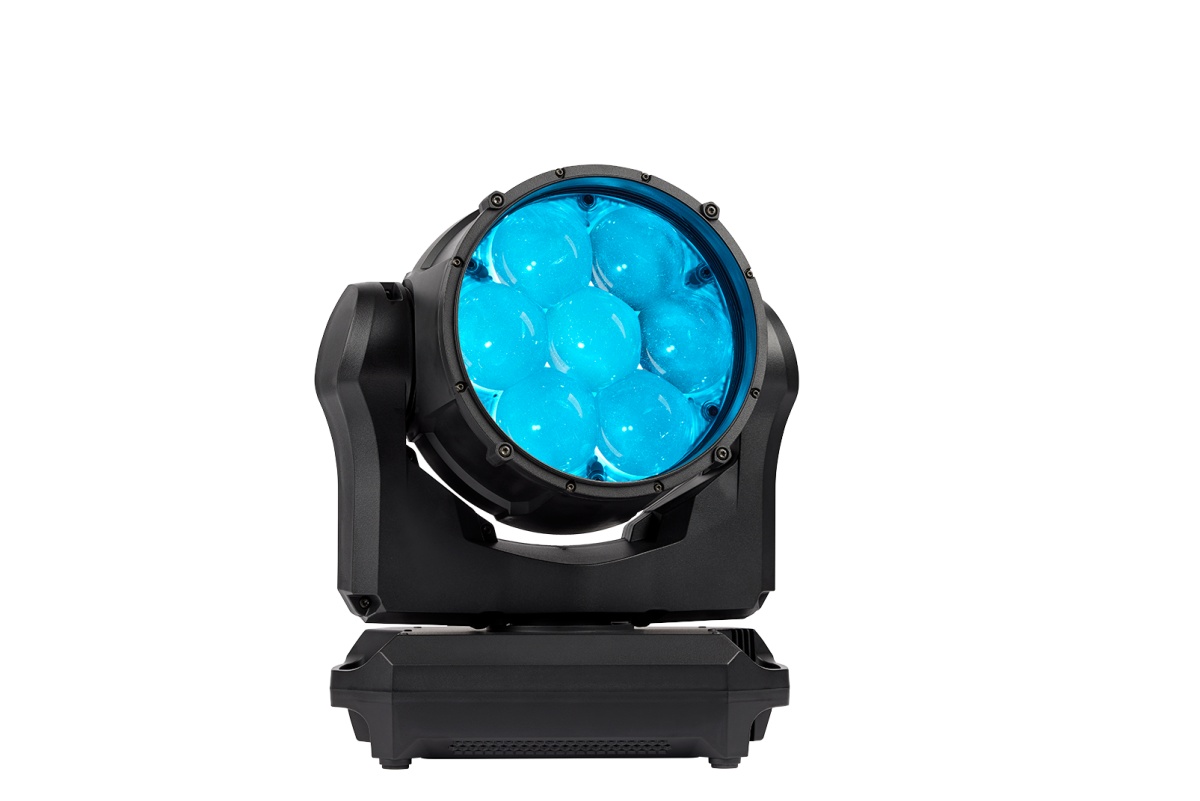

RGBW color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones
Calibrated and Extended Color Modes
|
Calibrated CTC control: | 1,000 – 12,850 K |
Green Magenta Shift (Tint) Control
Tungsten Emulation Option
Virtual Color Wheel
DYNAMIC EFFECTS
More than 200 built-in FX macros with control of foreground color, background color, speed and direction
P3 video mapping of fixture Beam pixels and/or Aura filaments
P3 Mix allowing crossfade between video looks and DMX looks
High-speed pan, tilt and zoom
COOLING AND NOISE

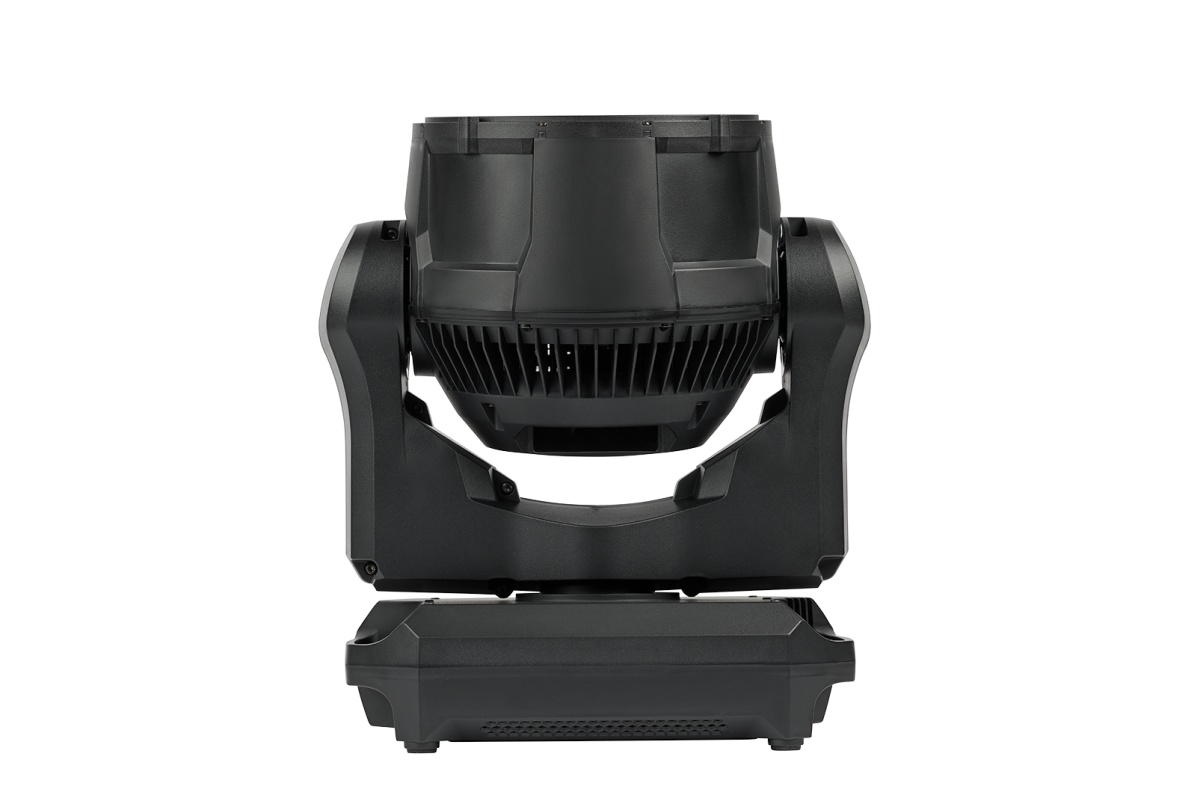

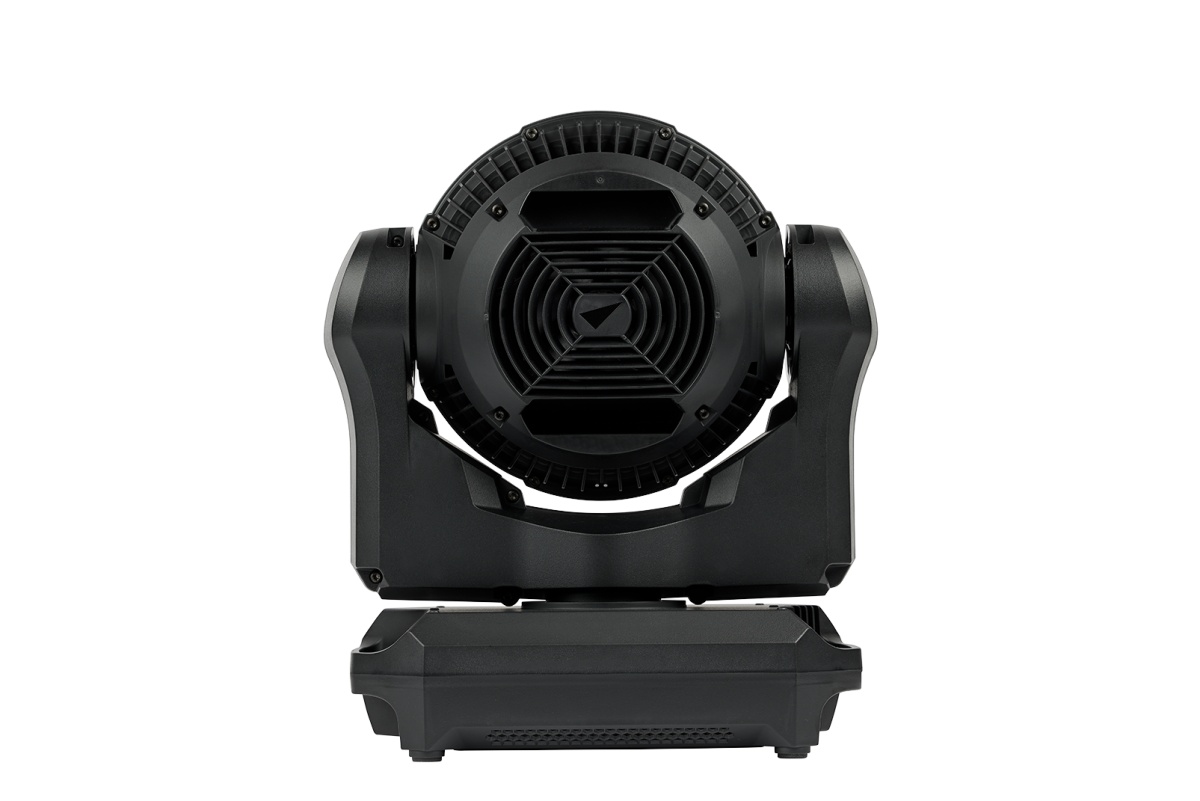

Ultra-quiet cooling system
Theater / Broadcast mode at just 25.2 dB(A)
Low noise pan/tilt and effects operation
CONSTRUCTION
Smart outdoor rating for any weather condition
Weight 8.95 kg (19.73 lbs.)
|
Dimensions: | 338 x 380 x 226 mm |

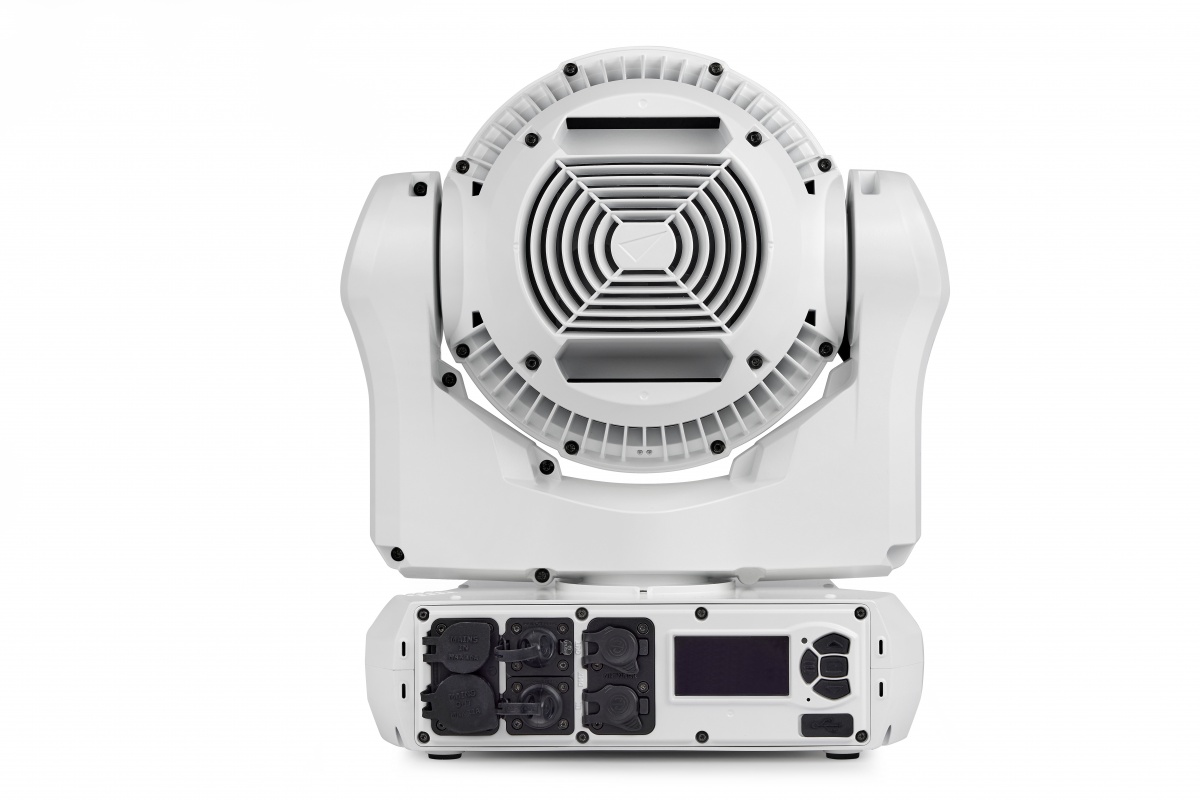

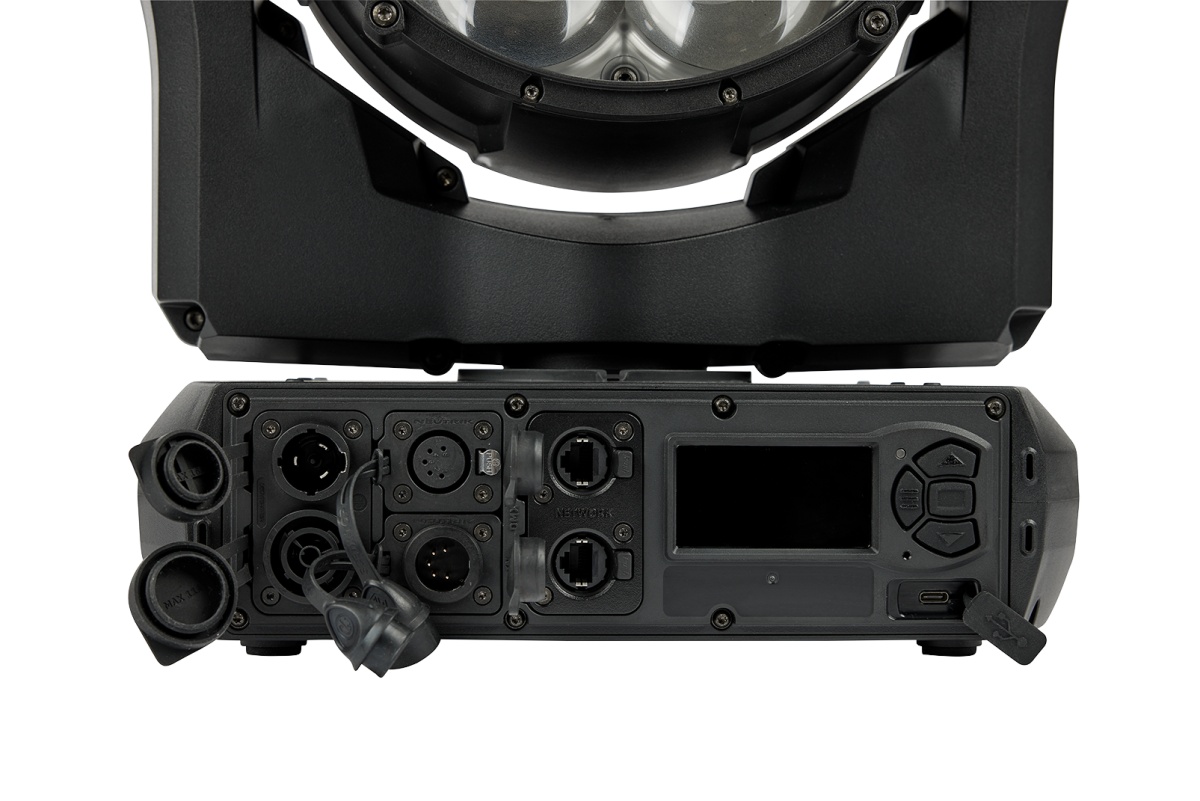

CONTROL

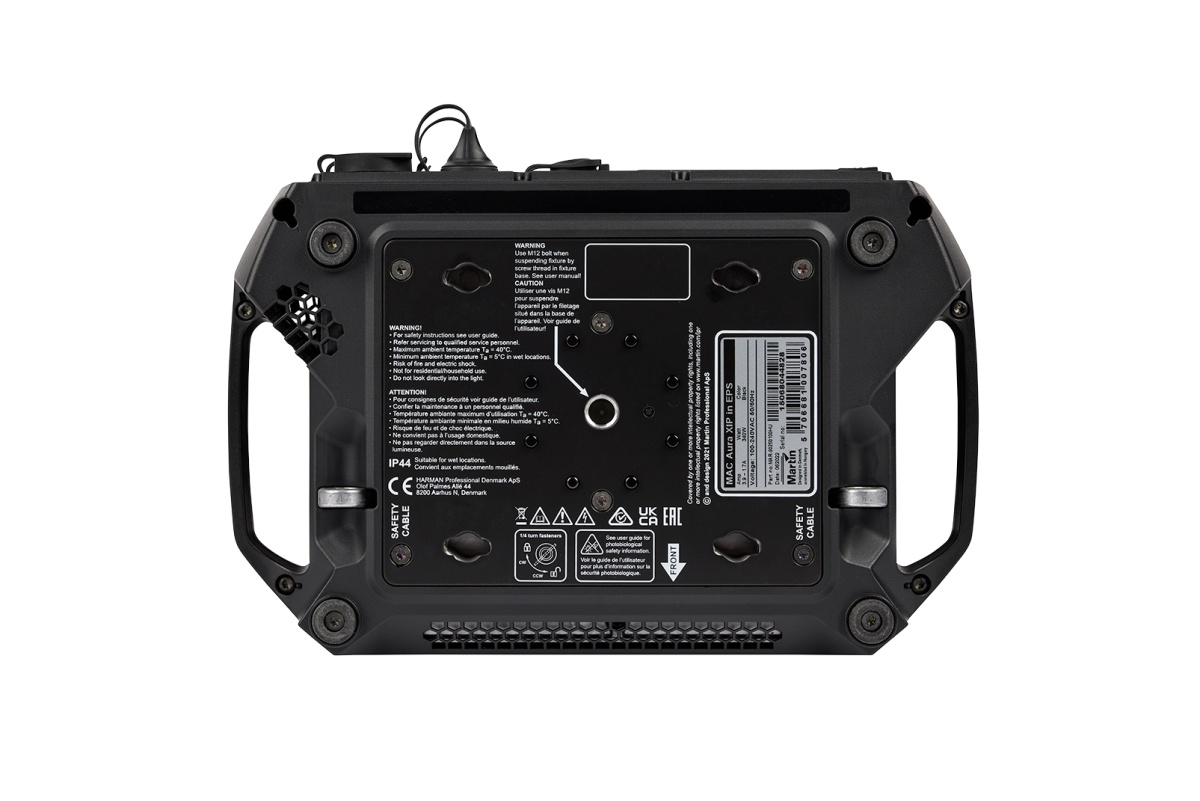

Battery-powered control panel on the base
DMX in & thru
Ethernet in & thru, supporting Art-Net, sACN & Martin P3
Fail-safe bypass on Ethernet ports
RDM over DMX and RDM over Art-Net
VIAC
