ELATION PROFESSIONAL Proteus Rayzor 760 WMG HW

Proteus Rayzor 760 WMG HW™ je kompaktný,mimoriadne výkonný wash efekt vybavený unikátnym systémom SparkLED ™ značky Elation v bielom prevedení a s rýchlym plynulým pohybom Pan a Tilt.Vďaka svojmu širokému rozsahu transfokácie od 5 do 77 stupňov poskytuje intenzívne a dobre definované mid-air lúče s presahom 8 000 lumenov, ako aj mimoriadne široké a rovnomerné wash pokrytie,takže je ideálnym nástrojom pre akúkoľvek aplikáciu aj pri nepriaznivých vonkajších podmienkach.SparkLEDs ponúkajú výrazný a inovatívny LED efekt so špeciálnymi pixelmi s vysokým jasom vo vnútri veľkých predných šošoviek pre ďalšie vrstvy kreativity.

Poháňaný 7 nezávisle kontrolovanými LED diódami s kapacitou 60 W RGBW, ktoré dodávajú viac ako 8 000 lumenov svetel.toku s celkovým výkonom 420 W poskytuje Proteus Rayzor 760 silný lúč, ktorý vyniká na každej scéne. Nadrozmerné predné šošovky vytvárajú veľký povrch na prístroji, ktorý je vylepšený exkluzívnou patentovanou technológiou SparkLEDs. SparkLEDs sa skladá z 28... samostatných bielych LED, strategicky umiestnených vo vnútri objektívu, aby vytvorili jedinečnú dodatočnú vrstvu, ktorá umožní návrhárom prístup k novému a inovatívnemu spôsobu vytvárania scény. Proteus Rayzor 760 ponúka tento nikdy doteraz nevidený štýl vnútorného osvetlenia šošoviek pre hĺbkové a vizuálne pôsobenie.. SparkLEDs je ovládateľný svetelnou konzolou alebo riadený množstvom interných FX vzorov.

Okrem silného wash a zlepšených efektov ponúka Proteus Rayzor 760 presnú neprerušovanú rotáciu náklonu a panvy, čo umožňuje variabilnú rýchlosť od pomalých až po mimoriadne rýchle pohyby. Kombinácia výkonného výstupu LED s funkciou SparkLEDs pri použití 360 ° pohybu umožňuje konštruktérovi vytvárať nekonečné, jedinečné a atraktívne vzory z mid-air lúčov alebo širokých wash efektov na jemné náladové efekty nálady alebo ako objektív TV kamery.

V krytí IP 65 proti vode a prach a s antikoróznou vrstvou.Verzia WMG HW má namontované pevné káble DMX a napájacie káble sú špeciálne vyrobené pre trvalé inštalácie.

Na pevnú montáž napr. na výletné lode alebo do zábavných parkov.


VIAC

Proteus Rayzor 760 WMG HW
Na objednávku

00760783|00761396
CENA:
na dopyt
Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

The innovative PROTEUS RAYZOR 760 WMG HW™ is available in a white version. The Proteus Rayzor 760™ is a compact yet extremely powerful IP65 rated Wash Effects fixture featuring Elation’s unique SparkLED™ system and fast continuous Pan and Tilt motion. With its wide zoom range from 5 to 77 degrees it provides intense and well-defined mid-air beams at over 7,200 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

Driven by 7, independently controlled, 60W RGBW LEDs, delivering over 8,000 lumens of output with a total power of 420W, the Proteus Rayzor 760 provides a powerful beam that stands out on any stage. The oversized front lenses create a large surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of 28 individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Proteus Rayzor 760 offers this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.

In addition to its powerful wash and enhanced effects, the Proteus Rayzor 760 offers precise continuous pan & tilt rotation, allowing variable speed from slow to extremely fast movement effects. Combining the powerful LED output with the SparkLEDs while utilizing the 360° movement, allows the designer to create endless, unique and appealing designs from mid-air beams or wide stage washes to subtle effects for mood or the TV camera lens.
***Only on Special Order***

FEATURES
IP65 Rated Dust and Water Protection
Marine Grade Coated Anti-Corrosion Housing
8,000 Lumens Moving Head Wash Luminaire
7x 60W Osram™ RGBW LEDs
28x 2W White SparkLEDs
Pixel or Pixel Ring Controlled LEDs
Pixel Controlled SparkLEDs
5° - 77° Wide Zoom Range
Advanced Cooling Control Systems
Adjustable Refresh Frequency
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film

SOURCE
7x 60W Osram™ Multi-Chip LEDs
28x 2W White SparkLEDs
8,000 Total Output Lumens
50,000 Hour Average Lamp Life*

PHOTOMETRIC DATA
16,064 LUX 1,492 FC @ 16.4’ (5m) (Min. Zoom)
348 LUX 32 FC @ 16.4’ (5m) (Max. Zoom)

EFFECTS
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Pixel or Pixel Ring Controlled LEDs
Pixel Controlled SparkLEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays

COLOR
RGBW Multi-Chip LEDs
White SparkLEDs
Variable Color Temperature (2,700K – 8,000K)

CONTROL / CONNECTIONS
3 DMX Channel Modes (25 / 52 / 80)
DMX, Art-NET and sACN Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 - 25,000Hz)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display

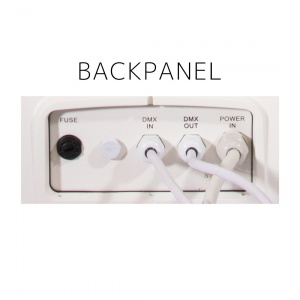

Fixed DMX Cable In/Out
Fixed Power Cable

SIZE / WEIGHT
Length: 14.3” (363mm)
Width: 10.2” (259mm)
Vert
ical Height: 19.4” (493mm)
Weight: 41.0 lbs. (18.6 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS
CE | cETLus | IP65 Specifications and documentation subject to change without notice.

INCLUDED ITEMS
2 Omega Brackets

OPTIONAL ACCESSORIES
1322000054 E Loader III


*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
 The innovative Proteus Rayzor 760 is available in a white version, the Proteus Rayzor 760 WMG™, for use in any environment. The Proteus RAYZOR 760’s multi-environmental design makes it the world's first IP65-rated luminaire with continuous pan & tilt rotation. It offers the identical feature set as the Rayzor 760, including the SparkLED™ system. SparkLED™ consists of 28 individual white LEDs strategically placed inside the lens itself to create a unique additional layer of effect, allowing designers access to a fresh and innovative way of creating interest on stage.
