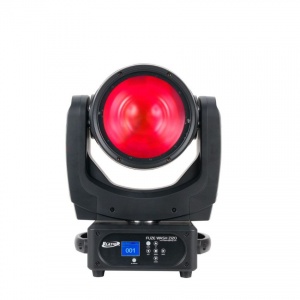

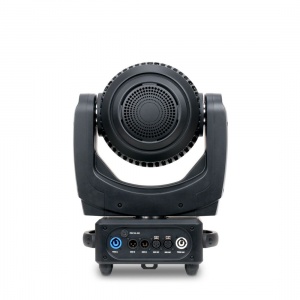

The FUZE WASH Z120™ is a single source par moving head luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, pan and tilt, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, DMX and power in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
FEATURES
Single Source LED Wash Luminaire
RGBW COB LED Technology
7° - 55° Motorized Zoom
Low Heat, Quiet Operation
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
120W Quad Color RGBW LED
100,000 Hour Average LED Life*
PHOTOMETRIC DATA
4,508 LUX 419 FC @ 16.4’ (5m) (Min. Zoom)
270 LUX 25 FC @ 16.4’ (5m) (Max. Zoom)
EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Modes
COLOR
RGBW Multi-Chip LED
Variable Color Temperature (2,700K - 8,000K)
CONTROL / CONNECTIONS
4 DMX Channel Modes (15 / 16 / 17 / 19)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Pan, Tilt and Dimming Control
7 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display

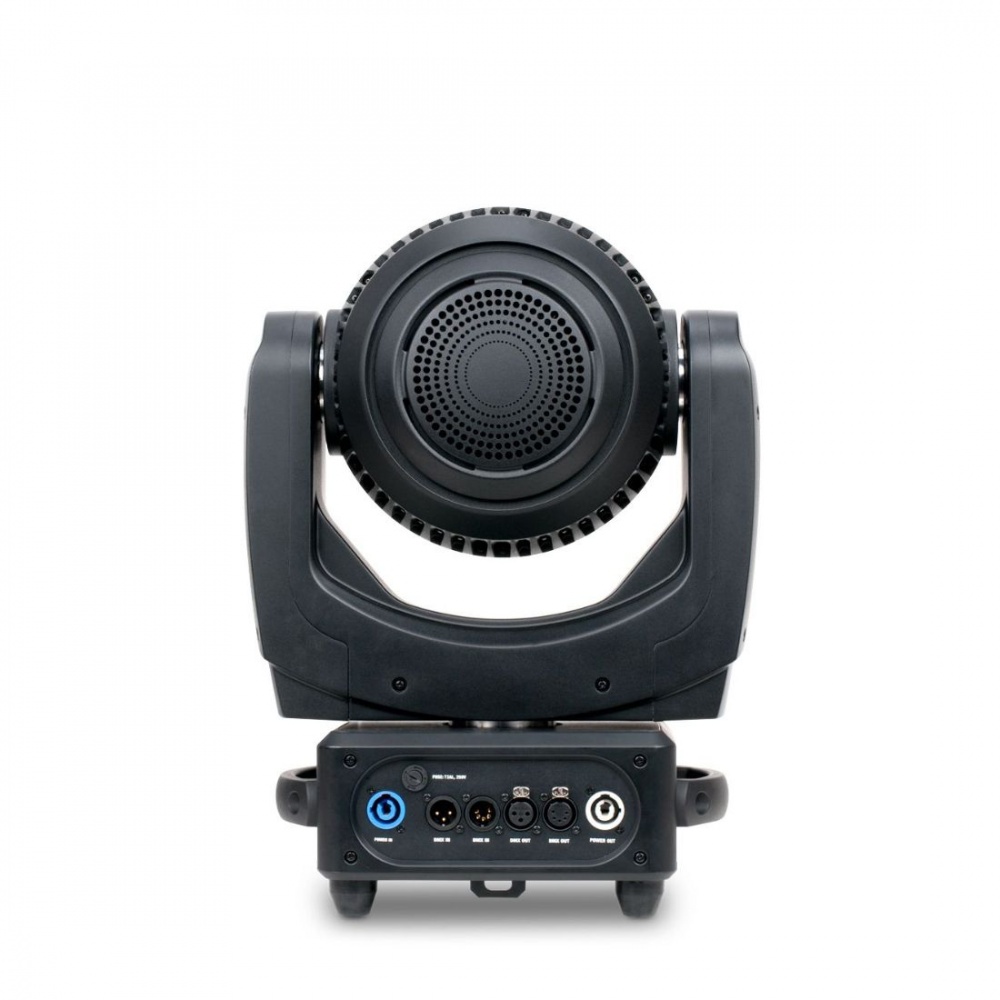

Locking 3/5pin XLR Connector In/Out
Locking Power Connector In/Out
SIZE / WEIGHT|
Length: | 13.3" (338mm) |
|
Width: | 9.0" (229mm) |
|
Vertical Height: | 18.3" (466mm) |
|
Weight: | 22 lbs. (10 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
157W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS

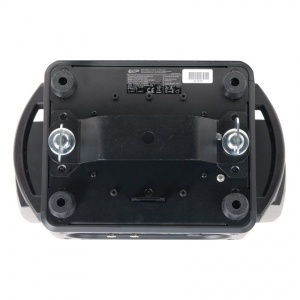

1 Omega Bracket
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome

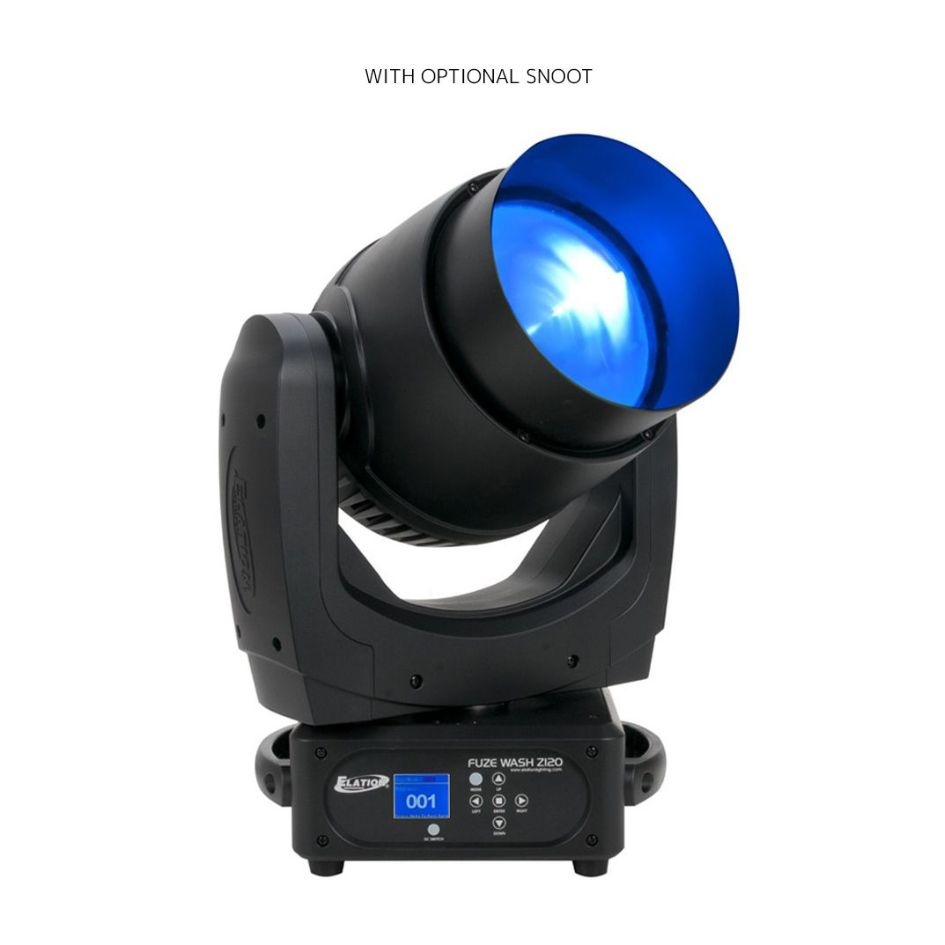

1237000160 Fuze Wash Z120 Snoot
1521000293 Touring Case 2x Fuze Wash Z120
1521000294 Touring Case 4x Fuze Wash Z120
1521000295 PRO Case 2x Fuze Wash Z120
1521000296 PRO Case 4x Fuze Wash Z120
1322000060
C-Loader II

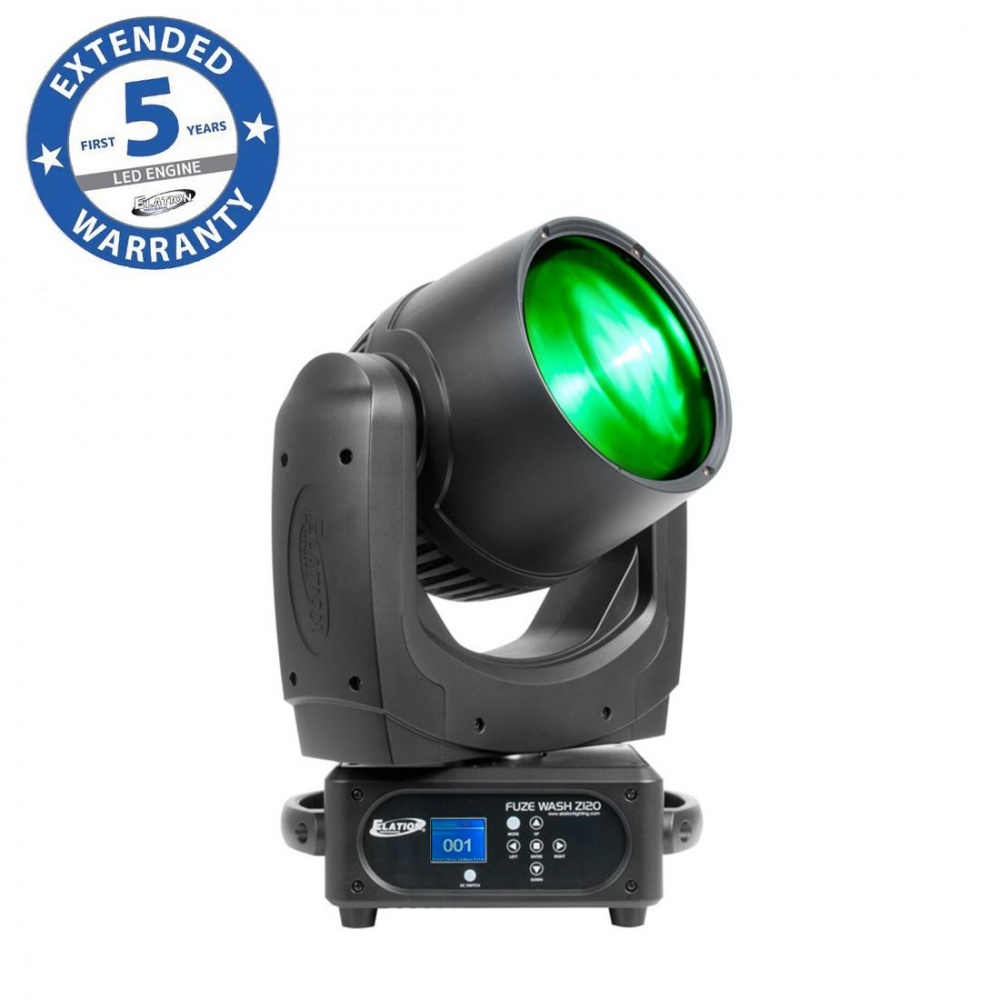

SPECIAL WARRANTY
Extended 5 Years LED Engine
Extended 3 Years Fixture Components on Registered Indoor Fixed Installation Projects
|
*LED Life may vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. |
The Fuze Wash Z120™ and Fuze Wash Z350™ are dynamic LED wash luminaires using single-lens RGBW COB LEDs for an extremely homogenized field of light and wide palette of colors. Fuze Series lights include a wide zoom range and are ideal lighting solutions anywhere a wash of high-quality colored light is required. With a lens face that appears as one color instead of individual LED diodes, designers value them for their non-pixel look as well as their versatility.
