FEATURES
480W Full Spectrum RGBMA LED Engine
14,000 Total Lumen Fixture Output @ 6,500K, 92 CRI
Internal 4-Blade Framing Module
Wide Zoom Range from 9° to 60°
Variable 16-bit Dimming Curve Modes
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book
SOURCE
480W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: | |
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
14,000 Total Lumen Fixture Output
CRI 92
EFFECTS
9° - 60° Motorized Zoom
Framing System
Dual Variable Frost Filters
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
COLOR
RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
4 DMX Channel Modes
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

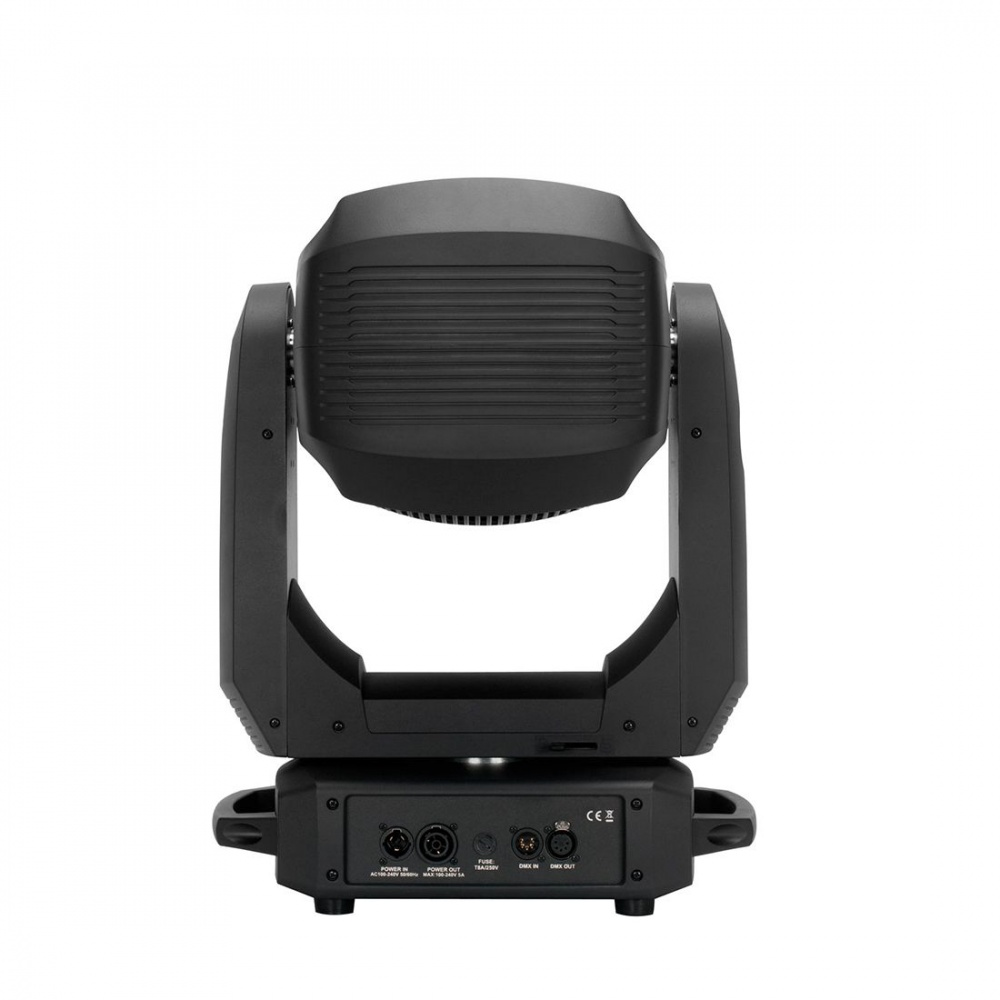

Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector Power In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: | 16.06" (408mm) |
Width: | 9.99" (253.72mm) |
Vertical Height: | 26.74" (679.9mm) |
Weight: | 55.1 lbs. (25kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption (631W)
14°F to 113°F (-10°C to 45°C)
