SOURCE
• 950W 6,500K Bright White LED Engine
• 30,000 Hour Average LED Life*.
PHOTOMETRIC DATA
• 51,000 Total Lumen Fixture Output
• CRI 72+ (85+ with HCRI filter)
Fresnel
• Zoom Range 11° - 55°
• Beam Angle 6.1° - 43.1°
• Field Angle 51.9° - 64.9°

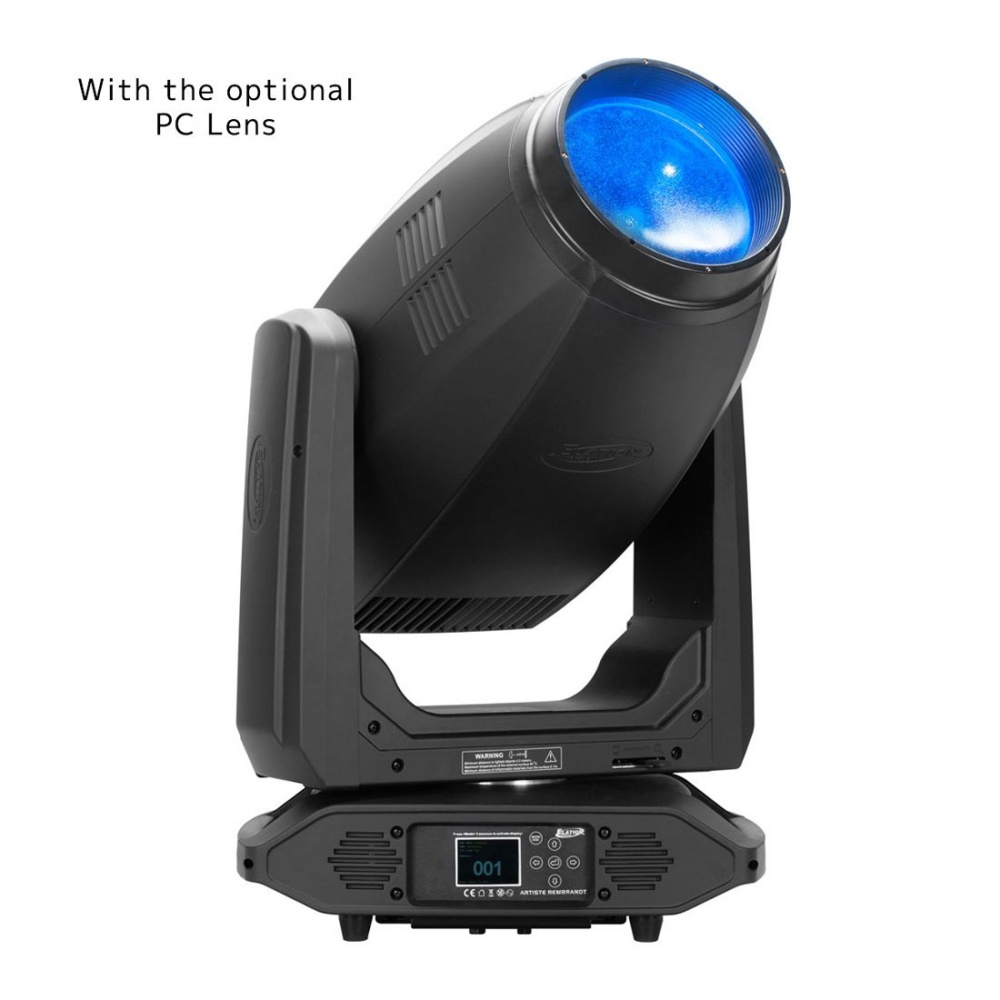

PC (optional)
• Zoom Range 8° - 50°
• Beam Angle 6.5° - 45°
• Field Angle 10.8° - 75.7°
EFFECTS
• Motorized Zoom (Fresnel)
• 4 Full Blackout Framing Blades
• 360° Framing Index - Continuous Framing Rotation
• 2 Bi-Directional Animation Wheels
• 2 Variable Frost Filters (Medium, Heavy)
• High Speed Iris
• Focus Edge Control
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe
• Adjustable LED Refresh Rate Frequency
COLOR
• SpectraColor CMY + RGB color mixing array
• 6 Dichroic Colors including High CRI Filter, UV
• Linear CTO Color Correction
CONTROL / CONNECTIONS
• 2 DMX Channel Modes (35/59 Ch.)
• 16-bit Pan, Tilt, and Dimming Control
• DMX, RDM, Art-NET, and sACN Protocol Support
• 6 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• Hibernation Mode (Power Save)
• Locking 5pin XLR DMX, RJ45 Ethernet, and Power
• With Wired Digital Communication Network
SIZE / WEIGHT
• Length: | 18.5 in. (471mm) |
• Width: | 23.3 in. (592mm) |
• Vertical Height (Fresnel Lens): | 31.5 in. (805mm) |
• Vertical Height (optional PC Lens): | 31.3 in. (795mm) |
• Weight: | 94.7lbs. (43 kg) |
ELECTRICAL / THERMAL
• AC 100-240V - 50/60Hz
• 1300W Max Power Consumption
• 14°F t
o 113°F (-10°C to 45°C)
• BTU/hr (+/- 10%) 4433
APPROVALS / RATINGS
• CE | cETLus (pending) | IP20
VIAC
